Crafted from high-quality steel, assuring robustness and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

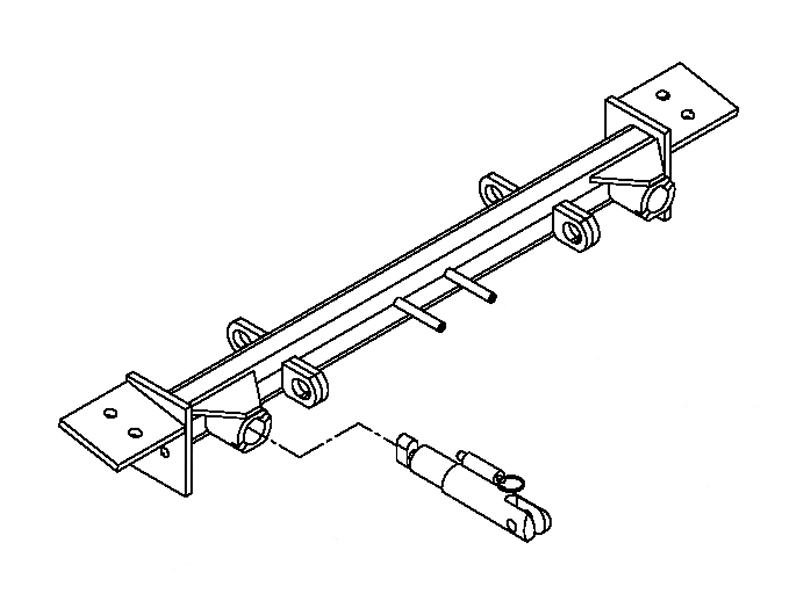

Take your towing experience up a notch with the Blue Ox BX2188 Tow Bar Bracket. Made with exceptional quality steel, this bracket promises a durable solution for your towing needs. It comes in a sleek black color with a protective powder coat finish, ensuring resistance against wear and tear. This bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and enhanced towing stability. It features a bolt-on mounting type, making installation easy and hassle-free. Plus, it comes with all the necessary mounting hardware included, meaning you don't need to make additional purchases. With the Blue Ox BX2188 Tow Bar Bracket, towing becomes safer, more secure, and much more efficient.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 | Lincoln Mark LT | Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Headlights Must be Removed and Replaced During Installation Minor Drilling Required Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs Bumper with Round Fog Lights |
| 2006 - 2007 | Lincoln Mark LT | Bumper with Round Fog Lights Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Headlights Must be Removed and Replaced During Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
Yes, the BX2188 is designed specifically for 2006-07 Lincoln Mark LT 4WD models. Before installation, confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures.
The BX2188 is rated for Class III, 5,000 lbs. However, the manual notes that the weight of the 2006-07 Lincoln Mark LT is near this rating limitation, and some models depending on options may exceed 5,000 lbs. You must confirm the weight of your individual vehicle before towing. If your vehicle exceeds 5,000 lbs, you must use the Aventa II (rated 10,000 lbs) or Aventa LX tow bar instead. Tow Bar Adapters cannot be used with vehicles weighing over 5,000 lbs.
The kit includes: one weldment base plate (61-6329), eight 1/2-13 x 1 1/2" Grade 5 bolts, two 3/4 OD spacer tubes, eight 1/2" lock washers, eight 1/2-13 hex nuts, two #12-14 x 1" self-drilling screws, two #10-32 x 1/2" round head screws, two #10 lock washers, two #10-32 hex nuts, two 4-way connector adapters (101-5822), two attachment tabs (62-3468), two 36" Class IV baseplate safety cables (226-0049), and two 1/2" quicklinks (229-0512). Two receiver cap plugs (290-0437) are also included.
Required tools are: 8mm socket, 10mm socket, 21mm socket, 3/4" socket, 17/32" drill bit, vise grips, and Loctite RED. A drill capable of using a 17/32" bit is necessary because drilling is required during installation.
Yes. The installation notes state that the headlight assemblies, hood support brackets, bumper, and metal bumper must be removed for installation. The removal process involves removing multiple bolts and pushpins from these components before the baseplate can be installed. All removed components are reinstalled after baseplate installation is complete.
Yes, drilling is required. During installation, you must use the baseplate as a template to drill two holes in the top and side of the frame rail using a 17/32" drill bit. This is done on both sides of the vehicle. The manual also notes that minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances.
The manual provides a general torque chart for Grade 5 and Grade 8 bolts. For 1/2" Grade 5 bolts, the specification is 78 foot-pounds; for Grade 8, it is 119 foot-pounds. The parts list indicates the bolts supplied are Grade 5. However, the manual also states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions. Use Loctite RED on all bolts before tightening.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not explicitly state it is required. The manual shows a possible location for the kit on the final page. Consult with your Blue Ox Dealer to confirm whether it is necessary for your specific installation.
Permanent baseplate safety cables are strongly recommended. Two 36" Class IV safety cables and two 1/2" quicklinks are included in the kit. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The installation sequence is: (1) Remove headlight assemblies and air dam; (2) Remove hood support brackets; (3) Remove metal bumper and fascia; (4) Slide baseplate onto frame rail and clamp with vise grips; (5) Drill two holes in frame rail using baseplate as template; (6) Install bolts, lock washers, and hex nuts on top of frame rail; (7) Install spacer tubes and bolts on side of frame rail; (8) Attach permanent baseplate safety cables; (9) Reinstall all removed components; (10) Install tow bar and safety cables per their instructions. Use Loctite RED on all bolts before tightening.
Hold the spacer tube between the baseplate and frame rail, aligned to the front hole on the baseplate side. Insert the 1/2-13 x 1 1/2" bolt through the spacer tube and tighten to the 1/2" lock washer and 1/2-13 hex nut on the side of the baseplate. Install a bolt, lock washer, and hex nut in the back hole and tighten. This is done on both sides of the vehicle.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in properly and functioning. Use Loctite Red on all bolts and tighten to the recommended specifications. It is your responsibility to hook up all towing equipment per manufacturer's instructions and recommendations. Remove the attachment tabs when not in use.
The attachment tab height is 22 inches and the attachment tab width is 22 inches.
You must use the hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. The manual states: "Even though bolts are there, do not assume they are adequate for baseplate mounting." If a bolt is lost or needs replacement, use a replacement bolt of the same grade—in most cases Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.us or by contacting the Customer Care Department at (888) 425-5382. While the manual does not explicitly prohibit non-dealer installation, professional installation is strongly recommended.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as improper installation could cause fluid leaks or electrical shorts. It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. The cables should remain installed as long as the baseplate is installed.
Yes, the BX2188 is designed for 2006-07 Lincoln Mark LT 4WD. Confirm your vehicle weight before towing—the baseplate is rated for Class III 5,000 lbs, and some models may exceed this.
Yes. You must drill two holes in the top and side of the frame rail using a 17/32" drill bit, using the baseplate as a template. Minor adjustments such as filing holes, bending electrical rods, or bending end plates may also be necessary.
Required tools: 8mm, 10mm, 21mm, and 3/4" sockets; 17/32" drill bit; vise grips; and Loctite RED. A drill capable of using a 17/32" bit is necessary.
Yes. The headlight assemblies, hood support brackets, bumper, and metal bumper must be removed. All components are reinstalled after baseplate installation.
Yes. Two 36" Class IV permanent baseplate safety cables and two 1/2" quicklinks are included. They must be connected from the baseplate to the frame rail or cross member and must not contact wires, hoses, or brake lines.
Use Loctite RED on all bolts before tightening. For 1/2" Grade 5 bolts (supplied with the kit), the torque specification is 78 foot-pounds. Refer to the torque chart on page 1 or the Baseplate Towing General Instructions for complete specifications.
The attachment tab height is 22 inches and width is 22 inches. Remove the tabs when not in use.
Reposition the cables so they do not rub against any hoses or moving parts. The cables must be connected from the baseplate to the frame rail or cross member. If the recommended mounting location interferes with other options, secure the cable to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure cables are not mounted against wires, hoses, or brake lines.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for auto manufacturer's tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates. Use the baseplate as a template and clamp it in place with vise grips before drilling to ensure proper alignment.
