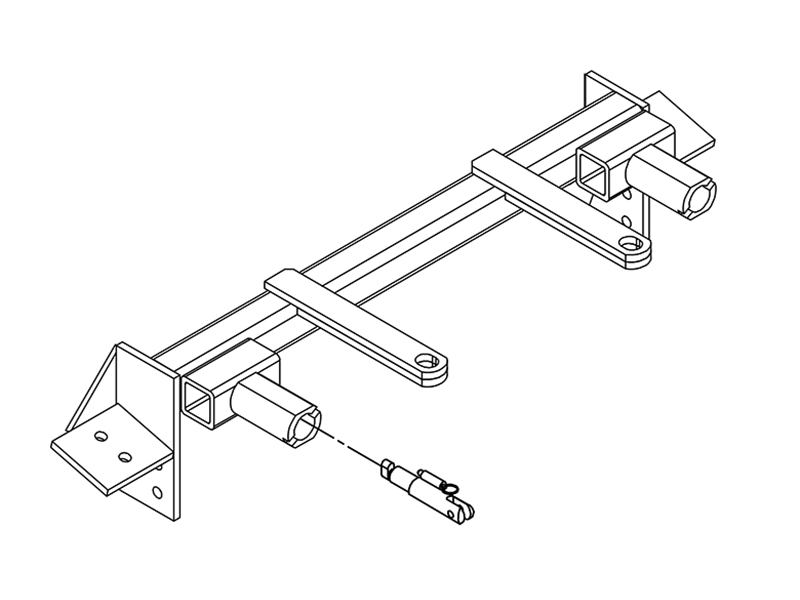

Custom-Made Design: Each BX2189 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2189 Tow Bar Bracket is an excellent addition to any towing setup. Custom made for each specific towed vehicle, this bracket guarantees a perfect fit and exceptional performance. Constructed from high-quality steel and finished with a durable powder coat, the BX2189 is designed to withstand the rigors of the road. Its bolt-on mounting type allows for a straightforward do-it-yourself installation, with all necessary hardware included. This black, robust tow bar bracket is your solution to a secure and hassle-free towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 | Lincoln Navigator | Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 2 Comes with Removable Attachment Tabs |
| 2007, 2009 - 2010 | Lincoln Navigator | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |

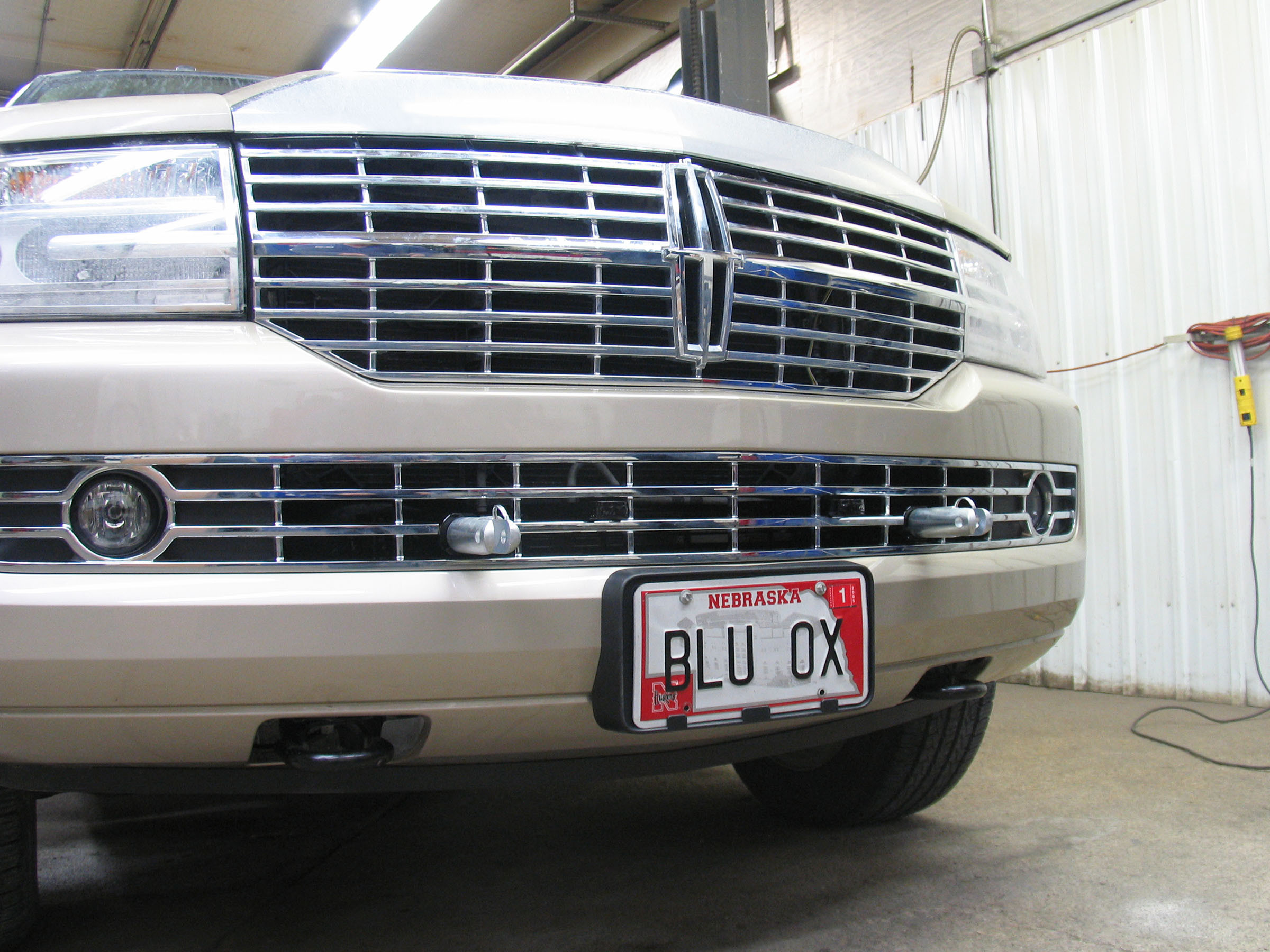

The BX2189 is a baseplate designed for towing a 2007-10 Lincoln Navigator behind a motorized vehicle. It attaches to the vehicle's frame and provides connection points for a tow bar and safety cables. The baseplate is rated for Class III towing with a 5,000 lbs weight limit, though some Navigator models with options may exceed this rating and require a higher-capacity tow bar such as the Aventa II.
The BX2189 is designed for 2007-10 Lincoln Navigator models. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary to compensate for manufacturer tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
The BX2189 is rated for Class III towing with a 5,000 lbs weight limit. However, the weight of a 2007-10 Lincoln Navigator is near this limit, and some models depending on options may well exceed 5,000 lbs. You must confirm the weight of your individual vehicle before towing. If your vehicle exceeds 5,000 lbs, you must use the Aventa II tow bar, which is rated for 10,000 lbs. Tow bar adapters cannot be used with vehicles weighing over 5,000 lbs.
Required tools include: Loctite RED, vise grips, 30 Torx socket, 7mm socket, 10mm socket, 17/32" drill bit, utility knife, and a torque wrench (for tightening bolts to specification). A power drill is needed for drilling the frame. When using power drills, be aware of the dangers of torque and drill bit length.
The kit includes: 1 weldment base plate (61-6363), 8 x 1/2-13 x 1 3/4" Grade 5 hex bolts (201-0068), 8 x 1/2" lock washers (203-0012), 8 x 1/2" nut wires (61-4029), 1 electrical bracket 90 degrees (101-6135), 4 x 1/4-20 x 3/4" Grade 8 hex head bolts (201-0569), 4 x 1/4" lock washers (203-0008), 2 x 1/4" flat washers (203-0001), 4 x 1/4-20 hex flange whiz lock nuts (202-0069), 2 x #10-32 x 1/2" slot round head screws (201-0192), 2 x #10 lock washers (203-0054), 2 x #10-32 hex nuts (202-0047), 2 x 4-way connectors (101-5822), 2 x attachment assemblies (62-3469), 2 x black cap plugs (290-0437), 2 x 1/2" quicklinks (229-0512), and 2 x 36" Class IV baseplate safety cables (226-0049).
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2007-10 Lincoln Navigator, but the manual does not explicitly state whether it is required or optional. The manual indicates a possible location for the kit on page 3. Contact Blue Ox at (402) 385-3051 for clarification on whether this kit is necessary for your specific installation.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with their products and have the equipment and knowledge to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051. The installation involves drilling, removal of multiple vehicle components, and precise alignment, which typically requires professional expertise.
The fascia, bumper, and belly pan cover must be removed for installation. The installation process also requires removal of 6 plastic phillips head pins (both sides), 1 pushpin per side, 2 bolts per side using a 30 Torx socket, 2 bolts per side using a 7mm socket, 2 bolts per side using a 10mm socket, and 3 christmas trees from the belly pan cover. All removed components and fasteners must be set aside for reinstallation after baseplate installation is complete.
Yes, drilling is required. The baseplate must be positioned on the frame and used as a template to drill four holes into the frame: two top holes and two holes on the inside of the frame on each side of the vehicle. All holes are drilled using a 17/32" drill bit. After drilling, 1/2" nut wire is inserted into the frame underneath and aligned with the drilled holes.
After the baseplate is installed, the fascia must be aligned to its original position and trimmed using a utility knife in the grille area in front of the attachment tabs. This trimming creates an opening for the tabs to come through when the fascia is reinstalled. This trimming must be done on both sides of the vehicle.
Yes, the drilling of holes into the frame is permanent. The manual notes that dimensional variations between vehicles can be considerable and minor adjustments may include filing holes, bending electrical rods, or bending end plates. These modifications are permanent alterations to the vehicle. The fascia trimming is also permanent, as it creates an opening for the attachment tabs.
The manual provides a general torque chart for Grade 5 and Grade 8 bolts by size: 1/4" Grade 5 bolts = 10 ft-lbs, Grade 8 = 14 ft-lbs; 5/16" Grade 5 = 19 ft-lbs, Grade 8 = 29 ft-lbs; 3/8" Grade 5 = 33 ft-lbs, Grade 8 = 47 ft-lbs; 1/2" Grade 5 = 78 ft-lbs, Grade 8 = 119 ft-lbs. The manual states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions. Loctite RED must be applied to all bolts before tightening.
The attachment tab height is 24" and the attachment tab width is 24".
A 17/32" drill bit is used to drill the four holes into the frame (two top holes and two holes on the inside of the frame on each side of the vehicle).
The kit includes 2 x 4-way round electrical connectors (part 101-5822). The manual shows illustrations of both 4-way round and 6-way round electrical connectors, though only the 4-way connectors are included in the BX2189 kit. The manual recommends the BX8869 Bulb and Socket Wiring Kit for this vehicle and indicates a possible location for it on page 3.
The manual recommends placing the electrical bracket under the license plate. The kit includes 1 electrical bracket, 90 degrees (part 101-6135).
Yes. The manual explicitly states: "Be sure that ALL electrical connections are plugged in properly and functioning BEFORE installing the fascia." This check must be completed during the installation process before the fascia is reinstalled.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principal function is to prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected. The BX2189 kit includes 2 x 36" Class IV baseplate safety cables (part 226-0049). Each cable must have an adequate weight rating for the towing system; the weight rating of the two cables together will not qualify as a single cable. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual states that installation instructions are included with the permanent baseplate safety cables themselves. The cables must not be mounted against wires, hoses, or brake lines. The manual provides illustrations of possible recommended arrangements for cable attachment on page 7.
If the baseplate is in an accident, it must be replaced and DO NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Loctite RED must be applied to all bolts before tightening. The manual emphasizes: "BE SURE TO USE LOCTITE RED ON ALL BOLTS BEFORE TIGHTENING." This is critical for maintaining bolt security during towing.
When using power drills, be aware of the dangers of torque and drill bit length. The manual does not provide specific details but warns installers to exercise caution with these hazards during the drilling process.
Before each towing trip, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. All bolts should be checked and tightened to the recommended specifications using Loctite Red. The manual also states that all towing equipment must be hooked up per manufacturer's instructions and recommendations.
Yes. The manual states: "Remove the attachment tabs when not in use (if applicable)." The kit includes 2 removable attachment assemblies (part 62-3469).
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (402) 385-3051. This may indicate a variation in your specific vehicle that requires special attention or confirmation of fitment.
The manufacturer's warranty is voided if: (1) the installation instructions are not followed or altered in either installation or required equipment, or (2) towing is done behind a non-motorized vehicle. Additionally, if the baseplate is damaged or in an accident, it must be replaced and cannot be reused. For specific warranty details and coverage, contact Blue Ox Customer Care at (402) 385-3051.
No. The manual explicitly states: "Use only genuine factory replacement parts on your baseplate. Do NOT substitute homemade or non-typical parts." If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty and compromise your safety.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade. In most cases, this will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts, as this will void the manufacturer's warranty and compromise safety.
Yes, the BX2189 is designed for 2007-10 Lincoln Navigator models. Minor adjustments may be needed to compensate for manufacturer tolerances. Confirm your vehicle weight before towing; some models may exceed the 5,000 lbs Class III rating.
Required tools: Loctite RED, vise grips, 30 Torx socket, 7mm socket, 10mm socket, 17/32" drill bit, utility knife, power drill, and torque wrench. Professional installation by a Blue Ox Dealer is recommended.
The fascia, bumper, and belly pan cover must be removed. You will also remove 6 plastic pins, 1 pushpin per side, 2 bolts per side (30 Torx), 2 bolts per side (7mm), 2 bolts per side (10mm), and 3 christmas trees from the belly pan cover.
Yes. You must drill four holes into the frame using a 17/32" drill bit (two top holes and two inside frame holes per side). You will also trim the fascia grille area with a utility knife to create an opening for the attachment tabs.
Apply Loctite RED to all bolts before tightening. Use the torque chart provided: 1/4" Grade 5 = 10 ft-lbs (Grade 8 = 14 ft-lbs); 1/2" Grade 5 = 78 ft-lbs (Grade 8 = 119 ft-lbs). Refer to the full chart on page 1 for other sizes.
The kit includes 2 x 4-way round electrical connectors and 1 electrical bracket (90 degrees) for mounting under the license plate. The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle.
Permanent baseplate safety cables are strongly recommended. The kit includes 2 x 36" Class IV cables. They must be connected from the baseplate to the vehicle's frame rail or cross member and must not touch wires, hoses, or brake lines. They supplement, not replace, legally required safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to specification using Loctite Red. Verify all electrical connections are functioning properly.
Ensure Loctite RED was applied to all bolts before initial tightening. Retighten all bolts to the correct torque specification according to the bolt grade and size chart on page 1. Before each towing trip, inspect all bolts and retighten as needed. If bolts continue to loosen, verify that the correct bolt grade and size are being used and that Loctite RED is applied to replacement bolts.
Verify that all electrical connections are plugged in properly before the fascia is reinstalled. Check that the 4-way connectors are fully seated. If the BX8869 Bulb and Socket Wiring Kit was recommended for your vehicle, ensure it is properly installed. Test all connections before completing the installation. If connections still do not function, contact Blue Ox Customer Care at (402) 385-3051.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary, including filing a hole slightly, bending electrical rods, or bending end plates to compensate for manufacturer tolerances. Use vise grips to secure the baseplate in position while drilling. If alignment issues persist or major modifications appear necessary, contact Blue Ox at (402) 385-3051 before proceeding.
Do not use the baseplate. If the baseplate is damaged or has cracked welds, it must be replaced. Do not attempt to repair or reuse a damaged baseplate, as unseen damage can cause more damage or serious injury during towing. Contact Blue Ox at (402) 385-3051 to order a replacement.
