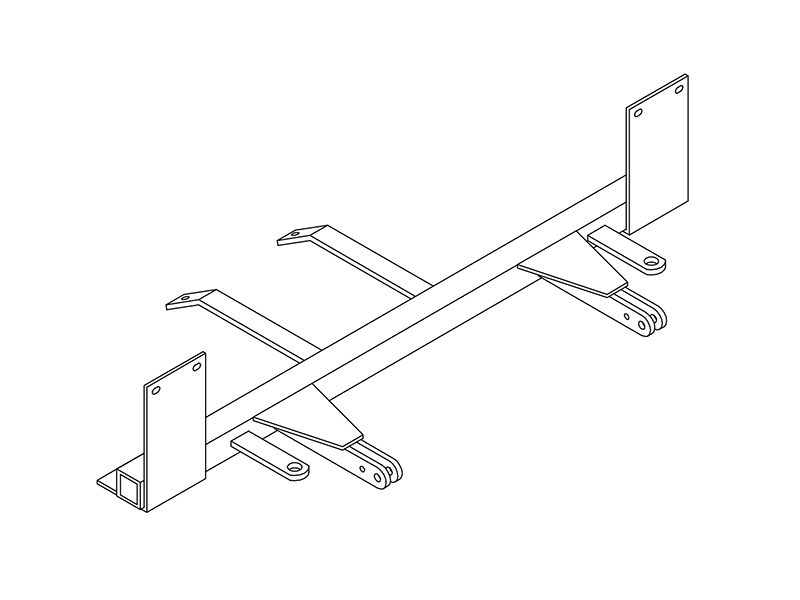

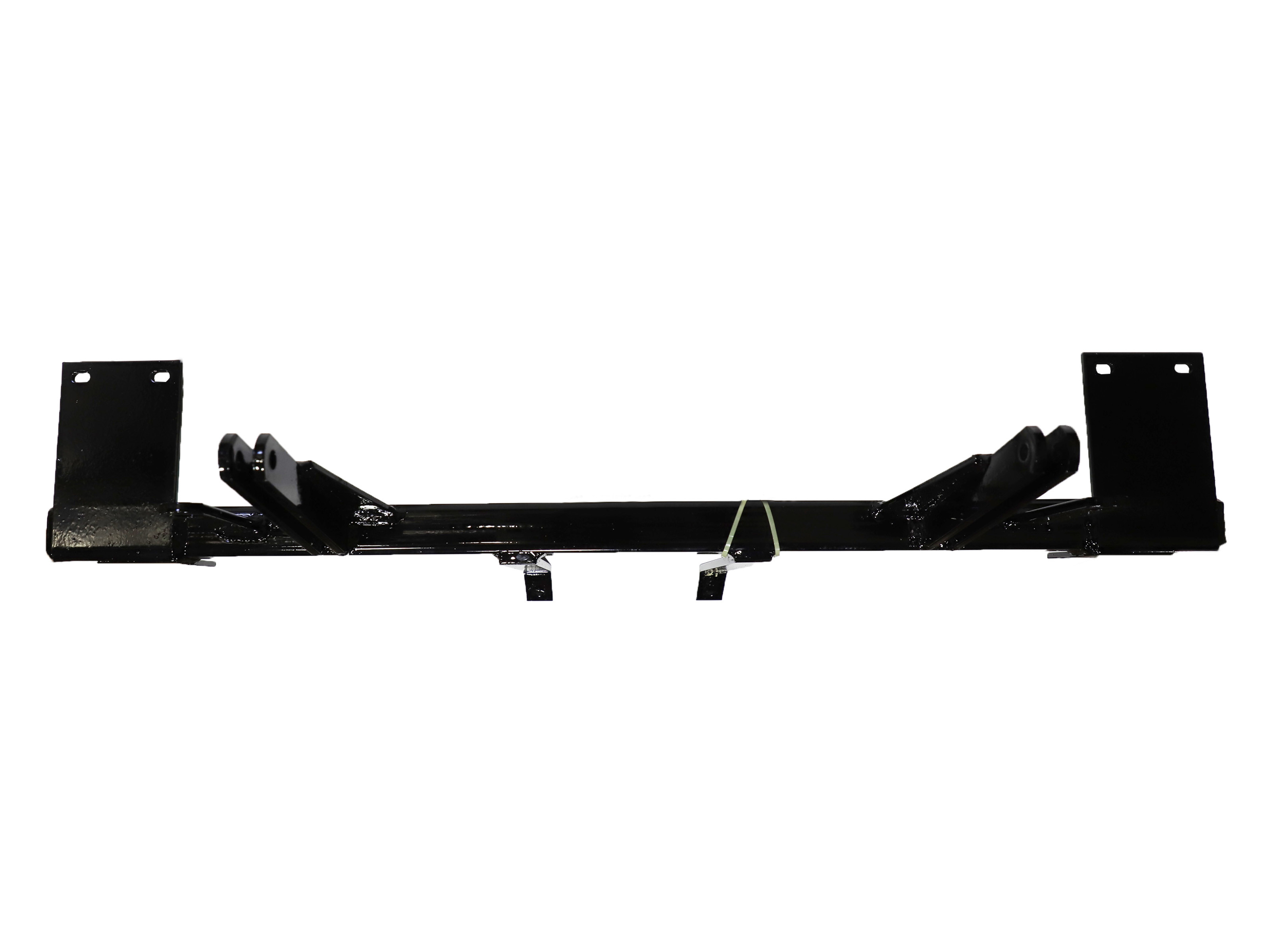

Custom-Designed Fit: Each Blue Ox BX2133 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a secure fit and reliable performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2133 Tow Bar Bracket is a premium, custom-designed base plate that ensures reliable and secure towing. Made with top-quality steel and finished in a durable black powder coat, this tow bar bracket is built to withstand challenging towing conditions. With its bolt-on mounting type, the BX2133 is easy to install and comes with all the necessary hardware, making it a perfect DIY solution for your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BX2133 baseplate is designed for the 1994 Lincoln Continental. However, the manual notes that dimensional variations between otherwise identical cars can be considerable, so it may be necessary to file a hole slightly to allow a bolt to clear during installation.
A Class III (5000 lbs) rated tow bar, hitch and accessories are required. The 1994 Lincoln Continental weighs over 3500 lbs and must use equipment rated for this weight class. Using a Blue Ox baseplate with any tow bar not approved by Automatic Equipment Mfg. Co. invalidates the limited warranty.
The following tools are required: 9/16" wrench, 3/4" wrench, 7/8" wrench, 17/32" drill bit, drill, and Loctite Blue.
Yes. You must remove the two bottom bolts from each end of the front fender bolt assemblies. There may be inserts placed between the steel frame and the plastic frame of the bumper that also need to be removed.
The baseplate bolts to the bottom bolts of the front fender bolt assembly (four bolts on each assembly). Use the 3/8 x 1 3/4" bolts (Item 11) along with the 3/8" flat washers (Item 12) and 3/8" lock washers (Item 13) and 3/8" hex nuts (Item 14) to bolt the baseplate to the bumper assembly. Tighten the bolts and apply Loctite Blue to ensure the nuts do not loosen while the vehicle is being towed.
Yes. Holes must be drilled in the main cross frame for the two middle braces. Use the holes of the baseplate as a guide and drill 17/32" holes in the cross frame. The outside braces will use existing holes in the main cross frame and do not require drilling.
17/32" holes must be drilled in the main cross frame to attach the center braces. Use the holes of the baseplate as a guide for drilling location.
After drilling 17/32" holes in the cross frame using the baseplate holes as a guide, use 1/2 x 1 1/2" bolts (Item 7) along with 1/2" lock washers (Item 8) and 1/2" wire nuts (Item 9) to bolt the center braces to the frame.
The straight outside braces (Item 2) bolt to the bottom of the baseplate's main braces using 1/2" bolts, nuts and washers (Items 7, 8 and 10). The other end of the braces uses the slotted holes on the underside of the main frame and is secured with 5/8" wire bolts, nuts and washers (Items 4, 5 and 6).
The manual does not provide torque specifications. However, it states that Loctite Blue must be used when tightening bolts to ensure the nuts do not loosen while the vehicle is being towed. Consult the General Instruction Sheet included with the baseplate or contact Automatic Equipment Mfg. Co. for torque values.
Loctite Blue is a threadlocker compound that must be applied to all bolts during the BX2133 installation to ensure the nuts do not loosen while the vehicle is being towed. It is a critical safety measure for maintaining the integrity of the baseplate attachment.
Yes, it may be necessary. The manual states that dimensional variations between otherwise identical cars can be considerable. While the location and size of the holes in the baseplate were designed to allow for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2133 kit includes two permanent baseplate safety cables (226-0046, 36" CL III). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses or brake lines. Permanent safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. It is crucial to register your BX2133 baseplate online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Remove the attachment tabs when not in use (if applicable).
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from the tow bar manufacturer or contact Automatic Equipment Mfg. Co.
The BX2133 kit includes: one baseplate weldment (61-5127), two outside braces (102-5352), fasteners (5/8" wire bolts, lock washers, hex nuts, 1/2" bolts, lock washers, wire nuts, 3/8 x 1 3/4" bolts, flat washers, lock washers and hex nuts), two permanent baseplate safety cables 36" CL III (226-0046), and two quicklinks 3/8" ZP (229-0359). The kit does not include the tow bar, which must be purchased separately and must be Class III (5000 lbs) rated and approved by Automatic Equipment Mfg. Co.
The manual does not explicitly state whether professional installation is required or recommended. However, the installation involves drilling 17/32" holes in the vehicle's main cross frame, removing factory bumper components, and working with multiple fasteners and frame attachments. The manual notes that dimensional variations between cars can be considerable and may require filing holes. It is advisable to consult with a professional installer or contact Automatic Equipment Mfg. Co. for guidance.
Yes, the BX2133 is designed for the 1994 Lincoln Continental. A Class III (5000 lbs) rated tow bar approved by Automatic Equipment Mfg. Co. is required.
You need: 9/16", 3/4" and 7/8" wrenches, a 17/32" drill bit, a drill, and Loctite Blue threadlocker.
Yes. You must drill 17/32" holes in the main cross frame to attach the center braces. The outside braces use existing frame holes.
Use 3/8 x 1 3/4" bolts with 3/8" flat washers, 3/8" lock washers and 3/8" hex nuts. Apply Loctite Blue to all bolts.
Yes. Two 36" Class III permanent baseplate safety cables are included. They must be connected from the baseplate to the frame and must not touch wires, hoses or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Tighten all bolts to specification and use Loctite Red on them.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1994 | Lincoln Continental | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required |
