Custom-designed for each specific towed vehicle, ensuring a perfect fit and efficient performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

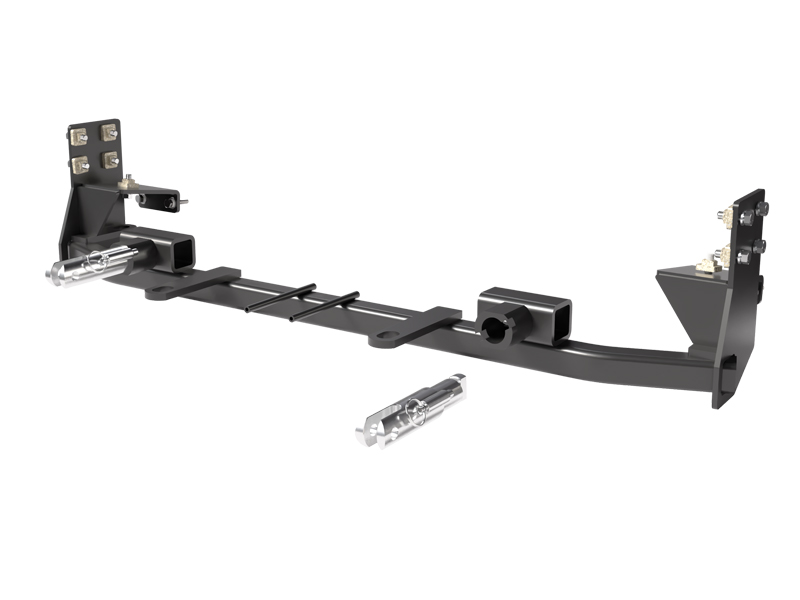

Experience the robust strength and reliability of the Blue Ox BX2528 Tow Bar Bracket. This high-quality tow bar bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and efficient performance. Made from tough steel material, it offers superior durability and longevity. The black powder coat finish not only enhances its aesthetic appeal but also adds an extra layer of protection against rust and corrosion. The bolt-on mounting type simplifies the installation process and ensures a secure fit. With the included mounting hardware and comprehensive instructions, you can easily install it yourself, saving time and money. Upgrade your vehicle with the Blue Ox BX2528 Tow Bar Bracket and enjoy hassle-free towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 | Mazda 2 | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BX2528 is designed specifically for the 2011 Mazda 2. The baseplate has an attachment tab height of 13" and width of 24". Before purchasing, verify your vehicle is a 2011 Mazda 2 and check with Blue Ox at (402) 385-3051 if the front of your vehicle looks different than shown in the manual.
The BX2528 is a towing baseplate designed to mount to the frame of a 2011 Mazda 2 to enable towing with a tow bar. It includes attachment tabs and safety cable connection points. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty.
Required tools include: large vise grips, flat screwdriver, utility knife, torque wrench, drill, reciprocating saw, tape measure, Loctite Red, 1-1/4" hole saw, 1/4" drill bit, 13/32" drill bit, 8MM socket, 10MM socket, 12MM socket, 13MM socket, and 9/16" socket.
The kit includes: 10 nut plates with 14" wire (3/8"-16), 2 attachment tab assemblies, 1 breakaway bracket, 2 bolts (1/4"-20 x 3/4"), 2 round slotted head screws (#10-32 1/2"), 10 hex head bolts (3/8"-16 x 1-1/4"), 4 hex head bolts (8MM-1.25 x 35MM), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 2 nylon lock nuts (1/4"-20), 4 flat washers (5/16"), 4 lock washers (5/16"), 10 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 safety cables, 2 quicklinks (3/8"), and 2 black cap plug receivers.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Yes, drilling is required. You must drill a 1/4" pilot hole in the bumper, then use a 1-1/4" hole saw to drill through the bumper and frame for nut plate access on both sides. Additionally, you must drill two 13/32" holes on the underside of the baseplate through the frame (one on each side) and eight 13/32" holes on the sides of the baseplate through the frame (four on each side).
Yes. The fascia must be trimmed around the convenience links and attachment tabs after baseplate installation. Additionally, the lower frame extension requires cutting: using a reciprocating saw, cut two slits on the flange back to the face of the frame on both sides. The lower shrouding will not be reinstalled.
Yes. After cutting two slits on the lower frame extension flange using a reciprocating saw, you must use vise-grips to bend the flange down so it is flush with the face of the frame. This must be done on both sides of the vehicle.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. After drilling, use a good quality paint to spray cut edges of frame to prevent rusting.
1. Using a 10MM socket, remove the screw from the top edge of the fascia (white) and the push pin (gray) on both sides. 2. Using an 8MM socket, remove the screw from the edge of the wheel well on both sides. 3. Using an 8MM socket, remove six screws from the underside of the fascia (two on each side inset, two in the middle). 4. Pry the corners of the fascia away and disconnect all electrical connections. 5. Pull the fascia off. 6. Remove the push pin from the styrofoam reinforcement on both sides and set it aside.
Position the baseplate onto the vehicle and start the four 8MM bolts with 5/16" lock and flat washers into the existing frame extension holes (two on each side). Push the baseplate back and up tight against the frame and clamp in place. Fully tighten the lower frame extension bolts. Then drill the two 13/32" holes on the underside of the baseplate through the frame (one on each side) and install 3/8"-16 x 1-1/4" bolts with 3/8" lock washers, securing with 3/8" nut plates on the inside of the frame.
A total of 12 bolts secure the baseplate: 4 bolts (8MM-1.25 x 35MM) in the lower frame extension holes (two on each side), 2 bolts (3/8"-16 x 1-1/4") on the underside of the baseplate through the frame (one on each side), and 8 bolts (3/8"-16 x 1-1/4") on the sides of the baseplate through the frame (four on each side).
According to the torque chart provided, 8MM Grade 5 bolts should be torqued to 16 foot-pounds, and 8MM Grade 8.8 bolts should be torqued to 22 foot-pounds. The 8MM-1.25 x 35MM bolts used in the frame extension are Grade 5. Always use Loctite Red on all bolts before tightening.
According to the torque chart provided, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds, and 3/8" Grade 8 bolts should be torqued to 47 foot-pounds. The 3/8"-16 x 1-1/4" bolts used in the baseplate are Grade 5. Always use Loctite Red on all bolts before tightening.
The following must be removed: fascia (with all electrical connections disconnected), styrofoam reinforcement, temperature sensor from the bumper, lower shrouding (which will not be reinstalled), and four screws from the lower frame extension. Place all removed items on a flat, sturdy surface; all items except the lower shrouding will be reinstalled after baseplate installation.
Yes, the temperature sensor must be reinstalled. It is removed in Step 5 and then reinstalled in Step 10 after the baseplate bolts are installed.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Each cable must have an adequate weight rating; the combined rating of two cables is required. Safety cables must not be mounted against wires, hoses, or brake lines, and must not rub against hoses or moving parts.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The manual shows recommended installation of the cables to the frame of the vehicle. Additional options may interfere with suggested mounting; in that case, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Install on both sides of the vehicle. Ensure the safety cables do not rub against any hoses or moving parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Ensure all electrical connections are plugged in and accessories are functioning properly.
If the baseplate is damaged or in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses. The baseplate must not be positioned against these components. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Permanent baseplate safety cables must not be mounted against wires, hoses, or brake lines.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. The fascia must be trimmed around the convenience links and attachment tabs to fit properly over the installed baseplate.
Yes, the attachment tabs should be removed when not in use.
The BX8848 4-Diode Wiring Kit is recommended for the 2011 Mazda 2 with the BX2528 baseplate.
No. Even though bolts may already exist in the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Reference your vehicle owner's manual for manufacturer's towing specifications.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering them will void the manufacturer's warranty.
Yes, towing behind a non-motorized vehicle will void the warranty.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX2528 is designed specifically for the 2011 Mazda 2 with attachment tabs 13" high and 24" wide.
Yes. You must drill a 1/4" pilot hole and 1-1/4" hole through the bumper and frame on both sides, plus eight 13/32" holes through the frame for baseplate mounting.
Yes. The fascia must be trimmed around the baseplate, the lower frame extension flange must be cut with a reciprocating saw and bent flush with the frame, and the lower shrouding is removed.
Required tools include: torque wrench, drill with 1/4", 13/32" and 1-1/4" bits, reciprocating saw, vise grips, sockets (8MM, 10MM, 12MM, 13MM, 9/16"), Loctite Red, tape measure, utility knife, and flat screwdriver.
Yes, Blue Ox recommends installation by Blue Ox Dealers familiar with the product and equipped for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
Use the torque chart provided: 8MM Grade 5 bolts = 16 ft-lbs, 3/8" Grade 5 bolts = 33 ft-lbs. Always apply Loctite Red before tightening.
Yes, permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail and must not contact hoses or wires.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten all bolts to specification. Verify all electrical connections are plugged in and functioning.
