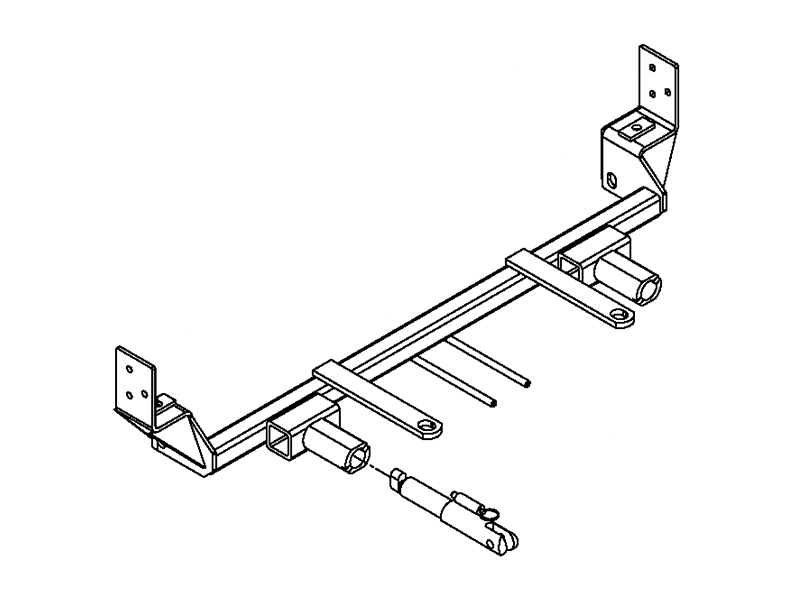

Custom Designed: Each Blue Ox BX2525 Tow Bar Bracket is tailored to fit each specific towed vehicle for optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2525 Tow Bar Bracket is a sturdy, high-quality product designed to meet all your towing needs. Custom made for each specific towed vehicle, this bracket ensures a perfect fit for superior performance. Constructed from top-grade steel, it features a black powder coat finish for enhanced durability and resistance to rust, ensuring long-lasting reliability. The bolt-on mounting type facilitates easy installation, and with all necessary hardware included, you can set it up yourself following the provided instructions. This Blue Ox Tow Bar Bracket is your ultimate choice for a safe and secure towing experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010, 2012 | Mazda 5 | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2525 is designed specifically for 2010-12 Mazda 5 vehicles. The manual confirms this is the correct baseplate for these model years. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of the removable tabs on the BX2525, the RangeFinder II tow bar cannot be used with this baseplate.
Only adapters BX8833 and BX88151 can be used with the BX2525 baseplate. All other adapters are not compatible.
The following tools are required: 8MM socket, 10MM socket, 12MM socket, 9/16" socket, large vise grip, drill, flat screwdriver, Phillips screwdriver, utility knife, torque wrench, tape measure, 1 1/4" hole saw, and 13/32" drill bit. Loctite RED is also required for all bolts.
The hardware kit includes: 6 pieces of 3/8-16 x 1 1/4" hex bolts (Grade 5), 2 pieces of 3/8-16 x 1 1/2" hex bolts (Grade 5), 8 pieces of 3/8" lock washers, 8 pieces of 3/8" nut plates with wire, 2 pieces of #12-14 x 1" self-drilling screws, 2 pieces of #10-32 x 1/2" slot round head screws, 2 pieces of #10 lock washers, 2 pieces of #10-32 hex nuts, 2 pieces of 1/4-20 x 3/4" hex bolts (Grade 5), 2 pieces of 1/4-20 hex nylon nuts, 2 adapters for 4-way connectors, 2 attachment assemblies (SF/LB right), 1 breakaway bracket (BX1986), 2 cap plugs (black), 2 permanent baseplate safety cables, and 2 quick links (zinc plated).
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2010-12 Mazda 5, but not stated as required. The manual indicates it is a recommended accessory for this vehicle.
The following components must be removed: fascia, foglights, horn bracket, windshield washer reservoir, air dams, and temperature sensor. The washer reservoir requires trimming (1/4" trim on the reservoir tab). The air dams will not be reinstalled. All other components are reinstalled after baseplate installation.
1. Remove two Phillips screws from the top of the fascia and pry up the pushpin tabs using a flat screwdriver to release them. 2. Remove three Phillips push pins from inside the wheel well on each side, just forward of the front tire. 3. Pull the wheel well cover aside and remove one metric bolt from each side of the fascia using an 8MM socket. 4. Remove ten metric bolts from the underside of the fascia (four each side and two from center) using an 8MM socket. Lift up on tabs behind the top edge, pull fascia corners out to release clips, then pull forward to remove. Disconnect foglights if applicable.
On the driver's side, remove one metric bolt from the horn bracket using a 12MM socket. Disconnect the electrical connector and release the clip. Set the horn bracket and bolt aside for reinstallation. After baseplate installation, the horn bracket must be trimmed so it fits beside the baseplate, reversed, and the little tab at the top removed before reattaching with the existing bolt.
On the passenger's side washer reservoir, mark 1/4" in on the reservoir tab and trim away with a utility knife. Then reinstall the washer reservoir to its original location.
Yes, drilling is required. Using the baseplate as a template, you must drill three holes into the side of the frame rail and one hole on the bottom of each side using a 13/32" drill bit. Additionally, a 3/8" hole must be drilled for the temperature sensor backing plate. A 1 1/4" hole saw is also required for other drilling operations.
The grille must be marked and trimmed to allow the attachment tabs and convenience links to come through. Specific dimensions for this trim are not detailed in the manual; the installer should hold the fascia up to its original position and mark where trimming is needed.
The attachment tab height is 14 1/2" and the attachment tab width is 24". If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
The baseplate uses 3/8-16 nut plates inserted into the frame rail. For the bottom hole, install 3/8-16 x 1 1/2" hex bolts (Grade 5) with 3/8" lock washers. For the side holes, use 3/8-16 x 1 1/4" hex bolts (Grade 5) with 3/8" lock washers. Loctite RED must be applied to all bolts before tightening. Tighten according to the torque chart on the front page of the instructions or page 3 of the Baseplate Towing General Instructions (specific torque value not provided in this manual).
The breakaway bracket is attached to the bottom of the vehicle bumper using 1/4-20 x 3/4" hex bolts (Grade 5) and 1/4-20 hex nylon nuts. Two bolts and two nuts are required.
Just in front of the radiator, release the clips and disconnect the temperature sensor. After the baseplate is positioned, slide a backing plate behind the brace in front of the radiator, drill a 3/8" hole, and reattach the temperature sensor.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. However, permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the vehicle's frame. The manual shows the recommended installation attaching the cables to the frame of the vehicle. If the vehicle has additional options that interfere with mounting the cables, secure the cable to a solid piece of the vehicle's frame as described in the instructions included with the permanent baseplate safety cables. Do not mount the cables against wires, hoses or brake lines.
Before installing the fascia, be sure that all electrical connections are plugged in properly and functioning. This should be verified before reinstalling the fascia, foglights, push pins, screws and bolts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use if applicable. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. Even though bolts may already be present on your vehicle, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Installation Instructions. Using inadequate hardware could result in separation of the towed vehicle from the tow bar.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions will void the manufacturer's warranty.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.

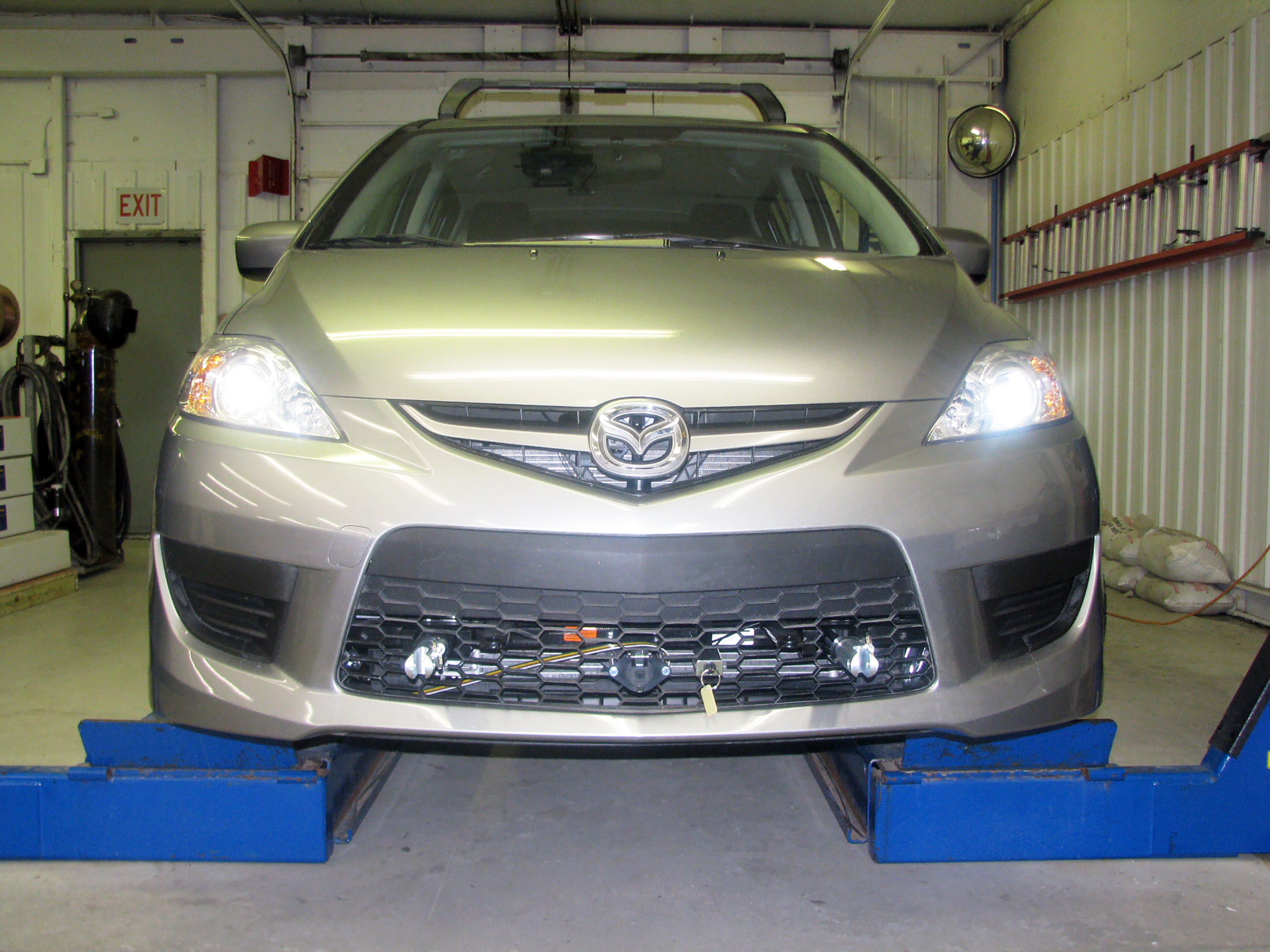

Yes, the BX2525 is designed for 2010-12 Mazda 5 vehicles. Minor adjustments may be needed to compensate for manufacturer tolerances.
No, the RangeFinder II tow bar cannot be used with the BX2525 due to the design of the removable tabs.
Required tools include: 8MM, 10MM, 12MM and 9/16" sockets, large vise grip, drill, flat and Phillips screwdrivers, utility knife, torque wrench, tape measure, 1 1/4" hole saw, 13/32" drill bit, and Loctite RED.
Fascia, foglights, horn bracket, windshield washer reservoir, air dams, and temperature sensor must be removed. The washer reservoir requires 1/4" trimming. Air dams are not reinstalled.
Yes. Using a 13/32" drill bit, drill three holes into the side of each frame rail and one on the bottom. A 3/8" hole is also required for the temperature sensor. A 1 1/4" hole saw is needed for additional drilling.
Use 3/8-16 x 1 1/2" hex bolts (Grade 5) for the bottom hole and 3/8-16 x 1 1/4" hex bolts (Grade 5) for side holes, with 3/8" lock washers. Apply Loctite RED to all bolts before tightening.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail or cross member and are used in conjunction with, not as a replacement for, legally required safety cables.
Verify that all electrical connections are plugged in properly and functioning before installing the fascia, foglights, push pins, screws and bolts.
If the front of your vehicle looks different than the manual illustration, call Blue Ox Customer Care at (402) 385-3051. This may indicate a vehicle variation or fitment issue that requires professional assessment.
Minor adjustments may be necessary to compensate for auto manufacturer's tolerances. These adjustments may include filing a hole slightly, bending electrical rods or bending end plates. If significant adjustments are needed or the baseplate cannot be fitted properly, contact a Blue Ox Dealer at (402) 385-3051.
