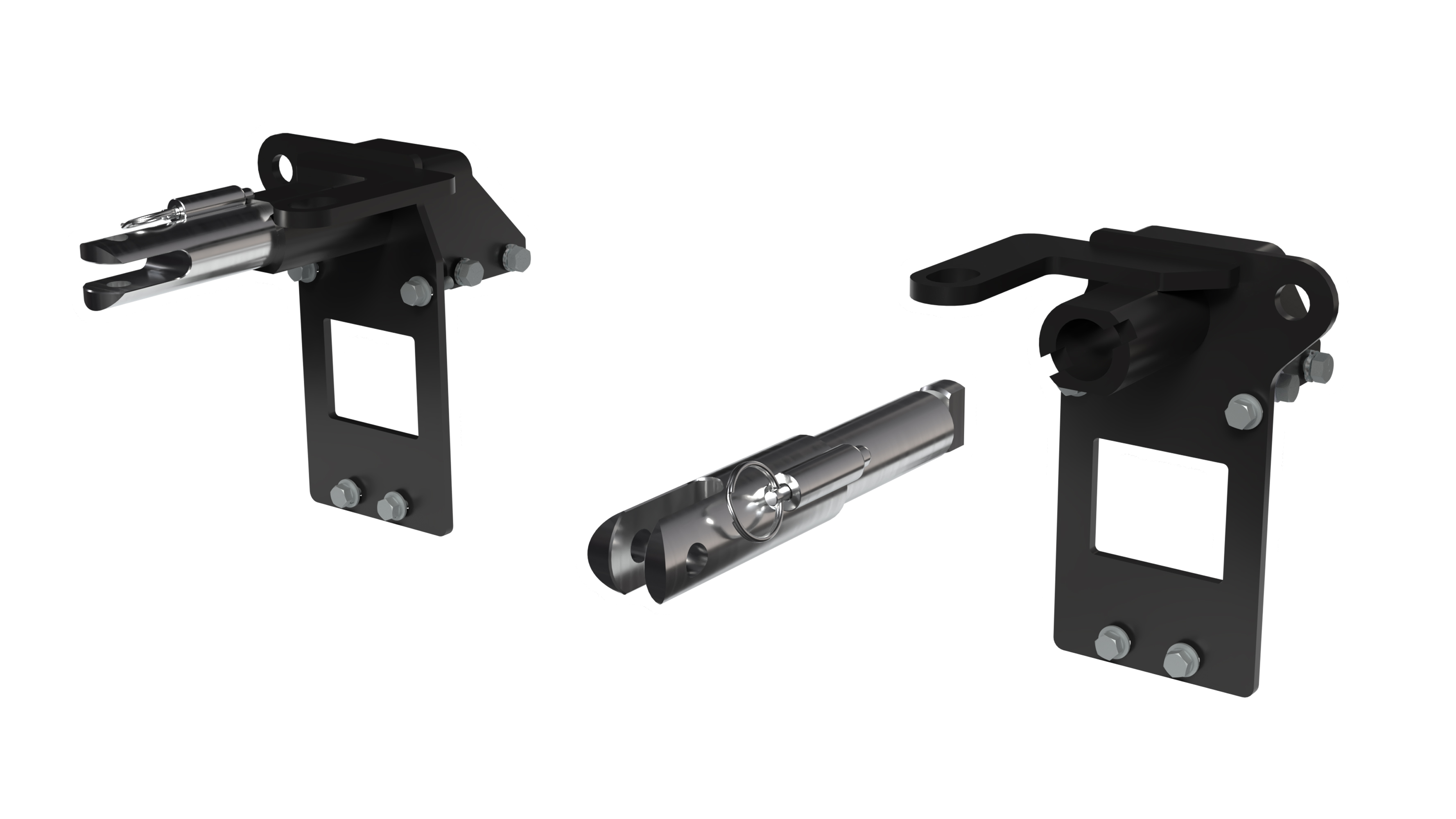

1. Custom Designed: Each Blue Ox BX2007 Tow Bar Bracket is tailored for a specific model of a towed vehicle, ensuring a seamless fit and optimal towing performance.
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Material: Steel
Finish: Powder Coat
Color: Black
Experience the ultimate towing solution with the Blue Ox BX2007 Tow Bar Bracket. This high-quality product is specifically designed for each unique towed vehicle, ensuring a perfect fit and superior performance. With its robust steel construction and powder coat finish, it is not only durable but also resistant to corrosion and wear. What's more, the bracket comes with all the necessary hardware and comprehensive instructions for a hassle-free, DIY installation. The mounting type is bolt-on, which gives an extra layer of security during your travel.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2021 | Mercedes-Benz Sprinter | Vehicles With Adaptive Cruise Control & Turbo, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2020 - 2023 | Mercedes-Benz Sprinter 1500 | Vehicles With Adaptive Cruise Control & Turbo, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2020 - 2026 | Mercedes-Benz Sprinter 2500 | Vehicles With Adaptive Cruise Control & Turbo, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2020 - 2026 | Mercedes-Benz Sprinter 3500 | Vehicles With Adaptive Cruise Control & Turbo, Comes with Removable Attachment Tabs, Install Rating 3, Bumper Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Required, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BX2007 is a towing baseplate manufactured by Blue Ox designed specifically for 2020–2026 Mercedes Sprinter Van models, including those with Adaptive Cruise Control and Turbo. It is installed on the front of the vehicle to provide attachment points for a tow bar. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty.
The BX2007 is designed for 2020–2026 Mercedes Sprinter Van models that include Adaptive Cruise Control and Turbo. If the front of your vehicle looks different from the images in the manual, contact Blue Ox Technical Service at (402) 385-3051 before purchasing or installing.
The attachment tab height is 26.5 inches and the attachment tab width is 36.5 inches. Ensure the tow bar being used is compatible with the baseplate tab width.
Required tools include: flat screwdriver, torque wrench, drill with 3/8" drill bit, Loctite Red, 7/16" wrench, 9/16" socket, 13MM socket, 7/16" socket, 9/16" wrench, T15 Torx, T25 Torx, T30 Torx, and T45 Torx. A chisel is also needed to remove caulk from the vehicle frame.
The kit includes: 8 × 3/8"-16 Whiz Nuts with 14" wire, 2 × attachment tab assemblies with holes, 1 × 90° electrical bracket, 5 × 1/4"-20 × 3/4" Grade 5 hex head bolts, 2 × #10-32 1/2" round slotted head screws, 8 × 3/8"-16 × 1-1/4" Grade 5 hex head bolts, 8 × 8MM-1.25 × 30MM Grade 8.8 hex head bolts, 2 × #10-32 hex nuts, 5 × 1/4"-20 hex nylon nuts, 18 × 1/4" flat washers, 8 × 3/8" lock washers, 2 × #10 lock washers, 8 × 8MM lock washers, 2 × Class III safety cables, 2 × 3/8" quicklinks, and 2 × black cap plug receivers.
Blue Ox recommends that the BX2007 baseplate be installed by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
The grille, fascia, Adaptive Cruise Control (ACC) bracket, and bumper must be removed during installation and reinstalled after the baseplate is installed. The plastic shroud from the bottom of the radiator must also be removed. All removed components should be placed on a flat, sturdy surface.
Yes, drilling is required. Using a 3/8" drill bit and the baseplate as a template, you must drill two holes on each side of the baseplate. Note that the back inner hole on both sides and the back outer hole on the passenger side will need to be drilled at an angle. When using a power drill, be aware of the dangers of torque and drill bit length.
Yes, trimming is required. You must mark and trim the fascia around the convenience links and attachment tabs before reinstalling it. The manual notes that some drilling and trimming is required as part of the installation process.
A chisel must be used to remove caulk from the top of the vehicle frame to allow for a better baseplate fit. Cut edges of the frame should be painted with good quality paint to prevent rusting. These modifications are permanent.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 8MM Grade 8.8 bolts should be torqued to 22 foot-pounds. Use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 1/4" Grade 5 bolts should be torqued to 10 foot-pounds. Use Loctite Red on all bolt threads before tightening.
The installation sequence is: (1) remove fascia, grille, ACC bracket, and bumper; (2) remove plastic shroud and caulk from frame; (3) slide baseplate onto vehicle frame; (4) start front bolts without Loctite; (5) drill side holes using baseplate as template; (6) install side bolts; (7) attach safety cables to convenience links; (8) remove front bolts; (9) apply Loctite Red and torque all bolts to specification; (10) reinstall bumper and ACC bracket; (11) reinstall fascia and grille with trimming as needed.
Do not apply Loctite Red when starting the front three 8MM bolts initially (Step 12). Apply Loctite Red to all bolt threads only after drilling the side holes and before final tightening to torque specification (Step 16). The manual emphasizes: "Use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque."
Tip the baseplate upward and slide it onto the frame. Line the inner edge of the baseplate with the inner frame edge. The convenience links should be toward the center of the vehicle.
Reinstall the ACC bracket by snapping the bottom to the bumper and reinstalling the existing bolts into the top two holes with three 1/4" washers on each bolt. Reconnect the electrical connector to the ACC sensor. Use Loctite Red on all bolt threads and tighten to the appropriate torque.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Ensure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses, or brake lines. Install on both sides of the vehicle.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. This includes verifying that the ACC sensor electrical connection is secure.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Ensure that all electrical connections are plugged in and functioning properly.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes, the attachment tabs can be removed when not in use.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The permanent cables prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected.
Blue Ox offers a three-year limited warranty to the original retail purchaser covering defects in material and workmanship under normal use and service. The warranty is non-transferable and requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice to accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. Exceeding the vehicle's GVWR voids the warranty. Towing behind a non-motorized vehicle voids the warranty.
The BX2007 is designed for 2020–2026 Mercedes Sprinter Van models with Adaptive Cruise Control and Turbo. If your vehicle's front looks different from the manual images, contact Blue Ox at (402) 385-3051 before purchasing.
You will need a torque wrench, drill with 3/8" bit, Loctite Red, and various sockets and Torx bits (T15, T25, T30, T45). A chisel is also required to remove caulk from the frame.
Use the torque chart provided: 3/8"-16 Grade 5 bolts = 33 ft-lbs; 8MM Grade 8.8 bolts = 22 ft-lbs; 1/4"-20 Grade 5 bolts = 10 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
Yes. The grille, fascia, Adaptive Cruise Control bracket, and bumper must all be removed before baseplate installation and reinstalled afterward.
The baseplate must be replaced. Do not reuse it. Accident damage can be unseen and reusing it could cause more damage or serious injury.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications with Loctite Red applied.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If you encounter fit issues, contact Blue Ox Technical Service at (402) 385-3051 for guidance.
If the baseplate is improperly installed and is against a wire, hose, or brake line, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and ensure the safety cables do not rub against any hoses or moving parts.
