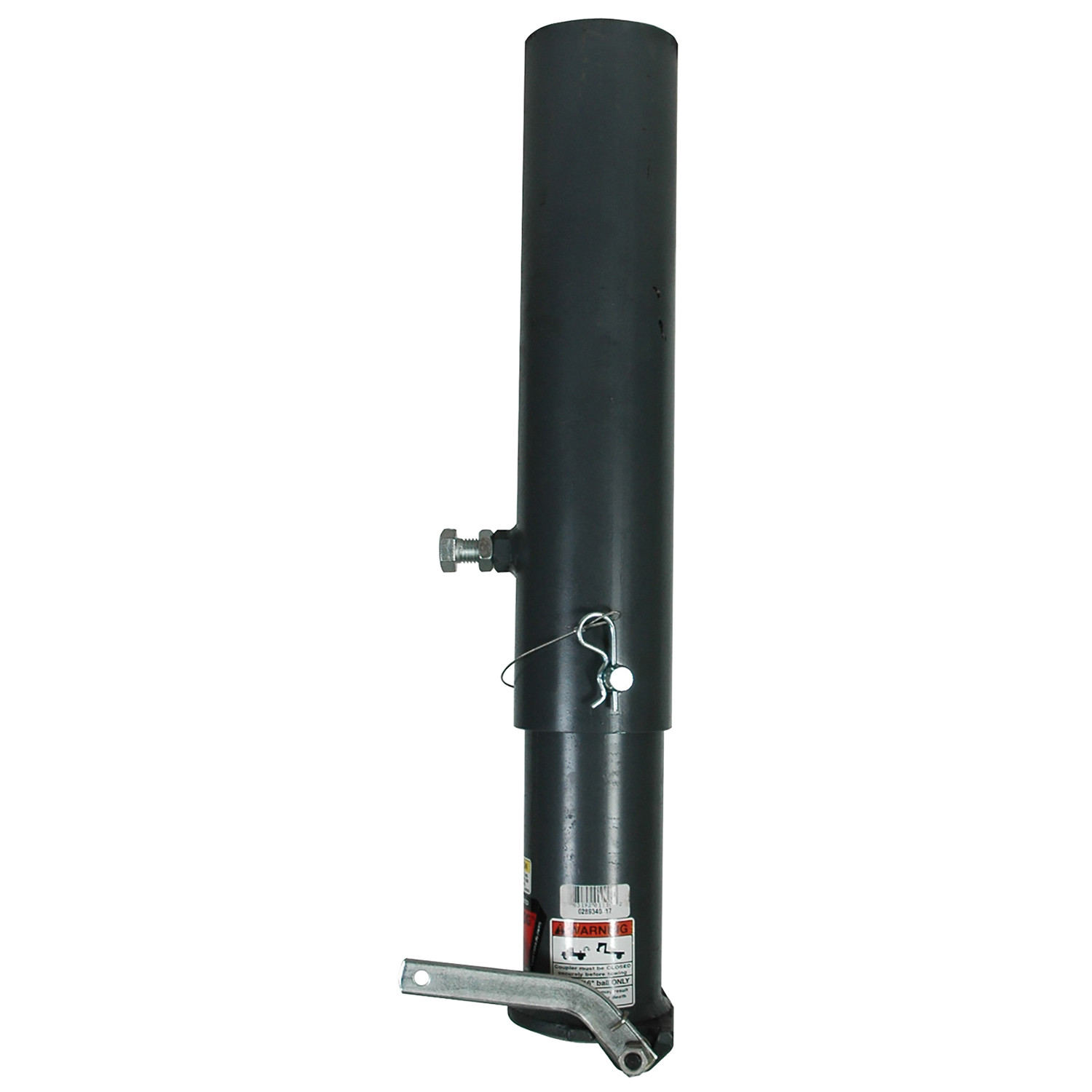

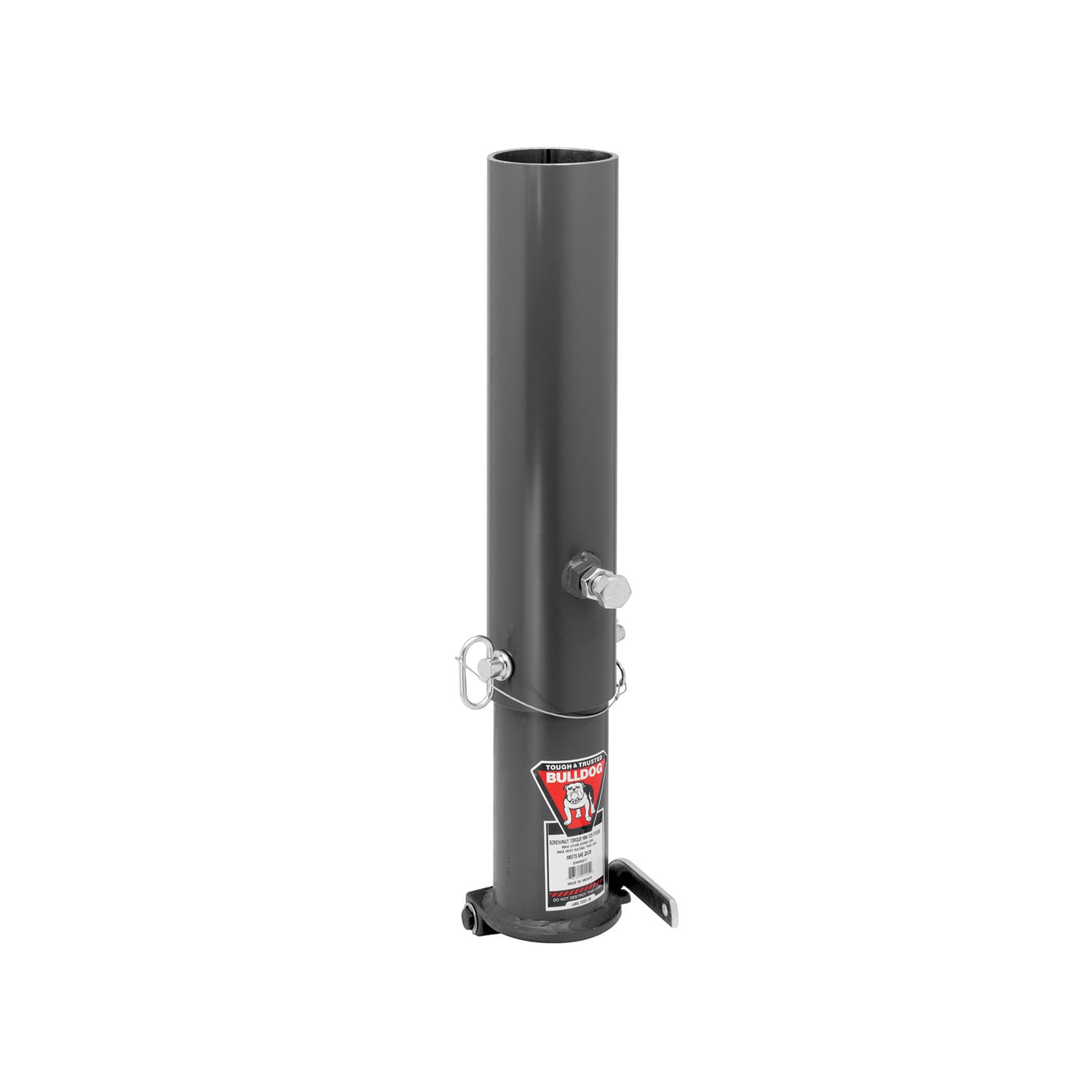

BULLDOG gooseneck couplers are quick and easy to engage and strong and secure on the road. Our unique, patented, extruded locking plate design and high-strength steel components make BULLDOG gooseneck couplers 65% stronger than similar products.
| BRAND: | BULLDOG |
| PART NUMBER: | 0289340317 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 46.7 LBS |
| CAPACITY: | 25,000 LBS. |
| BALL DIAMETER: | 2.313 IN. |
| MATERIAL: | STEEL |
| COLOR: | GRAY |
| MOUNTING HARDWARE INCLUDED: | NO |
| SAFETY CHAINS INCLUDED: | NO |
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Use only a 2 5/16" ball rated equal to or greater than the capacity of the coupler. If uncertain about the correct rating, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
The coupler is available in four models: 20K Round, 25K Round, 25K Square, and 30K Round. Each model has a different rated capacity.
The coupler is designed for gooseneck trailers, but compatibility depends on your specific trailer design. Before installation, confirm there will be no interference from the tow vehicle, tongue, ground, or other mounted accessories in both extended and retracted positions. Weld size, gusseting requirements, coupler height, and orientation are dependent on trailer design and customer requirements. Consult the trailer manufacturer or a qualified installer to verify fitment for your specific application.
Do not exceed 8" maximum extension. Measure coupler extension as the difference between the fully retracted and fully extended positions. Couplers with properly installed load bearing pins and square adjustable gooseneck couplers only extend within this 8" range.
Yes. All welding must be performed by an AWS certified welder. This is a requirement stated in the manual and applies to all installation work.
Gusseting is required to support the coupler's rated load. The outer tube must be completely supported by attaching gussets as low as possible to the outer tube. For adjustable couplers, reinforcements must extend down the outer tube to within 3" above the bottom of the outer tube. For non-adjustable couplers, reinforcement must be within 20" above the locking plates. In high load, high mileage, or rough service applications, gussets and banding that tie trailer framing to the coupler are required. Gusset specifications are the responsibility of the trailer manufacturer and depend on trailer design and customer requirements.
The load bearing pin is a component that must be fully inserted through both the inner and outer tubes in order for the coupler to support its rated load. If equipped with a load bearing pin, it must be fully inserted and the retaining pin must be installed. Do not tow unless the load bearing pin is fully inserted and the retaining pin is installed. Some models may have a pinch bolt instead of a load bearing pin.
All hardware must be torqued to 125 ft. lbs. minimum. Periodically check for proper torque and tighten if necessary. Check for wear on the inner tube if retightening is needed.
1) Block trailer wheels. 2) Align hitch ball beneath coupler. 3) Set the locking pin in the open position. 4) Slide the locking plate into the open position and lower the trailer onto the hitch ball. 5) Visually check that the hitch ball is fully seated in the coupler. 6) Slide the locking plate into the closed position. 7) Set the locking pin in the closed position to close the coupler.
1) Block trailer wheels. 2) Set the locking pin in the open position. 3) Slide the locking plate into the open position and raise the trailer from the hitch ball.
Before towing, perform the following checks: 1) Check vehicle, hitch ball, and coupler for signs of wear or damage. 2) Ensure that the coupler opens, closes, and the handle springs closed when released. 3) Replace bent, broken, or worn parts before using the product. 4) Ensure that the hitch ball is fully seated in the coupler ball pocket and the latch is closed. 5) Make sure that the trailer safety chains are properly connected to the towing vehicle and trailer. 6) Make sure that all trailer lighting is hooked up and working properly.
Weigh your trailer plus added load. Do not exceed the lesser of coupler, hitch, vehicle, ball, or trailer weight ratings (including load). The coupler is rated according to SAE J2638. Refer to your specific coupler model's capacity rating (20K, 25K, or 30K) and ensure all components in the towing system meet or exceed that rating.
Always secure the load, vehicle, and trailer by blocking the wheels before latching or unlatching the coupler. This prevents movement and ensures safe operation.
The following procedures should be performed at least annually: 1) Check hardware torque (must be 125 ft. lbs. minimum). 2) Grease ball pocket. 3) Oil pivot points with SAE 30 wt. motor oil. 4) Inspect retaining pin and replace if necessary. Keep the ball pocket, latch, and handle clean at all times.
Use SAE 30 wt. motor oil to oil pivot points. Grease the ball pocket. The manual does not specify a particular grease type, so use a general-purpose grease suitable for trailer couplers.
After installation is complete, perform the following checks: 1) Check for interference again in both extended and retracted positions. 2) Verify that the coupler remains vertical. 3) Verify that coupler operation has not been impaired in any way. Do not use the coupler if its operation has been impaired. 4) After assembly and painting, affix any enclosed labels to the coupler and remove premask.
Before mounting the coupler, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in both extended and retracted positions before installing. After installation is complete, check for interference again in both positions. The set bolts must be facing the towing vehicle. If interference is found, do not use the coupler.
Avoid heat damage to the coupler during welding. Do not weld over or near any holes or hardware on the coupler. All welding must be performed by an AWS certified welder. The outer tube must be rigidly attached to the trailer in order for the coupler to support its maximum rated load according to SAE J2638.
No. The purchaser/owner must not alter or modify the product. The coupler must be installed according to the instructions and remain in its original configuration to ensure safe operation and maintain the warranty.
Do not allow children to play on or around the coupler or the load being supported. Operator and bystanders should never position any body part under any portion of the coupler or the load being supported.
Cequent Performance Products warrants to the original consumer purchaser that the product will be free from defects in material and workmanship for a period of three years under normal use and service, ordinary wear and tear excepted. If the product does not comply with this warranty, Cequent will replace the product without charge within a reasonable time or, at Cequent's option, refund the purchase price. This warranty is not transferable. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance, or products altered by anyone other than Cequent.
To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, identify the product, and follow the instructions provided. You will be responsible for shipping costs to Cequent. Retain your purchase receipt to verify the date of purchase, as this must be produced to honor a warranty claim.
Use only Cequent Performance Products' parts. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number when ordering. You can also visit www.cequentgroup.com for additional information.
This indicates a problem with the coupler mechanism. Before towing, ensure that the coupler opens, closes, and the handle springs closed when released. If the handle does not spring closed, replace the coupler or the damaged parts before using the product. Do not tow with a coupler that does not operate properly.
Visually check that the hitch ball is fully seated in the coupler ball pocket before closing the locking plate. If the ball is not fully seated, raise the trailer and realign the hitch ball beneath the coupler. Lower the trailer again and verify that the ball is fully seated before proceeding to close the locking plate and locking pin.
Do not use the coupler if its operation has been impaired in any way. After installation, verify that coupler operation has not been affected. If operation is impaired, contact Cequent Performance Products at 1-800-632-3290 for assistance. Do not tow until the issue is resolved.
Before mounting the coupler, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in both extended and retracted positions before installing. If interference is found before installation, adjust the coupler position or height. After installation, check for interference again. If interference is discovered after installation, the coupler may need to be repositioned or the interfering component may need to be modified. Do not use the coupler if interference exists.
Excessive vibration may indicate loose hardware. Tighten the set bolts and nuts to minimize vibrations in the coupler during towing. All hardware must be torqued to 125 ft. lbs. minimum. Check the torque periodically and retighten if necessary. If vibration persists after retorquing, inspect the coupler for wear or damage and contact Cequent Performance Products at 1-800-632-3290.
Inspect the retaining pin at least annually as part of routine maintenance. If the retaining pin is worn or damaged, replace it. Use only Cequent Performance Products' replacement parts. Contact Cequent Performance Products' Customer Service Department at 1-800-632-3290 to order the correct replacement part for your model.
| Part Number | Description | Capacity (lbs.) | Retracted Height (in.) | Adjustment (in.) | Ball Size (in.) |
|---|---|---|---|---|---|
| Round Gooseneck Fixed Coupler | |||||
| 0287690300 | Fixed Base Coupler | 20,000 | 33.0 | - | 2-5/16 |
| Round Gooseneck Adjustable Coupler | |||||
| 0287603000 | Adjustable Gooseneck Coupler, 4.5 in. Diameter x 20 in. Length Outer Tube, 4 in. Diameter x 27.2 in. Inner Tube, with Cast Locking Plates, 3/4 in. Load Bearing Pin, (1) Set bolt, Raw, Labels Applied | 20,000 | 29.20 | 8.0 | 2-5/16 |
| 0287603040 | Adjustable Gooseneck Coupler, 4.5 in. Diameter x 20 in. Length Outer Tube, 4 in. Diameter x 27.2 in. Inner Tube, with Cast Locking Plates, 3/4 in. Load Bearing Pin, (1) Set bolt, Raw, Labels Applied, with Outer Tube Cap | 20,000 | 29.30 | 8.0 | 2-5/16 |
| 0289340317 | Adjustable Gooseneck Coupler, 4.5 in. Diameter x 20 in. Length Outer Tube, 4 in. Diameter x 27.2 in. Inner Tube, with GN24 Coupler Head, 3/4 in. Load Bearing Pin, (1) Set bolt, Primer Gray, Labels Applied | 25,000 | 28.10 | 8.0 | 2-5/16 |
| 0289250300 | Adjustable Gooseneck Coupler, 4.5 in. Diameter x 20 in. Length Outer Tube, 4 in. Diameter x 27.2 in. Inner Tube, with Cast Locking Plates, 3/4 in. Load Bearing Pin, (1) Set bolt, Raw, Labels Applied | 25,000 | 29.30 | 8.0 | 2-5/16 |
| 0289500309 | Adjustable Gooseneck Coupler, 4.5 in. Diameter x 20 in. Length Outer Tube, 4 in. Diameter x 27.2 in. Inner Tube, with Cast Locking Plates, 3/4 in. Load Bearing Pin, (2) Set bolts, Raw, Labels Applied | 30,000 | 29.30 | 8.0 | 2-5/16 |
| Inner Tube Only | |||||
| 0287610300 | Adjustable Gooseneck Coupler, 4 in. Diameter x 27.2 in. Inner Tube Only, with Cast Locking Plates, Labels Applied | 20,000 | - | - | 2-5/16 |
| 0287603070 | Adjustable Gooseneck Coupler, 4 in. Diameter x 27.2 in. Inner Tube Only, with GN24 Coupler Head, Labels Loose | 20,000 | - | - | 2-5/16 |
| Outer Tube Only | |||||
| 0233010300 | Outer Tube Only, 20 in. Length, 4.5 in. Round Tube, with Hole for 3/4 in. Load Bearing Pin, (1) Set Bolt | - | - | - | 2-5/16 |
| 0233010310 | Outer Tube Only, 20 in. Length, 4.5 in. Round Tube, with Hole for 3/4 in. Load Bearing Pin, (2) Set Bolts | - | - | - | 2-5/16 |
| Gooseneck Coupler Head | |||||

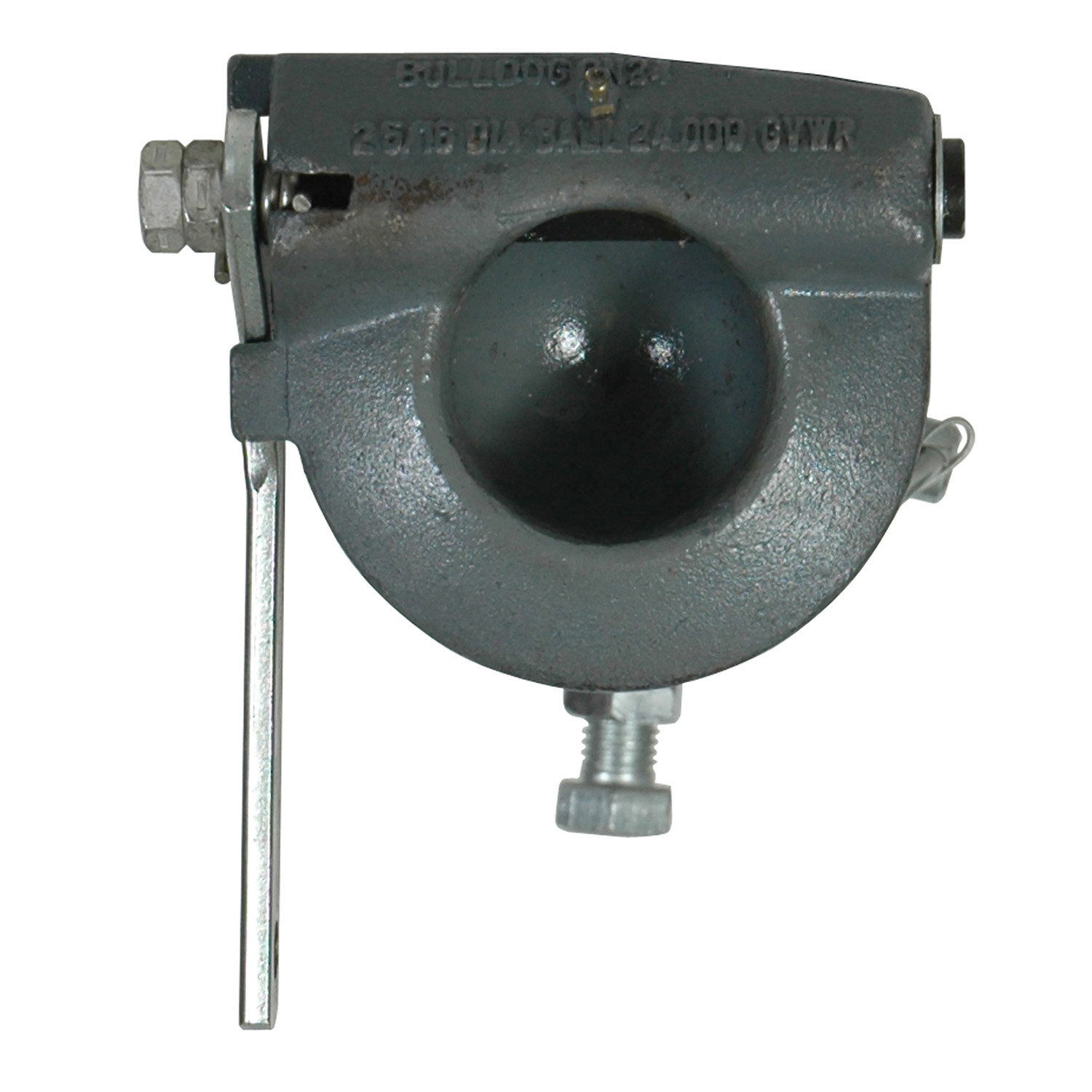

| GN24-0200 | Cast Steel Gooseneck Coupler Head, Fits 3 in. or 4 in. Diameter Tubing, Quick and Easy Latching Action Eliminates Need to be in Tow Vehicle for Hook-Up | 24,000 | - | - | 2-5/16 |
| 1542501 | Repair Kit for GN24. Kit Includes Torsion Spring, Coupler Locking Shaft, Curved Handle Assembly, 3/4 in. Shaft Retaining Ring, Centerlock Nut 1/2-13 | - | - | - | 2-5/16 |
| 0287080300 | Gooseneck Coupler Kit, Includes Coupler Assembly, Locking Pin Assembly, Coupler Pin Cover, BULLDOG Label, and Warning Label, 2-5/16 in. Ball Size | - | - | - | 2-5/16 |
| 1220700317 | Pin Kit, Includes Cotter Pin, 3/4 in. x 5-1/2 in. with Finger Loop | - | - | - | 2-5/16 |
| 50029 | Gooseneck Couplers Bolt Kit, Includes (1) Jam Nut, (1) Set Screw and (1) Adjusting Nut | - | - | - | 2-5/16 |
