Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

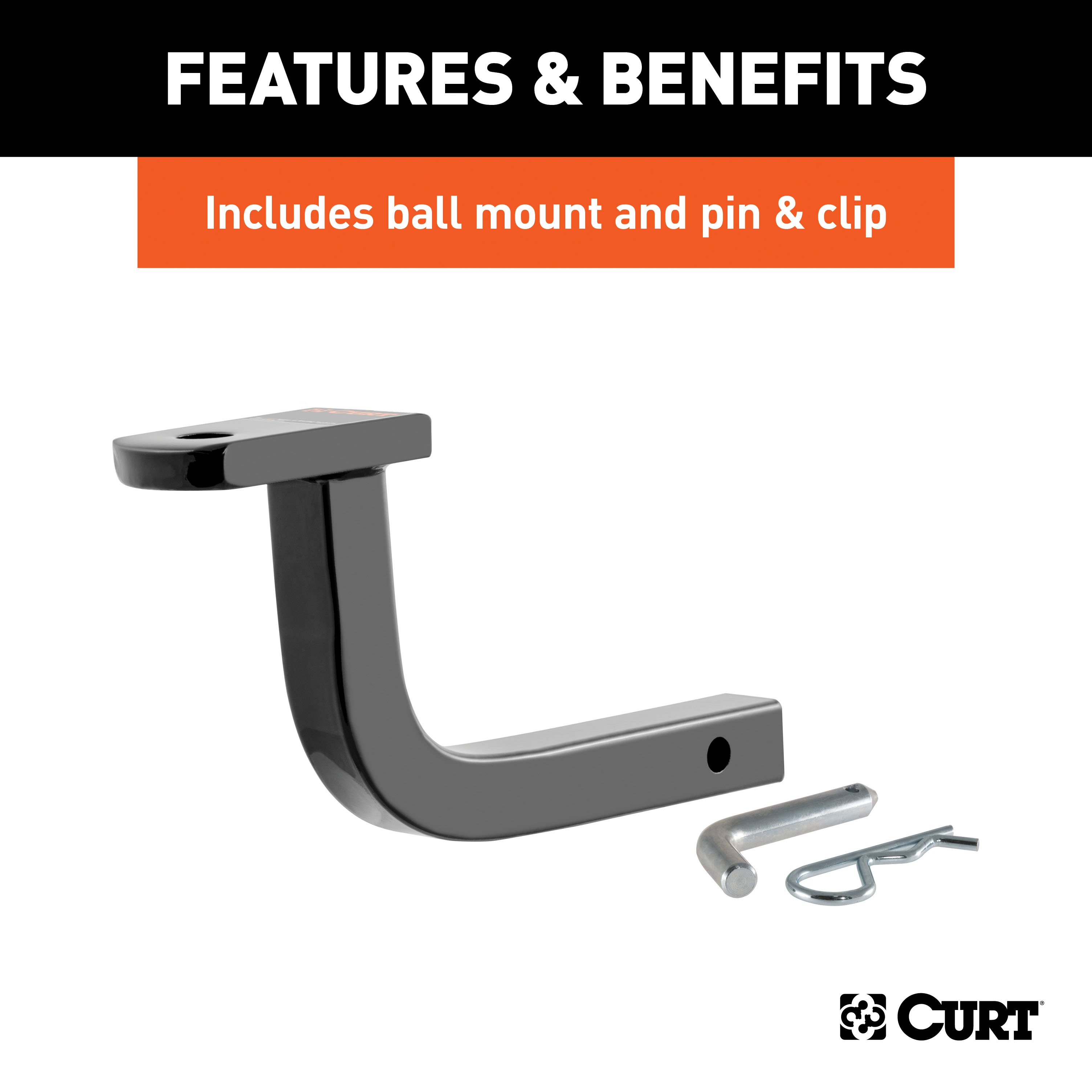

Includes ball mount #45014, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45014, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

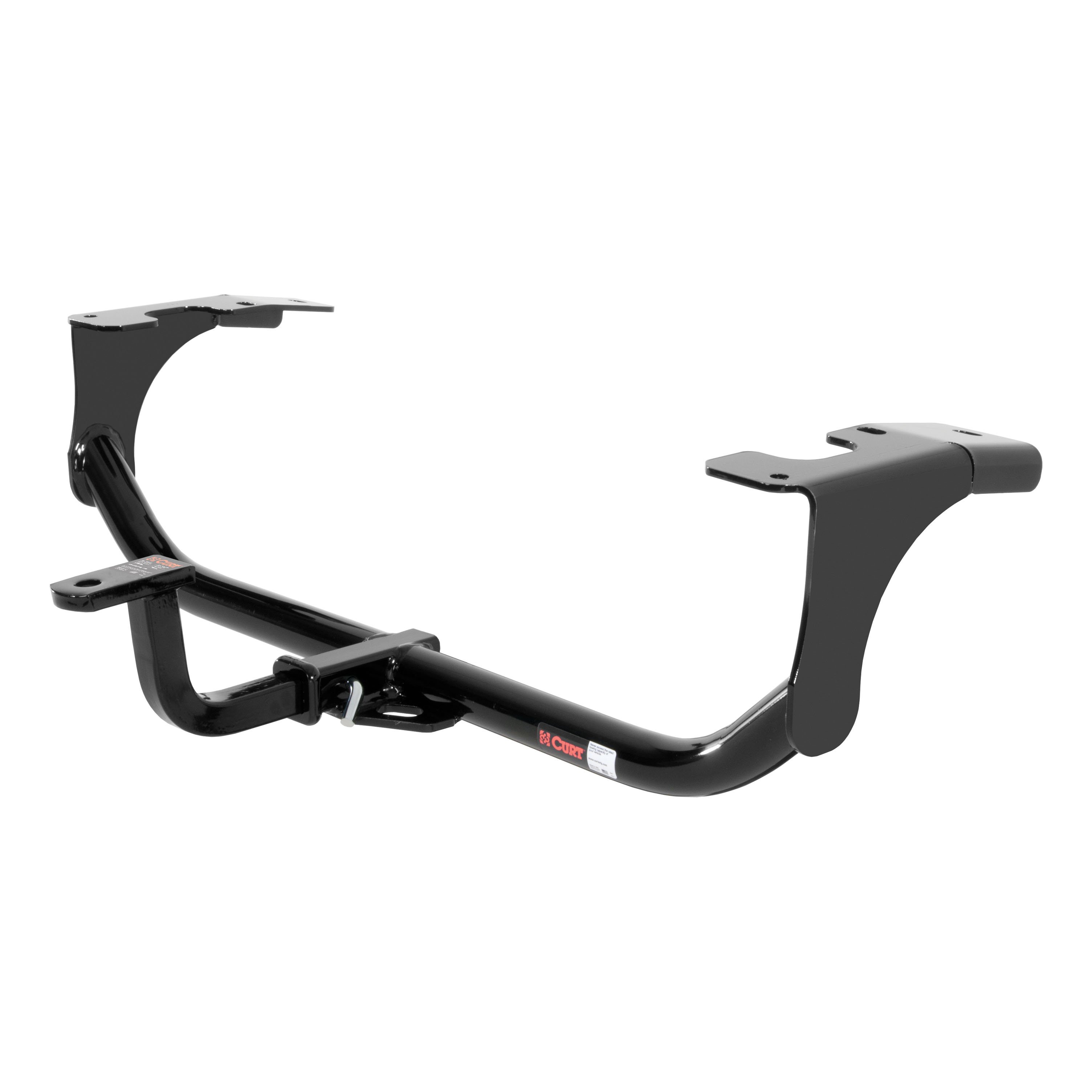

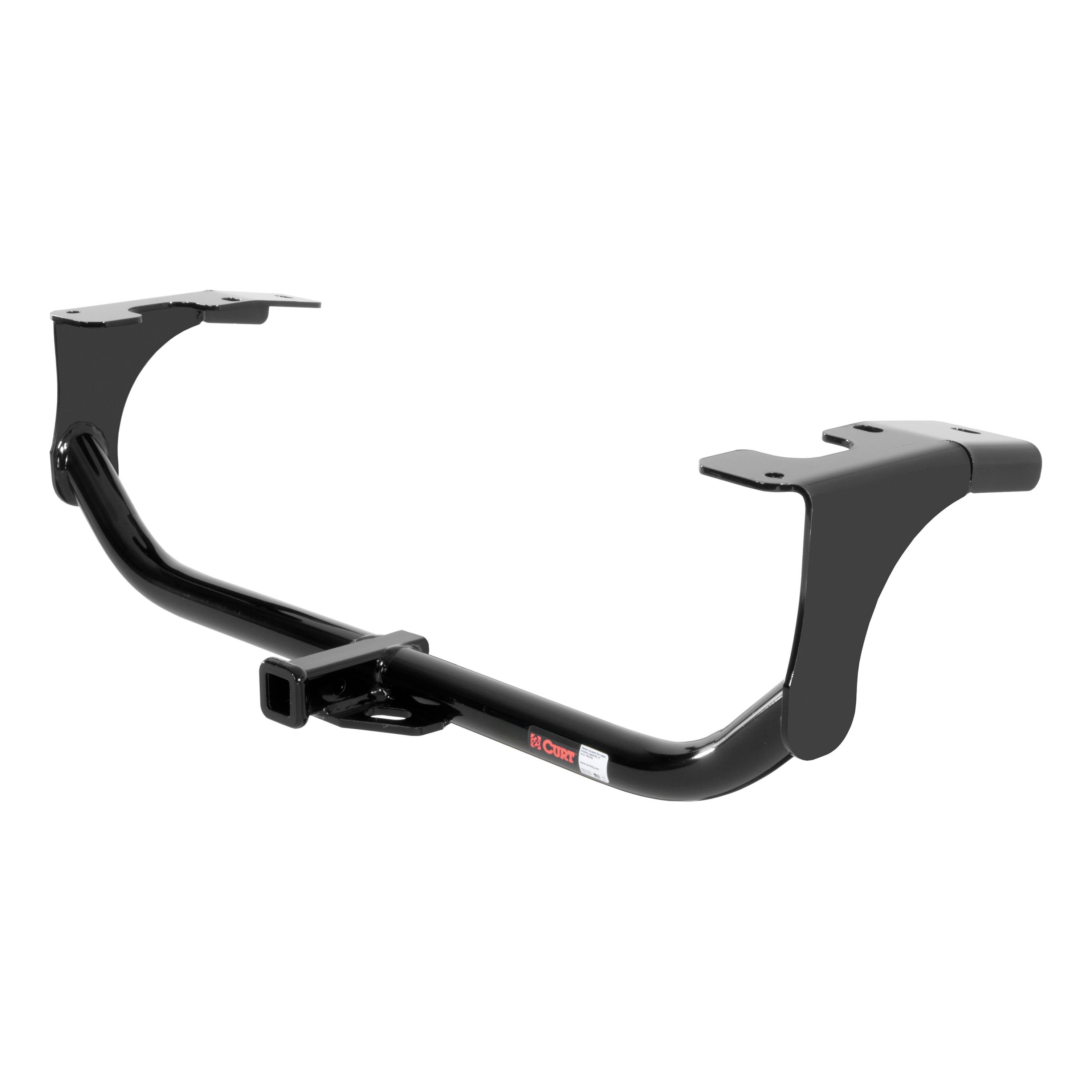

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Smart Fortwo (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The CURT 110203 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Smart Fortwo (Part #BKDK110203) fits the following vehicles: 2008-2015 Smart Fortwo. Always verify your specific year, make, and model before ordering.
The CURT 110203 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Smart Fortwo (Part #BKDK110203) fits 2008-2015 Smart Fortwo models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 110203 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Smart Fortwo (Part #BKDK110203) is designed to fit the 2008-2015 Smart Fortwo.
The CURT 110203 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Smart Fortwo (Part #BKDK110203) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, part number 11020 is designed for Smart ForTwo models, excluding Brabus models. If your vehicle is a Brabus model, this hitch is not compatible.
This hitch is designed for use with ball mount D-222.
The manual does not provide the specific gross load capacity values. Contact Curt Manufacturing technical support at 1-800-798-0813 for this specification.
The manual does not provide the hitch weight. Contact Curt Manufacturing technical support at 1-800-798-0813 for this specification.
Non-trailer loads can be applied to this hitch only if they are supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has a gross load capacity, but your vehicle's capacity is the limiting factor. Consult your vehicle's owner manual for the maximum towing capacity.
Required tools are: 1/2" drill bit, drill, 14mm 12-point socket, 11/16" socket, 10" extension, ratchet, carbide bit, rotary tool, and torque wrench.
Yes, you will need to raise the vehicle. When jacking the vehicle up, place jack stands under the suspension for safety.
Yes, drilling is required. You must drill a 1/2" hole in the passenger side frame rail and enlarge the middle holes in both frame rails using a rotary tool with a carbide bit to 1.13" diameter to accommodate the 7/16" carriage bolts and spacers.
Drill a 1/2" hole in the passenger side frame rail at the marked location (marked using the hitch as a template in Step 4).
The middle holes should be enlarged to 1.13" diameter using a rotary tool with a carbide bit. This allows insertion of the 7/16" carriage bolt and CM-SP11 spacer.
Yes. You must modify the rear hole in the serpentine belt cover so that the smaller 7/16" flat washer fits inside the hole. The large diameter 7/16" flat washer is then used to retain the cover and secured with a hex flange nut.
1) Remove the serpentine belt cover. 2) Remove the two existing 12mm bolts at the rear of the frame using a 14mm 12-point socket. 3) Raise the hitch into position and secure using the removed bolts. 4) Mark the position of the middle hole on the passenger side frame rail using the hitch as a template. 5) Remove the hitch and drill a 1/2" hole in the passenger side frame rail. 6) Enlarge the middle holes in both frame rails using a rotary tool with carbide bit. 7) Fishwire a 7/16" carriage bolt and CM-SP11 spacer into each forward hole. 8) Reverse pull fishwire a 7/16" carriage bolt and CM-SP11 spacer into each middle modified hole. 9) Raise the hitch over the bolts and secure with the 12mm bolts, leaving 1/2" gap, then insert CM-11020-SP spacers and tighten. 10) Position CM-SP8 spacers between the hitch mounting plate and frame rail, securing with 7/16" hex nuts. 11) Modify the serpentine belt cover and secure. 12) Torque all fasteners.
Fishwire is used to insert 7/16" carriage bolts and CM-SP11 spacers into the forward holes and middle modified holes in the frame rail. The manual references both standard fishwire technique and reverse pull fishwire technique, though the detailed diagrams are not visible in this text extraction.
After securing the hitch with the 12mm bolts, tighten them until there is approximately 1/2" between the hitch mounting plate and the frame rail. Then insert the CM-11020-SP spacers in this gap.
The CM-11020-SP spacers should be positioned between the hitch mounting plate and frame rail on each side. When installed, the spacer should be flush with the frame rail and hitch. Tighten the bolts slowly while ensuring the spacers stay in place.
Position a CM-SP8 spacer between the hitch mounting plate and frame rail, aligning the hole in the spacer with the slot in the hitch mount plate. Secure with a 7/16" hex nut.
All 7/16" fasteners should be torqued to 70 ft-lbs.
All 12mm fasteners should be torqued to 86 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This should be done regularly throughout the life of the product.
The manual recommends periodically checking the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. No specific interval is provided; consult the manual's periodic maintenance section or contact Curt Manufacturing at 1-800-798-0813 for recommended intervals.
The kit includes: 2 spacer plates (CM-11020-SP), 4 carriage bolts (7/16-14 x 1 3/4), 4 square hole spacers (CM-SP11, 0.250 x 1.00 x 2.50"), 4 hex flange nuts (7/16-14), 2 pieces of 7/16" fishwire, 2 round hole spacers (CM-SP8, 0.188 x 1.25 x 1.50"), 1 standard 7/16" washer, and 1 wide 7/16" washer.
Yes. In Step 2, remove the two existing 12mm bolts at the rear of the frame using a 14mm 12-point socket. These same bolts are reused in Step 3 to secure the hitch into position.
Yes, the Curt 11020 is designed for Smart ForTwo models (excluding Brabus). It is designed for use with ball mount D-222.
Yes, drilling is required. You must drill a 1/2" hole in the passenger side frame rail and enlarge the middle holes in both frame rails to 1.13" diameter using a rotary tool with carbide bit.
Required tools: 1/2" drill bit, drill, 14mm 12-point socket, 11/16" socket, 10" extension, ratchet, carbide bit, rotary tool, and torque wrench.
Torque all 7/16" fasteners to 70 ft-lbs and all 12mm fasteners to 86 lb-ft.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at retail purchase. Warranty is voided by alteration, misuse, or improper installation. Non-trailer loads must be supported by auxiliary stabilizing straps or warranty is voided.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2015 | Smart Fortwo | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
