Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

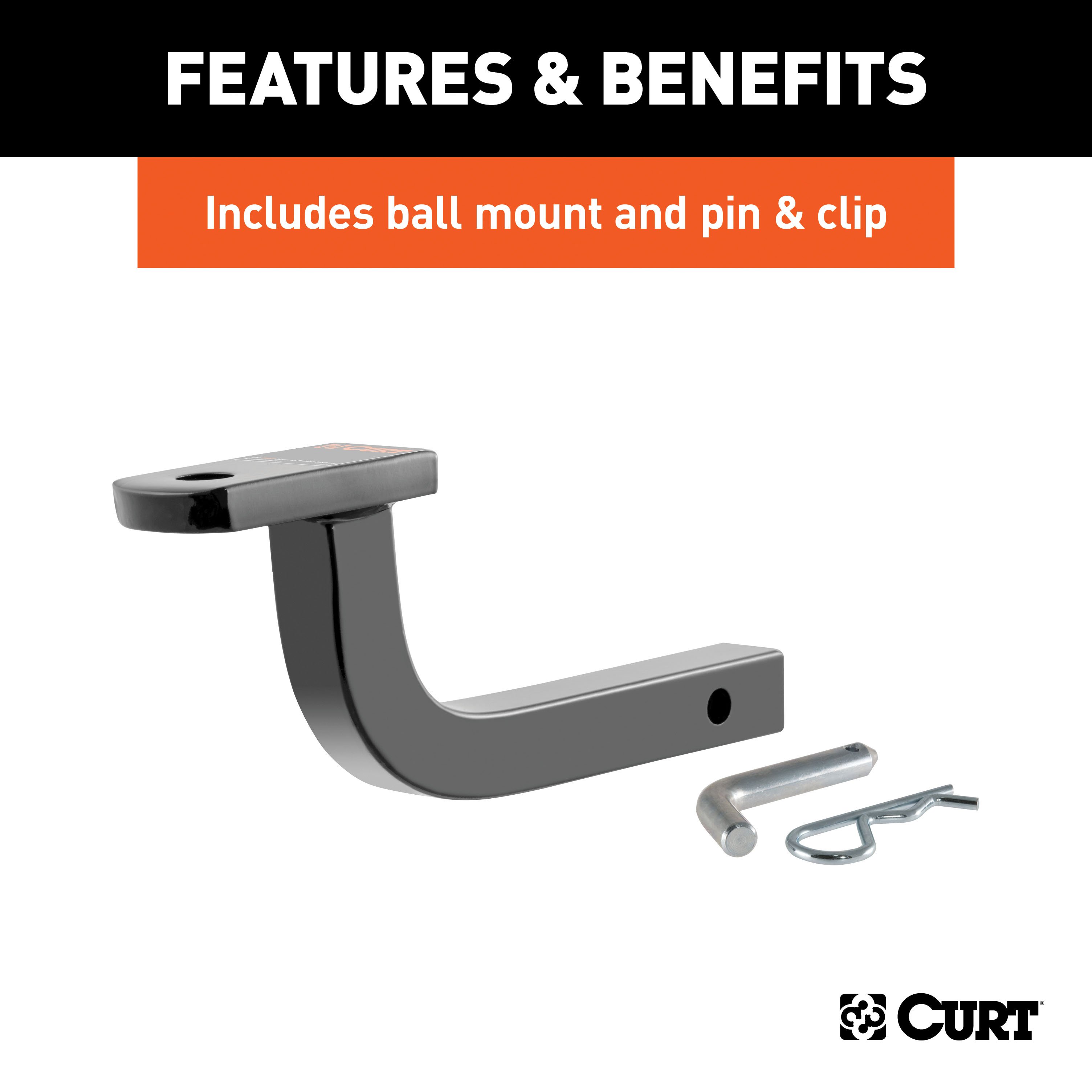

Includes ball mount #45520, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45520, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

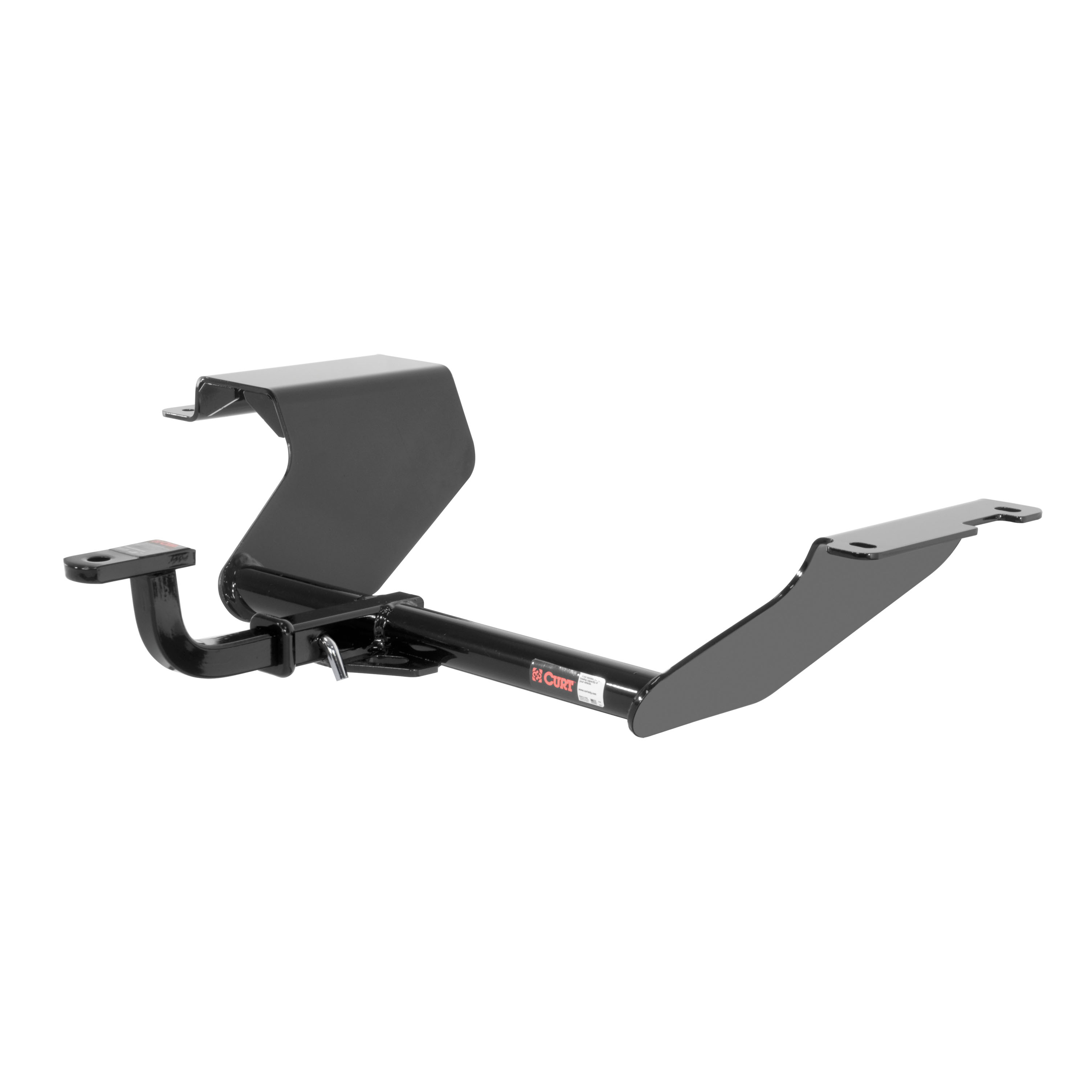

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Mazda 5 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Mazda 5 | Drilling Required Installation Time: 30-60 minutes Undercar Trimming: required Undercar Trimming (Not Fascia): Yes Visibility: Exposed |
The CURT 111273 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Mazda 5 (Part #BKDK111273) fits the following vehicles: 2012-2015 Mazda 5. Always verify your specific year, make, and model before ordering.
Yes, the CURT 111273 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Mazda 5 (Part #BKDK111273) is designed to fit the 2012-2015 Mazda 5.
The CURT 111273 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Mazda 5 (Part #BKDK111273) fits 2012-2015 Mazda 5 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 111273 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Mazda 5 (Part #BKDK111273) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, part number 11127 is designed for 2012-Current Mazda 5 vans. Confirm your vehicle year matches this range before purchasing.
The hitch is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch is designed for use with ball mount D-20 / 45520. Euro mount options are available: part number 45561 (1-7/8" ball) or 45562 (2" ball).
The kit includes: 4 hex flange nuts (7/16-14), 4 square hole spacers (CM-SP7, .250 x 1.00 x 2.00"), 4 carriage bolts (7/16-14 x 1 1/4), and 2 pieces of 7/16" fishwire.
Required tools are: ratchet, torque wrench, 10mm socket, 11/16" socket, 5" extension, die grinder, and aviation shears. A torque wrench is essential for final fastener tightening to specification.
Two people may be required to ease installation. The manual notes that installation is moderate difficulty and recommends contacting an authorized CURT installer if you are hesitant to undertake the task yourself.
Safety glasses must be worn at all times while installing this product.
No drilling is required. However, the forward-most access holes in the frame rails must be enlarged using a die grinder to allow 7/16-14 carriage bolts and SP7 spacers to pass through. The heat shield must also be trimmed using aviation shears.
According to the heat shield trim diagram, trim approximately 10.00 inches horizontally, 13.00 inches vertically, and 1.00 inch from the edge. The manual notes these dimensions are approximate; confirm fit prior to trimming.
Yes. The exhaust must be lowered by removing 3 rubber exhaust hangers before installation (Step 1) and then raised and reattached after the hitch is secured (Step 9).
All 7/16" hardware (carriage bolts and flange nuts) must be torqued to 70 ft-lbs.
1. Lower exhaust by removing 3 rubber hangers. 2. Remove heat shield by removing 6 fasteners and any tape covering frame rail holes. 3. Enlarge forward access holes on both sides. 4. Fishwire carriage bolts and spacers through access holes and out rear holes on both sides. 5. Reverse fishwire bolts and spacers in access holes on both sides. 6. Mark, trim, and reattach heat shield using 4 fasteners. 7. Raise hitch into position and secure with flange nuts. 8. Torque all 7/16" hardware to 70 ft-lbs. 9. Raise exhaust and reattach 3 rubber hangers.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain safe operation and warranty compliance.
CURT warrants the product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, the CURT 11127 is designed for 2012-Current Mazda 5 vans. Maximum towing capacity is 2,000 lbs trailer weight and 200 lbs tongue weight, but never exceed your vehicle manufacturer's recommended capacity.
You will need: ratchet, torque wrench, 10mm and 11/16" sockets, 5" extension, die grinder, and aviation shears. A torque wrench is essential for proper fastener tightening.
Yes. You must enlarge the forward access holes using a die grinder, trim the heat shield with aviation shears, and lower/raise the exhaust by removing and reattaching 3 rubber hangers. No drilling is required.
Torque all 7/16" hardware (carriage bolts and flange nuts) to 70 ft-lbs.
The hitch is rated for 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Periodically check that all fasteners are tight and all structural components are sound. This maintenance is essential for safe operation.
