Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

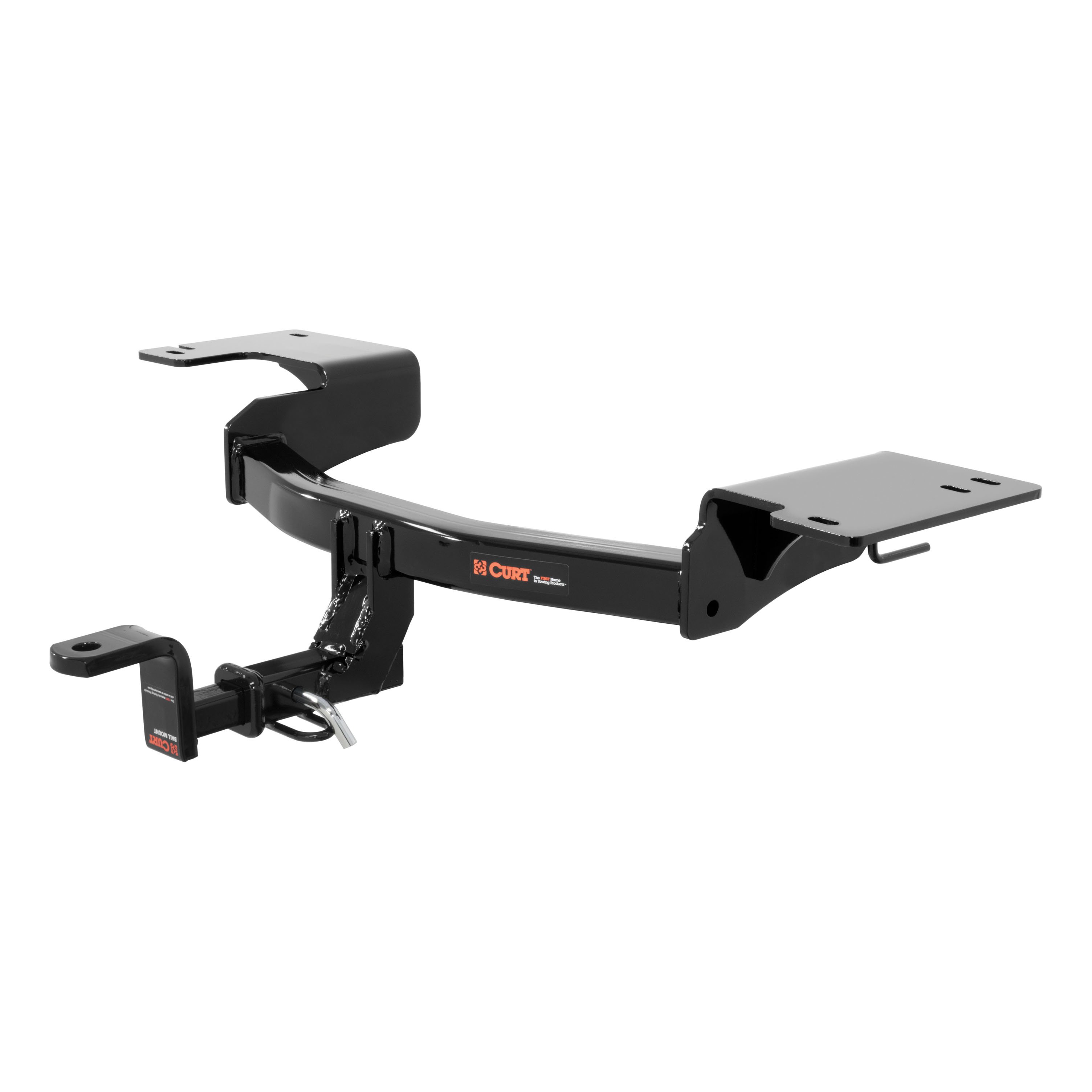

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Fiat 500 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2019 | Fiat 500 | Drilling Required Installation Time: 30-60 minutes Visibility: Concealed |
The CURT 113473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Fiat 500 (Part #BKDK113473) fits 2012-2019 Fiat 500 models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 113473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Fiat 500 (Part #BKDK113473) is designed to fit the 2012-2019 Fiat 500.
The CURT 113473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Fiat 500 (Part #BKDK113473) fits the following vehicles: 2012-2019 Fiat 500. Always verify your specific year, make, and model before ordering.
The CURT 113473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Fiat 500 (Part #BKDK113473) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 11347 is designed for 2012-Present Fiat 500 Abarth Hatchback models. Verify your vehicle year and model match before purchasing.
The CURT 11347 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The CURT 11347 is designed for use with CURT ballmount #D-55001/45501, or with CURT Euro ballmounts #45571 (1 7/8" ball) or #45572 (2" ball).
Required tools are: safety glasses, spray lubricant, T15 torx bit, ratchet, 6" ratchet extension, socket set (11mm, 13mm, 5/16", 7/16", 11/16"), power drill, 7/16" drill bit, aviation shears, and torque wrench. A 6" socket extension is also needed.
The kit includes: 2 conical toothed washers (3/8"), 2 M8-1.25 x 30 hex bolts (grade 10.9), 3 carriage bolts (7/16-14 x 1 1/4, grade 8), 3 hex flange nuts (7/16-14, grade 8), 3 pieces of 7/16" fishwire, and 3 square hole spacers (0.250 x 1.00 x 2.00", part number CM-SP7).
You do not need to remove the exhaust completely, but you must lower it. Remove the rubber exhaust hangers from hanger rods at one location on the driver side and one location on the passenger side. If equipped, the additional exhaust hanger bracket on the passenger side must be completely removed from the vehicle frame and returned to the owner.
Yes. Remove the rear plastic diffuser by removing 2 T15 torx screws and 2 5/16" screws from the bottom, then carefully disconnect clips from inside the plastic. Pull the piece gently away from the rear of the vehicle. Set it aside for trimming and reassembly after installation.
Two people may be required to ease installation, though the manual does not state this is mandatory. If you are hesitant to undertake the task on your own, contact an authorized CURT installer for assistance.
Yes. Using a 7/16" drill bit, you must enlarge one hole rearward of the square holes on the driver side frame rail. This enlargement is necessary to accommodate the carriage bolt mounting.
A 7/16" drill bit is required to enlarge the hole rearward of the square holes on the driver side frame rail.
Yes. After installation, trim the plastic diffuser as shown in the trim diagram, centering the cutout. The cutout dimensions are 3.00 inches wide by 4.50 inches tall. Carefully clip and secure the piece back in place.
The cutout must be 3.00 inches wide by 4.50 inches tall, centered on the bottom view of the vehicle fascia as shown in the trim diagram.
All 7/16" fasteners (carriage bolts and hex flange nuts) must be torqued to 70 lb-ft.
All M8 fasteners (hex head bolts) must be torqued to 26 lb-ft.
Fishwiring is a technique where you thread the 7/16" carriage bolts and spacer blocks up through the square hole in the frame and down through the mounting holes. This method allows you to position the bolts without pushing them back up into the frame rails, which could cause installation problems.
The M8 weld nuts are located in the vehicle frame. Remove protective tape from the frame rail to find them. Remove the square plugs from the frame rails to reveal the square access holes. Return the plugs to the vehicle owner after installation.
The hitch mounts to 2 M8 weld nuts and 3 existing holes in the vehicle frame, for a total of 5 mounting points.
After lowering the exhaust for installation, you raise it back into position and secure it to the vehicle hangers. For enclosed mufflers, the passenger side exhaust bracket has been replaced with a hanger that is now integral to the hitch itself.
Safety glasses must be worn at all times while installing this product.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing maintenance is critical to safe operation.
You should periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, the CURT 11347 is designed specifically for 2012-Present Fiat 500 Abarth Hatchback models.
The CURT 11347 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Torque all 7/16" fasteners to 70 lb-ft and all M8 fasteners to 26 lb-ft.
You must lower the exhaust by removing rubber hangers on both sides and removing the passenger side exhaust bracket if equipped, but complete removal is not required.
You need: safety glasses, spray lubricant, T15 torx bit, ratchet with 6" extension, socket set, power drill, 7/16" drill bit, aviation shears, and torque wrench.
Never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by CURT 18050 stabilizing straps. Wear safety glasses during installation.
