Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45521, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

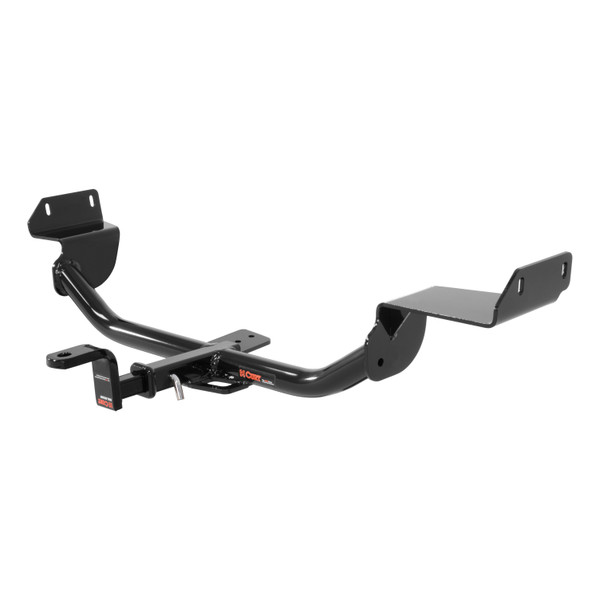

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Kia Forte (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2018 | Kia Forte | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 113683 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Kia Forte (Part #BKDK113683) fits the following vehicles: 2014-2018 Kia Forte. Always verify your specific year, make, and model before ordering.
The CURT 113683 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Kia Forte (Part #BKDK113683) fits 2014-2018 Kia Forte models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 113683 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Kia Forte (Part #BKDK113683) is designed to fit the 2014-2018 Kia Forte.
The CURT 113683 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Kia Forte (Part #BKDK113683) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the CURT 113683 is designed specifically for 2014-present Kia Forte Sedan models. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 2000 lbs and tongue weight capacity of 200 lbs.
The CURT 113683 is designed for use with ballmount #45521 (D-21) or Euro ballmounts #45571 (1 7/8" ball) or #45572 (2" ball). These are sold separately.
The CURT 113683 has a maximum trailer weight capacity of 2000 lbs and a tongue weight capacity of 200 lbs when used as a weight-carrying hitch. You must not exceed your vehicle manufacturer's recommended towing capacity.
You will need: a torque wrench, ratchet, 9/16", 10mm, and 17mm sockets, a screwdriver, a wire pipe brush, and safety glasses. The wire brush is used for cleaning weld nuts, which may be required before installation.
The hitch includes: 4 hex bolts (M10 - 1.25 x 25), 6 conical toothed washers (3/8"), 1 U-bolt (3/8"-16 x 1/2" pipe size), and 2 hex nuts (3/8 - 16). All fasteners are supplied and no additional hardware is required for installation.
Yes. You must remove the driver-side underbody panel by removing 4 M10 nuts and 3 push fasteners. You should return these fasteners and the panel to the customer after installation. You will also need to lower the exhaust by disconnecting the rubber isolator from the exhaust hanger.
No, drilling is not required. The hitch uses existing weld nuts on the vehicle frame for attachment.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person will help, particularly when raising the hitch into position.
1. Remove the driver-side underbody panel (4 M10 nuts and 3 push fasteners). 2. Lower the exhaust by disconnecting the rubber isolator. 3. Raise the hitch into place, lifting the passenger side first, then the driver side, and loosely secure the tow loop with the U-bolt. 4. Loosely secure the 4 M10 bolts into the vehicle frame weld nuts (clean weld nuts with wire brush if needed). 5. Torque the 3/8" U-bolt to 30 lb-ft, then the M10 bolts to 51 lb-ft. 6. Raise the exhaust back to its original position.
No. All fasteners must be loosely secured first. Then torque in this order: first the 3/8" U-bolt to 30 lb-ft, then the M10 bolts to 51 lb-ft. This ensures proper alignment and load distribution.
The 3/8"-16 x 1/2" pipe size U-bolt must be torqued to 30 lb-ft.
The 4 M10 - 1.25 x 25 hex bolts must be torqued to 51 lb-ft.
Clean the weld nuts with a wire pipe brush or lubricant before installing the M10 bolts. This may be required to ensure proper fastener engagement and torque.
Never exceed your vehicle manufacturer's recommended towing capacity. While the CURT 113683 is rated for 2000 lbs trailer weight and 200 lbs tongue weight, your vehicle's manufacturer may have a lower limit. Always follow the vehicle manufacturer's specification.
Yes. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. Failure to properly support non-trailer loads with these straps will void the product warranty. For more information, see the CURT catalog or visit www.curtmfg.com.
Safety glasses should be worn at all times while installing this product. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. You can also call CURT technical support at 800.798.0813.
After installation, verify that the exhaust has been raised back to its original position. Periodically check that all fasteners remain tight and that all structural components are sound. This ongoing maintenance is important for safe operation.
You should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. Regular inspection helps ensure safe towing operation and prevents fastener loosening due to vibration.
Yes, the CURT 113683 is designed for 2014-present Kia Forte Sedan models with a 2000 lbs trailer weight and 200 lbs tongue weight capacity.
No drilling is required. The hitch uses existing vehicle frame weld nuts for attachment.
Remove the driver-side underbody panel (4 M10 nuts and 3 push fasteners) and lower the exhaust by disconnecting the rubber isolator from the hanger.
Torque the 3/8" U-bolt to 30 lb-ft, then the M10 bolts to 51 lb-ft. Tighten all fasteners loosely first, then torque in this order.
The hitch is rated for 2000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Yes, CURT 18050 stabilizing straps are required for all non-trailer loads. Failure to use them voids the warranty.
You need a torque wrench, ratchet, 9/16", 10mm, and 17mm sockets, screwdriver, wire pipe brush, and safety glasses.
