CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2015 Chevrolet Cruze
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

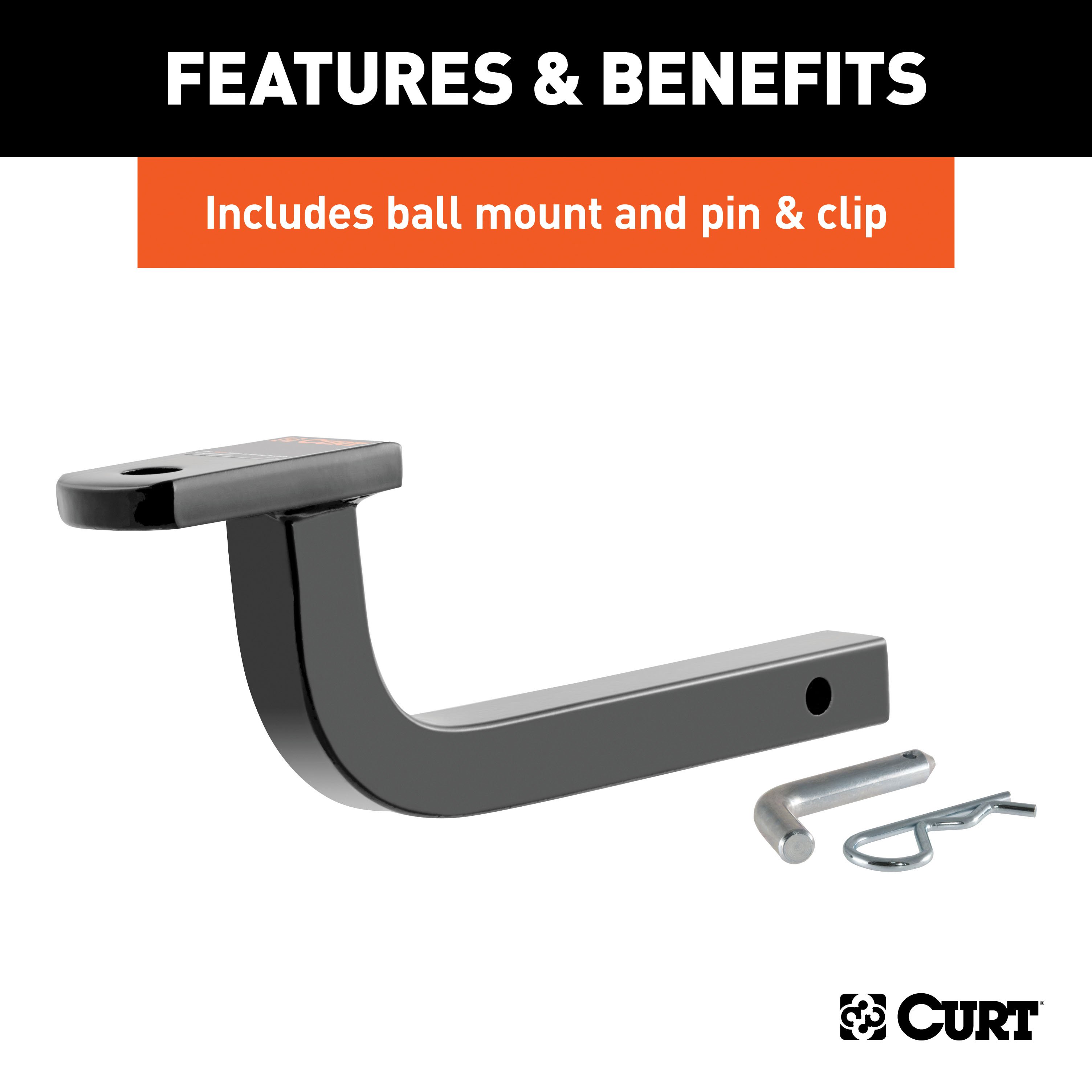

Includes ball mount #45522, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45522, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30
Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cruze (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2015 | Chevrolet Cruze | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
Yes, CURT hitch 113713 is designed for the 2014 Chevrolet Cruze Diesel Sedan. Confirm your vehicle matches the make, model, year and body style (sedan) before installation.
CURT hitch 113713 is designed for use with ball mount #D-221/45522, and Euro mounts #45591 (1-7/8'' ball) and #45592 (2'' ball). These are sold separately.
CURT hitch 113713 has a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: torque wrench, ratchet, 3/4'' socket, 13mm socket, aviation shears, and safety glasses. A 1/2'' socket is also mentioned for removing the exhaust isolator bolt.
The hitch includes: 4 × CM-SP2 spacers (.250 x .88 x 2.25'' square hole), 4 × 7/16-14 x 1 1/4'' carriage bolts, 4 × 7/16-14 hex flange nuts, and 2 × 7/16'' fishwire.
No, drilling is not required. The hitch uses existing access holes and mounting holes in the frame.
Yes, the exhaust must be lowered before installation. Remove the 2 rubber isolators from the muffler towards the center of the vehicle and remove the bolt securing the rearmost hanger to the frame using a 1/2'' socket. After installation is complete, raise the exhaust back into position.
Only if a heat shield is present on your vehicle. If present, trim it to access the access hole in the frame. Approximate trim dimensions are 2.50'' on two sides, but confirm actual dimensions prior to trimming using the heat shield trim diagram provided.
Thread the 7/16'' fishwire through the CM-SP2 spacers and 7/16'' carriage bolts through the access holes in the frame and out through the mounting holes. This allows you to position the hitch before securing it with the flange nuts. Refer to the fishwire technique diagram in the manual for detailed guidance.
Torque all 7/16'' hardware (carriage bolts and flange nuts) to 70 ft-lbs.
Wear safety glasses at all times while installing this product. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
All non-trailer loads (wheel-less loads) applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is an ongoing maintenance requirement, not a one-time check.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person can improve the quality of the install and reduce the time required.
Yes, CURT 113713 is designed for 2014 Chevrolet Cruze Diesel Sedans. Confirm your vehicle matches the make, model, year and sedan body style.
2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing frame access holes and mounting holes.
Yes. Remove 2 rubber isolators from the muffler and the bolt securing the rearmost hanger to the frame using a 1/2'' socket. Raise it back after installation.
Torque all 7/16'' hardware to 70 ft-lbs.
All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to use them voids the warranty.
