Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Installation requires heat shield trimming and temporary lowering of exhaust
Includes ball mount #45521, installation hardware, pin & clip (trailer ball sold separately)
Includes ball mount #45521, installation hardware, pin & clip (trailer ball sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Color: Black
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

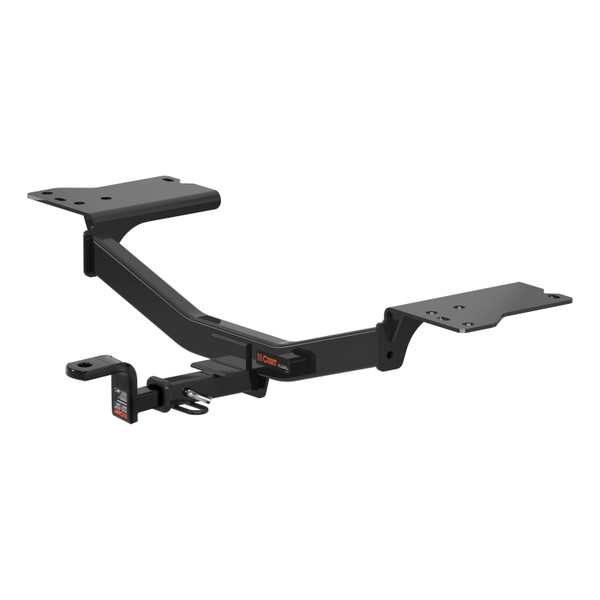

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cruze (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2017 - 2019 | Chevrolet Cruze | Hatchback | No Drilling Required Heat Shield Trimming: Yes Installation Time: 30-60 minutes Temporarily Lower Exhaust: Yes Visibility: Concealed |
Yes, the CURT 114583 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cruze (Part #BKDK114583) is designed to fit the 2017-2019 Chevrolet Cruze.
The CURT 114583 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cruze (Part #BKDK114583) fits 2017-2019 Chevrolet Cruze models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 114583 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cruze (Part #BKDK114583) fits the following vehicles: 2017-2019 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
The CURT 114583 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cruze (Part #BKDK114583) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 11458 is designed for 2017-Present Chevrolet Cruze Hatchback models. Before purchasing, verify your vehicle matches this exact year range and body style.
The CURT 11458 is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The CURT 11458 is designed for use with ballmount #45521. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
You will need: a ratchet, 6" socket extension, 13mm and 11/16" sockets, needle nose pliers, aviation shears, a torque wrench, and safety glasses. Safety glasses must be worn at all times during installation.
No, the CURT 11458 requires no drilling. It uses existing holes in the frame rails for attachment.
Yes, heat shield trimming is required. You must temporarily remove the heat shield by removing 6 retention nuts with needle nose pliers, then trim it following the trim diagram provided, removing a 3" x 3" square. After trimming, reinstall the heat shield using only the center retention nuts.
Yes, you must temporarily lower the exhaust. Use a 13mm socket to remove 2 nuts from each exhaust hanger. There is a plastic clip on the exhaust hanger that must be pushed out of the way to allow the exhaust to be lowered. After installing the hitch, reinstall the exhaust using the nuts you removed.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
The 7/16" bolts must be torqued to 59 ft-lbs. Use a torque wrench to ensure proper tightening.
The kit includes: 4 carriage bolts (7/16-14 x 1 1/2), 4 square hole spacers (.250 x .88 x 2.25", part number CM-SP2), 4 hex flange nuts (7/16-14), and 4 pieces of 7/16" fishwire.
All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer loads.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
The CURT 11458 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Follow these steps in order: 1) Lower the exhaust by removing 2 nuts from each hanger using a 13mm socket, pushing out the plastic clip. 2) Temporarily remove the heat shield by removing 6 retention nuts with needle nose pliers, then trim a 3" x 3" square following the trim diagram. 3) Fishwire 2 bolts and spacers into the holes in each frame rail, then reinstall the heat shield using only the center retention nuts. 4) Raise the hitch into position over the exhaust and secure with 7/16" flange nuts, torquing the 7/16" bolts to 59 ft-lbs. 5) Reinstall the exhaust using the nuts removed in step 1.
Fishwire refers to threading or routing the bolts and spacers through the existing holes in each frame rail. The kit includes 4 pieces of 7/16" fishwire for this purpose. In step 3, you fishwire 2 bolts and spacers into the holes in each frame rail before raising the hitch into position.
Yes, the CURT 11458 is designed for 2017-Present Chevrolet Cruze Hatchback models.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No, no drilling is required. The hitch uses existing frame rail holes.
Yes, you must trim a 3" x 3" square from the heat shield following the provided trim diagram.
Torque the 7/16" bolts to 59 ft-lbs using a torque wrench.
All non-trailer loads must be supported by CURT 18050 stabilizing straps, or the warranty is voided.
Two people may be required to ease installation.
