Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

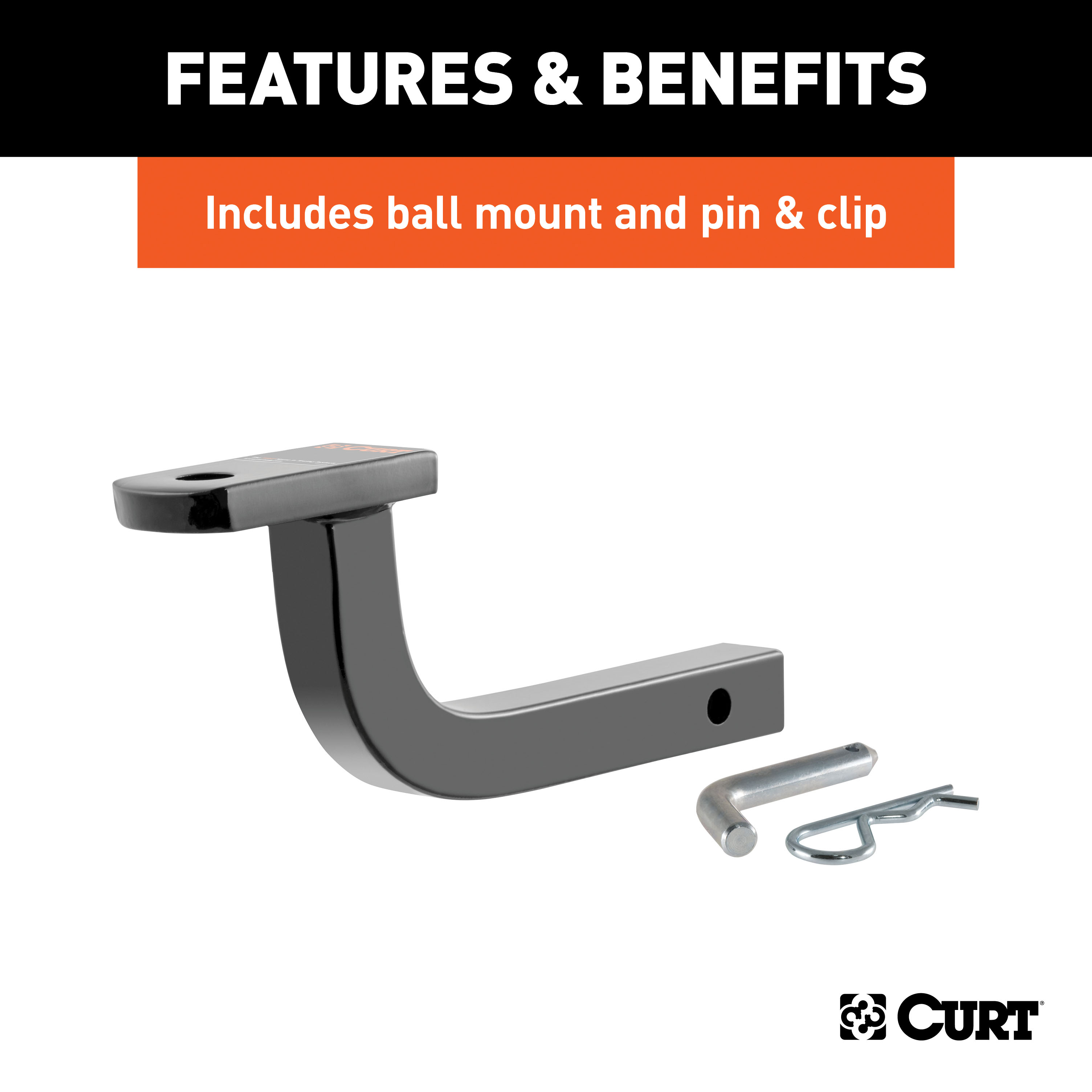

Includes ball mount #45520, installation hardware, pin & clip
Trailer ball sold separately
Includes ball mount #45520, installation hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

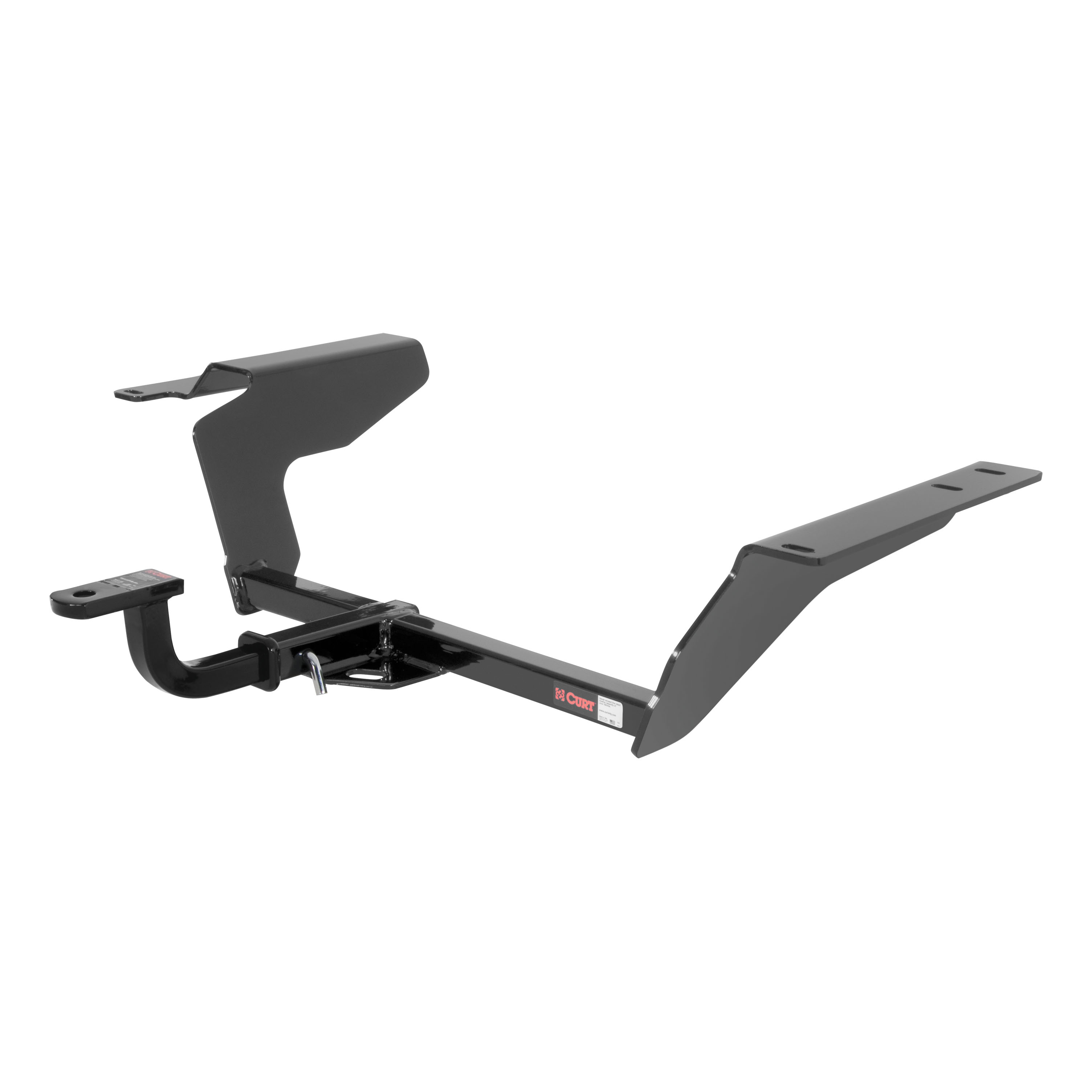

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Cobalt, Chevrolet HHR, Pontiac G5, Pontiac Pursuit and Saturn Ion (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94945 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2010 | Chevrolet Cobalt | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2006 - 2011 | Chevrolet HHR | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2007 - 2010 | Pontiac G5 | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2005 - 2006 | Pontiac Pursuit | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2004 - 2007 | Saturn Ion | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 114473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cobalt, HHR, Pontiac Pursuit, G5, Saturn Ion (Part #BKDK114473) fits 2005-2010 Chevrolet Cobalt models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 114473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cobalt, HHR, Pontiac Pursuit, G5, Saturn Ion (Part #BKDK114473) is designed to fit the 2005-2010 Chevrolet Cobalt.
The CURT 114473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cobalt, HHR, Pontiac Pursuit, G5, Saturn Ion (Part #BKDK114473) fits the following vehicles: 2005-2010 Chevrolet Cobalt; 2006-2011 Chevrolet HHR; 2007-2010 Pontiac G5; 2005-2006 Pontiac Pursuit; 2004-2007 Saturn Ion. Always verify your specific year, make, and model before ordering.
The CURT 114473 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Chevrolet Cobalt, HHR, Pontiac Pursuit, G5, Saturn Ion (Part #BKDK114473) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
This hitch is designed for Chevrolet HHR, Chevrolet Cobalt SS/LS/LT, Saturn Ion, Saturn Ion Redline, Pontiac Pursuit, and Pontiac G5. If your vehicle is one of these models, it will fit. The hitch is designed for use with ball mount D-20/45520. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, but the muffler and tailpipe must be lowered during installation. You will remove all rubber isolators (2 or 3 depending on vehicle) from the hangers behind the rear axle. On Ion Redline models, the rearward isolator hanger needs to be bent down slightly for fastener clearance. After installation, the muffler isolator hangers are reinstalled.
Bumper trimming is required only on HHR-SS models. You will need to trim the center of the rear bumper fascia approximately 3 inches wide up to the first bend. Other vehicle models do not require bumper trimming.
The hitch includes 4 carriage bolts (1/2-13 x 1 1/2), 4 square hole spacers (CM-SP6, .250 x 1.00 x 3.00 inch), 4 hex flange nuts (HFN 1213), and 1 fishwire tool (CM-500-FW) for routing fasteners through frame access slots.
You will need a 9/16 inch drill bit (for Cobalt, Pursuit, and Ion vehicles), a socket wrench or wrench for 1/2 inch bolts and nuts, and a torque wrench capable of 110 lb-ft. The fishwire tool (CM-500-FW) is included to help route the carriage bolts and spacer blocks through the frame access slots. A tool to trim bumper fascia (on HHR-SS only) and a tool to bend the isolator hanger (on Ion Redline) may also be needed.
Yes, drilling is required on some vehicles. On Cobalt, Pursuit, and Ion models, you must drill both rear holes with a 9/16 inch drill bit, using the rearmost slot that does not go all the way through the frame as a guide for the clearance hole for 1/2 inch bolts. On HHR models, you must enlarge the rearmost slot on the passenger side only. The forward fastener holes use existing access slots and do not require drilling.
Use a 9/16 inch drill bit to drill both rear holes on Cobalt, Pursuit, and Ion vehicles. Use the rearmost slot that does not go all the way through the frame as your guide for drilling the clearance hole for the 1/2 inch bolts.
Yes, on HHR models you must enlarge the rearmost slot on the passenger side only. On Cobalt, Pursuit, and Ion models, you must drill 9/16 inch holes instead. The forward fastener holes use existing access slots and do not require enlargement or drilling.
On HHR-SS models, trim the center of the rear bumper fascia approximately 3 inches wide up to the first bend. This trimming is necessary to allow the hitch to fit properly. Other vehicle models do not require bumper fascia trimming.
1. Lower the muffler and tailpipe by removing all rubber isolators from hangers behind the rear axle (2 or 3 depending on vehicle). On Ion Redline, bend the rearward isolator hanger down slightly for fastener clearance. 2. Install rearward fasteners (drill or enlarge holes as needed per vehicle). 3. Install forward fasteners using existing access slots. 4. Slide the hitch up and over the muffler into place, install hex flange nuts on all 4 bolts, and do not tighten. 5. Slide the hitch toward the passenger side and up against the trunk pan, then tighten bolts. 6. Torque all 1/2 inch fasteners to 110 lb-ft. 7. Reinstall muffler isolator hangers.
Use the included fishwire tool (CM-500-FW) to route the 1/2-13 x 1 1/2 carriage bolts and square hole spacer blocks (CM-SP6) through the access slots in the bottom of the frame on both sides. For rearward fasteners, fish the bolts and blocks through the access slots. For forward fasteners, insert the carriage bolts and blocks into the access slot and drop them back down through the slot, making sure the block spans both sides of the slot.
After installing the hex flange nuts on all 4 bolts, do not tighten them yet. First, slide the hitch toward the passenger side and up against the trunk pan while holding it in this position. This ensures proper alignment before final tightening. Once the hitch is properly positioned against the trunk pan, then tighten and torque all bolts to 110 lb-ft.
Torque all 1/2 inch fasteners to 110 lb-ft. This applies to the four 1/2-13 x 1 1/2 carriage bolts secured with hex flange nuts (HFN 1213).
The manual states a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Always follow your vehicle manufacturer's specifications.
Non-trailer loads can be applied to this hitch, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. Do not rely on the hitch alone to support non-trailer loads.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the hitch to ensure that all fasteners remain tight and that all structural components are in good condition. This is especially important before towing.
The manual states that you should periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. While a specific interval is not provided, it is recommended to check before each towing trip and after any heavy use.
Chevrolet HHR, Chevrolet Cobalt SS/LS/LT, Saturn Ion, Saturn Ion Redline, Pontiac Pursuit, and Pontiac G5.
Yes. On Cobalt, Pursuit, and Ion models, drill both rear holes with a 9/16 inch drill bit. On HHR models, enlarge the rearmost slot on the passenger side only. HHR-SS models also require trimming the rear bumper fascia approximately 3 inches wide.
4 carriage bolts (1/2-13 x 1 1/2), 4 square hole spacers (CM-SP6), 4 hex flange nuts (HFN 1213), and 1 fishwire tool (CM-500-FW).
Torque all 1/2 inch fasteners to 110 lb-ft.
2,000 lbs trailer weight and 200 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. All non-trailer loads must be supported by auxiliary stabilizing straps. Failure to do so voids the warranty.
