Installation requires temporarily lowering the exhaust
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes ball mount #45521 (trailer ball sold separately), hardware, pin & clip
Includes ball mount #45521 (trailer ball sold separately), hardware, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 1-1/4 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 200 LB / 2,000 LB
Weight Carrying Capacity (Pounds): 2,000 LB
WC Tongue Weight (Pounds): 200 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

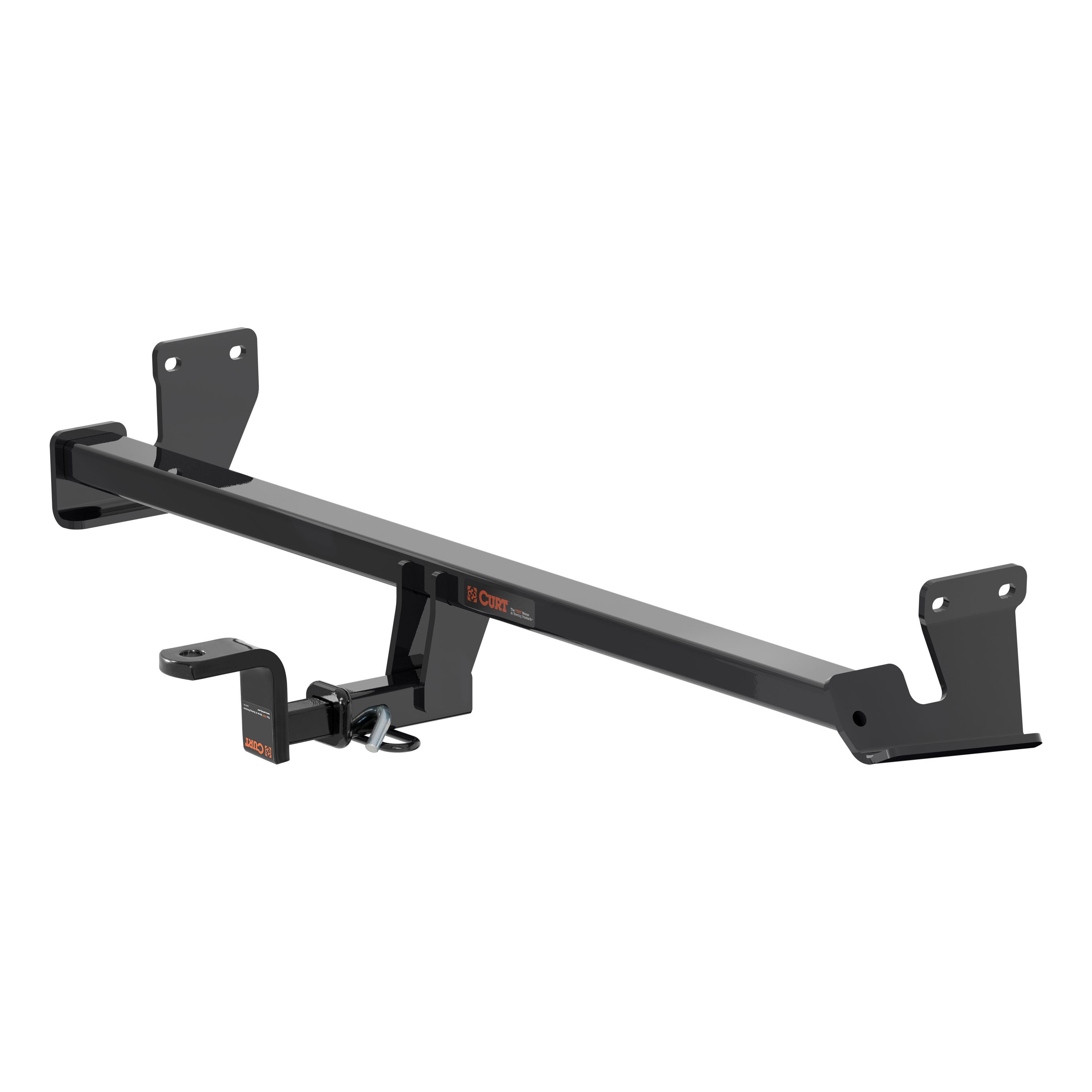

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Hyundai Kona (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 2,000 pounds gross trailer weight and 200 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you?re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Hyundai Kona | No Drilling Required Installation Time: 30-60 minutes Excluding electric or N Visibility: Concealed |
The CURT 115293 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Hyundai Kona (Part #BKDK115293) fits the following vehicles: 2018-2022 Hyundai Kona. Always verify your specific year, make, and model before ordering.
The CURT 115293 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Hyundai Kona (Part #BKDK115293) fits 2018-2022 Hyundai Kona models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 115293 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Hyundai Kona (Part #BKDK115293) is designed to fit the 2018-2022 Hyundai Kona.
The CURT 115293 Class 1 Trailer Hitch with Ball Mount, 1-1/4-In Receiver, Fits Select Hyundai Kona (Part #BKDK115293) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 11529 is designed for 2018-Present Hyundai Kona SUV models. Verify your vehicle year and model match this range before purchasing.
Yes, the hitch fits both 2WD and AWD models. However, AWD models require an additional step: you must lower the exhaust by removing 2 rubber isolators before installation, then raise it back into position after the hitch is secured.
The hitch is rated for a maximum trailer weight of 2,000 lbs and a tongue weight of 200 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
You will need: screwdriver, 10mm socket, 11/16" socket, 6" extension, ratchet, torque wrench, and safety glasses. A 6" extension is specifically required to reach the fastening points.
The kit includes 4 carriage bolts (7/16-14 x 1 1/4), 4 hex flange nuts (7/16-14), 4 pieces of 7/16" fishwire, and 4 spacers (part number 11529-SP). All fasteners are 7/16" size.
No. This is a no-drill installation. The hitch uses the fishwire method to route fasteners through existing frame rail holes without requiring any drilling.
Two people may be required to ease installation. While one person may be able to complete the job, having a second person will improve the quality of the install and reduce installation time.
The installation is rated as EASY. The manual indicates this is a no-drill, fishwire-based installation suitable for DIY installation, though professional installation is available if needed.
First, relocate the electrical harness from under the driver side of the bumper beam to above the bumper beam. Then remove the underbody panel from the passenger side frame rail and save it for reinstallation in Step 5.
Thread the 7/16" fishwire through the lower holes in the outside of the frame rails, then attach the 7/16" carriage bolts and 11529-SP spacers to the fishwire. When you raise the hitch into position, feed the fishwires through the holes in the hitch, then secure loosely with 7/16" hex flange nuts before final torquing.
All 7/16" hardware (carriage bolts and hex flange nuts) must be torqued to 59 lb-ft. Fasteners should be loosely secured first, then torqued to this specification after the hitch is positioned.
Only if you have an AWD model. AWD vehicles require you to lower the exhaust by removing 2 rubber isolators before installation. After the hitch is secured and torqued, raise the exhaust back into position.
After installation, verify that all fasteners are tight and all structural components are sound. The manual recommends periodically checking the receiver hitch to ensure all fasteners remain tight and structural components remain sound during ownership.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task, contact an authorized CURT installer for additional assistance.
Non-trailer (wheel-less) loads can be applied to this hitch only if they are supported by CURT stabilizing straps part number 18050. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
The hitch is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) or #45572 (2" ball). Consult the CURT catalog or website for additional compatible options.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe operation.
Yes, CURT 11529 is designed for 2018-Present Hyundai Kona SUV. Verify your model year before purchasing.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No. This is a no-drill installation using the fishwire method.
Screwdriver, 10mm socket, 11/16" socket, 6" extension, ratchet, torque wrench, and safety glasses.
All 7/16" fasteners must be torqued to 59 lb-ft.
Yes, AWD models only. Remove 2 rubber isolators to lower the exhaust before installation, then raise it back after torquing.
Only with CURT stabilizing straps part number 18050. Non-trailer loads without proper support will void the warranty.
