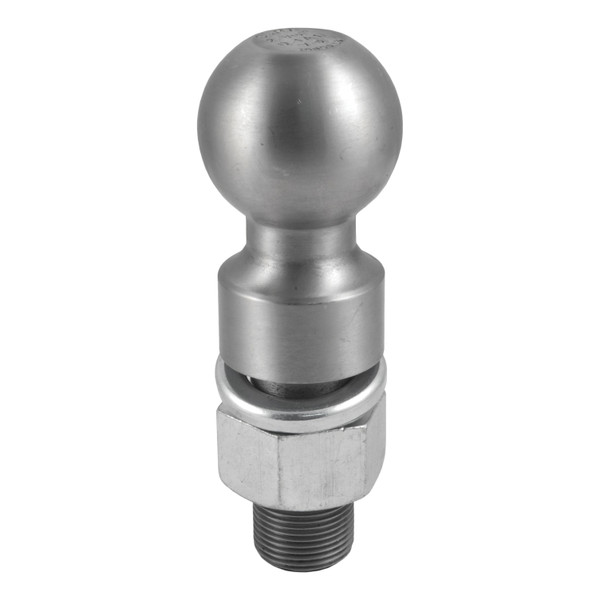

CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 25,000 lbs., Raw Steel) Trailer Hitch Ball
CURT
click to zoom in
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 25,000 lbs., Raw Steel) Trailer Hitch Ball
1,269
Write a Review
MSRP:
$49.95
$49.44
In-Stock
You save
$0.51
!
SKU:
BKDK40086
Condition:
New
Ball Diameter:
2-5/16"
curtwhlocations:
D01, D25, D30, D60
Ships via Freight:
False
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Free Shipping!
CURT 2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 25,000 lbs., Raw Steel) Trailer Hitch Ball
MSRP:
$49.95
$49.44
In-Stock
You save
$0.51
!
CURT 40086 Raw Steel Trailer Hitch Ball, 25,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-5/8-Inch Shank
Installation Instructions
View InstructionsNotes
The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
Product Video

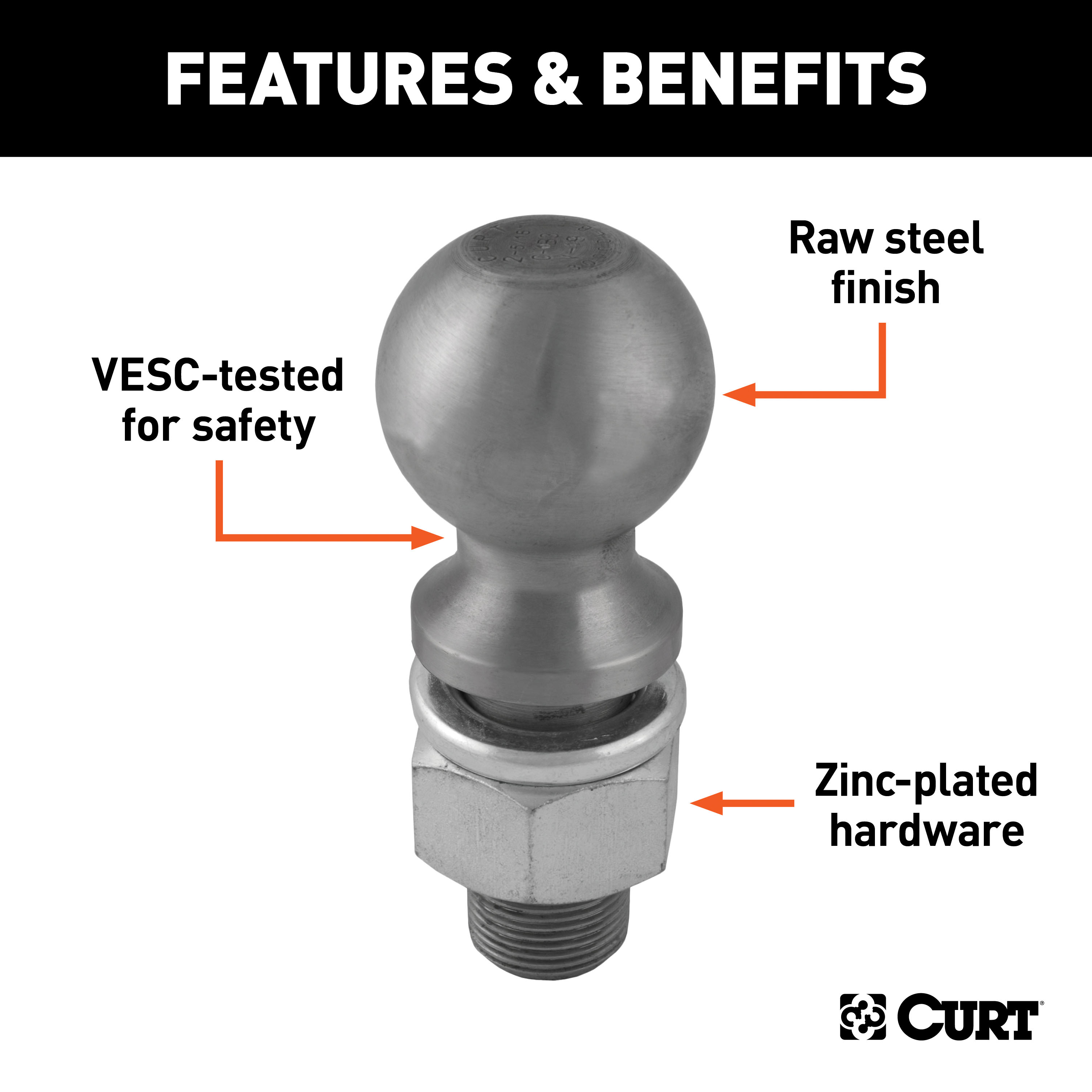

Features
- Fits 2-5/16" couplers and accepts up to 25,000 lbs. GTW
- 1" shank rise for precise trailer leveling
- Constructed from high-strength raw steel
- Heat-treated for optimum wear resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-19 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: RAW
Ball Diameter (Inches): 2-5/16 IN
Torque (Pounds): 450 FT LB
Installation Time Exact (Minutes): 0
Description
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 25,000 lbs. It features a 1-1/4" shank diameter, a 2-5/8" shank length, 1" of rise and a raw steel finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
STANDARD TRAILER BALLS
| Shank Diameter (C) | Shank Length (B) | Rise (D) | GTW | Chrome Bulk # | Chrome Full Throne # | Chrome Half Throne # | Stainless Bulk # | Stainless Full Throne # | Raw Bulk # |
|---|---|---|---|---|---|---|---|---|---|
| 1-7/8" Ball Diameter (A) | |||||||||
| 3/4" | 1-5/8" | 0" | 2,000 lbs. | 40001 | 40061 | 40161 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 2,000 lbs. | 40015 | 40063 | 40163 | -- | -- | 40050 |
| 3/4" | 2-1/8" | 1" | 2,000 lbs. | 40016 | 40071 | 40171 | -- | -- | 40051 |
| 3/4" | 3" | 0" | 2,000 lbs. | 40026 | 40072 | 40172 | -- | -- | 40081 |
| 1" | 2-1/8" | 0" | 3,500 lbs. | 40031 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 3,500 lbs. | 40032 | -- | -- | -- | -- | -- |
| 2" Ball Diameter (A) | |||||||||
| 1" | 1-3/4" | 0" | 3,500 lbs. | 40003 | 40064 | 40164 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 3,500 lbs. | 40018 | 40065 | 40165 | -- | -- | 40052 |
| 3/4" | 2-1/8" | 1" | 3,500 lbs. | 40019 | 40073 | 40173 | -- | -- | 40082 |
| 1" | 2-1/8" | 0" | 6,000 lbs. | 40001 | 40066 | 40166 | 40053 | -- | 40083 |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40002 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 8,000 lbs. | 40034 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 12,000 lbs. | 40033 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 12,000 lbs. | 40038 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 0" | 10,000 lbs. | 40039 | -- | -- | -- | -- | 40056 |
| 1-1/4" | 3" | 0" | 10,000 lbs. | 40090 | 40069 | 40190 | -- | -- | -- |
| 2-5/16" Ball Diameter (A) | |||||||||
| 1" | 2-1/8" | 0" | 7,500 lbs. | 40005 | 40067 | 40167 | -- | -- | 40084 |
| 1" | 2-1/4" | 0" | 10,000 lbs. | 40011 | -- | -- | -- | -- | 40042 |
| 1" | 2-1/2" | 0" | 12,000 lbs. | 40037 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40012 | 40075 | 40175 | -- | -- | -- |
| 1" | 3-1/4" | 0" | 6,000 lbs. | 40020 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1" | 3" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1-1/4" | 2-5/8" | 1" | 15,000 lbs. | 40035 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 20,000 lbs. | 40036 | -- | -- | -- | -- | 40085 |
| 1" | 2-1/2" | 2-1/4" | 25,000 lbs. | 40038 | -- | -- | -- | -- | 40086 |
| 1" | 2-5/8" | 1" | 12,000 lbs. | 40041 | -- | -- | 40045 | -- | -- |
| 1" | 2-5/8" | 2" | 15,000 lbs. | 40048 | 40089 | -- | -- | -- | 40087 |
| 1-1/4" | 2-5/8" | 1" | 20,000 lbs. | 40008 | 40081 | 40109 | 40109 | -- | -- |
| 1-1/4" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 1" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 3" Ball Diameter (A) | |||||||||
| 1-1/4" | 3-1/4" | 0" | 30,000 lbs. | -- | -- | -- | -- | -- | 40089 |
| 50mm Ball Diameter (A) | |||||||||
| 3/4" | 50mm | 0" | 1,600 kg. | 40099 | -- | -- | -- | -- | -- |
