The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Raw Steel
Finish: RAW
Ball Diameter (Inches): 2-5/16 IN
Torque (Pounds): 4550 FT LB
Installation Time Exact (Minutes): 0

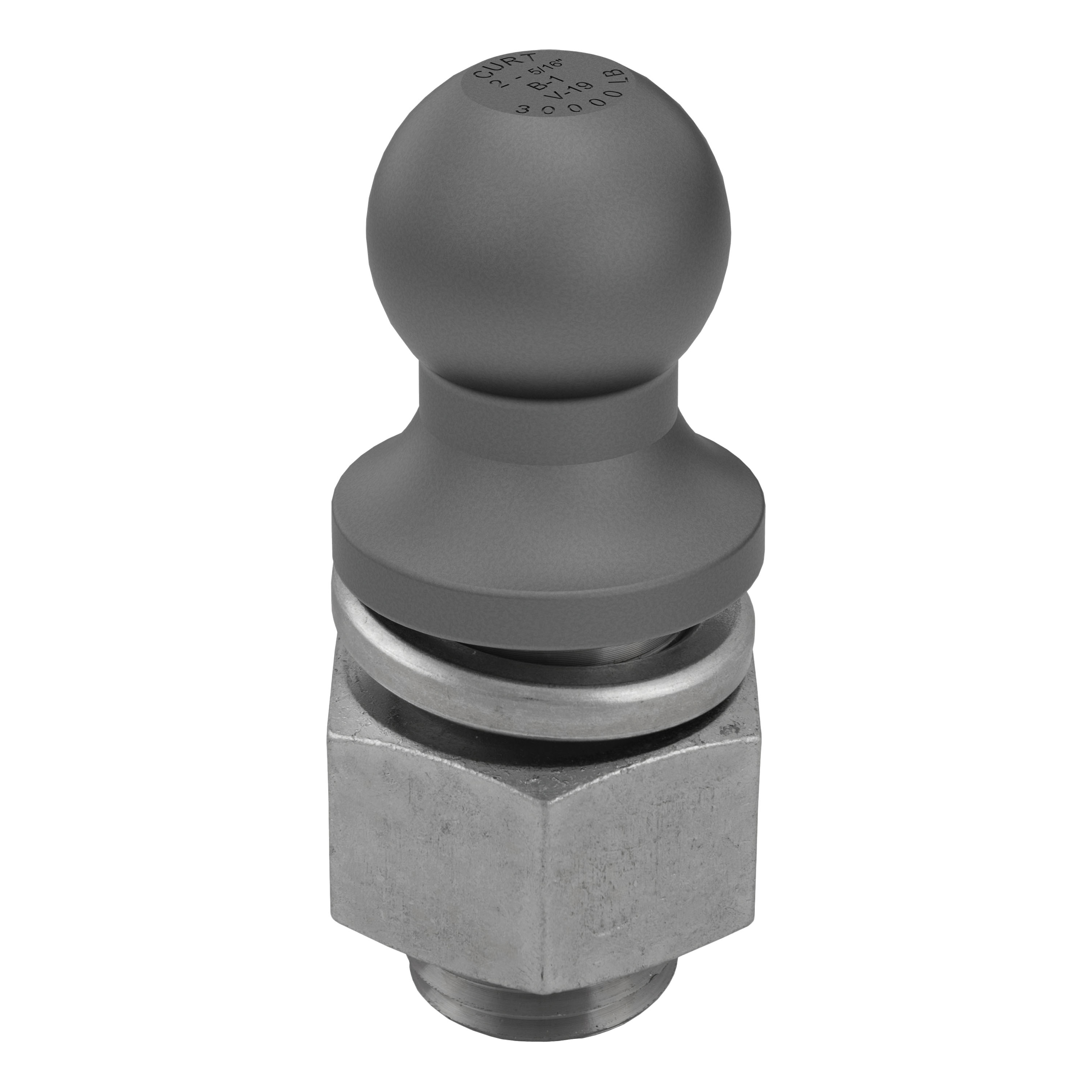

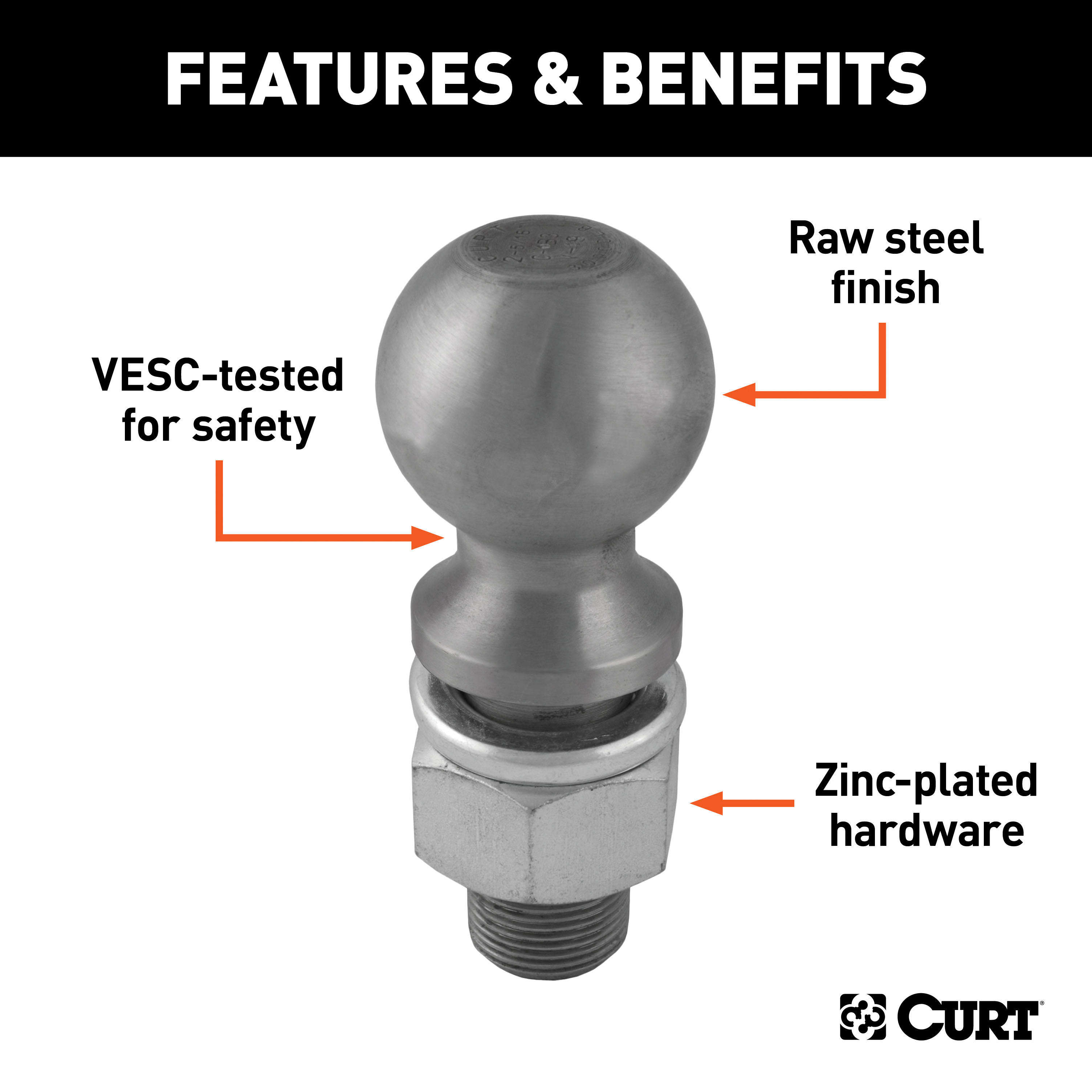

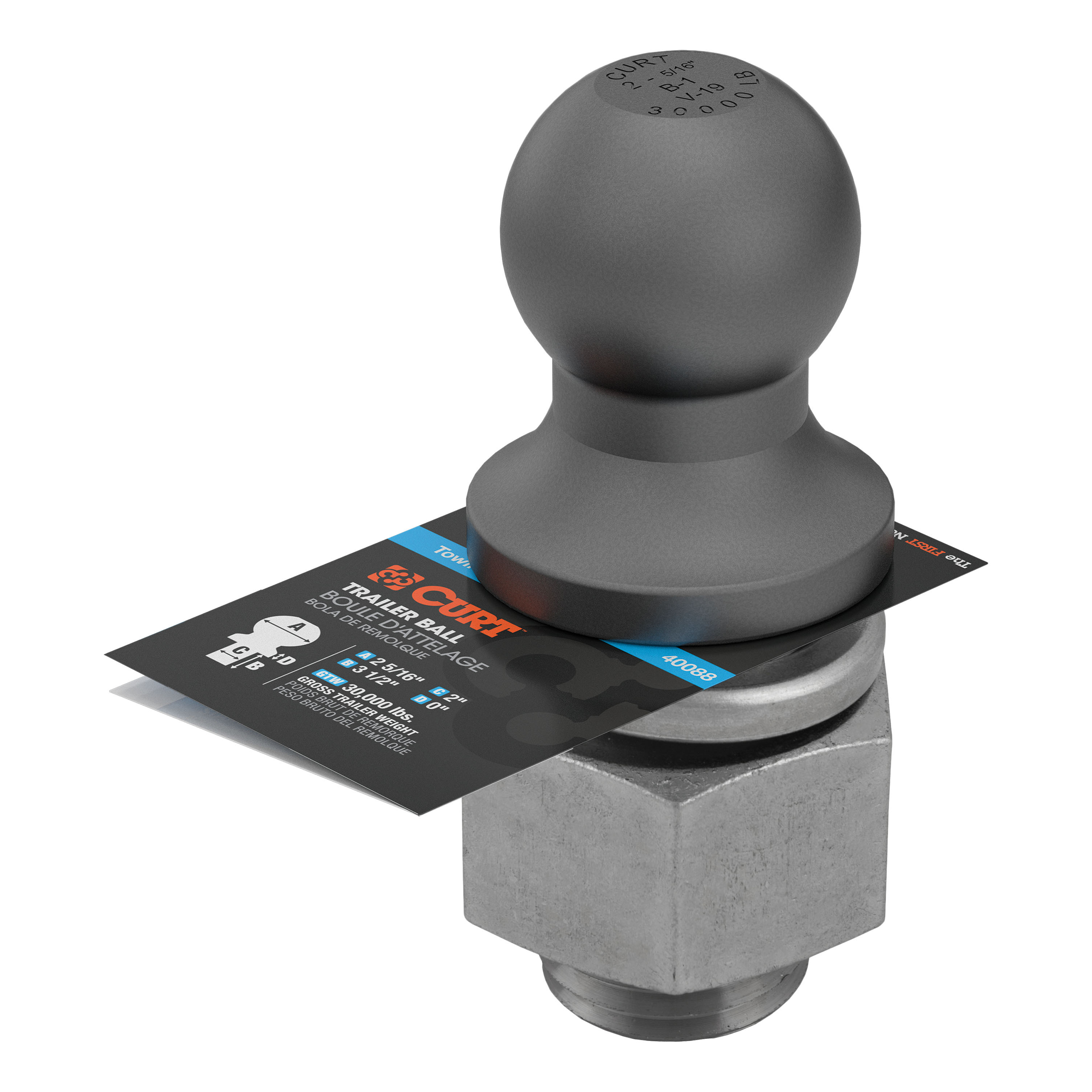

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 30,000 lbs. It features a 2" shank diameter, a 3-1/2" shank length, 0" of rise and a raw steel finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
| Shank Diameter (C) | Shank Length (B) | Rise (D) | GTW | Chrome Bulk # | Chrome Full Throne # | Chrome Half Throne # | Stainless Bulk # | Stainless Full Throne # | Raw Bulk # |
|---|---|---|---|---|---|---|---|---|---|
| 1-7/8" Ball Diameter (A) | |||||||||
| 3/4" | 1-5/8" | 0" | 2,000 lbs. | 40001 | 40061 | 40161 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 2,000 lbs. | 40015 | 40063 | 40163 | -- | -- | 40050 |
| 3/4" | 2-1/8" | 1" | 2,000 lbs. | 40016 | 40071 | 40171 | -- | -- | 40051 |
| 3/4" | 3" | 0" | 2,000 lbs. | 40026 | 40072 | 40172 | -- | -- | 40081 |
| 1" | 2-1/8" | 0" | 3,500 lbs. | 40031 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 3,500 lbs. | 40032 | -- | -- | -- | -- | -- |
| 2" Ball Diameter (A) | |||||||||
| 1" | 1-3/4" | 0" | 3,500 lbs. | 40003 | 40064 | 40164 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 3,500 lbs. | 40018 | 40065 | 40165 | -- | -- | 40052 |
| 3/4" | 2-1/8" | 1" | 3,500 lbs. | 40019 | 40073 | 40173 | -- | -- | 40082 |
| 1" | 2-1/8" | 0" | 6,000 lbs. | 40001 | 40066 | 40166 | 40053 | -- | 40083 |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40002 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 8,000 lbs. | 40034 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 12,000 lbs. | 40033 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 12,000 lbs. | 40038 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 0" | 10,000 lbs. | 40039 | -- | -- | -- | -- | 40056 |
| 1-1/4" | 3" | 0" | 10,000 lbs. | 40090 | 40069 | 40190 | -- | -- | -- |
| 2-5/16" Ball Diameter (A) | |||||||||
| 1" | 2-1/8" | 0" | 7,500 lbs. | 40005 | 40067 | 40167 | -- | -- | 40084 |
| 1" | 2-1/4" | 0" | 10,000 lbs. | 40011 | -- | -- | -- | -- | 40042 |
| 1" | 2-1/2" | 0" | 12,000 lbs. | 40037 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40012 | 40075 | 40175 | -- | -- | -- |
| 1" | 3-1/4" | 0" | 6,000 lbs. | 40020 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1" | 3" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1-1/4" | 2-5/8" | 1" | 15,000 lbs. | 40035 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 20,000 lbs. | 40036 | -- | -- | -- | -- | 40085 |
| 1" | 2-1/2" | 2-1/4" | 25,000 lbs. | 40038 | -- | -- | -- | -- | 40086 |
| 1" | 2-5/8" | 1" | 12,000 lbs. | 40041 | -- | -- | 40045 | -- | -- |
| 1" | 2-5/8" | 2" | 15,000 lbs. | 40048 | 40089 | -- | -- | -- | 40087 |
| 1-1/4" | 2-5/8" | 1" | 20,000 lbs. | 40008 | 40081 | 40109 | 40109 | -- | -- |
| 1-1/4" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 1" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 3" Ball Diameter (A) | |||||||||
| 1-1/4" | 3-1/4" | 0" | 30,000 lbs. | -- | -- | -- | -- | -- | 40089 |
| 50mm Ball Diameter (A) | |||||||||
| 3/4" | 50mm | 0" | 1,600 kg. | 40099 | -- | -- | -- | -- | -- |
