Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes all necessary installation hardware
Includes all necessary installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 500 LB / 5,000 LB
Weight Carrying Capacity (Pounds): 5,000 LB
WC Tongue Weight (Pounds): 500 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

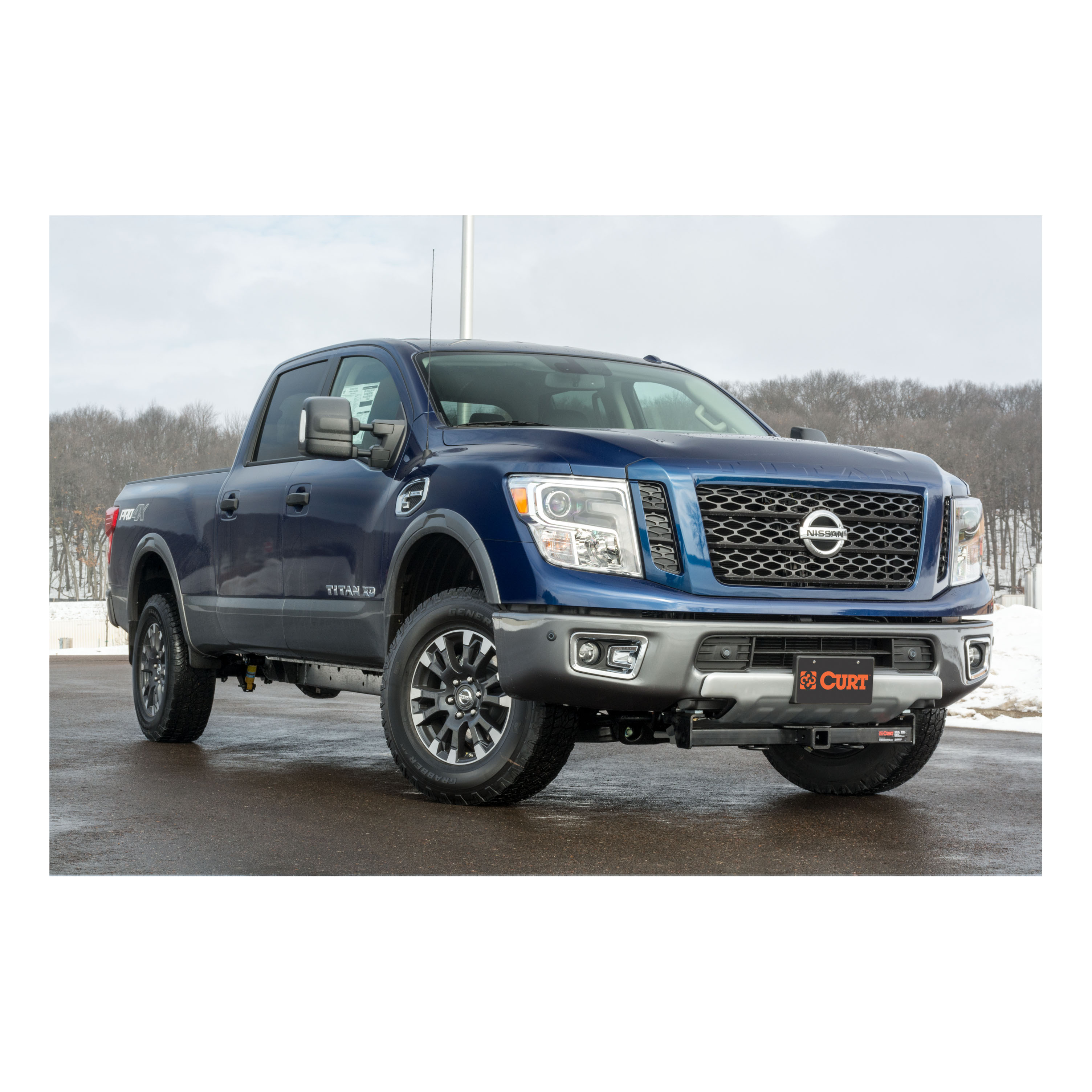

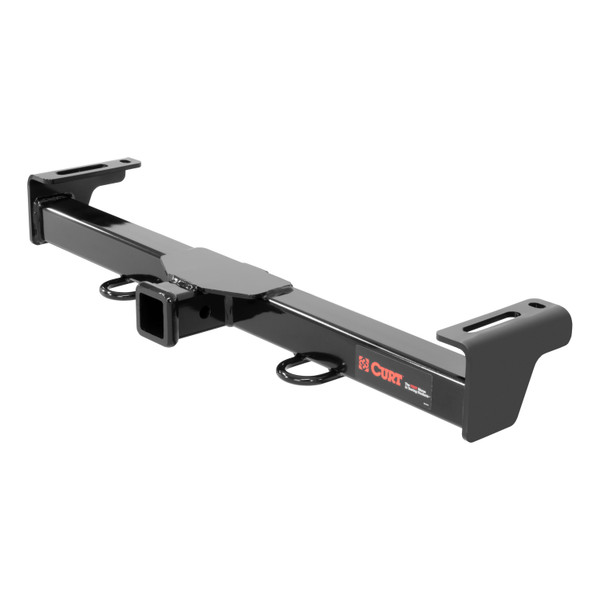

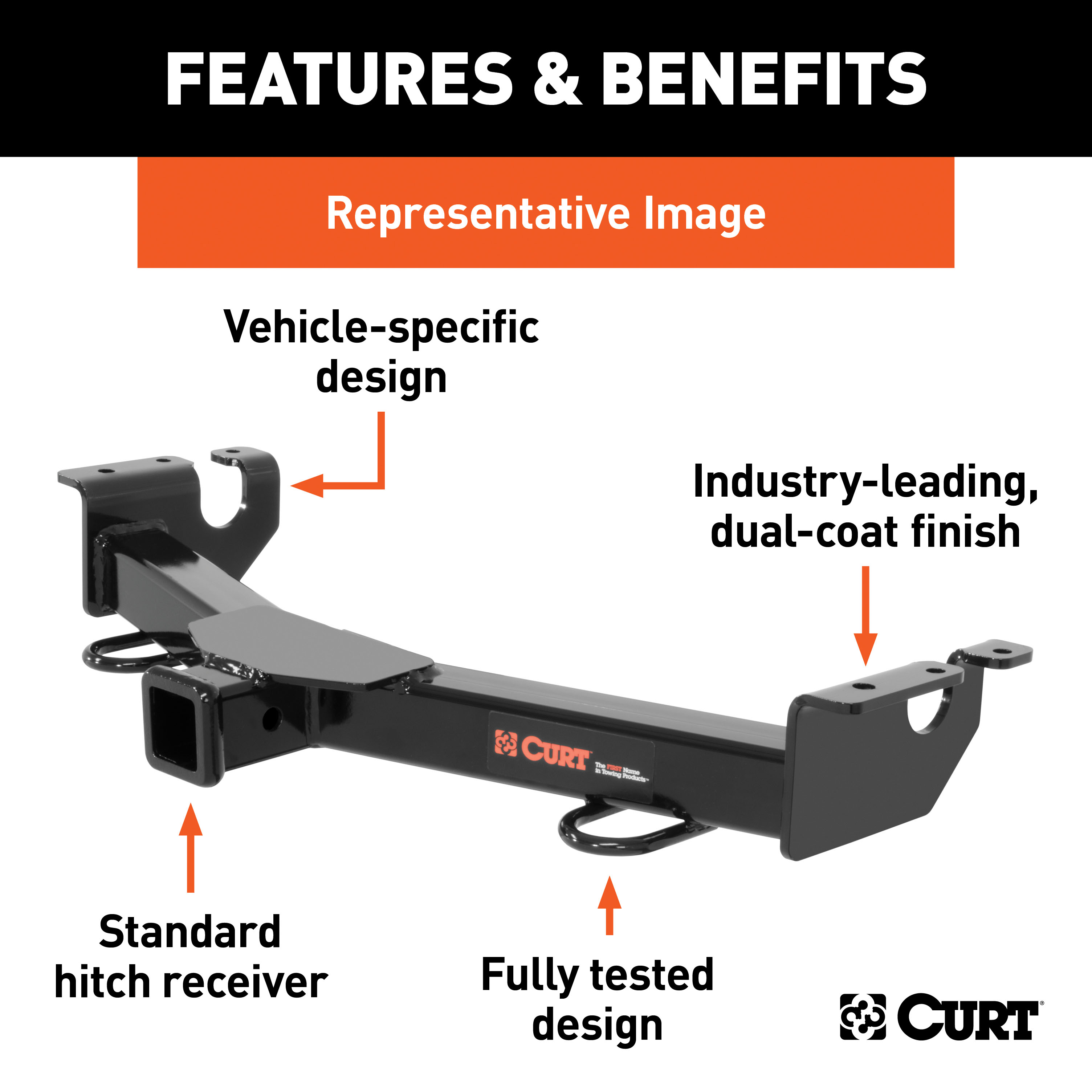

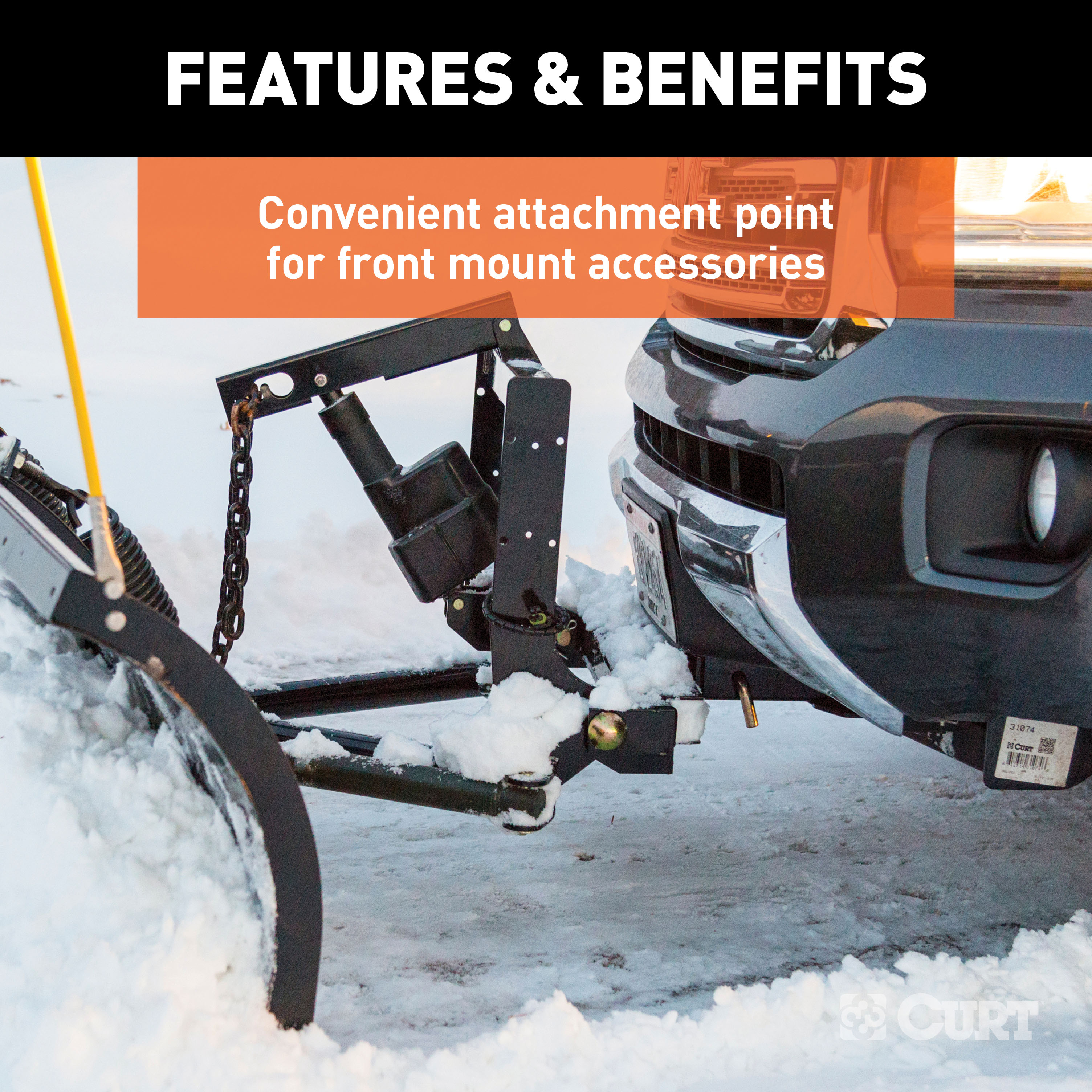

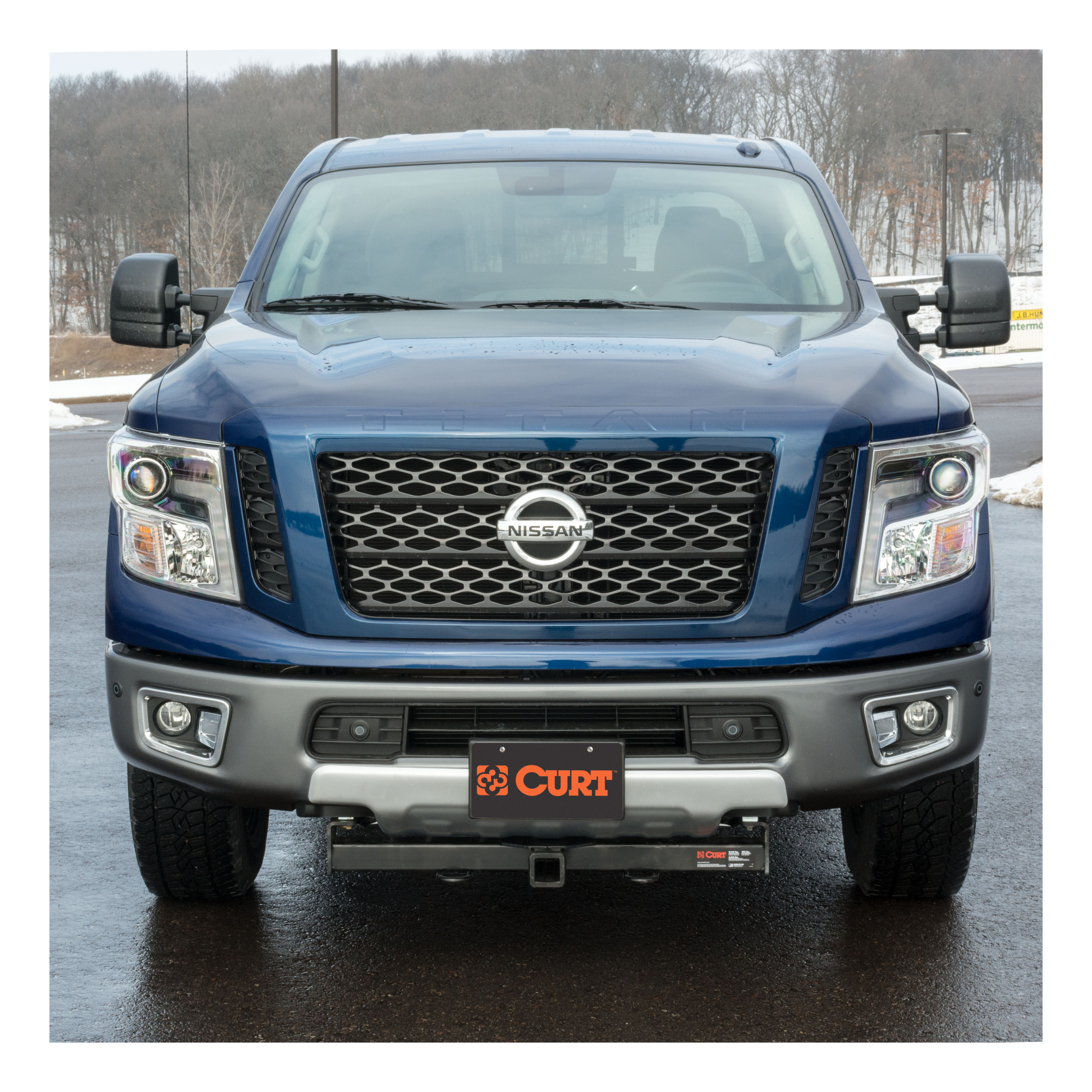

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 5,000 lbs. GTW and 500 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Nissan Titan XD (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2021 | Nissan NV1500 | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2016 - 2021 | Nissan NV2500 | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2016 - 2021 | Nissan NV3500 | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2016 - 2017 | Nissan TITAN XD | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 2" Front Receiver Hitch, Select Nissan Titan XD Trailer Hitch (Part #BKDK31077) fits 2016-2021 Nissan NV1500 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 2" Front Receiver Hitch, Select Nissan Titan XD Trailer Hitch (Part #BKDK31077) is designed to fit the 2016-2021 Nissan NV1500.
The CURT 2" Front Receiver Hitch, Select Nissan Titan XD Trailer Hitch (Part #BKDK31077) fits the following vehicles: 2016-2021 Nissan NV1500; 2016-2021 Nissan NV2500; 2016-2021 Nissan NV3500; 2016-2017 Nissan TITAN XD. Always verify your specific year, make, and model before ordering.
The CURT 2" Front Receiver Hitch, Select Nissan Titan XD Trailer Hitch (Part #BKDK31077) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 31077 is designed for the 2016 Nissan Titan XD truck. Verify that your vehicle matches this year and model before purchasing.
No. CM-SP52 spacers are used only for PRO4X models. For all other 2016 Nissan Titan XD models, follow the remaining installation instructions without using the CM-SP52 spacers.
When used as a straight line pull, the gross load capacity is 9,000 lbs maximum. However, you must never exceed your vehicle manufacturer's recommended towing capacity. Consult your 2016 Nissan Titan XD owner's manual for the vehicle's specific towing limits.
The manual specifies a tongue weight of 500 lbs for this hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 45 lbs.
You will need: 17mm and 19mm sockets, a 9-inch socket extension, a ratchet, a 19mm socket torque adapter, a torque wrench, and safety glasses. A 19mm end wrench may be used as an alternative to secure the forward-most bolt.
The kit includes: 4 M12x1.25 hex cap screws (part 10-10487), 4 conical toothed 1/2-inch washers (part 30-00149), 2 flat 1/2-inch washers (part 30-00133), and 4 round hole spacers 0.500 x 1.25 x 2.50 inches (part CM-SP52). The CM-SP52 spacers are used only on PRO4X models.
No. The manual states that no drilling is required for this installation.
Yes. Step 1 of the installation requires you to remove two hex bolts and one tow loop from the bottom of each frame rail. These factory components will be replaced with the included M12 hardware and should be returned to the vehicle owner.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
Weldnut cleaning may be required. The existing M12 weld nuts in the frame should be inspected and cleaned if necessary before installation.
All M12 fasteners must be torqued to 86 ft-lbs. Use a 19mm socket torque adapter to torque the front bolts.
1. Remove two hex bolts and one tow loop from the bottom of each frame rail. 2. Insert one hex bolt, one 1/2-inch conical toothed washer, and one CM-SP52 (PRO4X only) through the rear end of each side plate slot; slide the hitch over the tow loop plate and loosely insert the hex bolt into the forward-most weldnut. 3. Slide the hitch rearward into position and place one 1/2-inch flat washer on top of one CM-SP52 (PRO4X only) on top of each side plate, aligned with the rear-most hole. 4. Insert one M12 hex bolt with one 1/2-inch conical toothed washer through the side plate, CM-SP52 (PRO4X only), and 1/2-inch flat washer into each rear-most weldnut. 5. Secure all M12 fasteners with a socket wrench (a 19mm end wrench may be used for the forward-most bolt). 6. Torque all M12 fasteners to 86 ft-lbs using a 19mm socket torque adapter for the front bolts.
No. Step 2 instructs you to loosely insert the hex bolt into the forward-most weldnut. All fasteners are fully tightened and torqued to 86 ft-lbs only in steps 5 and 6, after the hitch is positioned and all bolts are inserted.
Safety glasses must be worn at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
You must not exceed your vehicle's front axle Gross Weight Rating (GAWR). Consult your owner's manual or the specification plate located on the driver's door frame. Measure gross front axle weight by placing the front wheels of the loaded vehicle on a scale. Exceeding GAWR may overload the front axle and/or suspension, which could result in accident, property damage, and personal injury.

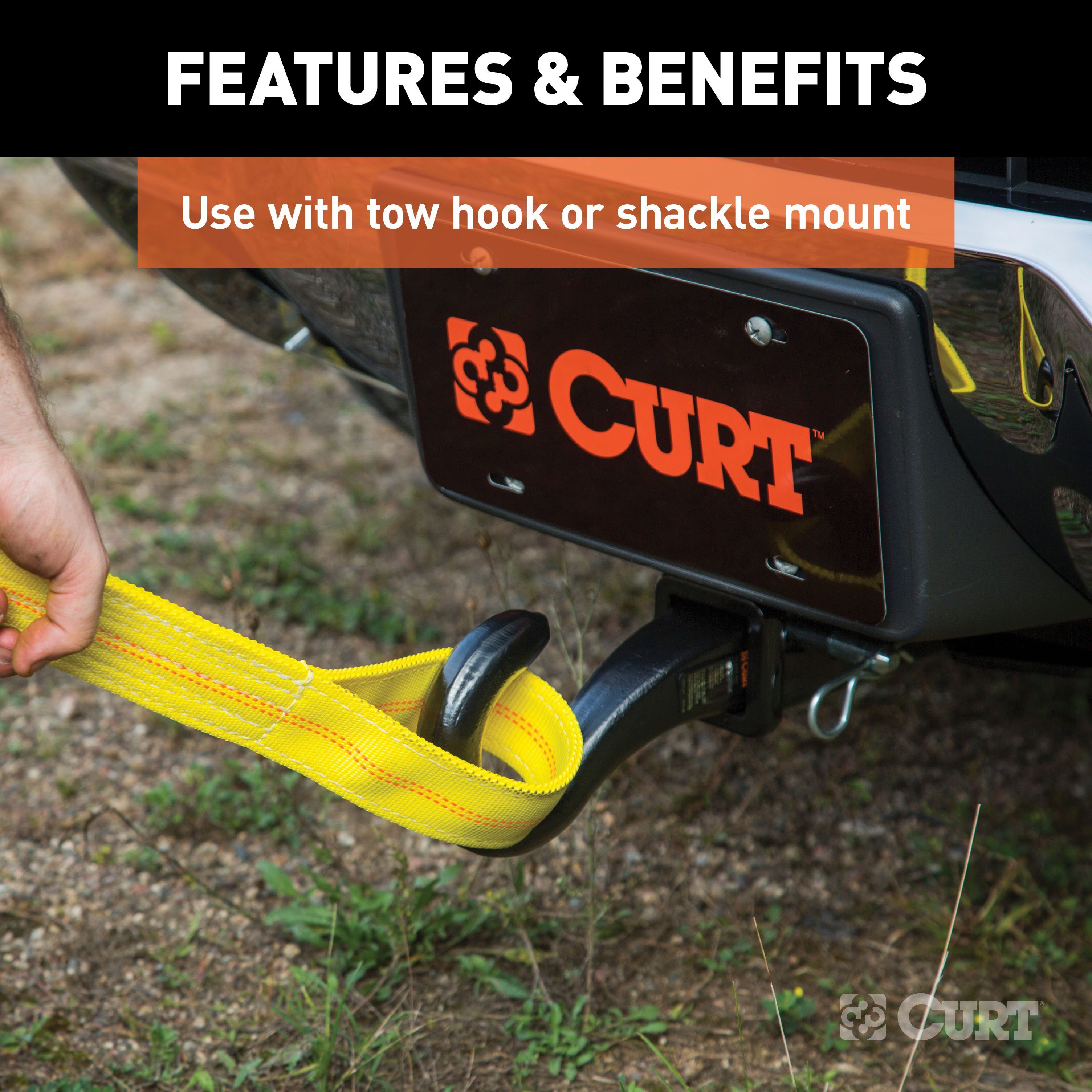

Use only OEM tow hooks, recovery eyes, or a clevis mount for attachment of a tow strap or winch cable. Never use a ball and/or ball mount as an anchor point for a tow strap or winch cable—severe personal injury or death could result.
For maximum line pull rating, the winch cable must not exceed 15 degrees up or down from horizontal, and must not exceed 45 degrees left or right from straight ahead. Exceeding these maximum line pull angles may overload the winch, winch mount, and/or front mounted receiver.
Attach the return cable to the tow hook or recovery eye when using a snatch block. Do not attach the return cable to the winch mount, as this may overload the winch mount and/or front mounted receiver.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is a critical maintenance step to ensure safe operation.
The hitch itself should not obstruct lights, but you must reposition the front-mounted license plate if it becomes obstructed by the hitch. You must also ensure that the hitch does not obstruct any vehicle lights and allows free air flow into the grille opening.
Yes. The hitch extends the front of the vehicle, which may reduce the approach angle. Use caution when parking and maneuvering. Additionally, rear wheel traction may be reduced, which could affect handling, so reduce speed and drive with caution.
Yes, the CURT 31077 is designed for the 2016 Nissan Titan XD truck.
No, no drilling is required. The hitch uses existing M12 weld nuts in the frame.
All M12 fasteners must be torqued to 86 ft-lbs using a 19mm socket torque adapter for the front bolts.
The gross load capacity is 9,000 lbs maximum for straight line pull, with 500 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
You will need 17mm and 19mm sockets, a 9-inch extension, a ratchet, a 19mm socket torque adapter, a torque wrench, and safety glasses.
Yes, you must remove two hex bolts and one tow loop from each frame rail. These will be replaced with the included M12 hardware.
No. Never use a ball and/or ball mount as an anchor point for a tow strap or winch cable—severe personal injury or death could result. Use only OEM tow hooks, recovery eyes, or a clevis mount.
CM-SP52 spacers are used only for PRO4X models. For all other 2016 Nissan Titan XD models, follow the installation instructions without using the spacers.
