Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes all necessary installation hardware
Includes all necessary installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 350 LB / 3,500 LB
Weight Carrying Capacity (Pounds): 3,500 LB
WC Tongue Weight (Pounds): 350 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 35

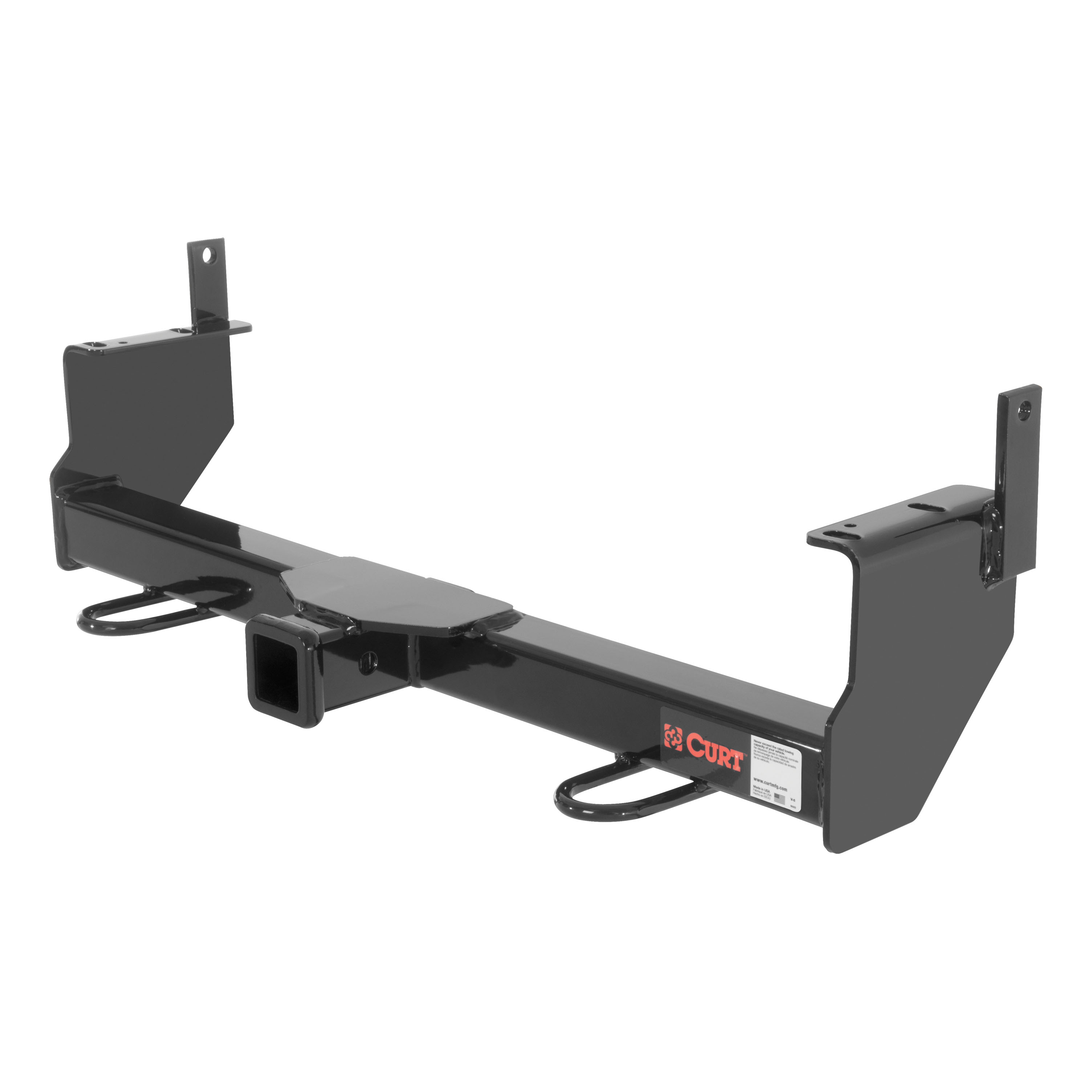

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 3,500 lbs. GTW and 350 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Nissan Xterra (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2015 | Nissan Xterra | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 31514 2-Inch Front Receiver Hitch, Select Nissan Xterra (Part #BKDK31514) fits the following vehicles: 2005-2015 Nissan Xterra. Always verify your specific year, make, and model before ordering.
The CURT 31514 2-Inch Front Receiver Hitch, Select Nissan Xterra (Part #BKDK31514) fits 2005-2015 Nissan Xterra models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 31514 2-Inch Front Receiver Hitch, Select Nissan Xterra (Part #BKDK31514) is designed to fit the 2005-2015 Nissan Xterra.
The CURT 31514 2-Inch Front Receiver Hitch, Select Nissan Xterra (Part #BKDK31514) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 31514 is designed for the Nissan Xterra. Installation uses existing square through holes in the frame, so no drilling is required.
The manual does not provide the specific towing capacity values. However, you must not exceed your vehicle manufacturer's recommended towing capacity. Consult your Nissan Xterra owner's manual for the exact capacity rating.
No, drilling is not required. The hitch uses existing square through holes in the Nissan Xterra frame.
You will need: 1/2" ratchet, torque wrench, 6" extension, 19mm socket, 17mm socket, 10mm socket, and 3/8" ratchet.
The kit includes: 4× M12×1.25 hex head cap screws (part 10-10277), 4× 1/2" S-CON washers (part 30-00149), 2× 1/2"-13 UNC 4" grade 8 bolts (part 10-10309), 2× 0.250×1.00×3.00" square hole spacers (part CM-SP6), and 2× 1/2"-13 UNC grade 8 serrated flange nuts (part 20-00062).
1. Lower the skid shield and remove the tow hook (return it to the customer). 2. Lift the hitch into position and install the 4 M12 fasteners with conical tooth washers. 3. Install the 4" bolts with spacers into the existing square holes in the frame. 4. Torque all M12 fasteners to 86 lb-ft and all 1/2" fasteners to 110 lb-ft. 5. Re-install the skid shield with original fasteners. Note: you may need to push the coolant hose on the driver side to allow bolt installation.
All M12 fasteners must be torqued to 86 lb-ft.
All 1/2" fasteners must be torqued to 110 lb-ft.
Yes, the tow hook must be removed as part of the installation process. After removal, return the tow hook to the customer.
Yes, the skid shield must be lowered to allow hitch installation. After installing the hitch and torquing all fasteners, re-install the skid shield using its original fasteners.
You may need to push the coolant hose on the driver side to allow for bolt installation. The manual does not provide further detail on this procedure.
Do not exceed your vehicle's front axle Gross Weight Rating (GAWR). Consult your Nissan Xterra owner's manual or the specification plate located on the driver's door frame to find your vehicle's GAWR. Exceeding GAWR may overload the front axle and/or suspension, which could result in accident, property damage, and personal injury.
No. Never use a ball mount as an anchor point for a tow strap or winch cable. Severe personal injury or death could result. Use OEM tow hooks, recovery eyes, or a clevis mount for attachment instead.
For maximum line pull rating, the winch cable must not exceed 15 degrees up or down from horizontal, and must not exceed 45 degrees left or right from straight ahead. Exceeding these angles may overload the winch, winch mount, and/or front mounted receiver.
Attach the return cable to the tow hook or recovery eye when using a snatch block. Do not attach the return cable to the winch mount, as this may overload the winch mount and/or front mounted receiver.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
When using front-mounted accessories with the Curt 31514: (1) Do not obstruct the vehicle's lights. (2) Allow free air flow into the grille opening. (3) Reposition the front-mounted license plate if obstructed. (4) Be aware that rear wheel traction may be reduced, which could affect handling—reduce speed and drive with caution. (5) Accessories extend the front of the vehicle and may reduce approach angle—use caution when parking and maneuvering. (6) Do not obstruct the driver's view.
Yes, the Curt 31514 is designed for the Nissan Xterra and requires no drilling—it uses existing frame holes.
No, the Curt 31514 uses existing square through holes in the frame. No drilling is required.
Torque all M12 fasteners to 86 lb-ft and all 1/2" fasteners to 110 lb-ft.
You will need a 1/2" ratchet, torque wrench, 6" extension, 19mm socket, 17mm socket, 10mm socket, and 3/8" ratchet.
Yes, lower the skid shield and remove the tow hook before installation. After torquing all fasteners, re-install the skid shield with its original fasteners.
No. Never use the ball mount as an anchor point for a tow strap or winch cable. Use OEM tow hooks or recovery eyes instead. Severe personal injury or death could result.
