Vehicle battery connection required
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 20
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Lexus RX330 and RX350 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94942 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Lexus RX330 | Installation Time: 30-60 minutes |
| 2007 - 2012 | Lexus RX350 | Installation Time: 30-60 minutes |
The CURT 55563 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Lexus RX330, RX350 (Part #BKDK55563) fits the following vehicles: 2004-2006 Lexus RX330; 2007-2012 Lexus RX350. Always verify your specific year, make, and model before ordering.
The CURT 55563 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Lexus RX330, RX350 (Part #BKDK55563) fits 2004-2006 Lexus RX330 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 55563 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Lexus RX330, RX350 (Part #BKDK55563) is designed to fit the 2004-2006 Lexus RX330.
The CURT 55563 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Lexus RX330, RX350 (Part #BKDK55563) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 55563 custom wiring harness is designed for the Lexus RX 330. It is also compatible with the Lexus RX 350. The harness is designed for SUVs, mini and full-sized vans.
Yes, the Curt 55563 custom wiring harness is designed for the Lexus RX 350. It is also compatible with the Lexus RX 330. The harness is designed for SUVs, mini and full-sized vans.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The signal circuits are rated at 3.0 amps per side. The tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
You will need a Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool.

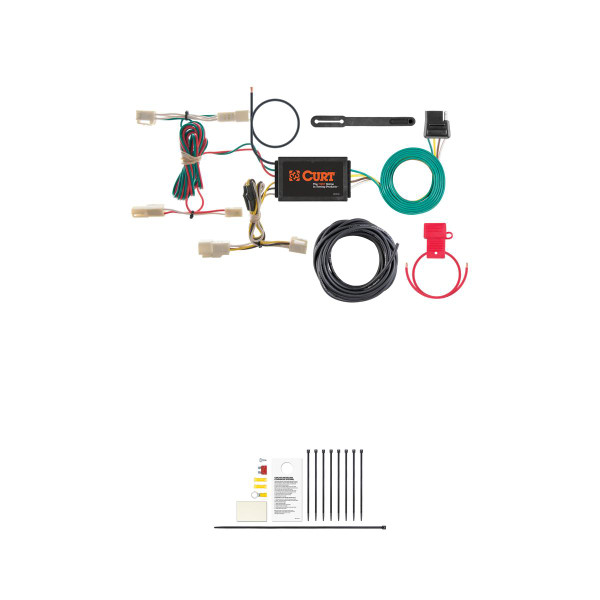

The harness includes a custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a black converter box, a black power wire, a 4-flat connector with dust cover, an in-line fuse holder, a provided screw for grounding, double-sided tape, and cable ties.
Small access panels are located on the interior trim panels on both sides of the vehicle. The driver side access panel (S3) is behind the driver side rear access panel, and the passenger side access panel (S4) is behind the passenger side rear access panel. You will also need to carefully remove the rear hatch threshold plate.
Locate the vehicle taillight wiring harness connectors behind the removed access panels. Separate the connectors from the taillight housing carefully, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side, ensuring the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. You will need to locate a suitable grounding point near the taillight connector. If an existing screw with nut is not available in the vehicle frame, you must drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Install the 10-amp fuse in the in-line fuse holder. This fuse protects the battery connection and must not be exceeded. A fuse rating higher than 10 amps can cause loss of warranty, overheating and potential fire.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 55563 custom wiring harness fits the Lexus RX 330 and Lexus RX 350.
A 10-amp maximum fuse is required. Do not exceed this rating or the tow vehicle lamp load rating, whichever is lower, to avoid warranty loss, overheating and fire.
You need a Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool.
Drilling may be required if no existing screw with nut is available for grounding. You may need to drill a 3/32" pilot hole for the provided ground screw.
Install a 10-amp fuse in the in-line fuse holder. This is the maximum rating and must not be exceeded.
Test for proper function using a test light or by connecting a properly wired trailer.
