Vehicle battery connection required
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Scion xB (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2010 | Scion xB | Installation Time: 30-60 minutes |
The CURT 56062 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Scion xB (Part #BKDK56062) fits 2008-2010 Scion xB models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 56062 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Scion xB (Part #BKDK56062) is designed to fit the 2008-2010 Scion xB.
The CURT 56062 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Scion xB (Part #BKDK56062) fits the following vehicles: 2008-2010 Scion xB. Always verify your specific year, make, and model before ordering.
The CURT 56062 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Scion xB (Part #BKDK56062) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.

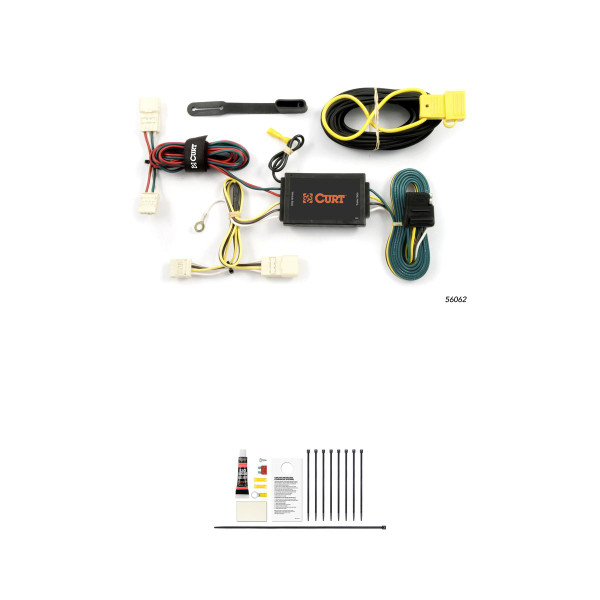

The Curt 56062 is a T-Connector wiring harness for the Scion XB that allows you to tap into the vehicle's taillight wiring. It includes a black converter box, T-Connector ends with colour-coded wires (yellow and green), a white ground wire with eyelet, cable ties, and a 4-Flat connector for trailer or accessory use.
The manual confirms the Curt 56062 is designed for the Scion XB. The manual does not specify model years, generations, or any exclusions. Verify fitment with the manufacturer or your retailer before purchase if you have a specific model year in mind.
You will need a 10mm socket to remove the nuts securing the hard plastic panels on each side of the spare tire storage. A drill with a 3/32" bit is required if you do not have a suitable existing screw with nut to use as a grounding point. The manual includes an eyelet and screw for the ground wire, and cable ties for securing loose parts.
Open the rear hatch and temporarily remove: the rear floor covering, foam tire cover, hard plastic panels on each side of the spare tire storage (2 nuts per side, 10mm socket), and the rear interior trim panels on both the driver and passenger sides. These items are reinstalled after the T-Connector installation is complete.
Place the black converter box on the driver's side just below the side trim panel. Route the end with the yellow wire behind the panel. The converter box connects to the vehicle's taillight wiring harness via the T-Connector.
Locate the vehicle's taillight wiring harness behind the rear interior trim panels on both sides. The harness has connection points matching the T-Connector ends. Carefully separate the existing connectors without breaking the locking tabs. Insert the T-Connector ends between the vehicle wiring connectors and lock into place, ensuring the locking tabs are fully inserted without damage.
Route the T-Connector end with the green wire from the driver's side to the passenger's side along the threshold and up behind the passenger-side trim panel. Insert the T end between the vehicle's taillight wiring connectors and lock into place, ensuring the locking tabs are fully inserted without damage.
The white ground wire should be secured to a suitable grounding point near the connector. You can use an existing screw with nut in the vehicle's frame, or drill a 3/32" hole and secure the white wire using the eyelet and screw provided with the kit. The manual recommends locating a grounding point near the connector on the driver's side.
Drilling is not required if you can locate a suitable existing screw with nut in the vehicle's frame to use as a grounding point. If no suitable existing fastener is available, you will need to drill a 3/32" hole for the ground wire eyelet. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage to the vehicle or personal injury.
Route the black power wire from the battery through the rubber grommet in the tire storage area to the black converter box. The manual references a CME-PCL-INS sheet for detailed routing instructions, which should be included with your kit. Consult that sheet for the specific path and any additional connections required.
The T-Connector has three colour-coded wires: yellow (driver's side), green (passenger's side), and white (ground). The yellow and green wires connect to the taillight wiring harness on their respective sides. The white wire is the ground wire, secured to a grounding point near the connector.
Before drilling any hole, verify that no miscellaneous items are hidden behind or under the surface where you plan to drill. This prevents damage to the vehicle and personal injury. The manual specifically warns about this risk when drilling the 3/32" ground wire hole.
Use the cable ties provided with the kit to secure and bundle loose parts of the T-Connector. This prevents the wires and connectors from moving or becoming damaged during vehicle operation.
Store the 4-Flat connector in the rear cargo area when not in use. This connector is part of the T-Connector assembly and should be kept accessible for future use.
Reinstall all items that were removed during installation: the plastic trim panels, threshold, storage covers, floor covering, and any other items removed to access the wiring. Ensure all panels are properly seated and secured before closing the rear hatch.
The Curt 56062 is designed for the Scion XB. Verify the specific model year with the manufacturer or retailer before purchase.
You need a 10mm socket to remove panel fasteners and a drill with a 3/32" bit (if no existing ground point is available). The kit includes an eyelet, screw, and cable ties.
Remove the rear floor covering, foam tire cover, hard plastic panels on each side of the spare tire storage, and rear interior trim panels on both sides. All items are reinstalled after installation.
Yellow (driver's side), green (passenger's side), and white (ground). The yellow and green wires tap into the taillight harness; the white wire grounds to the vehicle frame.
Before drilling, verify no miscellaneous items are hidden behind or under the surface to avoid damage to the vehicle or personal injury.
