Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 30

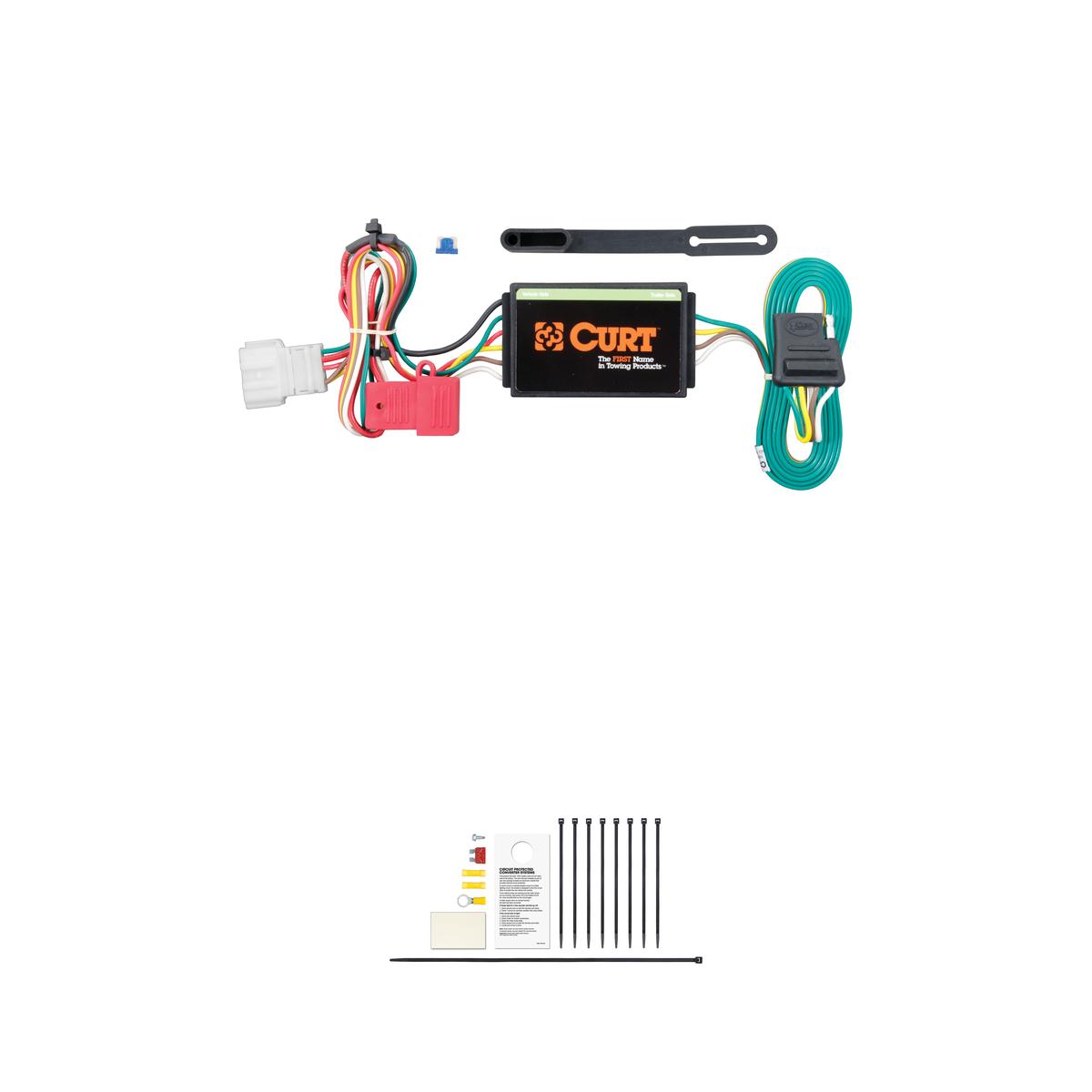

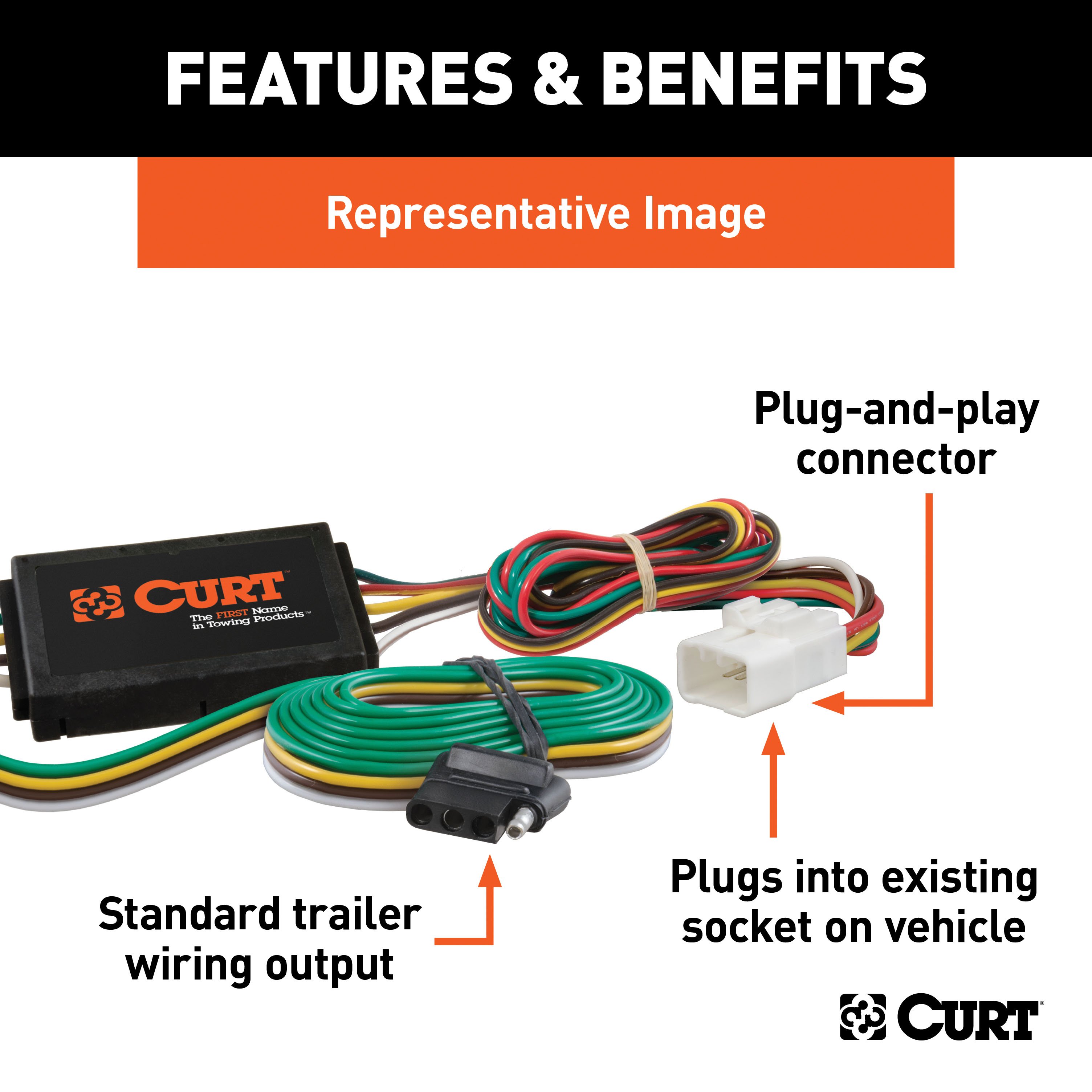

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Crosstour (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2015 | Honda Crosstour | Installation Time: 30-60 minutes |
Yes, the CURT 56215 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Honda Crosstour (Part #BKDK56215) is designed to fit the 2013-2015 Honda Crosstour.
The CURT 56215 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Honda Crosstour (Part #BKDK56215) fits 2013-2015 Honda Crosstour models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 56215 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Honda Crosstour (Part #BKDK56215) fits the following vehicles: 2013-2015 Honda Crosstour. Always verify your specific year, make, and model before ordering.
The CURT 56215 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Honda Crosstour (Part #BKDK56215) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56215 Custom Wiring Harness is designed for Honda Crosstour vehicles. It is also compatible with SUVs, Mini and Full-Sized Vans in the S-class category. The harness connects to the factory trailer tow connector located behind the passenger side interior trim panel in the cargo area.
The Curt 56215 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. You must not exceed these product ratings or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a 10mm socket, a ratchet, and a small flat blade screwdriver. These are the only tools specified in the installation instructions.
Yes, you must disconnect the negative battery terminal before beginning installation. The battery is located on the driver side under the hood. Reconnect it only after all other installation steps are complete and you have reinstalled all removed items.
The vehicle wiring harness connector is located in the cargo area behind the passenger's side interior trim panel, at position S4 as shown in the Wiring Location Guide. You will need to remove the cargo area cover, cargo storage tray, side cargo tray, and rear scuff panel to access it.
Insert the tow wiring harness housing into the vehicle's white trailer tow connector. Make sure the housings are fully inserted with the locking tabs in place. The connector will be similar in appearance to the towing wiring harness connector itself.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. This should be in the cargo area where you have access to the vehicle wiring harness connector.
Insert a 15 amp fuse into fuse position 10 in the vehicle fuse box. The fuse box is located in the engine compartment on the driver side near the firewall. The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed these ratings as it can cause loss of warranty, overheating and potential fire.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
Reinstall all items you removed during installation, including the cargo area cover, cargo storage tray, side cargo tray, rear scuff panel, and cargo tie down. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function using a test light or by connecting a properly wired trailer.
The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. You must not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or by connecting a properly wired trailer to the 4-flat connector. All installation steps must be followed to ensure the wiring connector will function properly.
The Curt 56215 fits Honda Crosstour and other SUVs, Mini and Full-Sized Vans in the S-class category. It connects to the factory trailer tow connector located behind the passenger side interior trim panel.
You need a 10mm socket, ratchet, and small flat blade screwdriver. No power tools or special equipment are required.
Yes, disconnect the negative battery terminal before starting installation. Reconnect it only after all installation steps are complete and all removed items are reinstalled.
Install a 15 amp fuse in fuse position 10 of the vehicle fuse box (engine compartment, driver side near firewall). The battery connection must use a 10-amp max fuse.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower, or the warranty will be void and fire risk increases.
