Vehicle battery connection required
Warranty: One-Year Limited Warranty
Electrical System Type: 2W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45

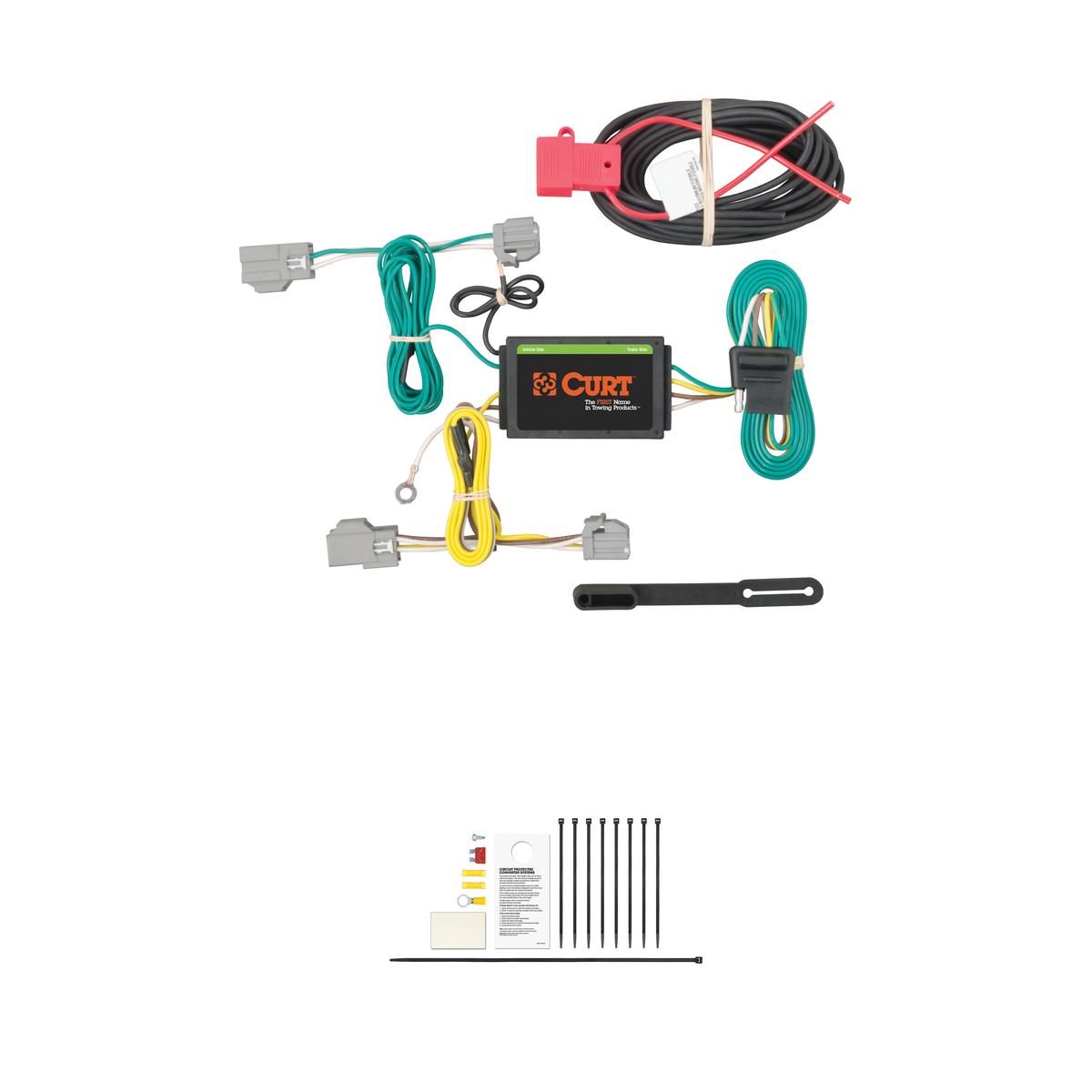

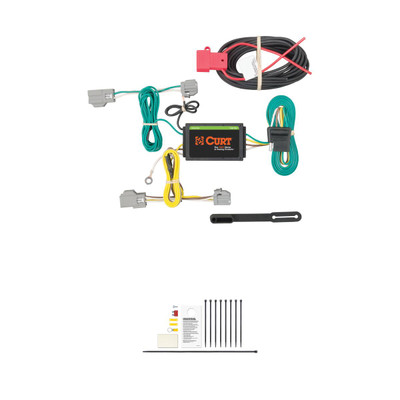

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler 200 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2017 | Chrysler 200 | Installation Time: 30-60 minutes |
The CURT 56242 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chrysler 200 (Part #BKDK56242) fits 2015-2017 Chrysler 200 models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 56242 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chrysler 200 (Part #BKDK56242) fits the following vehicles: 2015-2017 Chrysler 200. Always verify your specific year, make, and model before ordering.
Yes, the CURT 56242 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chrysler 200 (Part #BKDK56242) is designed to fit the 2015-2017 Chrysler 200.
The CURT 56242 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chrysler 200 (Part #BKDK56242) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56242 Custom Wiring Harness is designed for all Chrysler 200 models. The harness uses T-connectors that integrate with the vehicle's existing taillight wiring on both driver and passenger sides.
The harness is rated for 3.0 amps per side on signal circuits and 6.0 amps total on tail/running circuits. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You will need a ratchet, 10mm socket, and panel trim removal tool. The manual also references an included CME-PCL-INS sheet for battery power wire routing instructions.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process and is essential for safety.
Pull back the felt liner behind the driver side taillight to locate the vehicle's taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the T-connector end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-connector end with the green wire.
Drilling may be required for the ground wire installation. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground wire screw. The grounding point should be free of rust, dirt and paint before securing the white ground wire using the ring terminal and provided screw.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the double-sided tape provided. The converter box should be positioned in a location that is accessible but out of the way.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route the 4-flat to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer. The manual also recommends installing the provided 4-flat dust cover to help prevent corrosion.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Remove all trunk floor coverings, all cargo tie downs, and push fasteners from both sides of the trunk liner. Also remove the scuff panel by pulling out on the bottom and then up. These items must be removed to access the taillight wiring connectors.
The Curt 56242 Custom Wiring Harness fits all Chrysler 200 models.
You need a ratchet, 10mm socket, and panel trim removal tool. Drilling may be required for the ground wire if no existing screw point is available.
Yes, disconnect the negative battery terminal before starting installation. This is the first required step.
Drilling may be required if no existing screw point is available. If drilling is needed, use a 3/32" pilot hole. Always check for hidden items before drilling.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause overheating, fire, and loss of warranty.
