On Sale Today
Original price was $152.95. Current price is $120.99.You save $31.96 (21%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Sat, Oct 17 - Mon, Oct 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Vehicle battery connection required

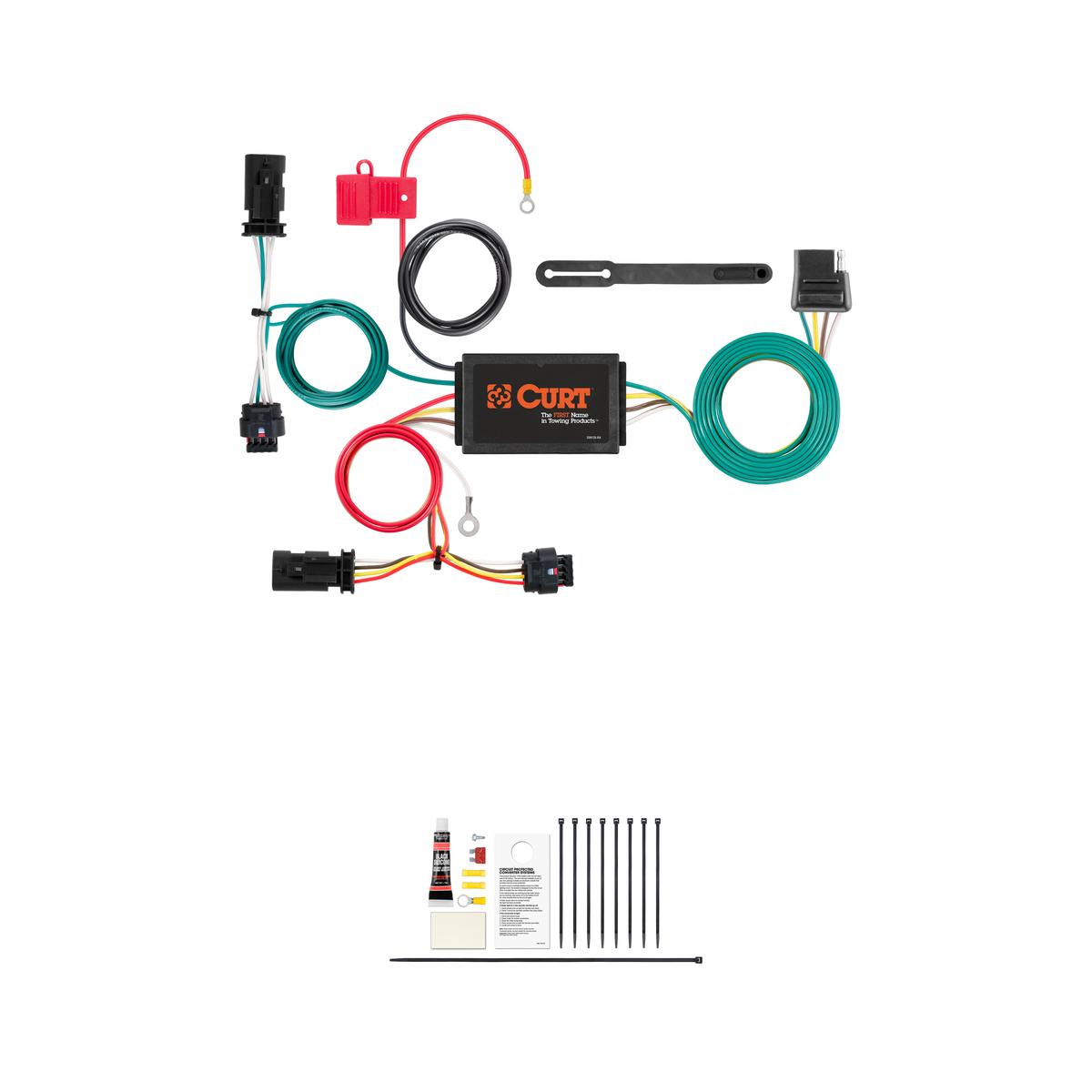

Includes fuse holder, battery connection wiring and other necessary wiring components
Includes fuse holder, battery connection wiring and other necessary wiring components
Warranty: One-Year Limited Warranty
Color: Black
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Cruze (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2017 - 2019 | Chevrolet Cruze | Hatchback · 4-Door | Installation Time: 30-60 minutes |
Yes, the CURT 56354 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chevrolet Cruze (Part #BKDK56354) is designed to fit the 2017-2019 Chevrolet Cruze.
The CURT 56354 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chevrolet Cruze (Part #BKDK56354) fits the following vehicles: 2017-2019 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
The CURT 56354 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chevrolet Cruze (Part #BKDK56354) fits 2017-2019 Chevrolet Cruze models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 56354 Vehicle-Side Custom 4-Pin Trailer Wiring Harness, Fits Select Chevrolet Cruze (Part #BKDK56354) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56354 Custom Wiring Harness is designed for the Chevrolet Cruze hatchback. The harness includes connectors for both driver and passenger side taillights and is routed through the trunk area.
The Curt 56354 is a custom wiring harness that connects to your vehicle's taillight circuits to provide power for trailer lighting. It includes signal circuits rated at 3.0 amps per side and tail/running circuits rated at 6.0 amps total.
You will need: a ratchet, 10mm socket, flat blade screwdriver, panel trim removal tool, T-20 Torx bit, and a cutting tool. A plastic trim panel removal tool is also helpful for removing the taillight housing.
Yes. The first step of installation is to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. This must be done before any other work.
You must remove all trunk floor coverings, storage trays, and the spare tire. You will also need to remove the center panel on the rear scuff panel and loosen the top side of the scuff panel to allow the green wire to pass through to the passenger side.
Remove the taillight cover using a small flat screwdriver. Remove the two T-15 torx fasteners from the taillight. Gently pull rearward on the taillight or use a plastic trim panel removal tool to aid removal. Locate the vehicle taillight wiring harness connectors and separate them from the taillight housing, taking care not to damage the locking tabs.
Locate and remove the grommet behind the taillight that the vehicle wiring passes through. Using a cutting tool, cut a small slit in the removed grommet large enough to route the harness wires through. After routing the harness, reseat the grommet and use the provided sealant to seal the cut and around all wires.
Route the harness end with the yellow wire out the trunk through the grommet opening and through the slit in the grommet. Insert the harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Drilling may be required. You must locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint before securing the white ground wire.
If an existing screw with nut is not available, drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint before installation.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
Before drilling to create a ground point, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Route the wiring harness end with the green wire to the passenger side behind the rear scuff panels. Repeat steps 4-10 on the passenger side using the harness end with the green wire, following the same process as the driver side installation.
When not in use, roll up the 4-flat connector and store it in a convenient, out of the way location. When in use, route the 4-flat to the center of the vehicle. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Yes, the Curt 56354 Custom Wiring Harness is designed specifically for the Chevrolet Cruze hatchback.
You need a ratchet, 10mm socket, flat blade screwdriver, panel trim removal tool, T-20 Torx bit, and a cutting tool.
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required if no existing screw with nut is available in the vehicle frame. If drilling is needed, a 3/32" pilot hole is required.
The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
