CURT Brake Controller Harness, Select Ford F-Series, E-Series, Expedition, Navigator Trailer Brake Control HarnessCURT$28.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2021 - 2026 Ford Bronco
Confirmed to Fit
2015 - 2017 Ford Expedition
Confirmed to Fit
2022 - 2025 Ford F-150 Lightning
Confirmed to Fit
2017 - 2027 Ford F-250 Super Duty
Confirmed to Fit
2017 - 2027 Ford F-350 Super Duty
Confirmed to Fit
2017 - 2026 Ford F-450 Super Duty
Confirmed to Fit
2017 - 2026 Ford F-550 Super Duty
Confirmed to Fit
2015 - 2020 Lincoln Navigator
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 5

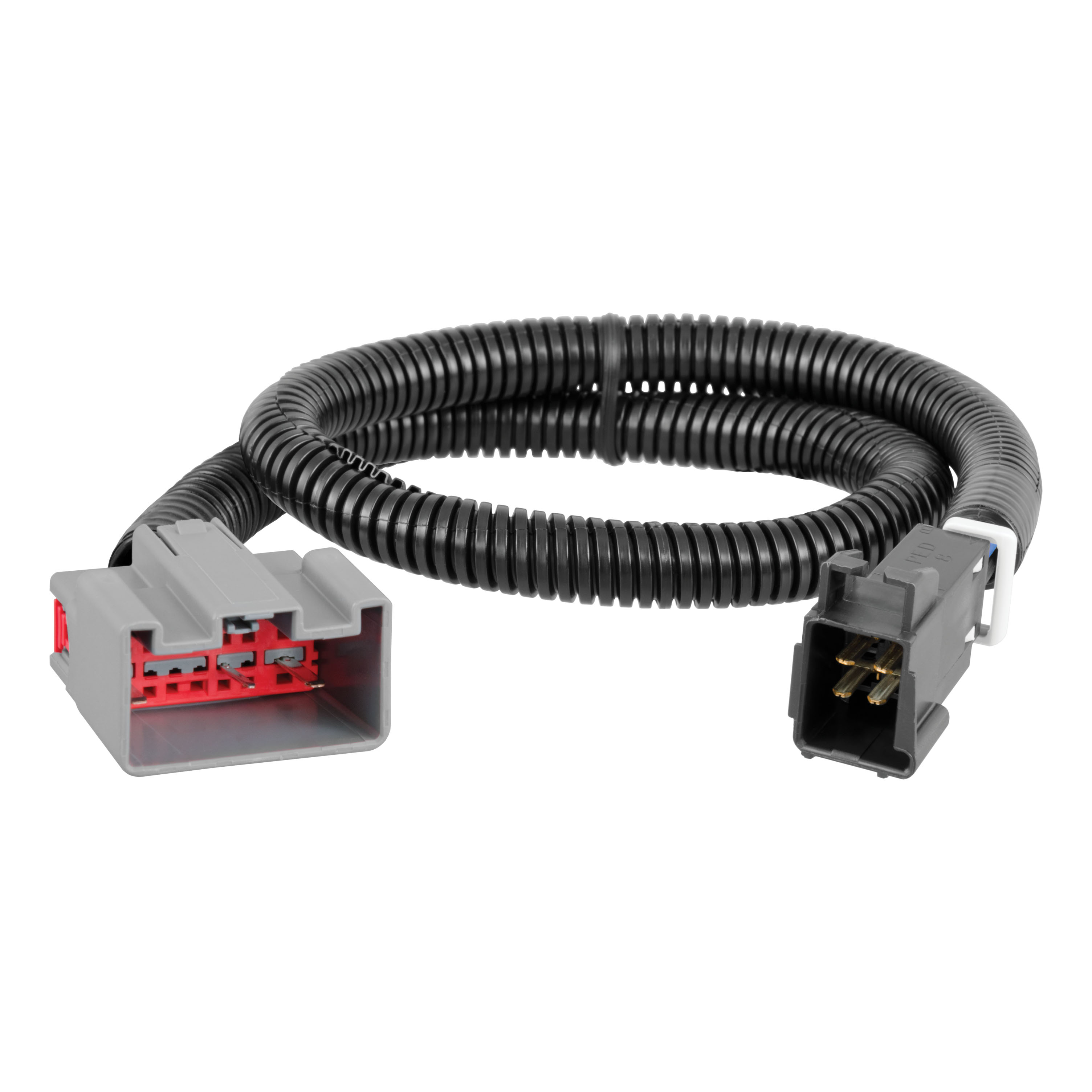

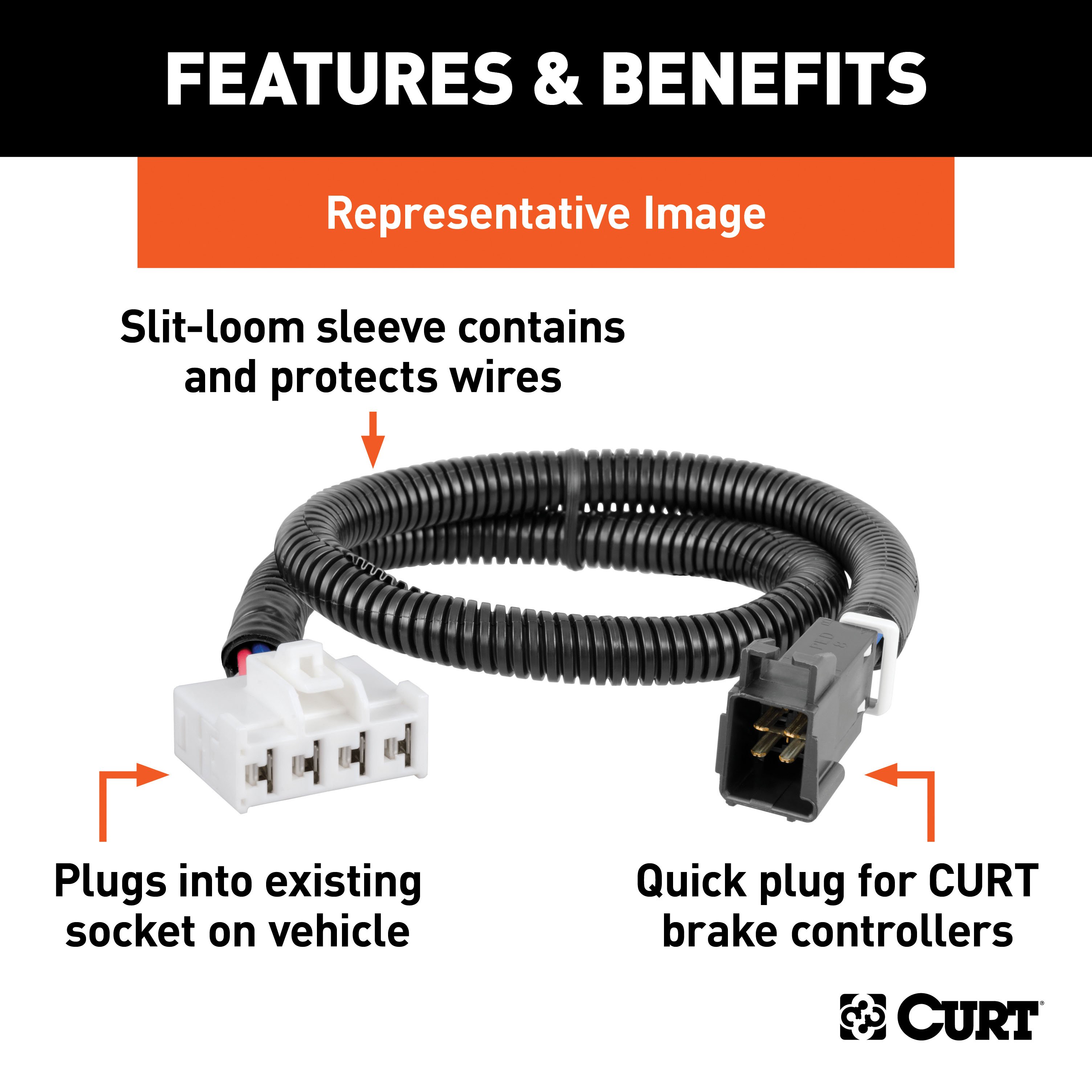

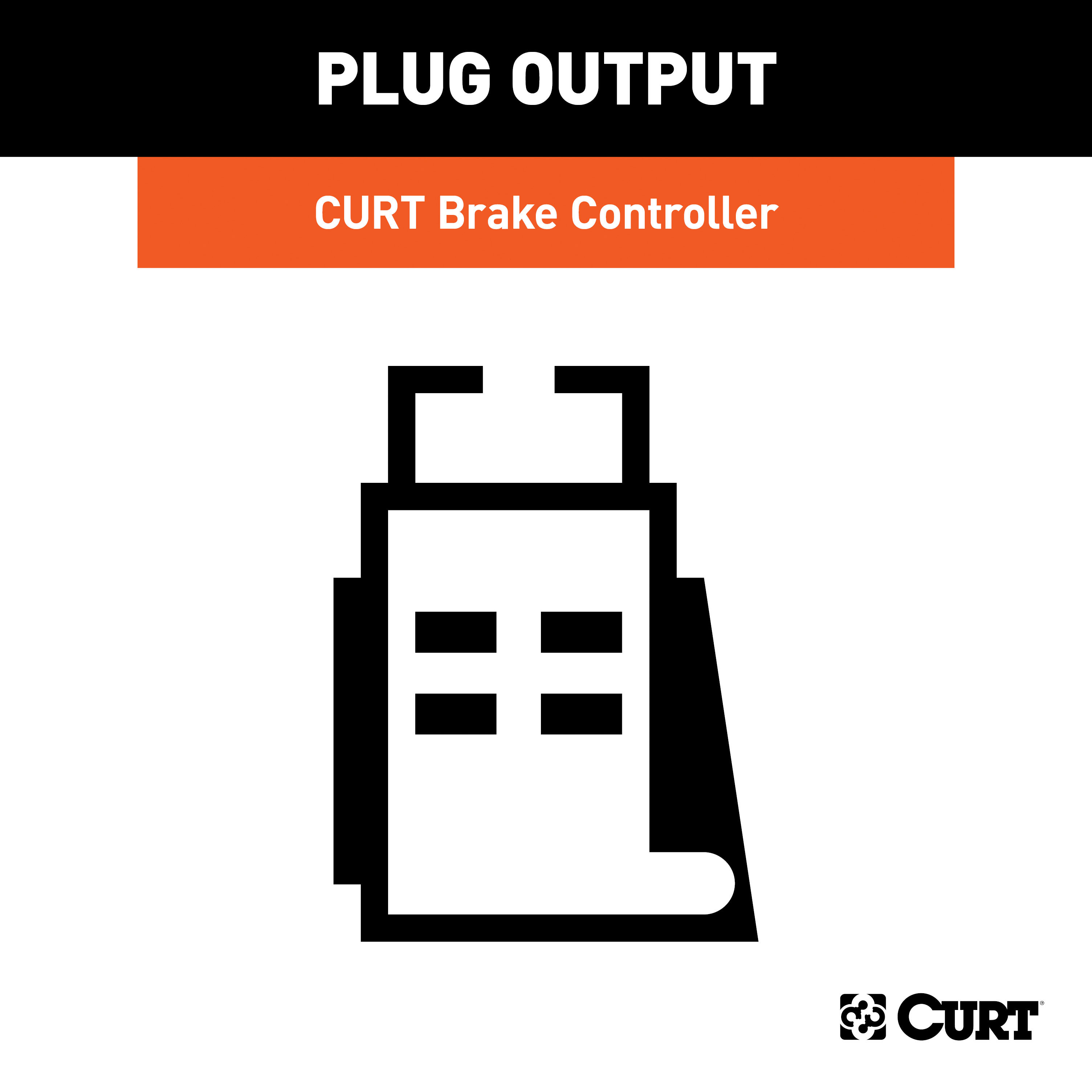

A CURT Quick Plug brake controller wiring adapter is one of the fastest and easiest ways to plug your brake controller into your vehicle. It requires no cutting or splicing! Just insert the vehicle-specific plug end into the OEM vehicle?s factory brake controller socket. The other end plugs into your CURT trailer brake controller. Quick Plug harnesses are available for a variety of vehicles and are unique for each vehicle application to provide the easiest possible installation. This particular brake controller harness fits certain years of the Ford F150, F250 Super Duty, F350 Super Duty, F450 Super Duty, F550 Super Duty, Flex, Expedition, Lincoln MKT and Navigator (see application info to verify fitment). CURT Quick Plug harnesses are compatible with most CURT brake controls and can be used as a replacement or for a new control unit installation. They're also great for towing all types of trailers with electric brakes. For versatile mounting of your trailer brake controller this Quick Plug wire harness measures two feet long. It also features a slit loom sleeve to keep the wires protected against crushing and abrasions. CURT Quick Plug wire plug-in adapters are made with 12-gauge wires for a reliable connection and braking, and come with zip ties to keep the harness contained and out of sight.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
11 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford Bronco | Installation Location: BH7 Installation Time: 30-60 minutes With factory 7-way |
| 2015 - 2017 | Ford Expedition | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2009 - 2026 | Ford F-150 | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2022 - 2025 | Ford F-150 Lightning | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2017 - 2027 | Ford F-250 Super Duty | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2017 - 2027 | Ford F-350 Super Duty | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2017 - 2026 | Ford F-450 Super Duty | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2017 - 2026 | Ford F-550 Super Duty | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2012 - 2019 | Ford Flex | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2012 - 2019 | Lincoln MKT | Installation Location: BH7 Installation Time: 30-60 minutes |
| 2015 - 2020 | Lincoln Navigator | Installation Location: BH7 Installation Time: 30-60 minutes |
The CURT Brake Controller Harness, Select Ford F-Series, MKT, Navigator (Packaged) Trailer Brake Control Harness (Part #BKDK51437) fits the following vehicles: 2021-2026 Ford Bronco; 2015-2017 Ford Expedition; 2009-2026 Ford F-150; 2022-2026 Ford F-150 Lightning; 2017-2026 Ford F-250 Super Duty; 2017-2026 Ford F-350 Super Duty; 2017-2026 Ford F-450 Super Duty; 2017-2026 Ford F-550 Super Duty; 2012-2019 Ford Flex; 2012-2019 Lincoln MKT; 2015-2020 Lincoln Navigator. Always verify your specific year, make, and model before ordering.
The CURT Brake Controller Harness, Select Ford F-Series, MKT, Navigator (Packaged) Trailer Brake Control Harness (Part #BKDK51437) fits 2021-2026 Ford Bronco models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Brake Controller Harness, Select Ford F-Series, MKT, Navigator (Packaged) Trailer Brake Control Harness (Part #BKDK51437) is designed to fit the 2021-2026 Ford Bronco.
The CURT Brake Controller Harness, Select Ford F-Series, MKT, Navigator (Packaged) Trailer Brake Control Harness (Part #BKDK51437) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the CURT 51436/51437 is designed for 2021-Current Ford F-150 models. The installation process varies depending on whether your truck has a factory brake control or a dust cover in the brake control wire housing location on the driver-side kick panel (BH8). If your F-150 has factory controls, you will remove the existing harness and install the CURT custom wiring harness in its place.
Yes, the CURT 51436/51437 is compatible with the 2021 Ford Bronco. For Bronco installation, locate the brake control wire housing on the driver-side compartment under the dash and on the side of the center council, remove the dust cover, and install the brake controller jumper harness in that location.
Yes. If your F-150 does not have a factory brake control, there will be a dust cover in the brake control wire housing location on the driver-side kick panel (BH8). The CURT harness can be installed in this location. However, you will also need to complete the full installation using the brake control instructions and mount the brake control unit as directed in the brake control user manual.
Yes, for 2021-Current Ford F-150 models, you must disconnect the negative battery terminal before beginning installation. Locate the vehicle battery in the engine compartment on the driver side, disconnect the negative terminal, and fasten this wire down and away from the battery while completing the installation process.
You will need: a Phillips screwdriver, a panel trim removal tool, a flathead screwdriver, and a cutting tool. The manual notes that proper tools will improve the quality of installation and reduce the time required.
On 2021-Current Ford F-150 models, the brake control wire housing (BH8) is located on the driver-side kick panel. On 2021 Ford Bronco models, it is located in the driver-side compartment under the dash and on the side of the center council. On some vehicles, the harness may be located in a different location under the dash, above the brake pedal, taped to another harness. If you cannot find it under the dash, check the kick panel location.
Remove tape and protective cover from the connector, taking care not to damage the locking tabs. Insert the connector on the CURT brake control harness into the vehicle connector. Make sure the connector is fully inserted with locking tabs in place. You will hear or feel the connector seat fully when it is properly installed.
Route the brake control harness along the back of the dash and out the bottom to the brake control unit. Insert the brake control harness's black connector into the brake control's quick plug connector. Secure the brake control harness with the provided cable ties, avoiding any pinch points.
Yes, if your vehicle has a center console with a shifter lever, you must remove it to access the vehicle brake control harness connector. The manual provides separate instructions for vehicles with a shifter lever in the center console (Steps 6–7) and vehicles with a center console (Steps 8–12). If your vehicle has a flow-through console, you may skip some steps.
1. Depress the brake and shift the vehicle into first gear. 2. On each side of the console, remove the black plastic floor trim panel. 3. Remove the center console finish plate using a pry tool and gently prying the top out on both sides. 4. Remove the trim panel surrounding the shifter lever. 5. Open the floor console storage compartment cover and remove the three Torx-head screws holding the cover in place. 6. Remove the cover.
1. Remove the two bolts securing the floor console trim in place. 2. Pull up on center console trim to remove, taking care not to damage the alignment tabs. 3. To the left of the radio, locate the skinny panel with the vent and 4×4 selector in it. Gently pull out on the top of the panel and work your way down. 4. On the bottom of the skinny panel, there is a pivot point. Pull the panel out and pivot on this point to allow enough room. 5. Remove the two 7mm bolts securing the pocket in place. 6. Remove the pocket to locate the vehicle brake control harness connector inserted in the back of the pocket. 7. Separate the grey connector from the back of pocket, taking care not to damage the locking tabs.
The floor console storage compartment cover is secured with three Torx-head screws. The floor console trim is secured with two bolts. The pocket in the center console is secured with two 7mm bolts.
After removing the center console components as described in Steps 8–11, the vehicle brake control harness connector will be inserted in the back of the pocket. Remove the two 7mm bolts securing the pocket in place, remove the pocket, and then separate the grey connector from the back of the pocket. Take care not to damage the locking tabs when separating the connector.
After connecting the harness, complete the installation using the brake control instructions. Mount the brake control unit as directed and perform test procedures as instructed in the brake control user manual. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
The manual does not specify a weight or towing capacity rating for this harness. However, the manual warns: do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Refer to the brake control unit user manual and your vehicle's owner manual for specific capacity information.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval, so consult your brake control unit user manual or contact CURT Manufacturing for recommended maintenance intervals.
The manual rates the installation difficulty as 'Easy' based on time and effort involved. However, the actual difficulty may vary depending on the installer's level of expertise, the condition of the vehicle, and whether proper tools and equipment are available. The installation involves removing center console components and working with electrical connectors, so some mechanical aptitude is helpful. If you are not comfortable with this level of work, professional installation is recommended.

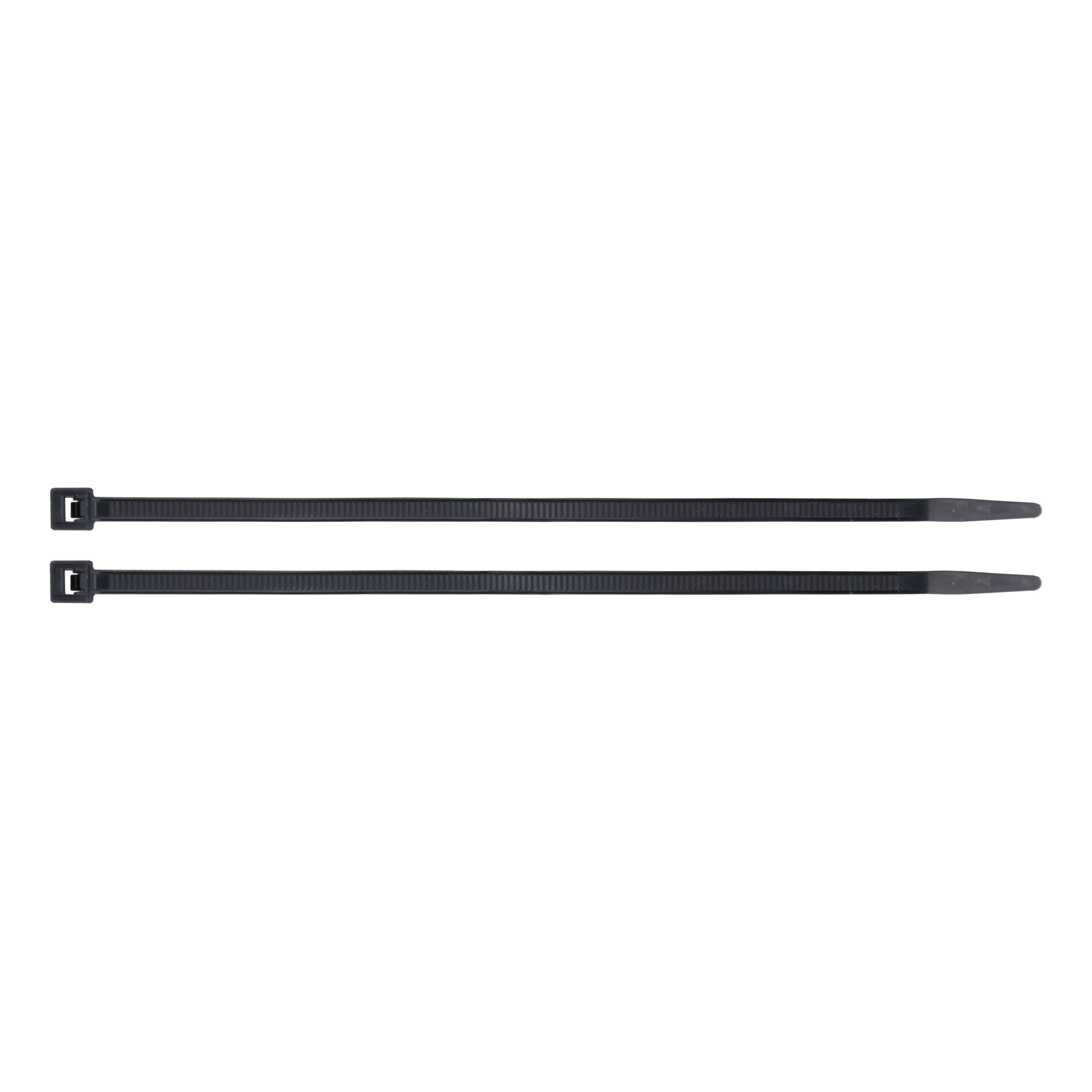

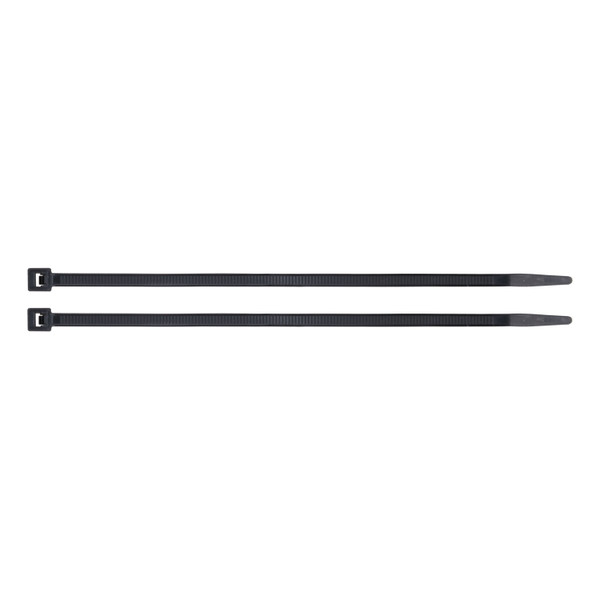

The manual confirms that cable ties are provided to secure the brake control harness. The manual does not provide a complete list of all included components. For a full parts list, refer to the product packaging or contact CURT Manufacturing.
Yes, the CURT 51436/51437 is designed for 2021-Current Ford F-150 and 2021 Ford Bronco models. Installation location varies: F-150 uses the driver-side kick panel (BH8), Bronco uses the driver-side compartment under the dash.
Yes, for Ford F-150 models, disconnect the negative battery terminal in the engine compartment before installation and fasten it away from the battery.
Phillips screwdriver, panel trim removal tool, flathead screwdriver, and cutting tool.
Remove protective tape from the connector, insert the CURT harness connector into the vehicle connector until fully seated with locking tabs in place, then route the harness along the back of the dash and secure with provided cable ties, avoiding pinch points.
The manual does not specify a weight rating. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Refer to the brake control unit user manual for capacity details.
Periodically inspect all wires and connections to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval.
