Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 20

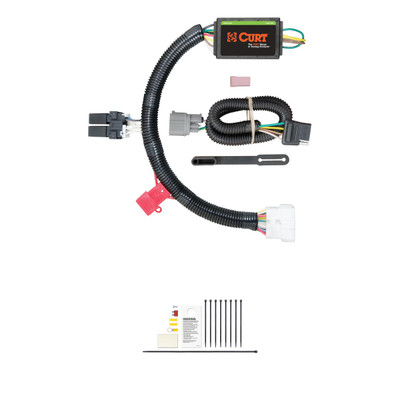

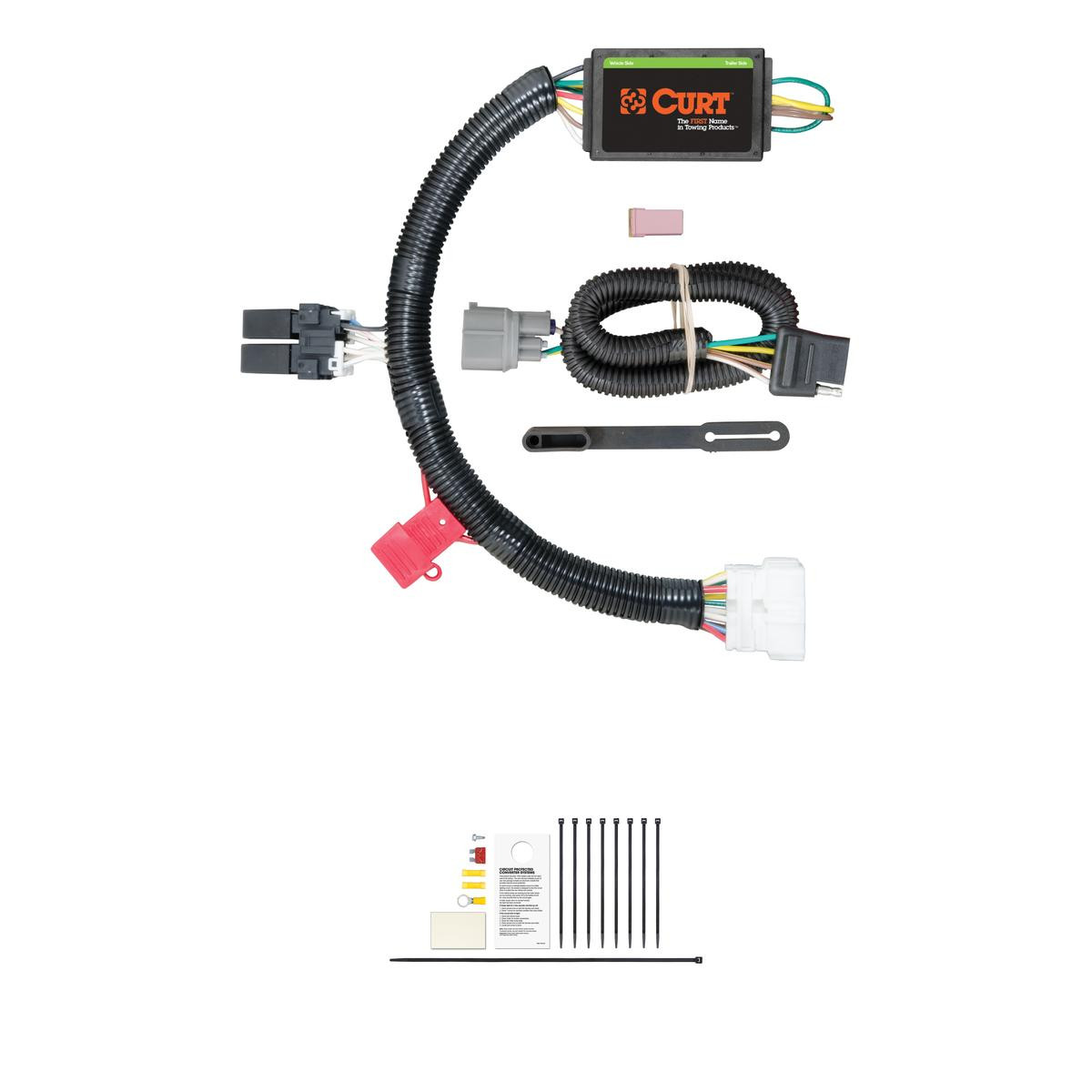

CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Pilot (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Honda Pilot | Installation Time: 30-60 minutes |
The CURT Custom 4-Flat, Select Honda Pilot, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56170) fits 2012-2015 Honda Pilot models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom 4-Flat, Select Honda Pilot, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56170) fits the following vehicles: 2012-2015 Honda Pilot. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom 4-Flat, Select Honda Pilot, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56170) is designed to fit the 2012-2015 Honda Pilot.
The CURT Custom 4-Flat, Select Honda Pilot, OEM Tow Package Required Trailer Connector Kit (Part #BKDK56170) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56170 is designed for Honda Pilot SUVs. The connector is available in two configurations: S3 (located behind the driver side rear access panel) and S5 (located behind the driver side rear bumper). Confirm which configuration matches your vehicle before installation.
The connector has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet and a 10mm socket. The manual also provides double-sided tape and cable ties for securing the connector components.
The manual does not explicitly state whether the battery must be disconnected before beginning installation. However, Step 8 instructs you to reconnect the negative battery terminal at the end of installation, which implies it should be disconnected first. Consult your vehicle owner's manual or the manufacturer for specific guidance on your Honda Pilot.
The vehicle trailer wiring harness connector is located behind the driver side rear access panel on the interior trim panel. You access it by opening the tailgate and folding down the driver side rear seat. The connector will be similar in appearance to the custom wiring connector provided with the kit.
Insert the vehicle trailer wiring harness connector into the custom wiring connector. Make sure the connectors are fully inserted with locking tabs in place. The connectors should seat completely to ensure proper function.
Locate a flat spot behind the removed access panel (after you have removed the 'AUX FUSE' access cover from the interior trim panel). Adhere the black converter box using the provided double-sided tape. Secure the remainder of the connector with the provided cable ties.
The grey trailer wiring harness connector is located on the driver side, behind the rear bumper fascia, above the tail pipe. Release the connector from its clip and remove the cover from the housing before inserting the 4-flat harness connector.
Insert the 4-flat harness connector into the grey trailer wiring harness connector located behind the rear bumper fascia, above the tail pipe. Make sure the housings are fully inserted with locking tabs in place. If the cover is not present, ensure the connector and contacts are free of dirt and debris before insertion.
When in use, route the 4-flat along the rear bumper to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent damage and maintain a clean appearance.
The vehicle fuse box is located in the engine compartment on the driver side. Insert the tow/trailer fuse provided with the kit. If you need help locating the exact position, check your vehicle owner's manual or contact the vehicle manufacturer.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and personal injury. This is especially important when accessing interior trim panels and working behind the rear bumper fascia.
Yes. After reconnecting the negative battery terminal, install the provided 4-flat dust cover to prevent corrosion of the connector and contacts.
Yes, the Curt 56170 is designed for Honda Pilot SUVs in S3 and S5 configurations.
You need a ratchet and 10mm socket. Double-sided tape and cable ties are provided.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Battery connection requires a 10-amp maximum fuse.
10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The manual does not require drilling. The connector uses the factory vehicle trailer wiring harness and mounts with provided double-sided tape and cable ties.
