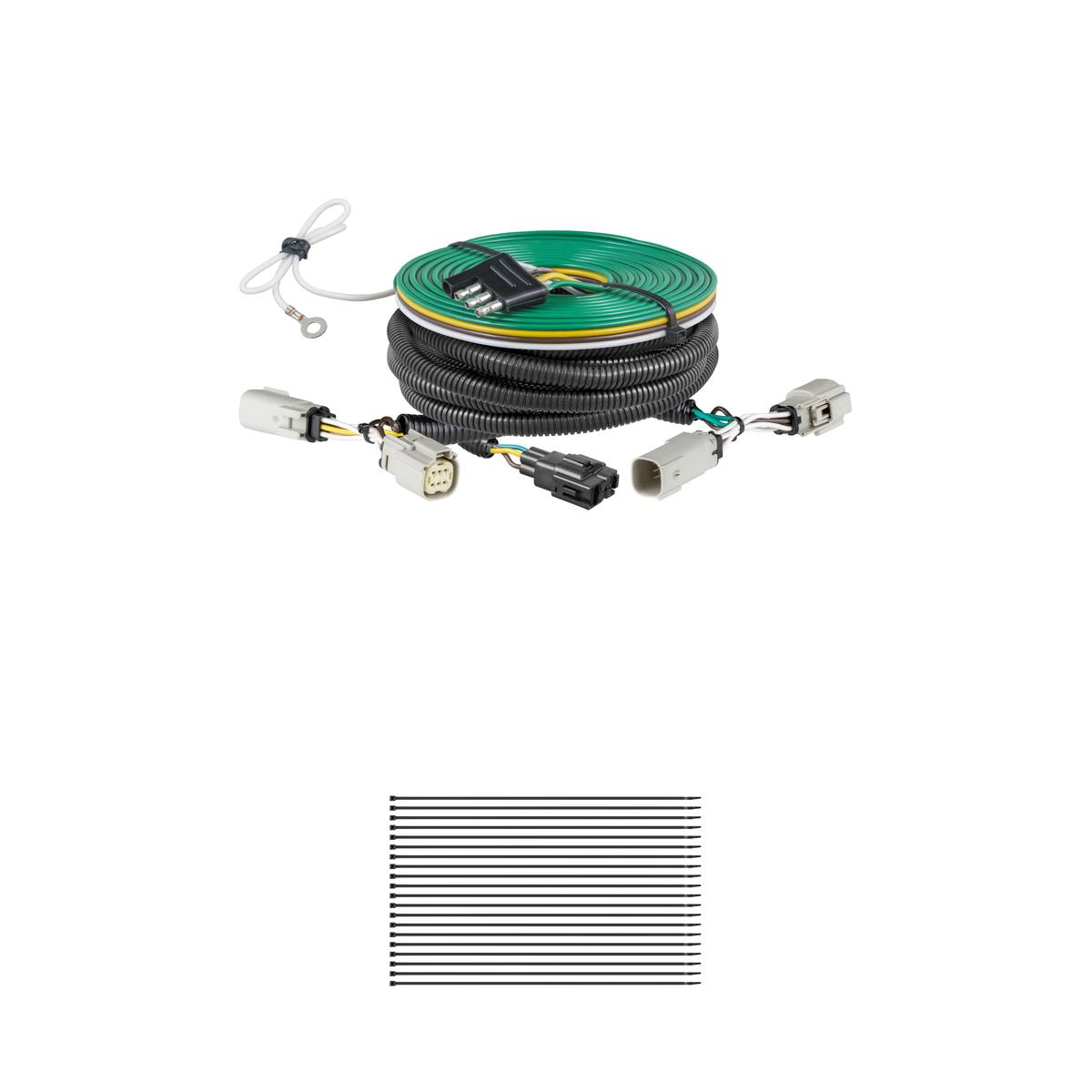

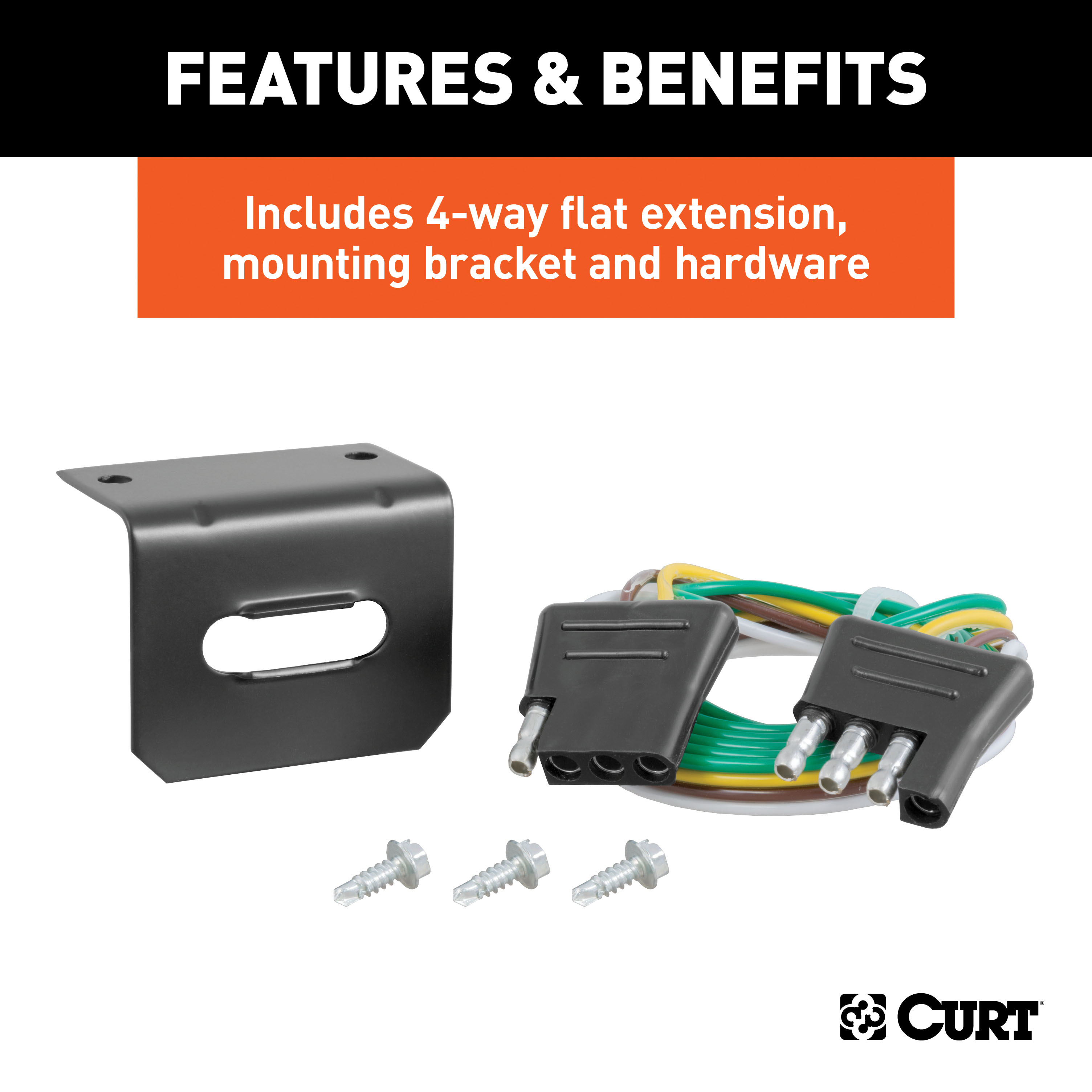

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Time Exact (Minutes): 0

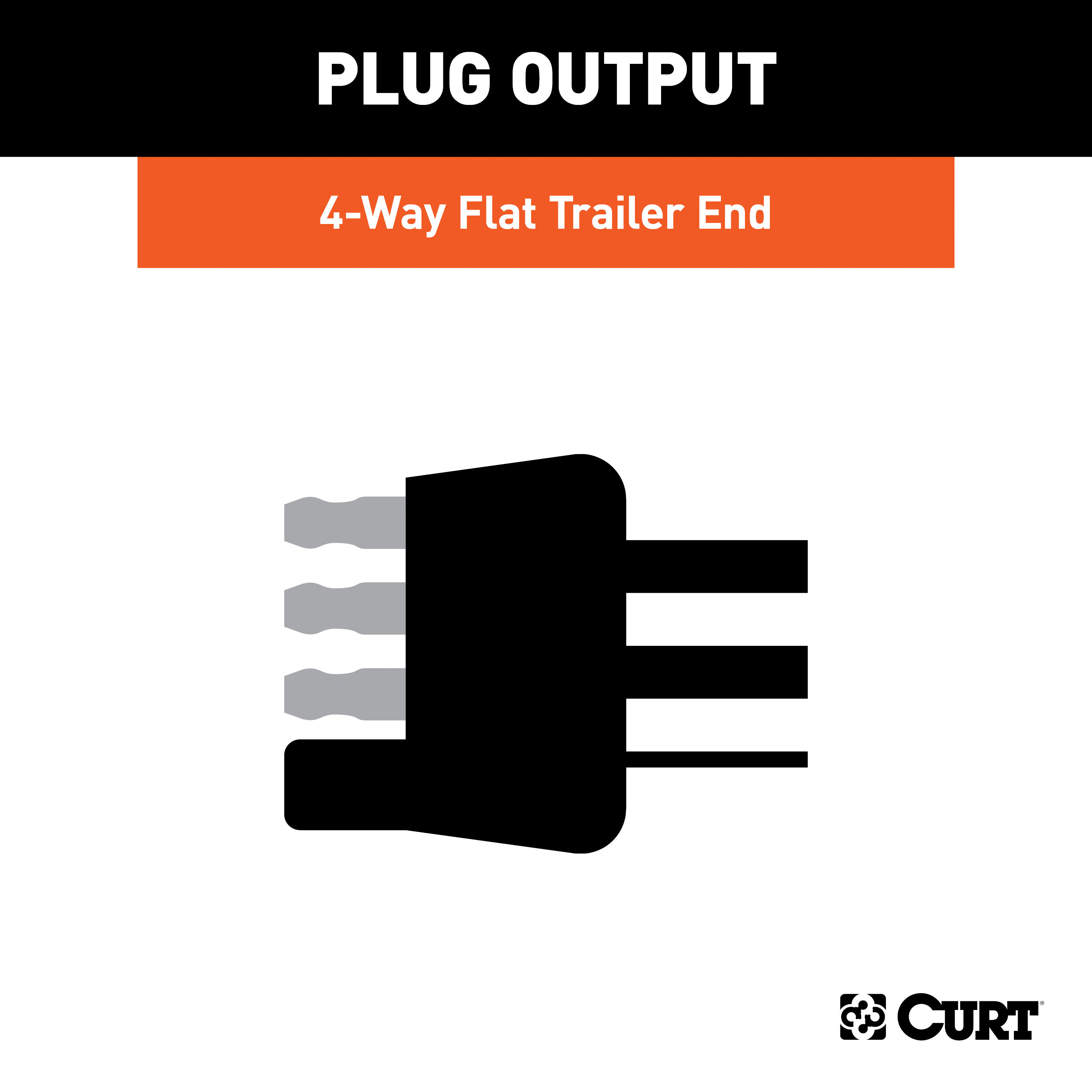

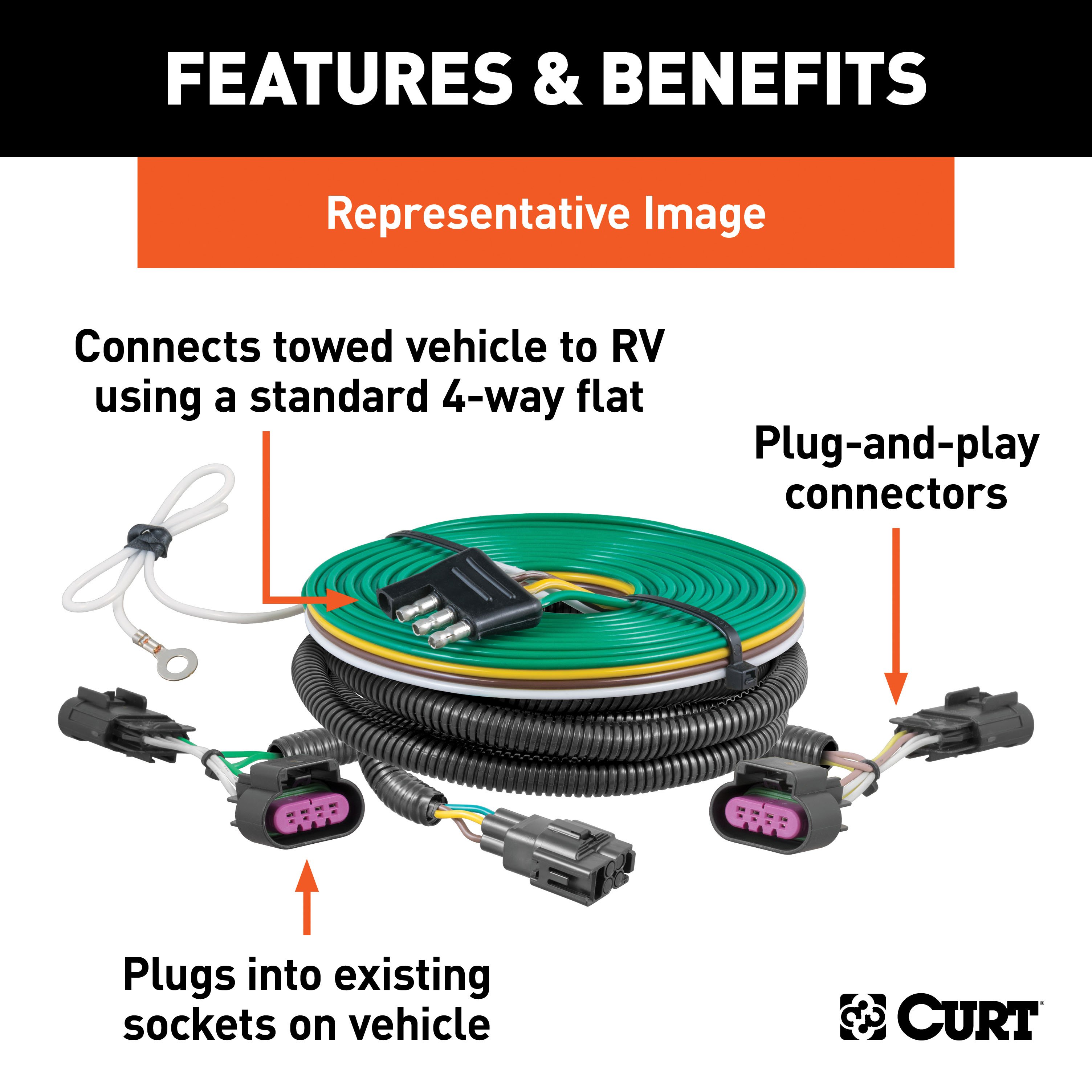

Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Ford Bronco. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford Bronco | — |
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco Trailer Connector Kit (Part #BKDK58992) fits 2021-2026 Ford Bronco models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco Trailer Connector Kit (Part #BKDK58992) is designed to fit the 2021-2026 Ford Bronco.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco Trailer Connector Kit (Part #BKDK58992) fits the following vehicles: 2021-2026 Ford Bronco. Always verify your specific year, make, and model before ordering.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Ford Bronco Trailer Connector Kit (Part #BKDK58992) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 58992 is designed for SUVs and Vans. The manual does not list specific vehicle makes, models, or years. Contact Curt Manufacturing or consult a fitment database with your vehicle's year, make, and model to confirm compatibility before purchasing.
The 58992 is an RV harness that allows you to connect trailer lights to your SUV or van. Once installed and connected to a properly wired trailer with functioning lights, the taillights on both the tow vehicle and trailer will function together.
You will need: ratchet, 10mm socket, socket extension, Phillips screwdriver, small flathead screwdriver, panel trim removal tool, fishwire, and wire cutter. A 3/32" drill bit is also required if you need to drill a pilot hole for the ground wire.
Yes. Before beginning installation, locate the vehicle battery in the engine compartment on the driver side and disconnect the negative battery terminal. Fasten this wire down and away from the battery while completing the installation. Reconnect it after all installation steps are complete.
1. Fully open the tailgate and raise the glass. 2. Use a 10mm socket to remove four bolts, two on each side, securing the taillight trim. 3. Use a Phillips screwdriver to remove eight screw push fasteners, four on each side. You may need a small flathead screwdriver to help back out the push fastener screw by adding pressure to the backside. 4. Remove the taillight panel trim straight out, starting at the bottom and working your way up. Repeat on the other side.
Locate the taillight housing and separate the connectors, taking care not to damage the locking tabs. Repeat this on the other side of the vehicle.
Starting on the driver side, locate the side of the harness with the yellow wire. From underneath the vehicle between the rear tire and the rear bumper, route the wire up between the body and rear bumper, staying along the inside of the black cloth-taped wire harness. Route the harness housings up and around the rear bumper and attach to the factory harness and driver-side rear taillight. The yellow wire should route behind the rear door trim that was removed. Zip tie the harness in place as needed.
Route the green wire over the vehicle frame on both sides of the vehicle to the passenger side. Zip tie as needed to the rear bumper. Then repeat the routing procedure used for the yellow wire on the passenger side.
Locate a grounding point such as an existing screw or bolt in the frame of the vehicle. The area should be free from rust, dirt, and paint—use an abrasive pad or paper to remove rust and paint if necessary. Secure the white ground wire with the ring terminal on the existing fastener or with the provided ground screw. If no suitable existing fastener is available, drill a 3/32" pilot hole.
Drilling is required only if you cannot find an existing screw or bolt to use as a grounding point for the white ground wire. If drilling is necessary, you will drill a 3/32" pilot hole in the vehicle frame. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Route the 4-flat along the top of the driver-side frame rail to just behind the driver-side front tire. Loosely secure any excess wire so that it is not drooping or dangling. Then pull the 4-flat up between the inner and outer fender and route it along the driver-side inner fender to the front of the vehicle. Secure any excess wire so that it is not drooping or dangling, but not so tight that it causes unnecessary strain to the wire, which could lead to breakage over time. Use zip ties to fasten any excess wire to a solid spot along the driver-side inner fender.
Fishwire is a tool used to push or pull an electrical wire through a blind hole. It can be anything from a cut-up wire hanger, stiff wire, rope, or string. To use it: 1. Make sure the fishwire is long enough to stick out on the other side. 2. Insert the fishwire through the blind hole and locate it on the other side. 3. Use tape to secure the harness to the fishwire and pull back up. If the fishwire or harness gets hung up, you may have to push back down, wiggle it around, or twist the wire to loosen it.
Once the RV harness is installed, verify that the harness is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. If they do not, check all connections and wiring before using the harness.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The manual does not specify the product's weight or towing capacity rating. Contact Curt Manufacturing for the specific rating of part 58992.
Yes. After completing all wiring steps, reinstall all items removed during installation, including the taillight trim panels. If the negative battery terminal was disconnected at the beginning, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion.
The 58992 is designed for SUVs and Vans. Verify compatibility with your specific vehicle year, make, and model before purchasing.
Ratchet, 10mm socket, socket extension, Phillips screwdriver, small flathead screwdriver, panel trim removal tool, fishwire, and wire cutter. A 3/32" drill bit is needed only if drilling a ground hole.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after all steps are complete.
Secure wires so they are not drooping or dangling, but not so tight that they cause unnecessary strain, which could lead to breakage over time.
