Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 7.5 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Novice
Installation Time Exact (Minutes): 10
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Elantra sedan, Hyundai Sonata and Kia Optima sedan (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2006 - 2010 | Hyundai Elantra | Sedan | Installation Time: 30-60 minutes |
| 2006 - 2014 | Hyundai Sonata | — | Installation Time: 30-60 minutes |
| 2009 | Kia Optima | — | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring, 4-Way Flat, Select Hyundai Elantra, Sonata, Kia Optima Sedan Trailer Connector Kit (Part #BKDK56049) is designed to fit the 2006-2010 Hyundai Elantra.
The CURT Custom Wiring, 4-Way Flat, Select Hyundai Elantra, Sonata, Kia Optima Sedan Trailer Connector Kit (Part #BKDK56049) fits the following vehicles: 2006-2010 Hyundai Elantra; 2006-2014 Hyundai Sonata; 2009 Kia Optima. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring, 4-Way Flat, Select Hyundai Elantra, Sonata, Kia Optima Sedan Trailer Connector Kit (Part #BKDK56049) fits 2006-2010 Hyundai Elantra models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring, 4-Way Flat, Select Hyundai Elantra, Sonata, Kia Optima Sedan Trailer Connector Kit (Part #BKDK56049) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, Curt part 56049 is designed for Hyundai Elantra sedans. It is also compatible with Hyundai Sonata (excluding hybrid models) and Kia Optima. Verify your vehicle model matches one of these applications before purchasing.
No. The 56049 is designed for Hyundai Sonata models excluding hybrids. Hybrid Sonatas are not compatible with this harness.
The 56049 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a Phillips screwdriver, a flat blade screwdriver, and a panel trim removal tool. If you need to drill a grounding point, you will also need a drill with a 3/32" bit.

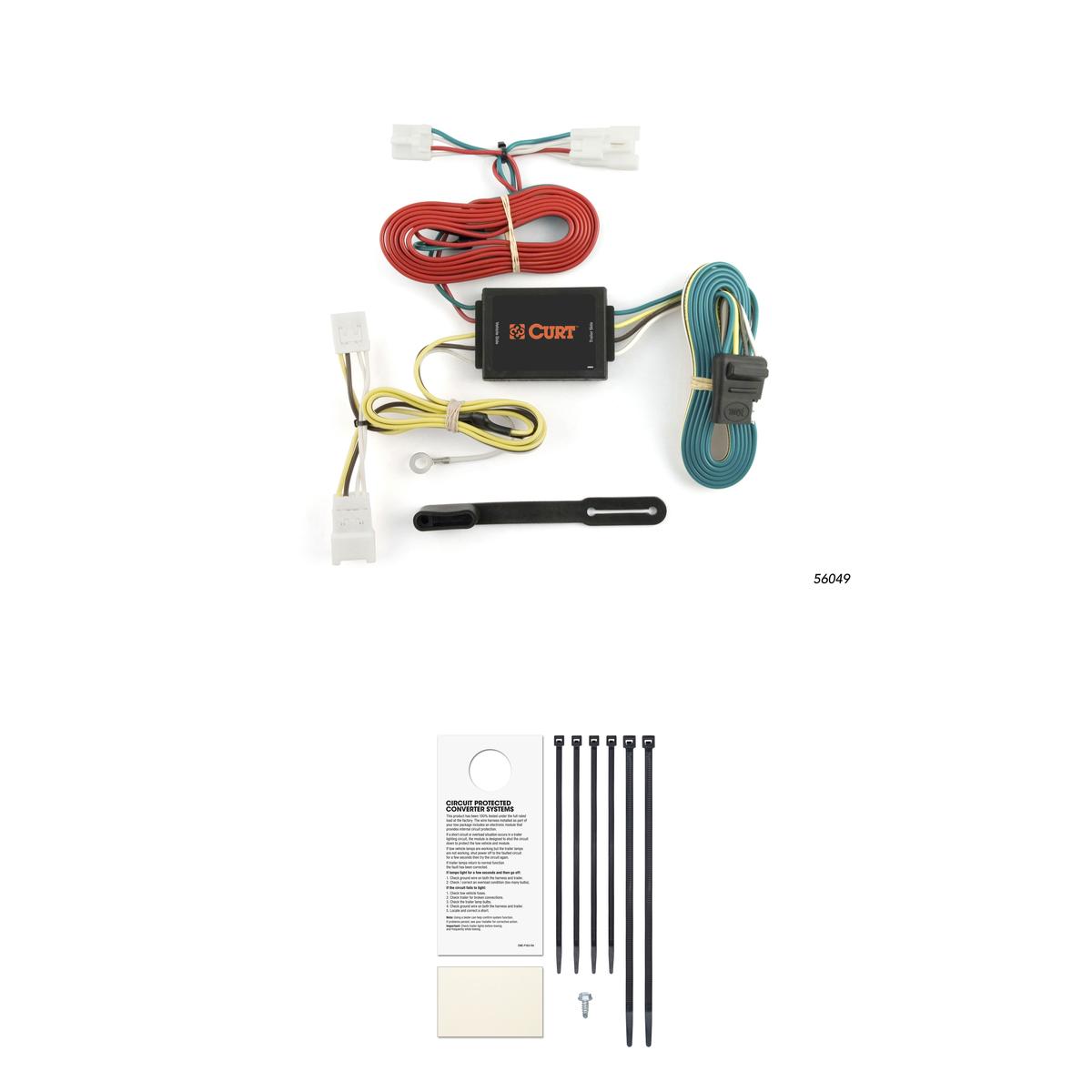

The 56049 includes a custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a black converter box, a provided screw for grounding, double-sided tape, cable ties, and a 4-flat dust cover.
No, you do not need to remove the tailgate. You only need to open it to access the rear scuff panel and trunk area where the taillight connectors are located.
The yellow wire end connects to the driver side taillight connector, and the green wire end connects to the passenger side taillight connector. Both are located behind the taillight housing inside the trunk. Insert each harness end between the separated vehicle connectors, ensuring the connectors are fully inserted with locking tabs in place.
Drilling is optional. You must locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint before securing the white ground wire.
If you need to drill a grounding point, drill a 3/32" pilot hole. Ensure the area is free of rust, dirt and paint before installing the provided screw with the white ground wire ring terminal.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling near the taillight area inside the trunk.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The box should be positioned in a convenient location that does not interfere with trunk access or storage.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk for connection to a trailer. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly before testing.
Install the provided 4-flat dust cover to help prevent corrosion. This should be done as part of the final reinstallation step after all other components are in place.
1. Open the tailgate and remove the rear scuff panel and felt trunk liner. 2. Locate and separate the vehicle taillight connectors. 3. Insert the yellow wire harness end between the driver side connectors. 4. Secure the white ground wire to a suitable grounding point. 5. Route the green wire harness end to the passenger side and repeat steps 2–3. 6. Mount the converter box with double-sided tape. 7. Route and secure the 4-flat connector and loose wires. 8. Reinstall removed items and install the dust cover.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the Signal Circuit rating of 3.0 amps per side or the Tail/Running Circuit rating of 6.0 amps total, or your tow vehicle's lamp load rating, whichever is lower.
Yes, care must be taken to avoid damage. When separating the vehicle taillight connectors, do not damage the locking tabs. When removing the rear scuff panel, do not damage the alignment tabs on the back. Handle all connectors carefully to ensure proper function.
The 56049 fits Hyundai Elantra sedan, Hyundai Sonata (excluding hybrid), and Kia Optima.
Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A drill with 3/32" bit is needed only if you must drill a grounding point.
Drilling is optional. You must find an existing grounding point (such as a vehicle frame screw with nut) or drill a 3/32" pilot hole if none is available.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Do not exceed the product amperage rating or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
