Vehicle battery connection required
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 30

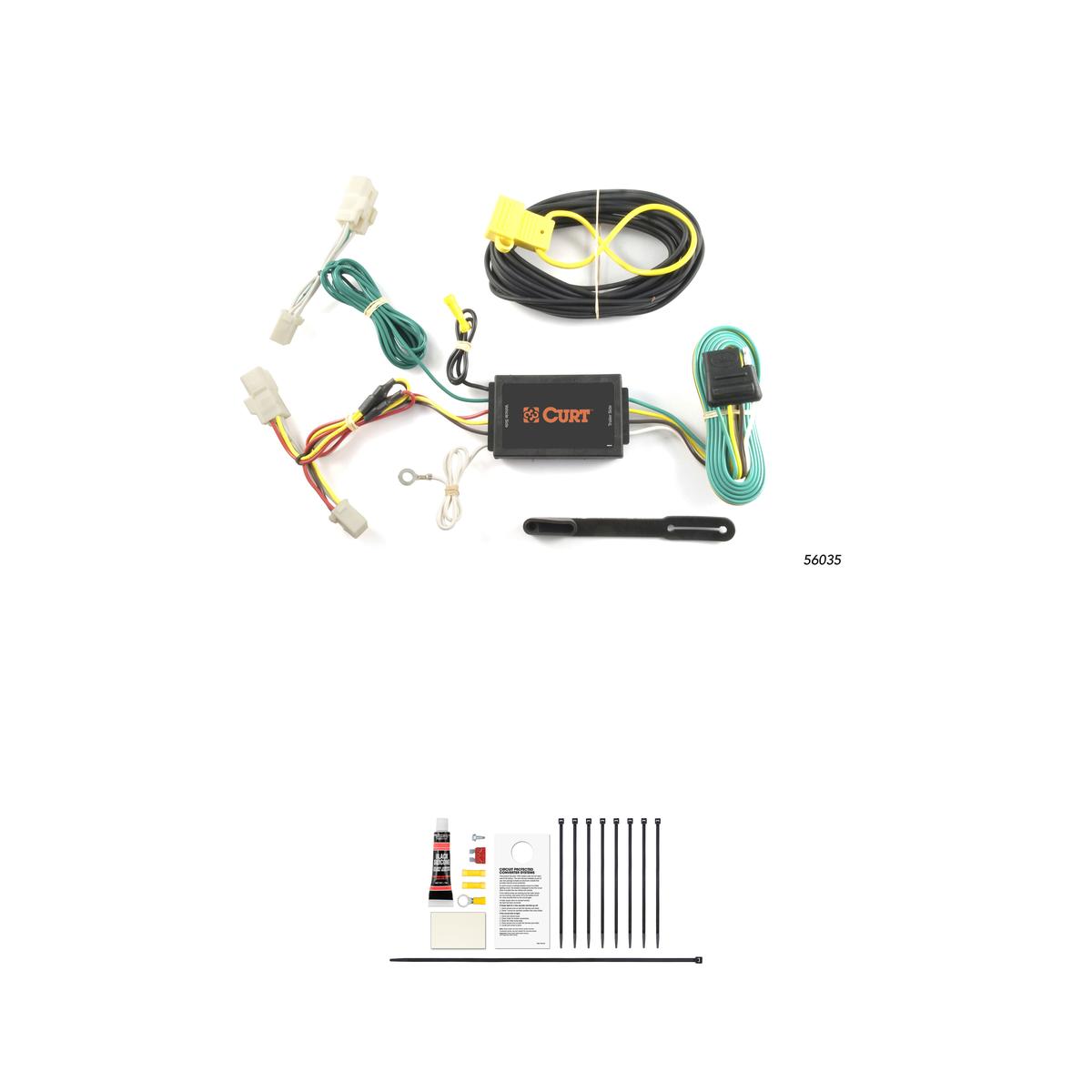

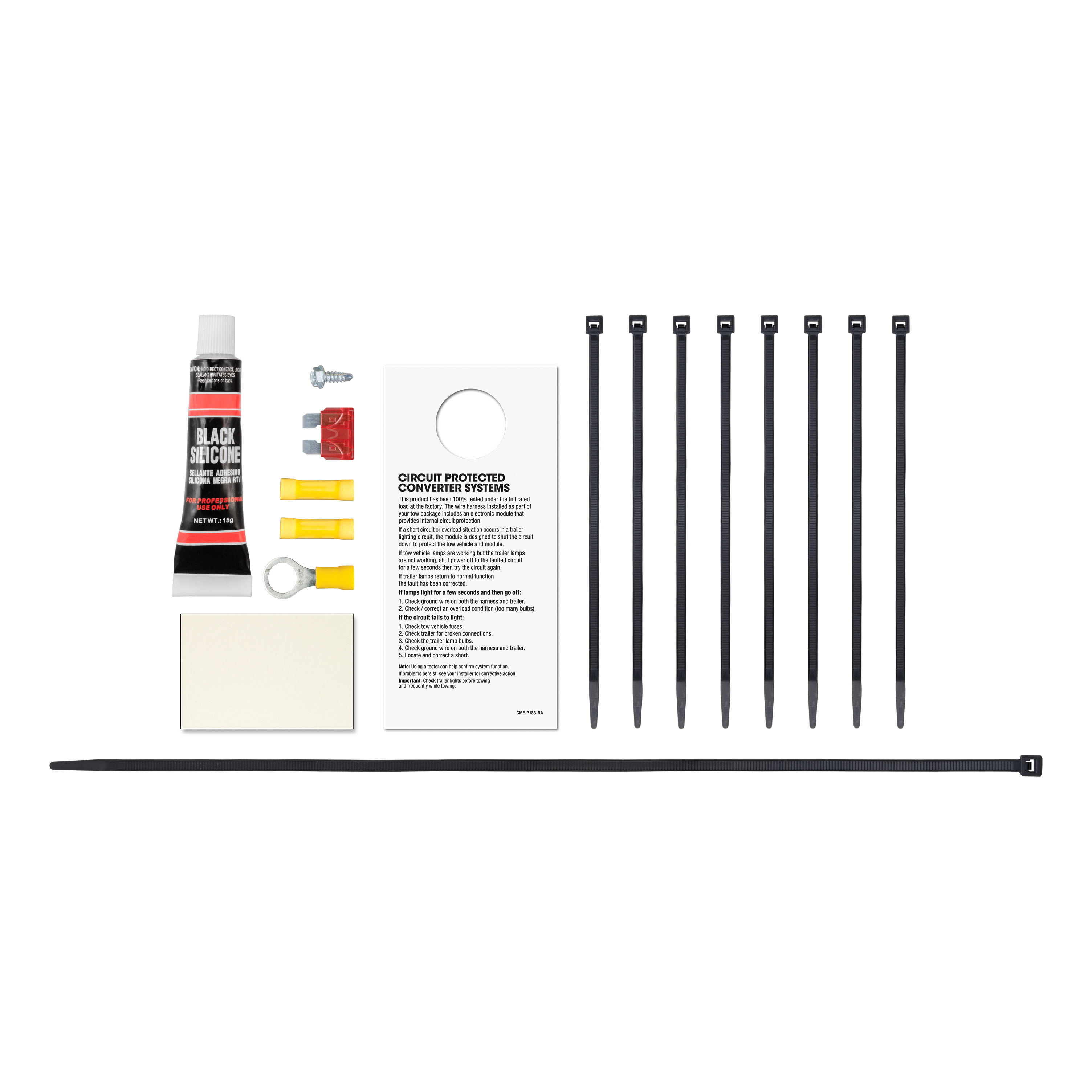

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Matrix, Pontiac Vibe and Scion xB (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Pontiac Vibe | Installation Time: 30-60 minutes |
| 2011 - 2015 | Scion xB | Installation Time: 30-60 minutes |
| 2009 - 2013 | Toyota Matrix | Installation Time: 30-60 minutes |
The CURT Custom Wiring, 4-Way Flat, Select Toyota Matrix, Pontiac Vibe, Scion xB Trailer Connector Kit (Part #BKDK56035) fits the following vehicles: 2009-2010 Pontiac Vibe; 2011-2015 Scion xB; 2009-2013 Toyota Matrix. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Wiring, 4-Way Flat, Select Toyota Matrix, Pontiac Vibe, Scion xB Trailer Connector Kit (Part #BKDK56035) is designed to fit the 2009-2010 Pontiac Vibe.
The CURT Custom Wiring, 4-Way Flat, Select Toyota Matrix, Pontiac Vibe, Scion xB Trailer Connector Kit (Part #BKDK56035) fits 2009-2010 Pontiac Vibe models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring, 4-Way Flat, Select Toyota Matrix, Pontiac Vibe, Scion xB Trailer Connector Kit (Part #BKDK56035) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56035 Custom Wiring Harness is designed for the Pontiac Vibe. It is also compatible with the Scion XB and Toyota Matrix. The harness is installed behind the taillight housings inside the trunk.
Yes, the Curt 56035 is compatible with the Scion XB and Toyota Matrix, as well as the Pontiac Vibe. All three vehicles use the same installation procedure.
The signal circuits are rated for 3.0 amps per side. The tail and running circuits are rated for 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as this can cause loss of warranty, overheating and potential fire.
The tail and running circuits are rated for 6.0 amps total. The signal circuits are rated for 3.0 amps per side. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if a suitable existing screw is not available for the ground wire connection.
Open the vehicle tailgate and remove the rear scuff panel and cargo floor covers. On both driver and passenger sides, remove the rear access panels and cargo net loops, then partially remove the rear trim panels to access the taillight wiring harness connectors.
Locate the vehicle taillight wiring harness connectors inside the rear access panels. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver side, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required if a suitable existing screw with nut is not available for the ground wire connection. If drilling is necessary, a 3/32" pilot hole is drilled for the provided screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test the wiring harness for proper function using a test light or by connecting a properly wired trailer.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Exceeding the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower, can cause loss of warranty, overheating and potential fire. Do not exceed the 10-amp maximum fuse rating for the battery connection.
Test the wiring harness for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
The Curt 56035 fits the Pontiac Vibe, Scion XB, and Toyota Matrix.
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if drilling is required for the ground wire.
Drilling may be required if no suitable existing screw is available for the ground wire. If needed, drill a 3/32" pilot hole.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating and fire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these or the vehicle lamp load rating.
Test using a test light or by connecting a properly wired trailer to verify proper function.
