Vehicle battery connection required
Includes fuse holder, battery connection wiring and other necessary wiring components
Includes fuse holder, battery connection wiring and other necessary wiring components
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 15
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Dodge Nitro and Jeep Liberty (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Dodge Nitro | Installation Time: 30-60 minutes |
| 2008 - 2012 | Jeep Liberty | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Dodge Nitro, Jeep Liberty Trailer Connector Kit (Part #BKDK56334) is designed to fit the 2007-2011 Dodge Nitro.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Dodge Nitro, Jeep Liberty Trailer Connector Kit (Part #BKDK56334) fits the following vehicles: 2007-2011 Dodge Nitro; 2008-2012 Jeep Liberty. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Dodge Nitro, Jeep Liberty Trailer Connector Kit (Part #BKDK56334) fits 2007-2011 Dodge Nitro models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Dodge Nitro, Jeep Liberty Trailer Connector Kit (Part #BKDK56334) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56334 is designed for Dodge Nitro SUVs. The harness connects to the taillight assemblies on both driver and passenger sides and includes a converter box for proper function.
Yes, the Curt 56334 custom wiring harness is compatible with Jeep Liberty vehicles. Installation follows the same procedure as the Dodge Nitro.
The signal circuits are rated at 3.0 amps per side, and the tail/running circuits are rated at 6.0 amps total. The battery connection must be fuse protected at 10 amp max. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You will need a 10mm socket, ratchet, T-15 Torx bit, Phillips screwdriver, and flat blade screwdriver.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process.
Open the vehicle tailgate and remove the two bolts holding each taillight assembly in place. Remove both taillights carefully to avoid damaging the alignment tabs. Then locate the vehicle taillight wiring harness connectors behind the taillight housing and separate them from the taillight, taking care not to damage the locking tabs.
The custom wiring harness end with the yellow wire connects to the driver side taillight. Insert it between the separated connectors and ensure the connectors are fully inserted with locking tabs in place.
The custom wiring harness end with the green wire connects to the passenger side taillight. Route the harness down through the opening under the driver side taillight, along the backside of the bumper, and up through the opening under the passenger side taillight before connecting.
Drilling may be required for the ground wire connection. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you will need to drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint.
Drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out of the way location. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
The battery connection must be fuse protected at 10 amp max. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.

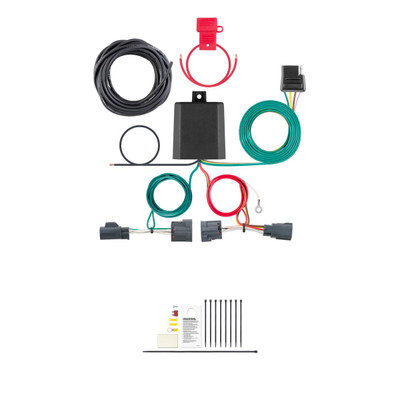

The Curt 56334 includes the custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal and provided screw, double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
The Curt 56334 fits Dodge Nitro and Jeep Liberty SUVs.
You need a 10mm socket, ratchet, T-15 Torx bit, Phillips screwdriver, and flat blade screwdriver.
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required for the ground wire connection if no existing screw is available. You would drill a 3/32" pilot hole.
Signal circuits are 3.0 amps per side; tail/running circuits are 6.0 amps total. Battery connection must be fused at 10 amp max.
The battery connection must be fuse protected at 10 amp max. Do not exceed this rating.
