Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 30
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda CRV (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2016 | Honda CR-V | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda CR-V Trailer Connector Kit (Part #BKDK56158) is designed to fit the 2012-2016 Honda CR-V.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda CR-V Trailer Connector Kit (Part #BKDK56158) fits the following vehicles: 2012-2016 Honda CR-V. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda CR-V Trailer Connector Kit (Part #BKDK56158) fits 2012-2016 Honda CR-V models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda CR-V Trailer Connector Kit (Part #BKDK56158) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
The Curt 56158 is a custom wiring harness that integrates with your vehicle's taillight system to provide trailer lighting control. It includes a converter box that processes the vehicle's taillight signals and outputs a 4-flat connector for trailer connection.
Yes, the Curt 56158 is designed for the Honda CR-V. It is listed in the applications section for SUVs, Mini & Full-Sized Vans category.
The manual only confirms fitment for the Honda CR-V. For other vehicles, contact Curt Manufacturing or consult a fitment database to verify compatibility.
You will need a panel trim removal tool. Depending on your grounding point choice, you may also need a drill with a 3/32" bit if you choose to drill a new pilot hole instead of using an existing vehicle screw.

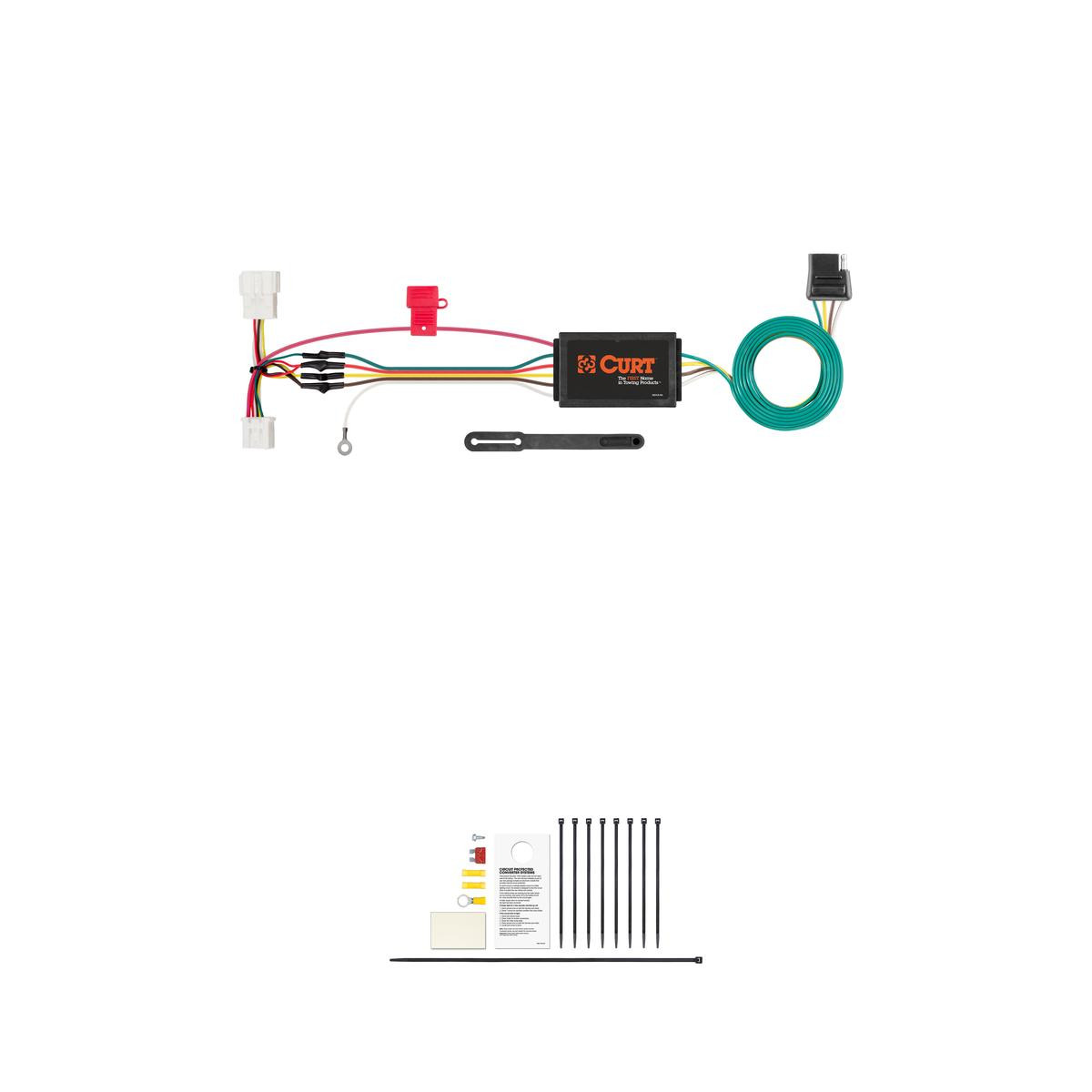

The harness includes a converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for the converter box, a 10-amp fuse, a fuse holder with cap, cable ties for securing loose wires, and a 4-flat dust cover.
No. Step 1 requires you to open the vehicle tailgate and remove all trunk floor coverings to access the rear trim panels and taillight wiring harness connectors.
Open the tailgate and remove trunk floor coverings. Remove the rear scuff panel by pushing in the center of the two push fasteners and pulling the panel out at the bottom then up. On the driver side, remove the cargo loop and two plastic fasteners securing the rear trim panel, then remove the two screws securing the seat release handle. Pull back on the rear trim panel to locate the taillight wiring harness connectors. On some models, you may need to gently pull back the upper trim panel or remove the finish panel behind the driver side rear seat for better access.
Separate the vehicle's taillight housing connectors carefully, taking care not to damage the locking tabs. Insert the custom wiring harness end between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Install the 10-amp low profile mini fuse into the vehicle's fuse panel in position 10. The fuse panel is located under the dash.
Install the 10-amp fuse provided in the fuse holder and install the fuse holder cap.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location.
Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Drilling is not always required. You only need to drill a 3/32" pilot hole if no suitable existing screw with nut is available in the vehicle frame near the taillight connector for the ground wire. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The manual does not specify a maximum tow vehicle lamp load rating. Check your vehicle owner's manual or contact the vehicle manufacturer for this information. You must not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Yes, the Curt 56158 is designed for the Honda CR-V.
The Curt 56158 requires a 10-amp maximum fuse. Do not exceed this rating as it can cause overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
