Original price was $89.95. Current price is $79.82.You save $10.13 (11%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45

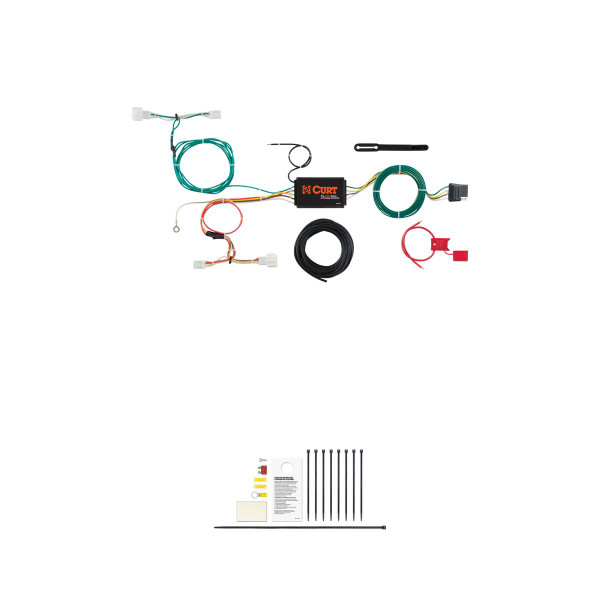

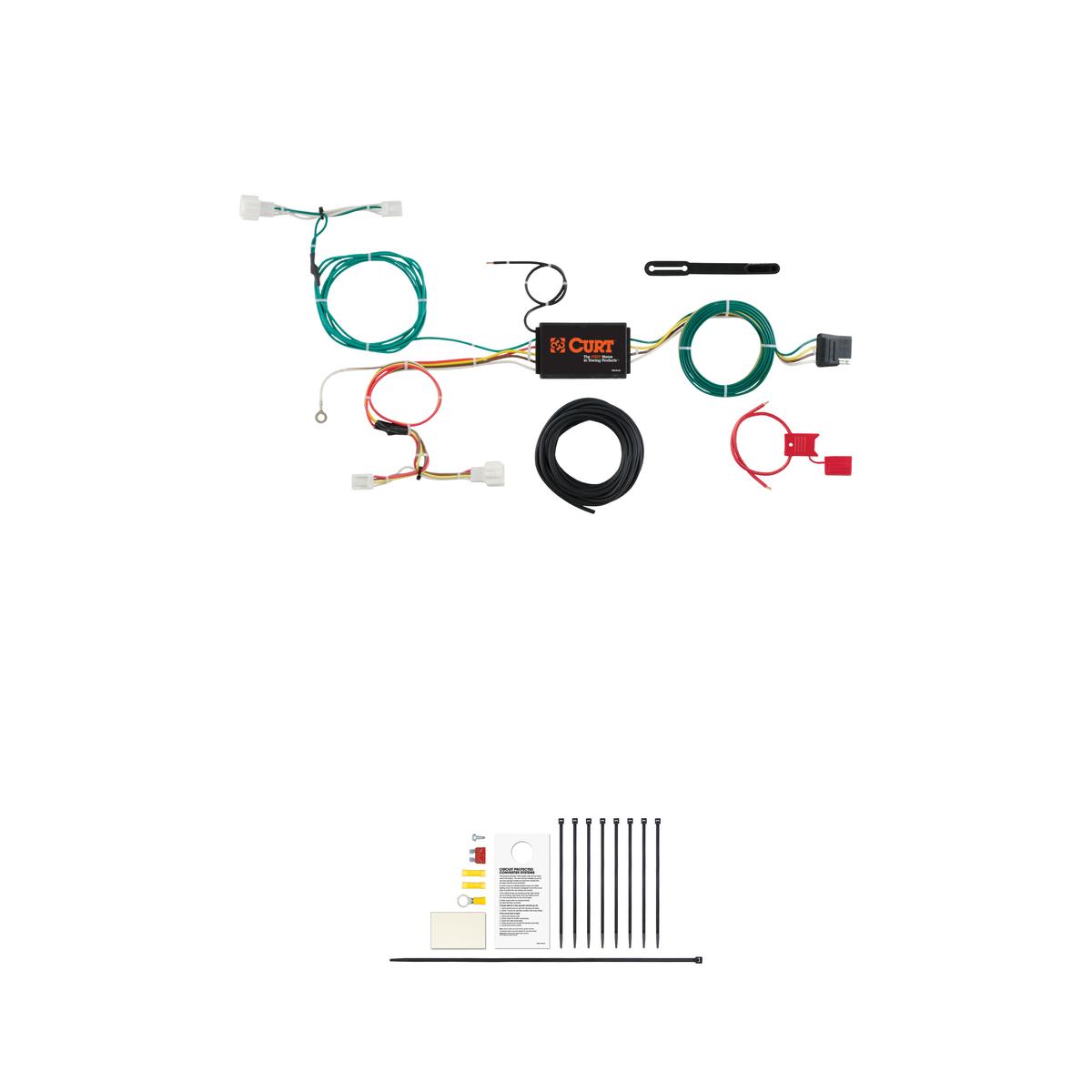

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda HRV (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2022 | Honda HR-V | Installation Time: 30-60 minutes |
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda HRV Trailer Connector Kit (Part #BKDK56284) fits the following vehicles: 2016-2022 Honda HR-V. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda HRV Trailer Connector Kit (Part #BKDK56284) fits 2016-2022 Honda HR-V models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda HRV Trailer Connector Kit (Part #BKDK56284) is designed to fit the 2016-2022 Honda HR-V.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Honda HRV Trailer Connector Kit (Part #BKDK56284) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56284 is designed for Honda HR-V vehicles. It is also compatible with SUVs, mini and full-sized vans in the S category.
The harness has two circuit ratings: signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. You must not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need: 8mm socket, 10mm socket, ratchet, panel trim removal tool, Phillips screwdriver, flat blade screwdriver, wire stripper, crimping tool, and cutting tool.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process.

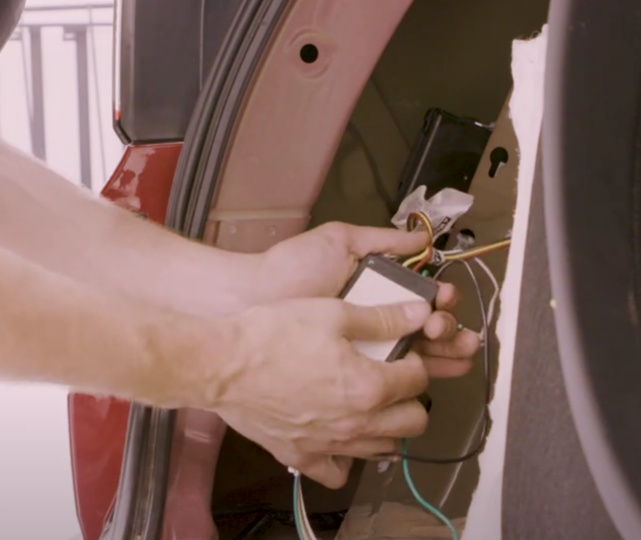

The yellow wire end connects on the driver side. Insert it between the separated taillight housing connectors after locating the vehicle taillight wiring harness connectors behind the side trim panel. Make sure the connectors are fully inserted with locking tabs in place.
The green wire end connects on the passenger side. Route it under the scuff panel and repeat the same connection process as the driver side: insert it between the separated taillight housing connectors and ensure the connectors are fully inserted with locking tabs in place.

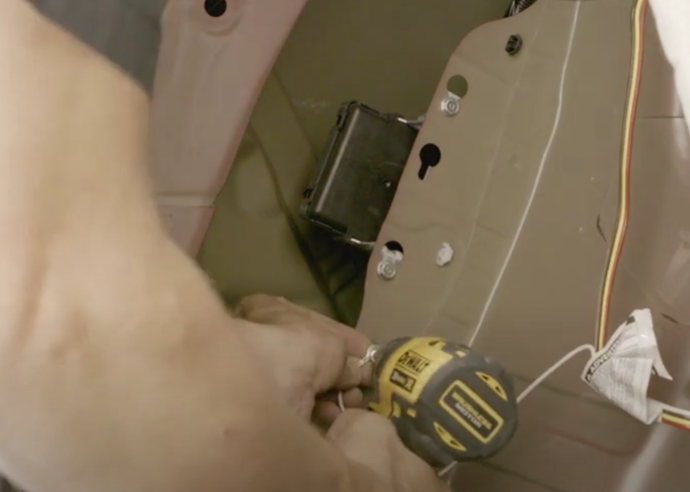

Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. You must do this on the driver side.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. When in use, route it to the center of the vehicle. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw if a suitable existing screw with nut is not available in the vehicle frame.
Open the vehicle tailgate and remove the two fasteners securing the trunk floor covering, then remove the cover.

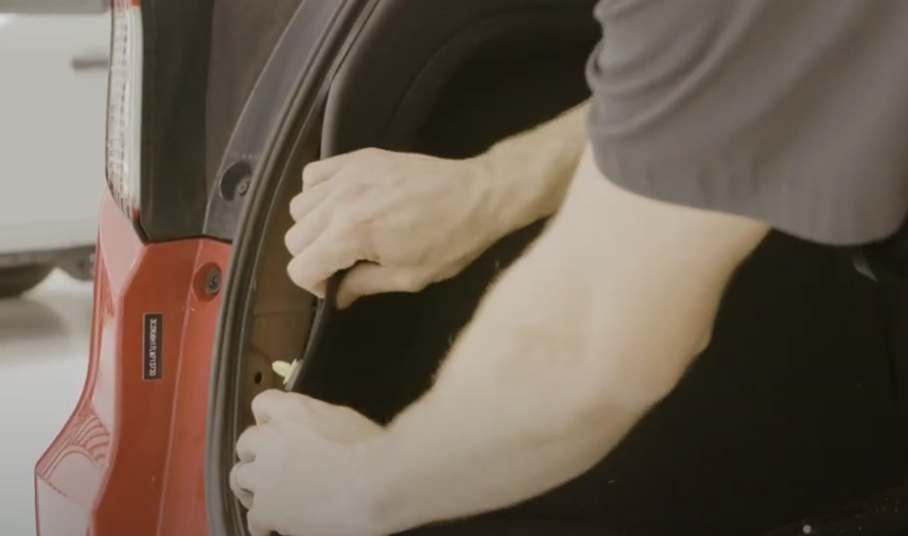

Pull out on the bottom of the scuff panel and then pull up. Take care not to damage the locking tabs on the back.

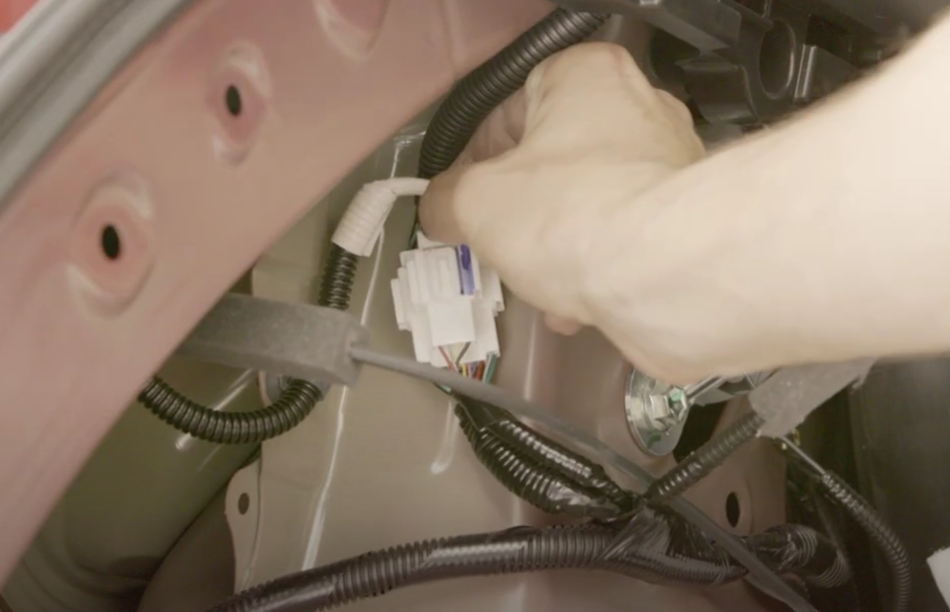

Starting on the driver side, pull back on the side trim panel to locate the vehicle taillight wiring harness connectors. The connectors will be similar to those on the custom wiring harness. Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
The Curt 56284 is designed for Honda HR-V and SUVs, mini and full-sized vans in the S category.
Drilling may be required if no suitable existing screw with nut is available in the vehicle frame for the ground wire. If drilling is needed, you will drill a 3/32" pilot hole.
A 10-amp maximum fuse is required for the battery connection. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Yes, disconnect the negative battery terminal before beginning installation.
Signal circuits are rated at 3.0 amps per side; tail/running circuits are rated at 6.0 amps total. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer.
