Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 7.5 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Novice
Installation Time Exact (Minutes): 20
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Jeep Cherokee, including Sport (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2001 | Jeep Cherokee | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Jeep Cherokee, Including Sport Trailer Connector Kit (Part #BKDK55354) is designed to fit the 1997-2001 Jeep Cherokee.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Jeep Cherokee, Including Sport Trailer Connector Kit (Part #BKDK55354) fits the following vehicles: 1997-2001 Jeep Cherokee. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Jeep Cherokee, Including Sport Trailer Connector Kit (Part #BKDK55354) fits 1997-2001 Jeep Cherokee models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Jeep Cherokee, Including Sport Trailer Connector Kit (Part #BKDK55354) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 55354 is designed for Jeep Cherokee vehicles in the SUVs, Mini & Full-Sized Vans category. However, the manual does not specify which model years are compatible. Contact Curt Manufacturing or your vehicle manufacturer to confirm your specific Cherokee year and trim are supported.
The Curt 55354 has a signal circuit rating of 3.0 amps per side and a tail/running circuit rating of 6.0 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.

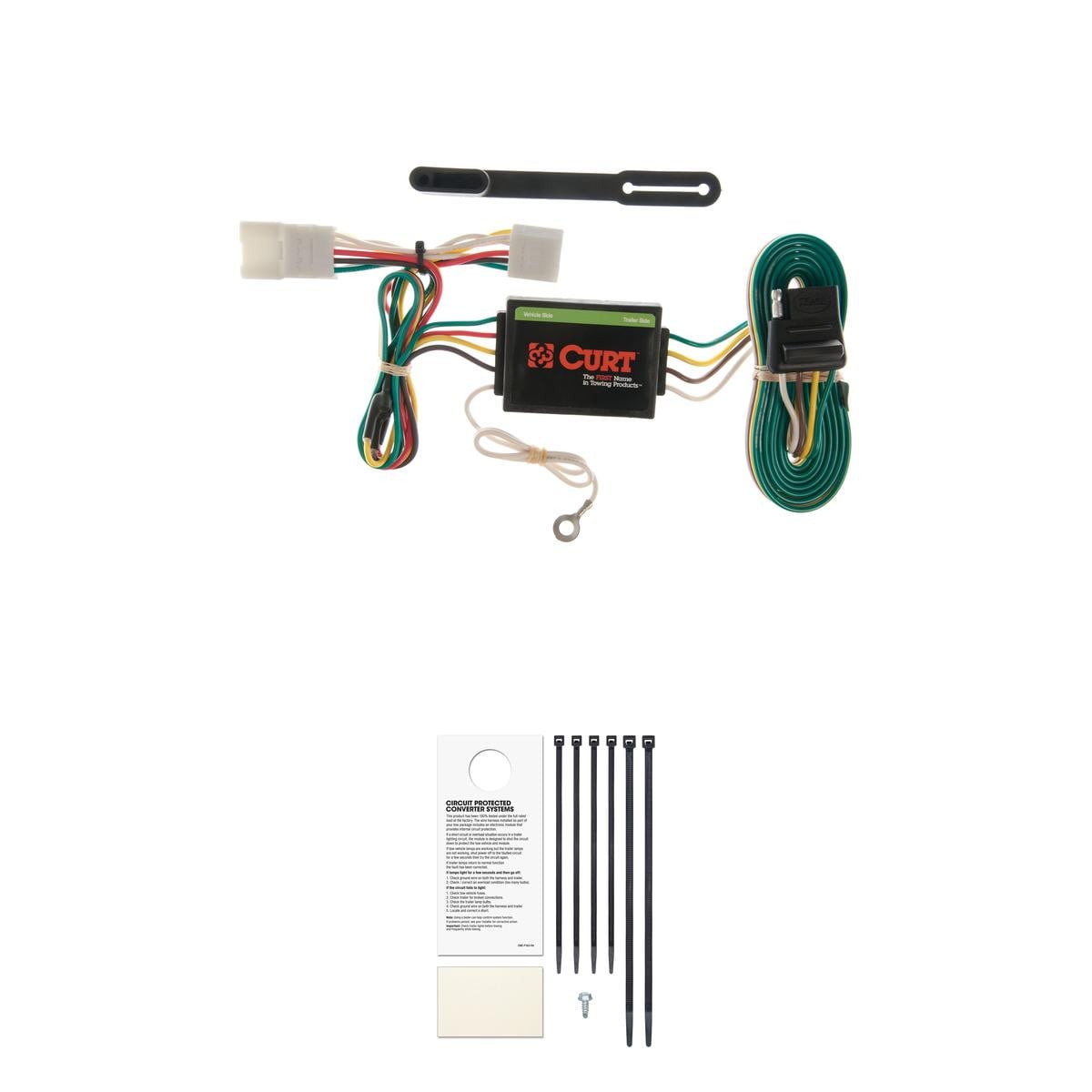

You will need a Phillips screwdriver, 10mm socket, ratchet, and panel trim removal tool. The harness comes with a provided screw, ring terminal, double-sided tape, cable ties and 4-flat dust cover.
Yes. Step 1 requires you to open the vehicle tailgate and remove the hatch threshold, spare tire and spare tire bracket using a Phillips screwdriver and 10mm socket before accessing the taillight wiring harness connectors.
Pull back the interior trim panel to locate the vehicle's taillight wiring harness connectors. Separate the connectors from the taillight housing, being careful not to damage the locking tabs. Insert the custom wiring harness end between the separated connectors and ensure the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. Always check for hidden items before drilling to avoid damage and personal injury.
Drilling may be required. You must locate a suitable grounding point near the connector. If an existing screw with nut is available in the vehicle frame, no drilling is needed. If not, you will need to drill a 3/32" pilot hole for the provided screw. Always check for hidden items behind or under any surface before drilling to avoid damage and personal injury.
Using a trim panel removal tool, pry the trim fasteners out on the black plastic wire bracket. Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation (hatch threshold, spare tire and spare tire bracket). Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Exceeding the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail/running circuits) or your tow vehicle's lamp load rating, whichever is lower, can cause loss of warranty, overheating and potential fire. Do not exceed the product rating.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The Curt 55354 is designed for Jeep Cherokee in the SUVs, Mini & Full-Sized Vans category. Confirm your specific model year with the manufacturer.
Phillips screwdriver, 10mm socket, ratchet, and panel trim removal tool. The harness includes a screw, ring terminal, double-sided tape, cable ties and 4-flat dust cover.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
