Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 20
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan Juke (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2017 | Nissan JUKE | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Nissan Juke Trailer Connector Kit (Part #BKDK56124) is designed to fit the 2011-2017 Nissan JUKE.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Nissan Juke Trailer Connector Kit (Part #BKDK56124) fits 2011-2017 Nissan JUKE models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Nissan Juke Trailer Connector Kit (Part #BKDK56124) fits the following vehicles: 2011-2017 Nissan JUKE. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Nissan Juke Trailer Connector Kit (Part #BKDK56124) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, part number 56124 is designed for the Nissan Juke. The installation involves accessing the vehicle's taillight wiring harnesses located behind the rear trim panels.
You must remove the lift gate, spare tire cover, foam storage tray, spare tire, and rear scuff panel. You will also need to pull out the rear trim panels on the driver and passenger sides to access the taillight wiring harnesses.

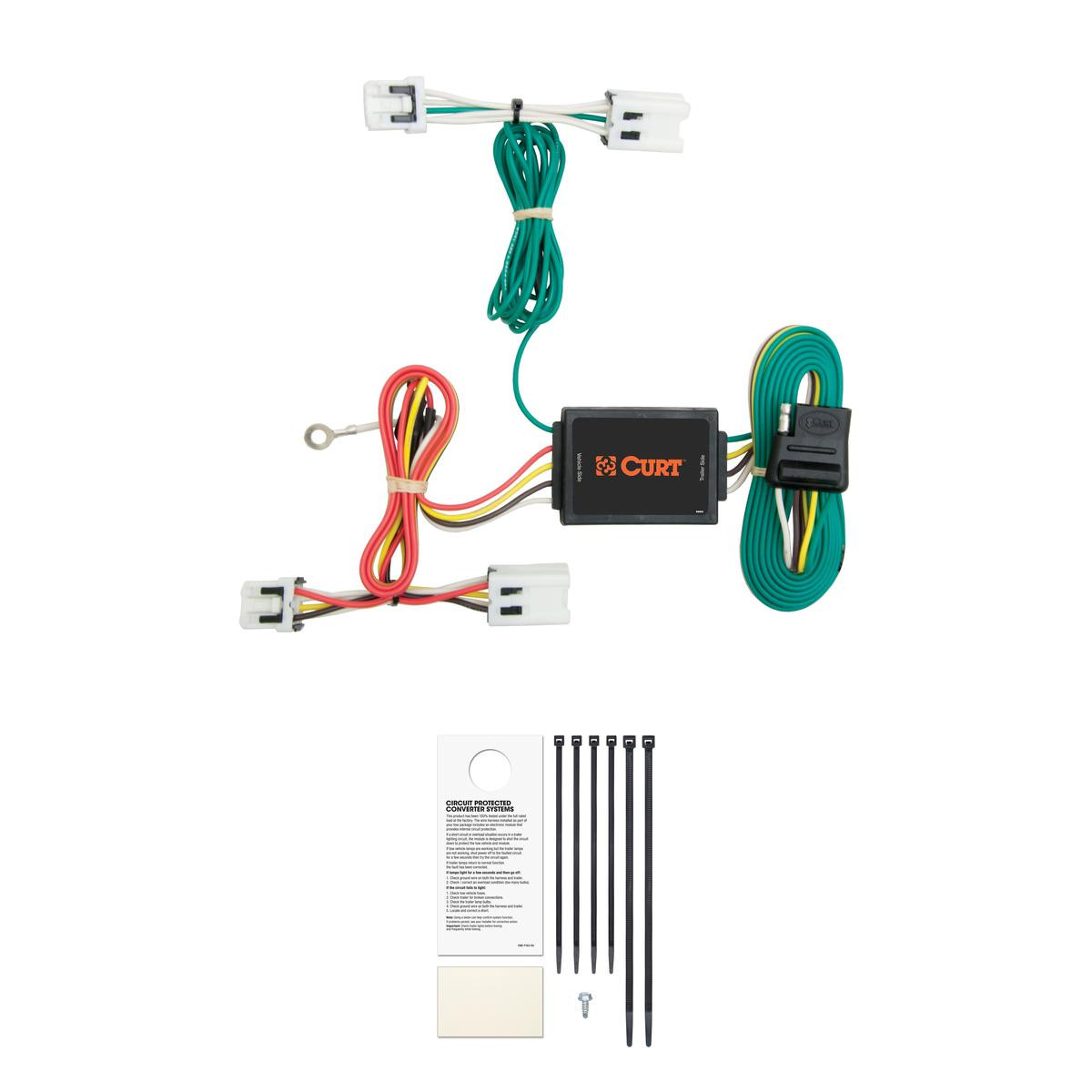

The kit includes a T-Connector harness with yellow and green wire ends, a black converter box, double-sided tape, cable ties, a white ground wire with ring terminal, and a screw for grounding.
You may need a drill with a 3/32" bit if a suitable grounding point with an existing screw and nut is not available on the vehicle's frame. Otherwise, no special tools are mentioned in the installation instructions.
Drilling is not always required. You should first locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. Only if no existing point is available should you drill a 3/32" hole to secure the white ground wire.
If drilling is necessary, drill a 3/32" hole. Secure the white ground wire using the ring terminal and screw provided in the kit.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. Drilling into hidden components can cause damage and/or personal injury.
On the driver side, separate the vehicle's taillight wiring connectors carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat this process on the passenger side using the T-Connector end with the green wire, routing it across under the removed rear scuff panel.
The manual does not specify the function of the yellow and green wires. The yellow wire end connects on the driver side and the green wire end connects on the passenger side. Contact Curt Manufacturing technical support at 1-877-287-8634 for wire function details.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit.
Route the 4-flat wire out from under the rear trim panel to the center of the vehicle. When in use, extend the 4-flat from the hatch. When not in use, roll it up and store it in an out-of-the-way location in the rear cargo area.
Yes. After connecting the T-Connector, secure any loose parts of the T-Connector with the cable ties provided in the kit.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. Secure the white ground wire using the ring terminal and screw provided. If no existing point is available, drill a 3/32" hole and secure the ground wire to it.
Reinstall all items that were removed during installation: the rear scuff panel, spare tire, foam storage tray, spare tire cover, and lift gate.
Yes, the Curt 56124 is designed for the Nissan Juke.
Remove the lift gate, spare tire cover, foam storage tray, spare tire, rear scuff panel, and access the rear trim panels on both sides.
Only if no existing grounding point is available. If needed, drill a 3/32" hole for the ground wire.
The kit includes a T-Connector harness with yellow and green wire ends, a black converter box, double-sided tape, cable ties, a white ground wire with ring terminal, and a grounding screw.
Verify that miscellaneous items hidden behind or under surfaces will not be damaged by drilling.
Separate the vehicle's taillight connectors on each side and insert the T-Connector ends (yellow on driver side, green on passenger side) between them, ensuring locking tabs are fully engaged.
