On Sale Today
Original price was $78.95. Current price is $72.99.You save $5.96 (8%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 7.5 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Novice
Installation Time Exact (Minutes): 15
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Saturn Vue (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2007 | Saturn Vue | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Saturn Vue Trailer Connector Kit (Part #BKDK56018) is designed to fit the 2002-2007 Saturn Vue.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Saturn Vue Trailer Connector Kit (Part #BKDK56018) fits the following vehicles: 2002-2007 Saturn Vue. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Saturn Vue Trailer Connector Kit (Part #BKDK56018) fits 2002-2007 Saturn Vue models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Saturn Vue Trailer Connector Kit (Part #BKDK56018) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56018 is designed for Saturn Vue SUVs. The installation involves connecting the harness to the existing taillight connectors on both sides of the vehicle.
The Curt 56018 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need: a ratchet, T-15 Torx bit, Phillips screwdriver, flat blade screwdriver, and a panel trim removal tool.

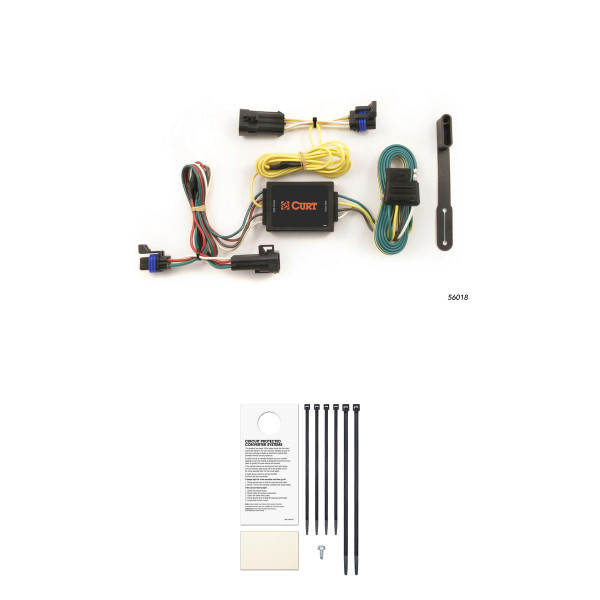

The Curt 56018 includes a custom wiring harness with connectors (green wire end and yellow wire end), a black converter box, double-sided tape for mounting the converter box, a 4-flat connector, a 4-flat dust cover, and cable ties for securing loose wires.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for guidance on electrical work safety.
Open the vehicle tailgate. Remove both taillight assemblies by removing two Torx-15 head screws on each side (one on each side of the taillight housing). Use a T-15 Torx bit with a ratchet to remove these screws.
Behind the taillight assemblies, locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing by carefully pulling them apart. Take care not to damage the locking tabs on the connectors, as these must remain intact for proper reconnection.
On both sides of the vehicle in the taillight pocket, remove two 10 mm nuts. After removing these nuts, carefully pull back on the rear quarter panel to create an opening to route the connectors through.
Yes. Partially remove the rear wheel wells and mud guards by removing the plastic fasteners holding each in place. Carefully pull back on the wheel well to gain access to pull wires down to the bumper fascia level.
On the passenger side, insert the custom wiring harness end with the green wire between the separated taillight connectors. Make sure the connectors are fully inserted with locking tabs in place to ensure a secure connection.
From the passenger side taillight pocket, route the custom wiring harness end with the yellow wire down through the opening made in Steps 2 and 3. From underneath the vehicle, route the yellow wire toward the backside of the bumper fascia, then to the driver side and up to the taillight.
Insert the custom wiring harness end with the yellow wire between the separated driver side taillight connectors. Make sure the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation, including the taillight assemblies, rear quarter panel, wheel wells and mud guards. Install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
The Curt 56018 is designed for Saturn Vue SUVs.
You need a ratchet, T-15 Torx bit, Phillips screwdriver, flat blade screwdriver, and panel trim removal tool.
Yes. Remove both taillight assemblies by removing two Torx-15 head screws on each side.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer.
