Vehicle battery connection required
Includes fuse holder, battery connection wiring and other necessary wiring components
Includes fuse holder, battery connection wiring and other necessary wiring components
Warranty: One-Year Limited Warranty
Electrical System Type: 3W
Output Type: 4-Way Flat
Tail Light Circuits: 6.0 Amps
Turn and Brake Circuits: 3.0 Amps
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Avalon, Toyota RAV4 and Lexus ES300h (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2023 | Lexus ES250 | Installation Time: 30-60 minutes |
| 2022 - 2023 | Lexus ES300h | Installation Time: 30-60 minutes |
| 2019 - 2023 | Lexus ES350 | Installation Time: 30-60 minutes |
| 2013 - 2018 | Toyota Avalon | Installation Time: 30-60 minutes |
| 2013 - 2018 | Toyota RAV4 | Installation Time: 30-60 minutes |
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Toyota Avalon, RAV4 Trailer Connector Kit (Part #BKDK56350) fits 2021-2023 Lexus ES250 models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Toyota Avalon, RAV4 Trailer Connector Kit (Part #BKDK56350) fits the following vehicles: 2021-2023 Lexus ES250; 2022-2023 Lexus ES300h; 2019-2023 Lexus ES350; 2013-2018 Toyota Avalon; 2013-2018 Toyota RAV4. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Wiring Harness, 4-Way Flat Output, Select Toyota Avalon, RAV4 Trailer Connector Kit (Part #BKDK56350) is designed to fit the 2021-2023 Lexus ES250.
The CURT Custom Wiring Harness, 4-Way Flat Output, Select Toyota Avalon, RAV4 Trailer Connector Kit (Part #BKDK56350) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56350 custom wiring harness is designed for Toyota Avalon. The installation accesses the taillight wiring connectors through the trunk by removing the trunk floor covering, rear cargo area cover, and rear scuff panel.
Yes, the Curt 56350 custom wiring harness is designed for Toyota RAV4. The installation accesses the taillight wiring connectors through the rear cargo area by removing the tailgate, trunk floor covering, rear cargo area cover, rear scuff panel, and rear trim panels.
The Curt 56350 is designed for Toyota Avalon and Toyota RAV4 models.
You will need: 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver. These tools are required to remove trim panels, fasteners, and screws during installation.
The kit includes a screw and ring terminal for grounding, double-sided tape for mounting the converter box, cable ties for securing wires, and a 4-flat dust cover.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Yes, you must disconnect the negative battery terminal before starting installation.
Open the tailgate and remove the trunk floor covering and rear cargo area cover. Remove the rear scuff panel by pulling out on the bottom and then up. Remove fasteners from the plastic cargo tray on the driver side. Remove the rear cargo loop, Phillips screws, and 10mm bolt holding the rear trim panel. Pull back on the top and bottom rear trim to locate the taillight wiring harness connectors.
Open the trunk and remove the trunk floor covering and rear cargo area cover. Remove the two fasteners securing the rear scuff panel. Remove the scuff panel by pulling out on the bottom and then up. Pull back the felt liner to locate the taillight wiring harness connectors.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) or green wire (passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Mount the converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
You may need to drill a 3/32" pilot hole if a suitable existing grounding point is not available. Look for an existing screw with nut in the vehicle frame near the connector. If drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free of rust, dirt, and paint before securing the white ground wire using the ring terminal and provided screw.
Drilling may be required for the ground wire. A 3/32" pilot hole is needed only if an existing screw with nut in the vehicle frame is not available as a grounding point.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The yellow wire end connects to the driver side taillight connectors. The green wire end connects to the passenger side taillight connectors. The white wire is the ground wire, which must be secured to a grounding point using the provided ring terminal and screw. The black converter box contains the power conversion circuitry.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific lamp load rating.
All installation steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer.
Test for proper function using a test light or by connecting a properly wired trailer.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.

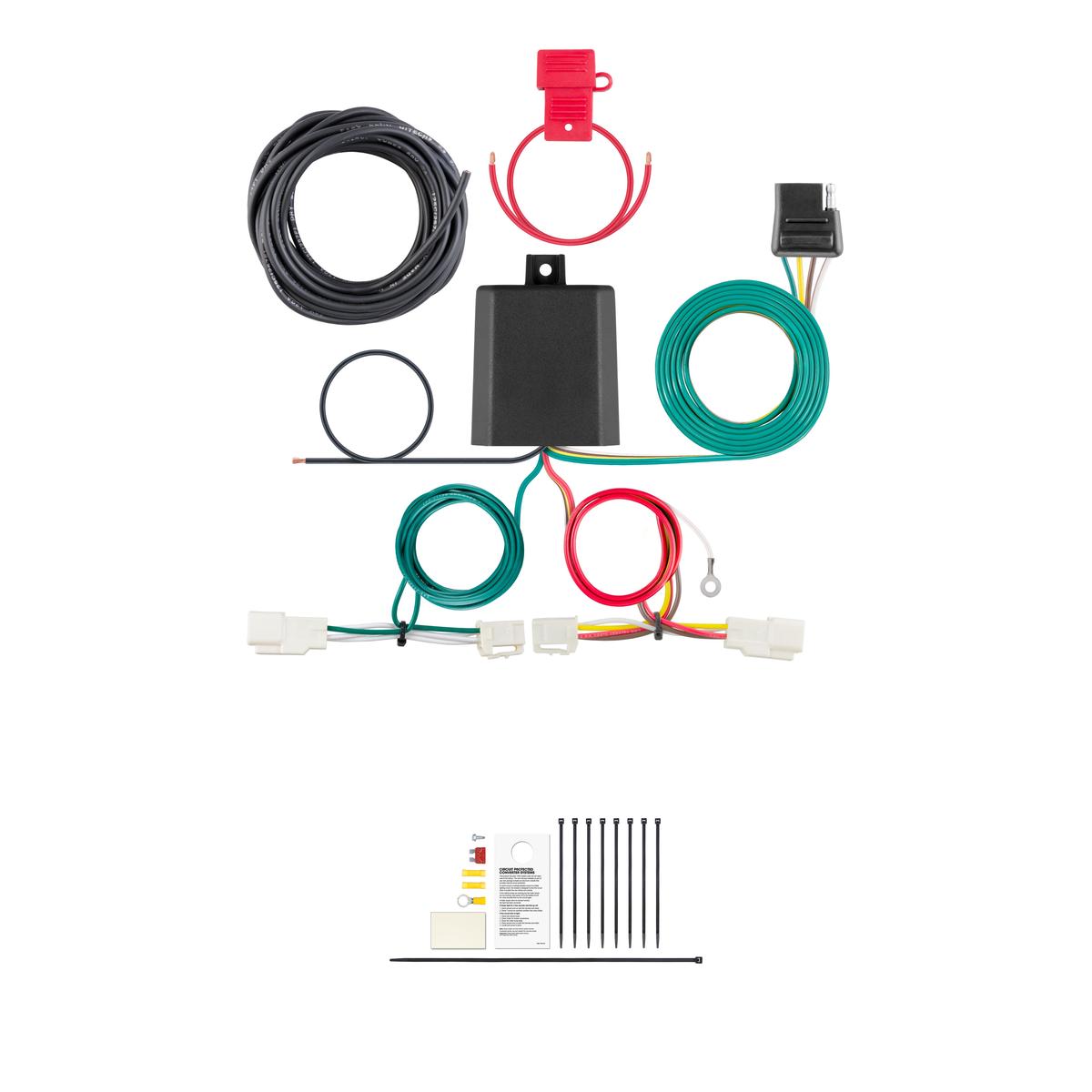

The Curt 56350 is a custom wiring harness designed for Toyota Avalon and Toyota RAV4 vehicles. It provides signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total) for trailer lighting. The harness includes a black converter box, wiring with color-coded ends for driver and passenger sides, a ground wire with ring terminal, mounting tape, cable ties, and a 4-flat dust cover.
