Only compatible with vehicles without LED taillights
Warranty: One-Year Limited Warranty
Electrical System Type: 2W
Output Type: 4-Way Flat
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 15

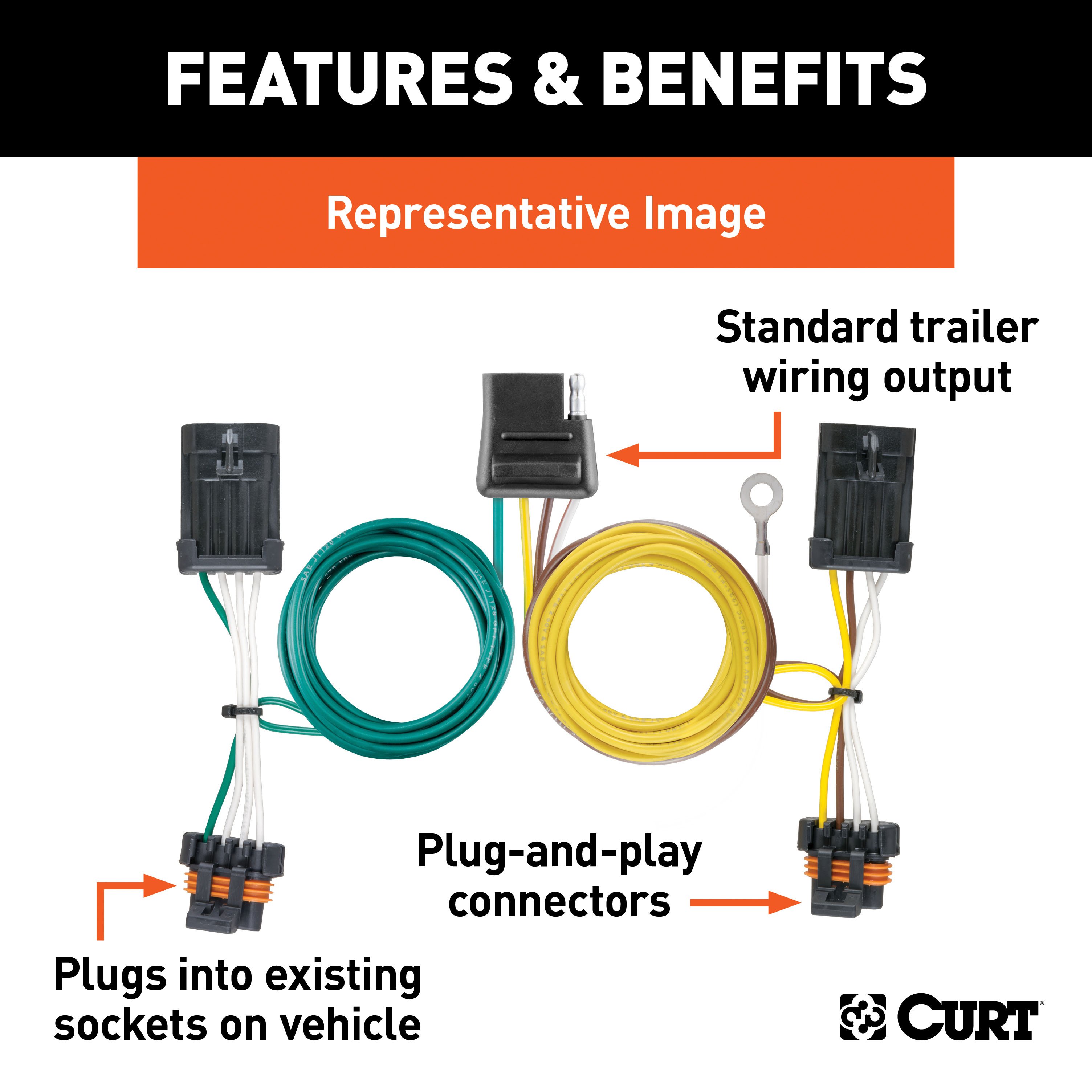

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Dodge Journey without LED lights (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010, 2012 - 2020 | Dodge Journey | Installation Time: 30-60 minutes |
Yes, the CURT Custom Wiring Harness, 4-Way Flat, Select Dodge Journey without LED Lights Trailer Connector Kit (Part #BKDK56109) is designed to fit the 2010, 2012-2020 Dodge Journey.
The CURT Custom Wiring Harness, 4-Way Flat, Select Dodge Journey without LED Lights Trailer Connector Kit (Part #BKDK56109) fits the following vehicles: 2010, 2012-2020 Dodge Journey. Always verify your specific year, make, and model before ordering.
The CURT Custom Wiring Harness, 4-Way Flat, Select Dodge Journey without LED Lights Trailer Connector Kit (Part #BKDK56109) fits 2010, 2012-2020 Dodge Journey models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Wiring Harness, 4-Way Flat, Select Dodge Journey without LED Lights Trailer Connector Kit (Part #BKDK56109) Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, the Curt 56109 is designed for Dodge Journey SUVs without LEDs. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm your specific model year and configuration are compatible.

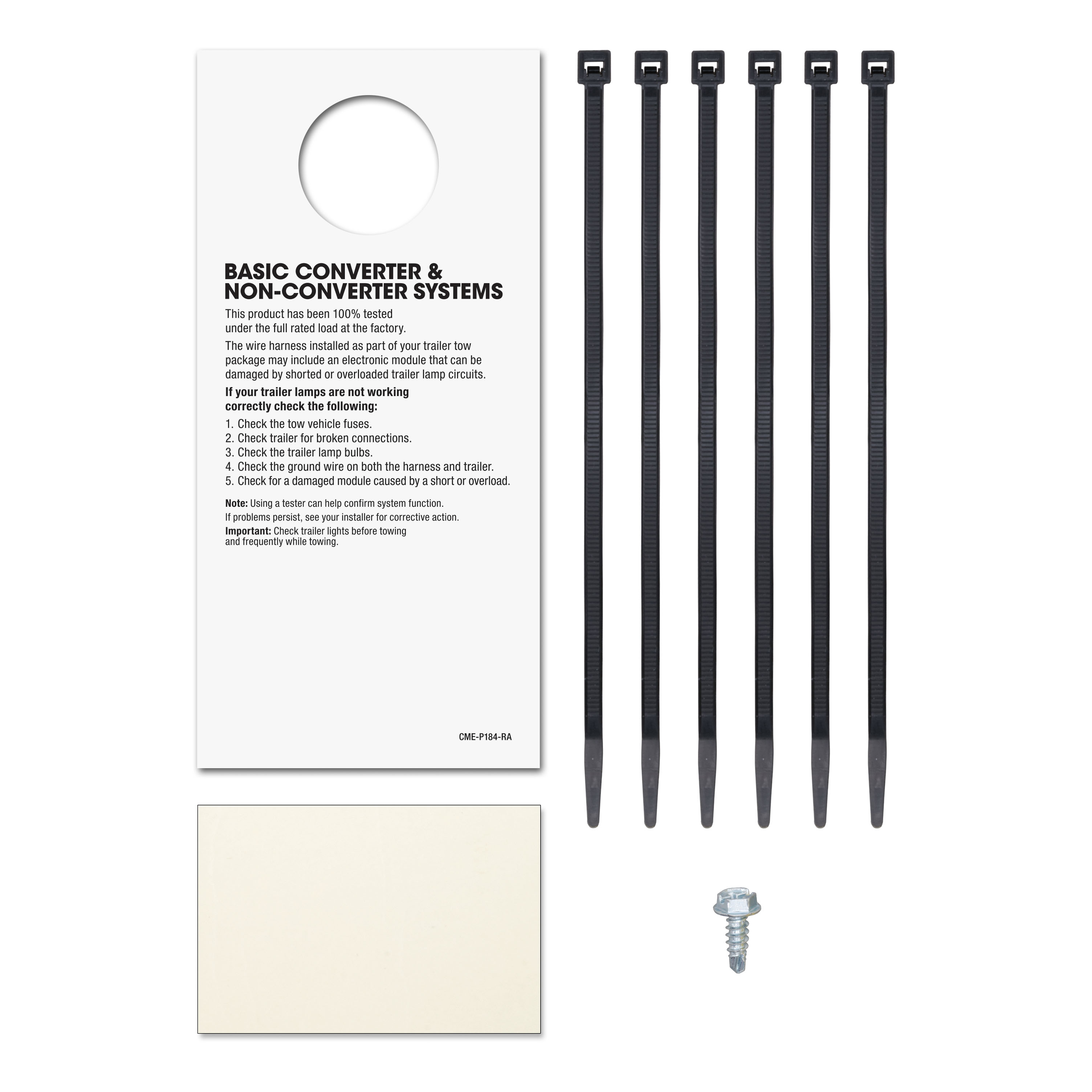

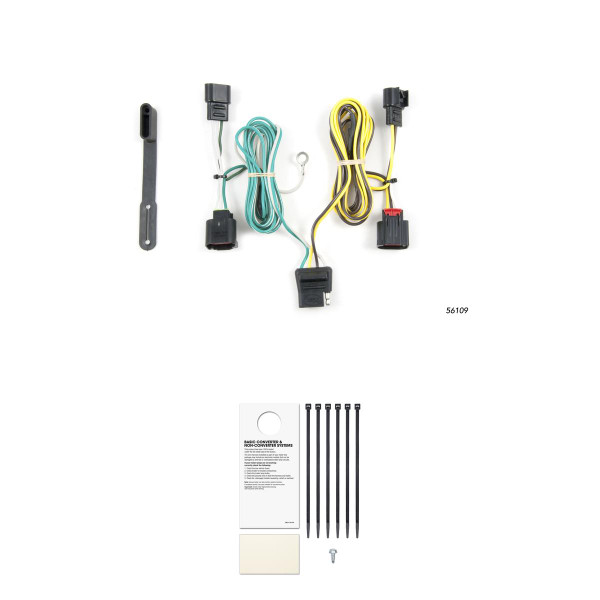

The harness includes: a custom wiring harness with yellow and green wire ends for driver and passenger side installation, a white ground wire with ring terminal, a provided screw for grounding, a 4-flat connector, a 4-flat dust cover, and cable ties for wire management.
No, you do not need to remove the tailgate. You must open the tailgate to access the taillights, but removal is not required.
Open the tailgate and remove the two plastic fasteners securing each taillight. Behind the removed taillights, locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
The yellow wire end is inserted on the driver side. Insert it between the separated taillight connectors, ensuring the connectors are fully inserted with locking tabs in place.
The green wire end is routed to the passenger side behind the removed scuff panels. It is inserted between the separated passenger-side taillight connectors, following the same procedure as the driver side (yellow wire end).
Drilling may be required for the ground wire installation. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you will need to drill a 3/32" pilot hole for the provided screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground wire screw. The grounding area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk.
Secure any loose wires with the provided cable ties to prevent tangling and ensure proper routing throughout the installation.
Yes, install the provided 4-flat dust cover to help prevent corrosion of the connector.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your Dodge Journey.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The manual indicates that the green wire end should be routed to the passenger side behind the removed scuff panels, but does not explicitly state whether removal is required. Consult your Dodge Journey owner's manual for scuff panel removal procedures.
Yes, the Curt 56109 is designed for Dodge Journey SUVs without LEDs. Confirm your model year and configuration with your vehicle owner's manual or the vehicle manufacturer.
Drilling may be required for the ground wire. If no existing screw is available on the vehicle frame, drill a 3/32" pilot hole for the provided screw. Always check for hidden items before drilling.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating risks overheating and fire. Check your vehicle owner's manual for the lamp load rating.
Test for proper function using a test light or by connecting a properly wired trailer. Ensure all installation steps have been completed.
