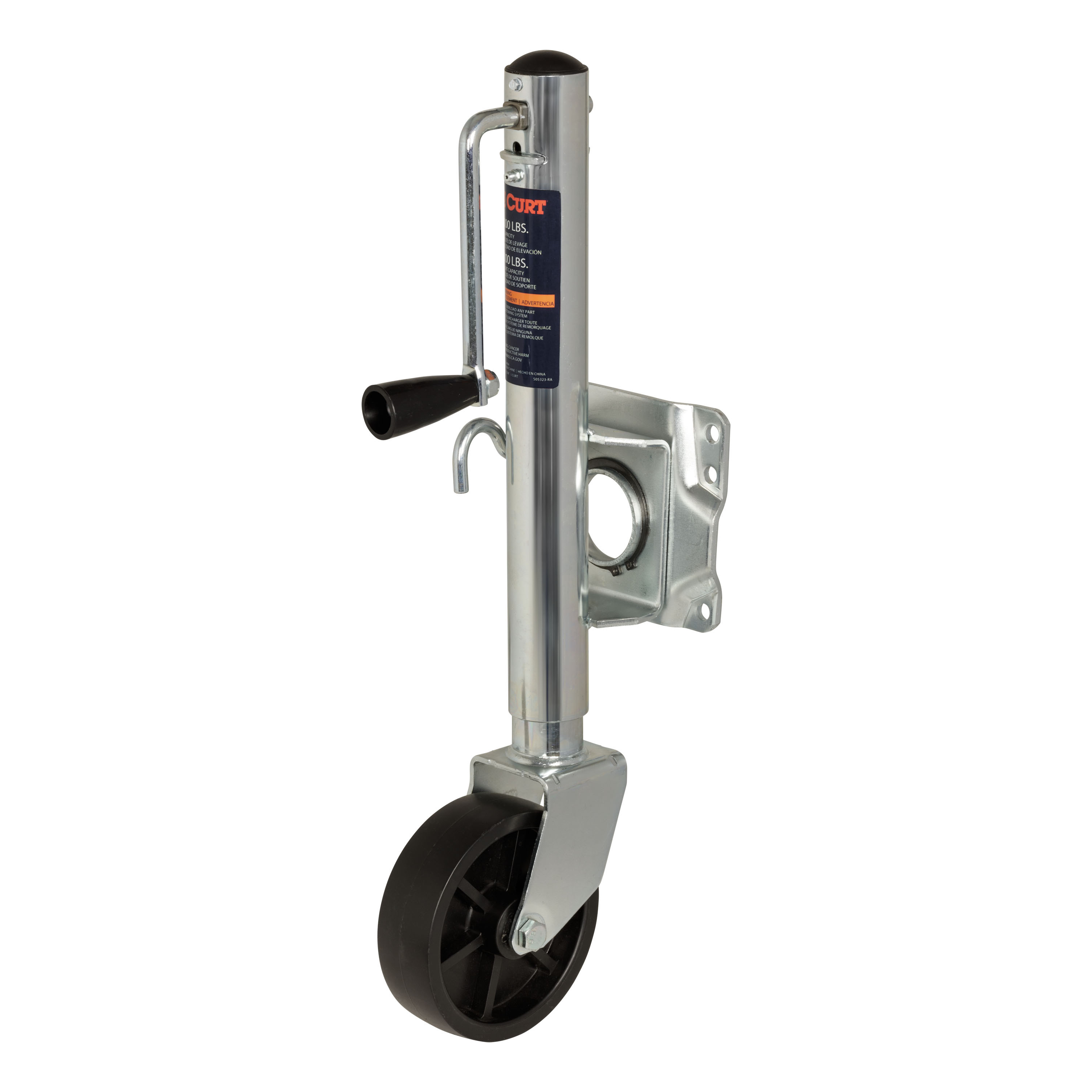

CURT Marine Jack with 6" Wheel (1,000 lbs, 10" Travel, Packaged) Trailer JackCURT$14.99Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CLEAR ZINC
Installation Time Exact (Minutes): 0

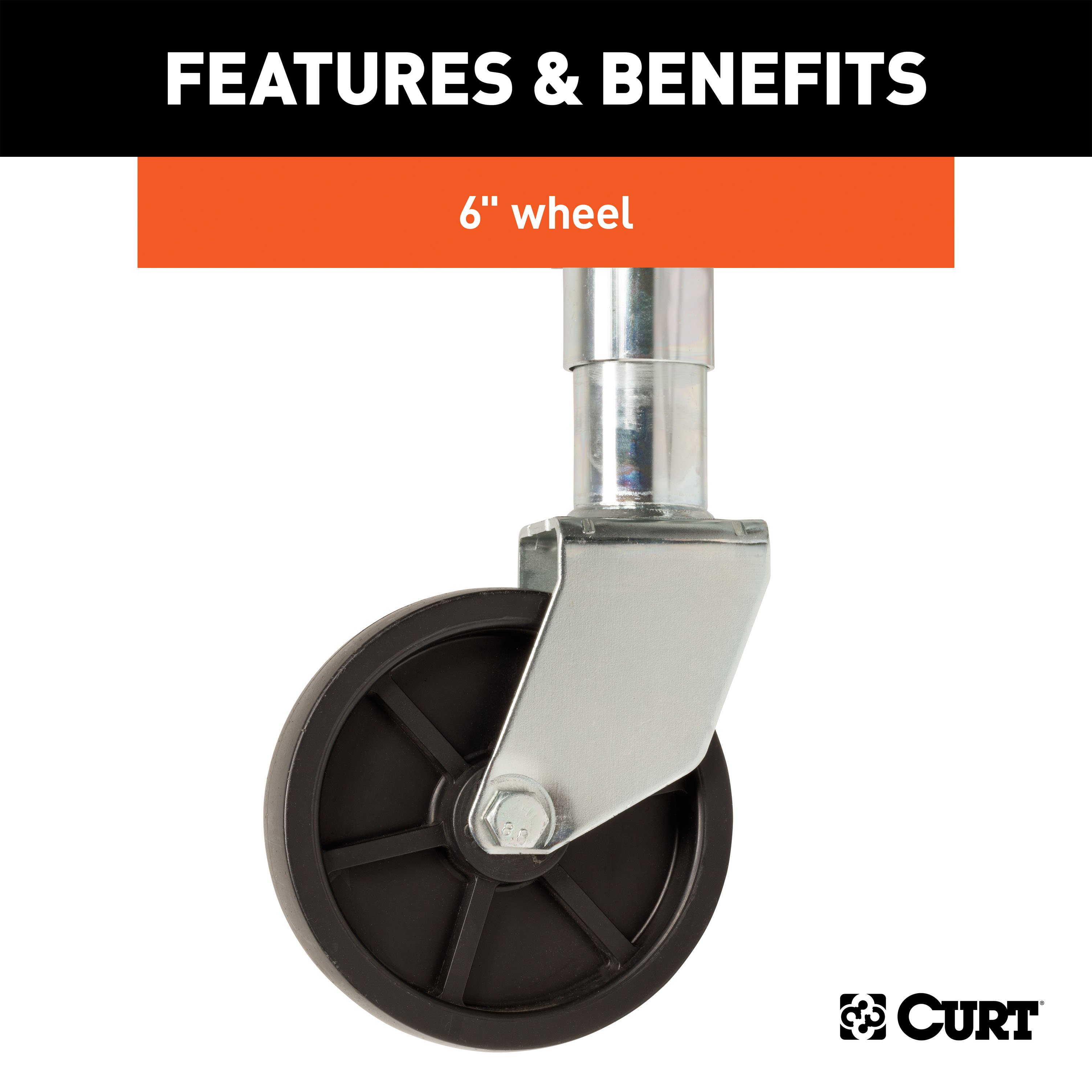

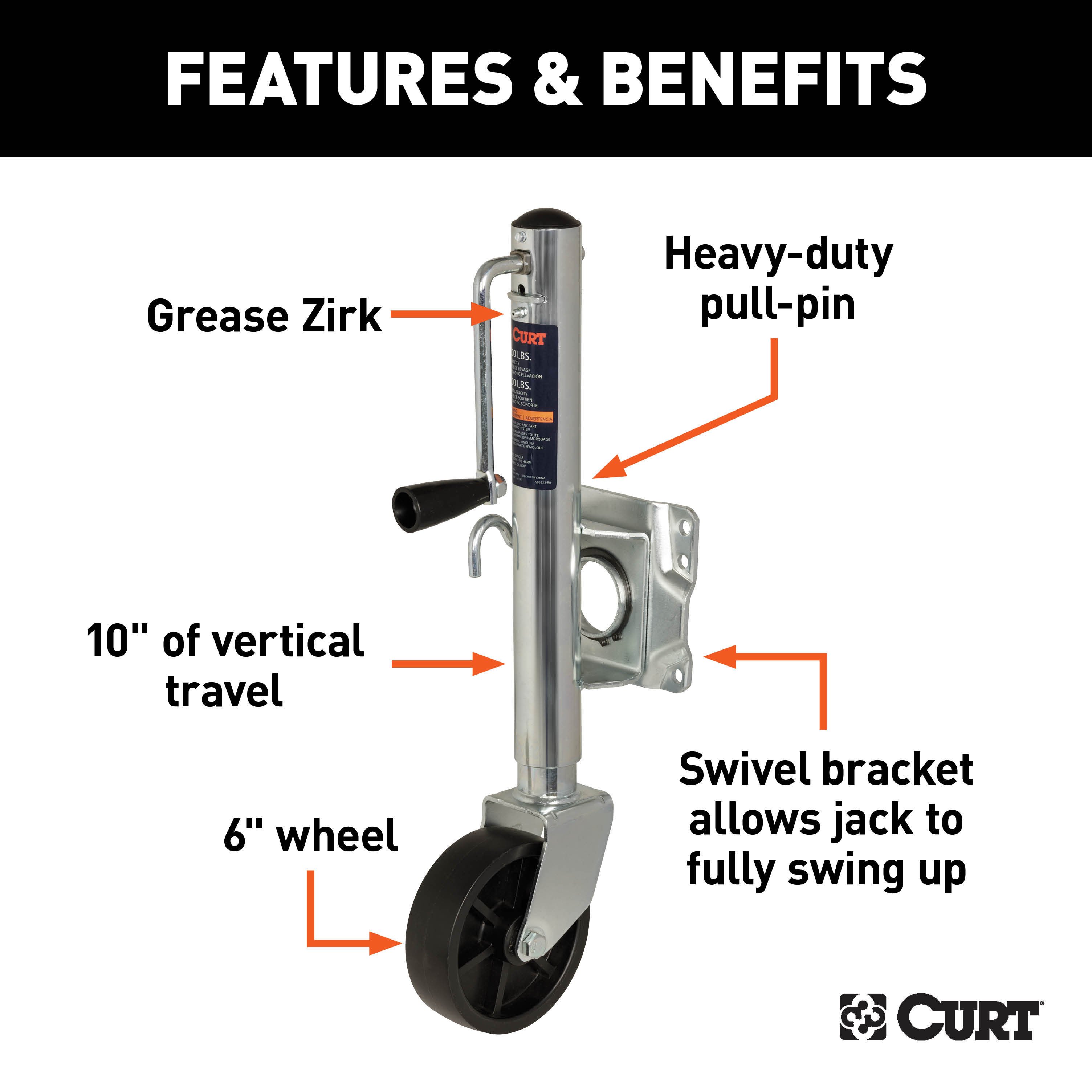

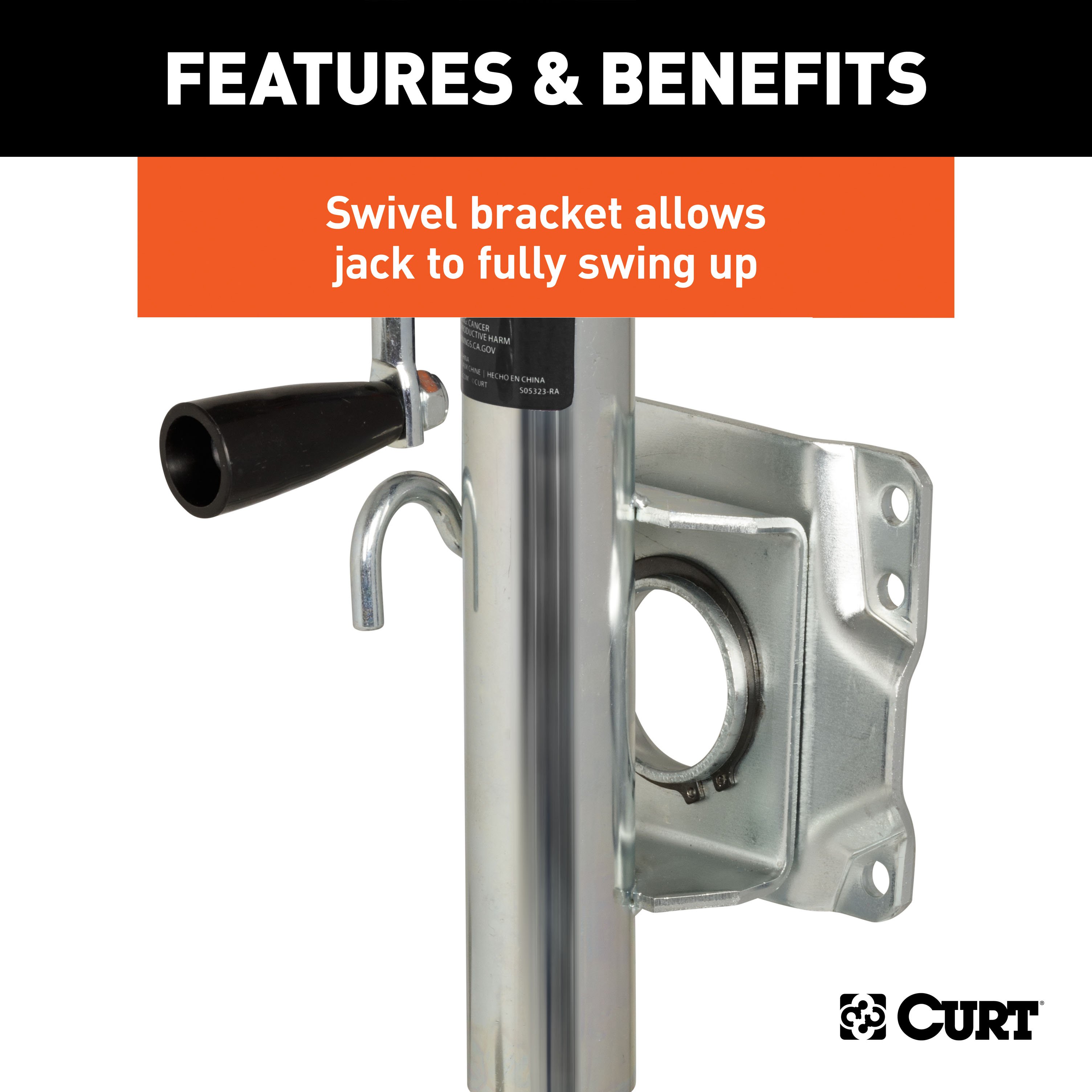

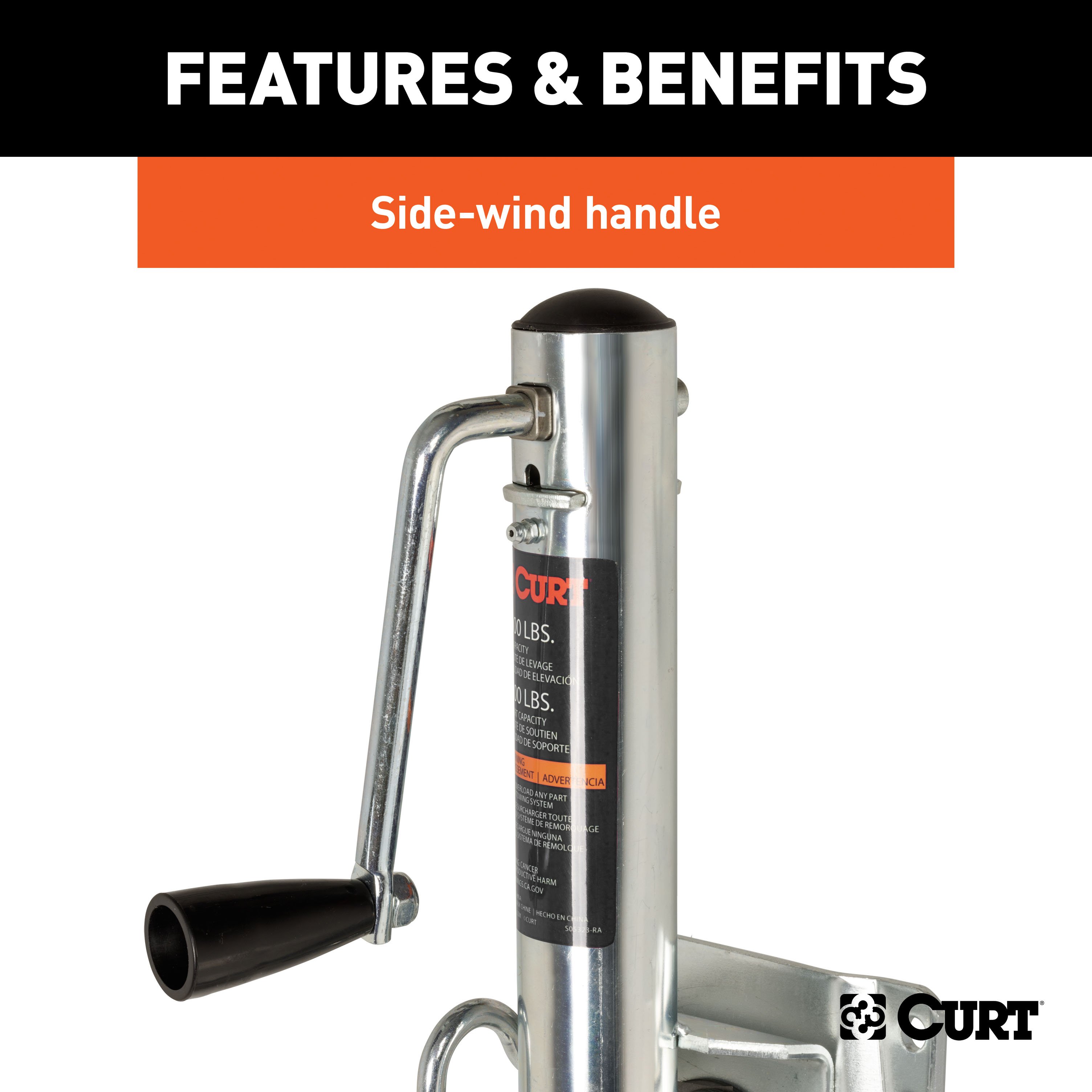

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. Designed to withstand the wear and tear of frequent water exposure, CURT marine jacks are the jack of choice for the avid fisherman or boating enthusiast. Our marine jacks have a few features that make them a special addition to our trailer jack line. Unlike any of our other jacks, CURT marine trailer jacks are equipped with wheels, allowing for greater mobility and easier coupling of your trailer. Choose from models with one or two wheels. Marine jacks also have a pull-pin that allows them to pivot on their mounting bracket to be out of the way for travel. To protect them from corrosion and the damage of moisture, these jacks come with a zinc finish. This CURT marine jack features a support capacity of 1,000 lbs., a lift capacity of 1,000 lbs., a travel of 10" and a wheel diameter of 6". It comes with a side-wind handle and all the necessary bolt-on hardware for a complete installation. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
The weight carrying capacity is listed on the product label attached to the jack. Refer to your specific product label for the exact capacity rating. Do not exceed this rated capacity, as doing so may result in severe product damage, serious personal injury or death.
You will need a socket set to install the CURT 25003 jack. This is the only tool listed as required for installation.
The kit includes: 1 jack, 2 mounting brackets, 4 hex bolts, and 4 nylock nuts. Hardware specifications may vary depending on the specific product version purchased.
Yes. The trailer MUST be supported per the manufacturer's recommendations before working underneath. Failure to do so may result in death, serious personal injury or severe product or property damage.
Place the jack against the tongue and position the mounting straps on the opposite side of the tongue. Align the holes in the mounting bracket with the holes in the mounting straps. The upper bolts should rest on the top of the tongue and the lower bolts should be less than 1/16" from the bottom of the tongue.
Insert the four hex bolts through the mounting bracket and mounting straps. Secure with the nylock nuts and snug the hardware to the mounting brackets. Ensure the upper bolts rest on the top of the tongue and the lower bolts are less than 1/16" from the bottom of the tongue.
Keep people and pets at a safe distance during installation and operation. Do not exceed the rated capacity. Fully lower the jack before rotating it to the stored position. Before manually moving the trailer, ensure the jack is in the lowest position. Moving parts can pinch, crush or cut, so keep clear and use caution.
Periodic inspection of your product should be performed to ensure all hardware and components remain secure. Check that bolts, nuts and mounting brackets have not loosened during use.
A socket set is required.
No. The installation difficulty is rated as Easy, based on time and effort involved. Actual difficulty may vary depending on installer expertise, vehicle condition and proper tools.
Do not exceed the rated capacity or severe product damage, serious personal injury or death may occur. The trailer must be supported per manufacturer recommendations before working underneath.
| Bulk # | Pkg # | Lift Capacity | Wind | Travel | Bracket Ht. | Wheel Size | Retracted Ht. | Extended Ht. | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 25004 | 25003 | 1,000 lbs. | Side | 10" | 12-1/4" | 6" | 9-1/4" | 19-1/4" | Zinc-plated |
| 28112 | 28113 | 1,200 lbs. | Side | 11" | 12-11/16" | 6" | 12-1/2" | 23-1/2" | Zinc-plated |
| 28115 | 28116 | 1,500 lbs. | Side | 11" | 12-11/16" | 8" | 13" | 24" | Zinc-plated |
| 28155 | 28156 | 1,500 lbs. | Side | 10-3/8" | 12-1/2" | Dual 6" | 12-5/8" | 23" | Zinc-plated |
