Draw-Tite Hardware Kit For Class 1 Trailer Hitch, 1-1/4 Inch 24857 For 2009-2011 BMW 328i xDrive SedanDraw-tite$39.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2007 - 2011 BMW 328i
Confirmed to Fit
2009 - 2011 BMW 328i xDrive
Confirmed to Fit
2007 - 2008 BMW 328xi
Confirmed to Fit
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!
DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24857 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 29.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2007 - 2011 | BMW 328i | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
| 2009 - 2011 | BMW 328i xDrive | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
| 2007 - 2008 | BMW 328xi | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select BMW 328i, BMW 328i xDrive, BMW 328xi 24857 (Part #DT24857) fits 2007-2011 BMW 328i models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select BMW 328i, BMW 328i xDrive, BMW 328xi 24857 (Part #DT24857) is designed to fit the 2007-2011 BMW 328i.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select BMW 328i, BMW 328i xDrive, BMW 328xi 24857 (Part #DT24857) fits the following vehicles: 2007-2011 BMW 328i; 2009-2011 BMW 328i xDrive; 2007-2008 BMW 328xi. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select BMW 328i, BMW 328i xDrive, BMW 328xi 24857 (Part #DT24857) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24857 is designed for BMW 328 Sedan models from 2010, 2011, 2012, and 2015. The hitch is also sold under part numbers 60273, 77231, and 24863 (U-Haul version). Confirm your model year matches before purchase.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of this rating or your vehicle manufacturer's towing rating. Always verify your vehicle's manufacturer specifications.
You will need wrenches in the following sizes: 8mm, 10mm, 18mm, and 3/4 inch. A torque wrench is also required to tighten fasteners to the specified torque values (62 Lb.-Ft. for 12mm fasteners and 75 Lb.-Ft. for ½-13 GR5 fasteners).

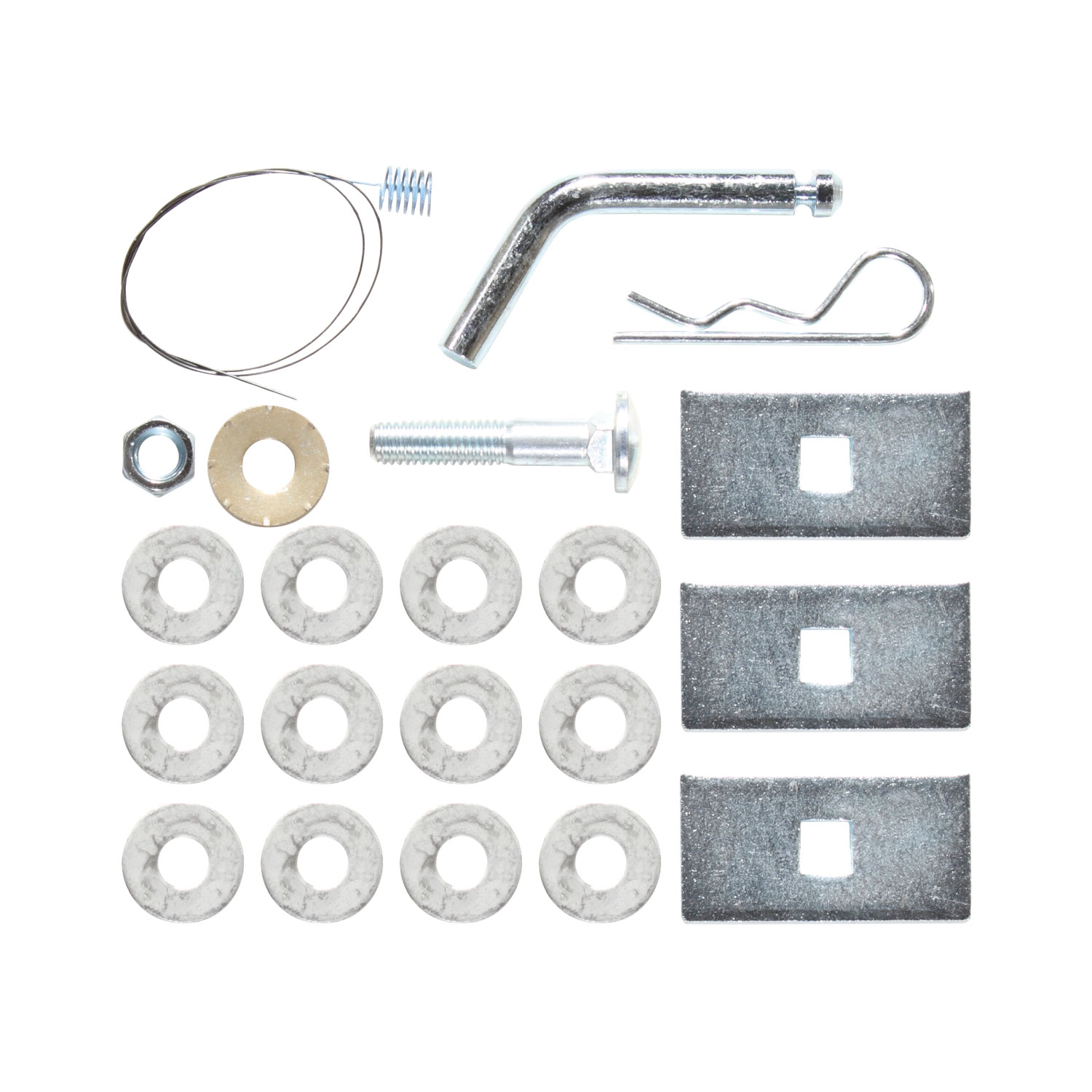

The kit includes: (12) flat washers 7/16 inch, (1) conical washer 1/2 inch, (1) carriage bolt ½-13 X 2.50 GR5, (1) hex nut, (3) spacers, and (1) pullwire 1/2 inch. The installation also reuses (4) existing M12 flange nuts from the vehicle. A separate fastener kit 24857F is available if additional fasteners are needed.
Yes. You must remove both appearance panels at the start of installation. The panels are retained by (10) 8mm fasteners and (4) 10mm fasteners, which you must keep for reinstallation. The passenger-side panel is reinstalled after the hitch is secured. The driver-side panel will need to be trimmed (see installation step 9) or returned to the owner.
Yes. The driver's side appearance panel will need to be trimmed to accommodate the hitch, as shown in Figure 3. You must obtain the vehicle owner's permission before trimming. Alternatively, the panel can be returned to the owner unmodified. Do not use a torch to cut the panel; use appropriate cutting tools.
1. Remove both appearance panels (retain fasteners). 2. Remove the (4) existing M12 flange nuts from the vehicle end panel (retain them). 3. Place (3) flat washers on each stud. 4. Rotate the hitch behind the fascia and reinstall the flange nuts finger-tight only. 5. Determine the number of spacers needed between the hitch bar and vehicle frame cross member (minimum 1). 6. Use the pullwire to insert the carriage bolt and spacer into the frame cross member, thread the pullwire through the spacer(s) and hitch bar, then remove the pullwire and install the conical washer and hex nut. 7. Tighten all fasteners to the specified torque. 8. Reinstall the passenger-side appearance panel. 9. Trim or return the driver-side appearance panel.
The pullwire is used to guide the carriage bolt through the vehicle frame cross member and the spacer(s) and hitch bar. Insert the carriage bolt and one spacer into the frame cross member, then thread the pullwire through the spacer(s) and hitch bar as shown in Figure 4. Once the pullwire has guided the bolt into position, remove the pullwire and install the conical washer and hex nut onto the carriage bolt.
The flange nuts are tightened finger-tight only in step 4 to allow the hitch to be positioned and aligned correctly. The spacers are then determined and installed in step 5, and all fasteners are finally tightened to the specified torque in step 7 once the hitch is in its final position.
All 12mm fasteners must be tightened with a torque wrench to 62 Lb.-Ft. (84 N·M).
All ½-13 GR5 fasteners, including the carriage bolt, must be tightened with a torque wrench to 75 Lb.-Ft. (102 N·M).
You must determine the number of spacers needed for your specific installation. The manual specifies a minimum of 1 spacer. The spacers are oriented as shown in Figure 4, and any spacer that is not needed can be removed. The kit includes (3) spacers total.
Yes. Spraying the existing M12 flange nuts with a lubricant will assist with removal. After removal, wash the lubricant off the studs before proceeding with installation.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended to maintain safe operation.
No. The drawbar must be used in the rise position only. The drawbar kit (part number 3593) is sold separately.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This is important to protect the vehicle's interior and prevent corrosion.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch, as it may fail during towing.
Yes, part 24857 fits BMW 328 Sedan models from 2010, 2011, 2012, and 2015.
You need wrenches (8mm, 10mm, 18mm, 3/4 inch) and a torque wrench. The kit includes pullwire, spacers, washers, carriage bolt, and hex nut.
Yes, the driver's side appearance panel must be trimmed (with owner permission) or returned to the owner unmodified. Do not use a torch to cut it.
Tighten all 12mm fasteners to 62 Lb.-Ft. (84 N·M) and all ½-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of this rating or your vehicle manufacturer's specification.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Plug all holes if the hitch is removed. Replace any damaged hitch or ball immediately.
Yes, both appearance panels must be removed at the start. The passenger-side panel is reinstalled after hitch installation; the driver-side panel requires trimming or return to owner.
