Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

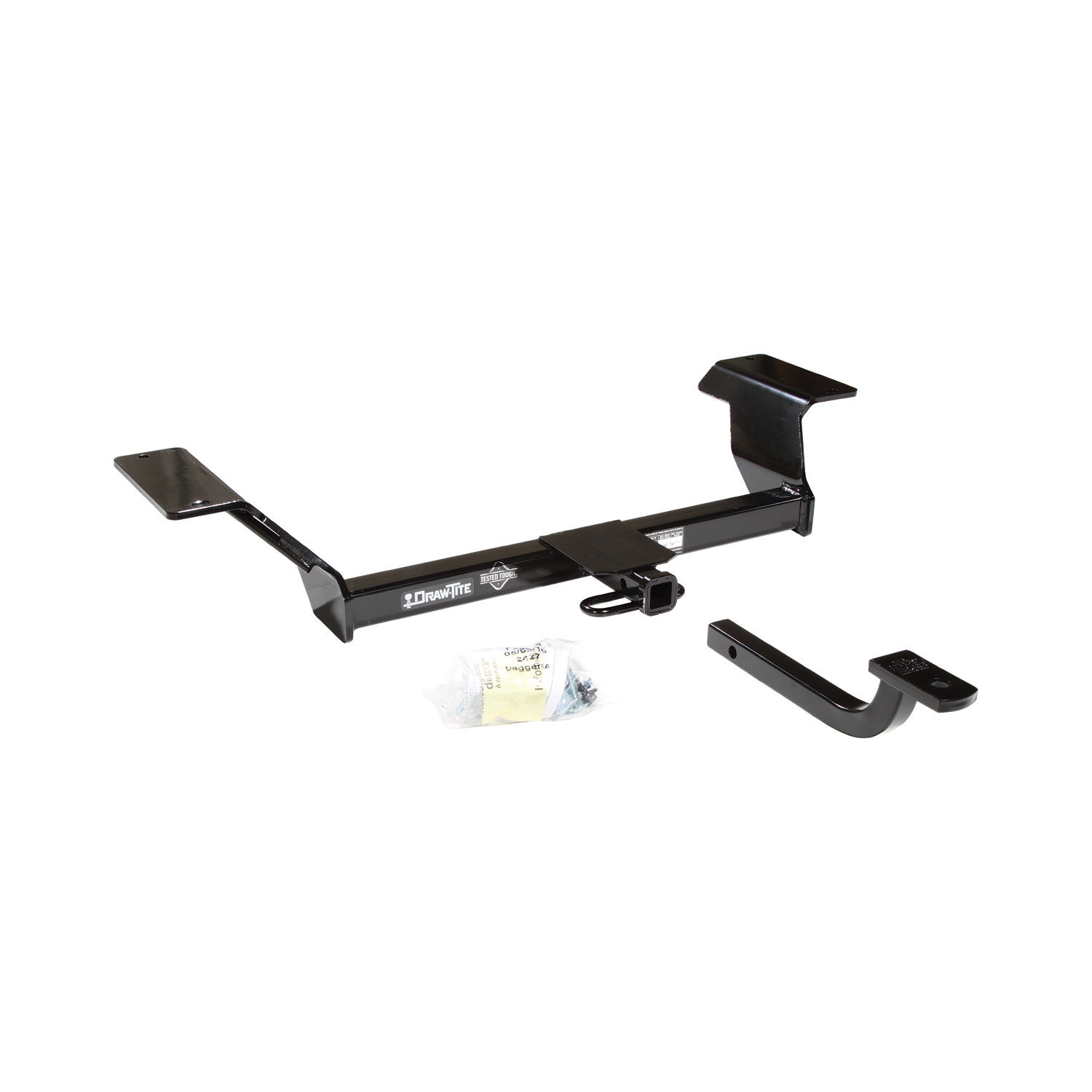

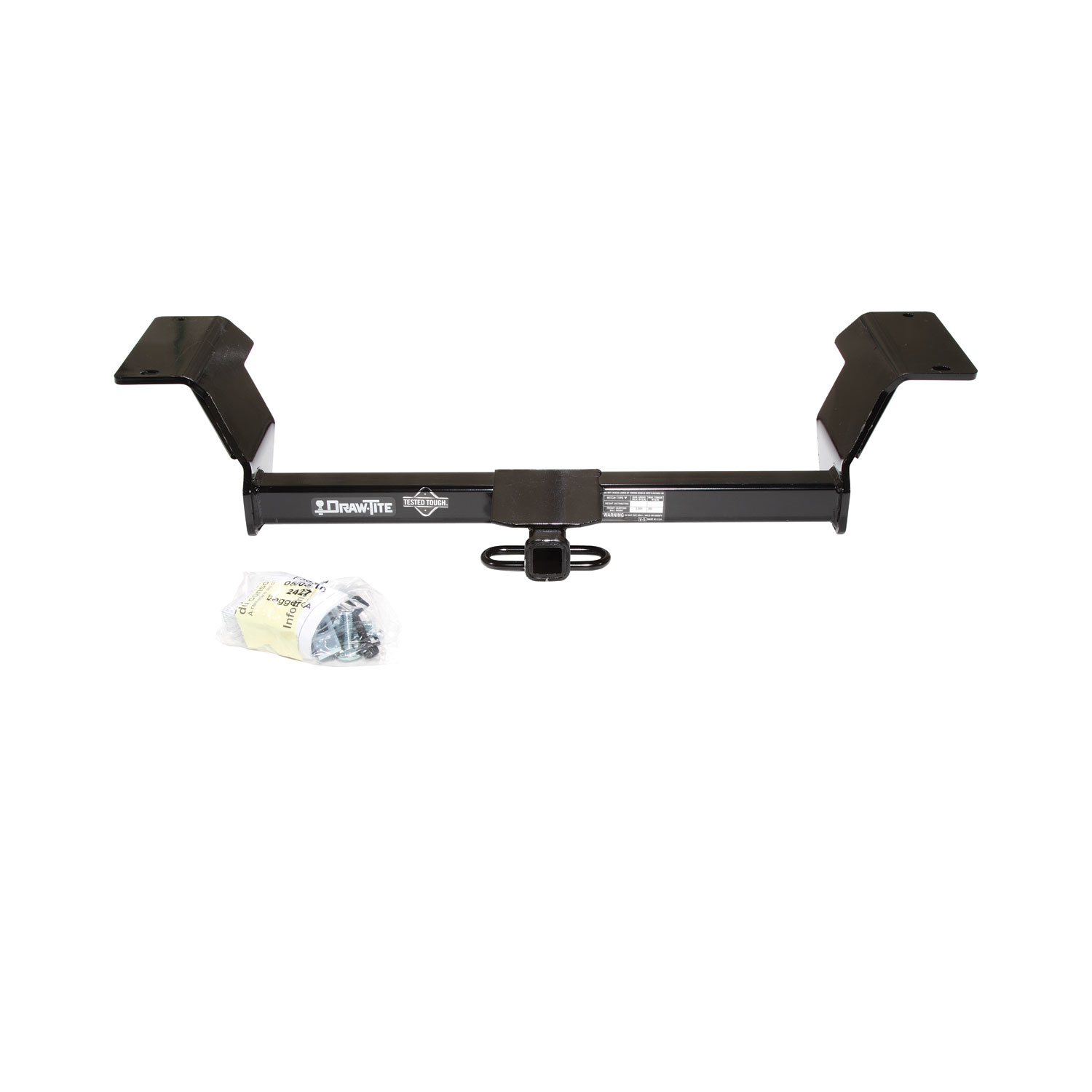

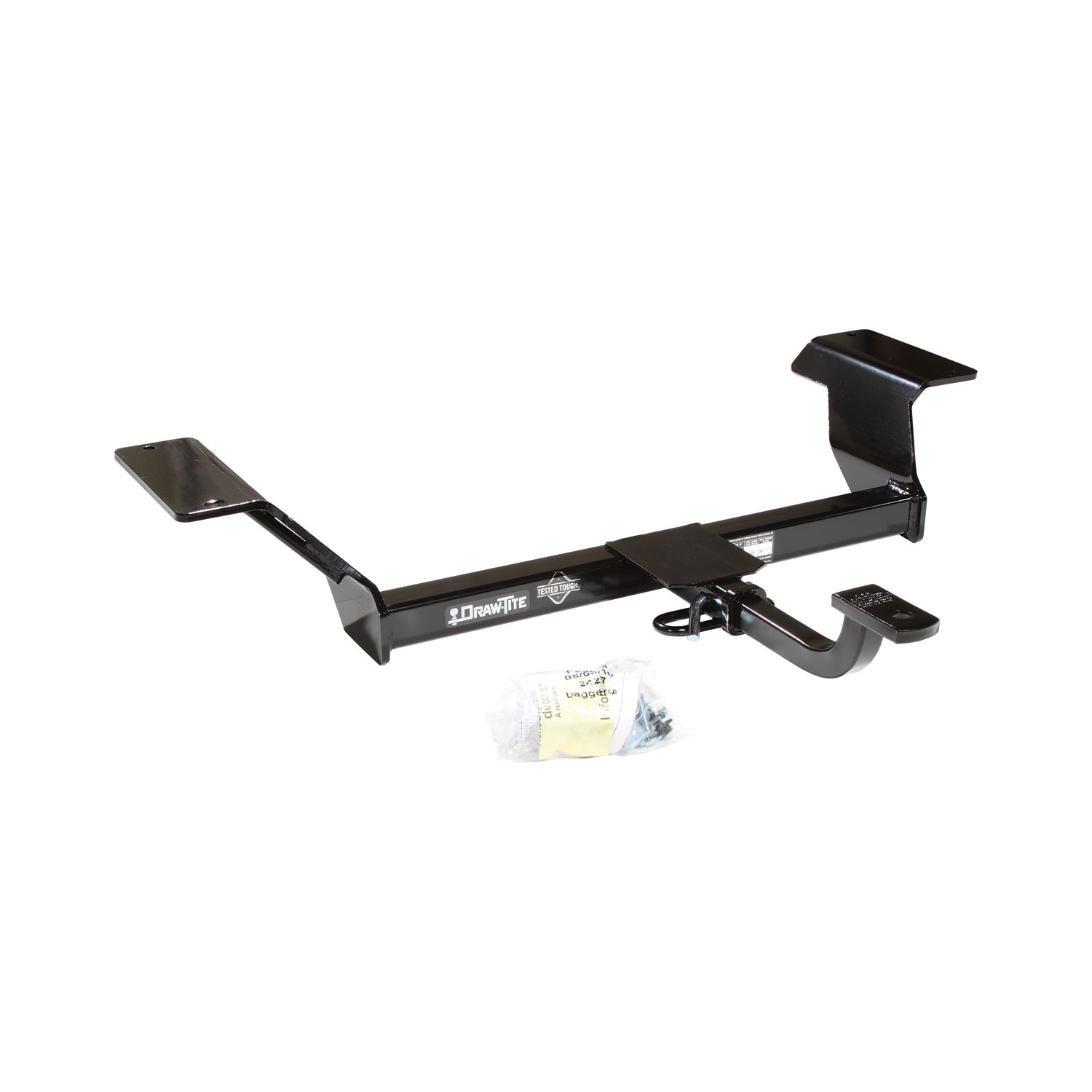

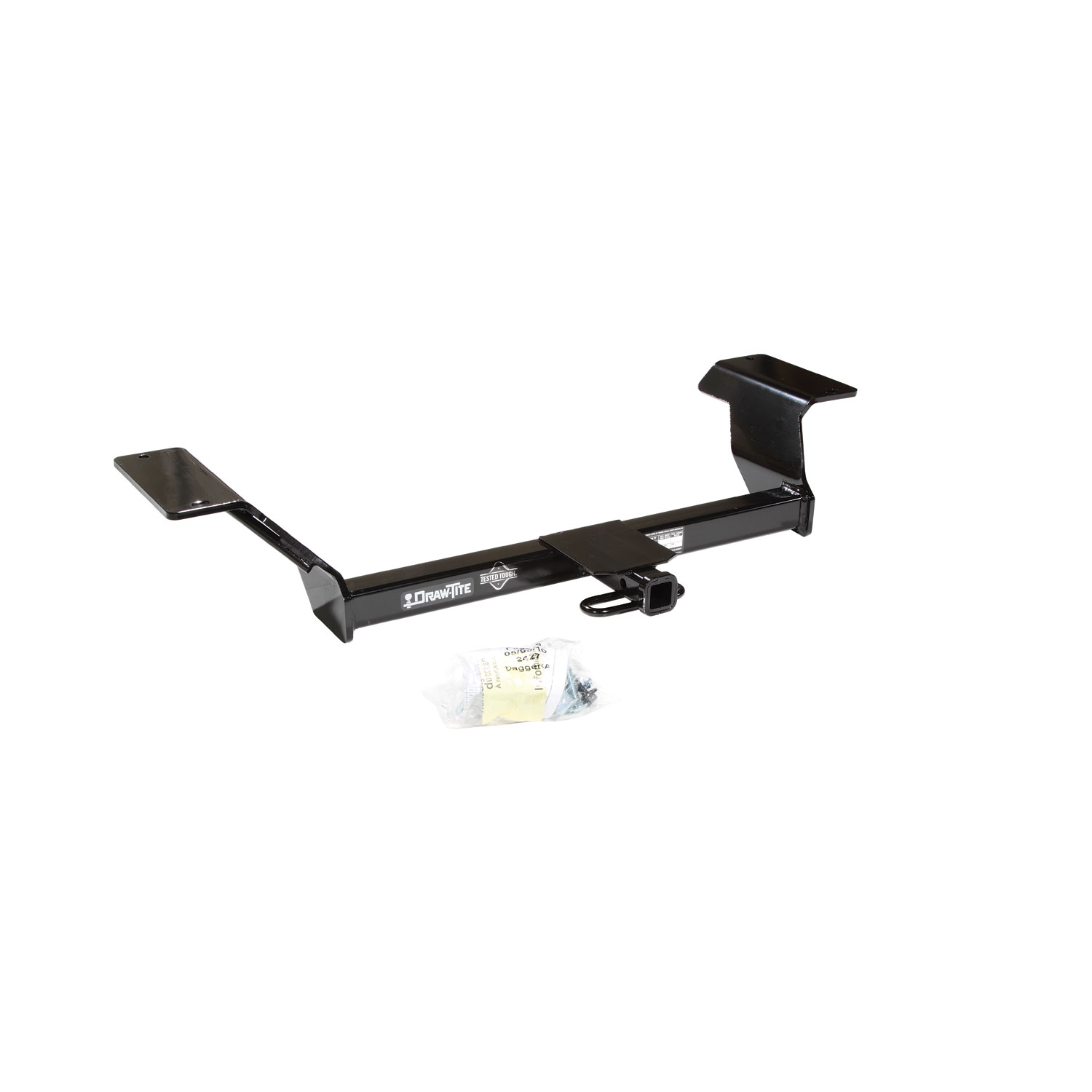

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36309 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35.05 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2005 | Buick LeSabre | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2006 - 2009 | Buick Lucerne | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2001 - 2003 | Oldsmobile Aurora | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2000 - 2005 | Pontiac Bonneville | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick LeSabre, Buick Lucerne, Oldsmobile Aurora, Pontiac Bonneville 36309 (Part #DT36309) fits 2000-2005 Buick LeSabre models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick LeSabre, Buick Lucerne, Oldsmobile Aurora, Pontiac Bonneville 36309 (Part #DT36309) fits the following vehicles: 2000-2005 Buick LeSabre; 2006-2009 Buick Lucerne; 2001-2003 Oldsmobile Aurora; 2000-2005 Pontiac Bonneville. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick LeSabre, Buick Lucerne, Oldsmobile Aurora, Pontiac Bonneville 36309 (Part #DT36309) is designed to fit the 2000-2005 Buick LeSabre.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Buick LeSabre, Buick Lucerne, Oldsmobile Aurora, Pontiac Bonneville 36309 (Part #DT36309) Drilling is required for installation. Basic hand tools are typically all you need.
Part number 36309 fits Buick Lucerne models, excluding Super & Special Edition variants. If your vehicle is a Super or Special Edition, this hitch is not compatible.
Yes, part number 36309 is compatible with all Oldsmobile Aurora models.
Yes, part number 36309 is compatible with all Pontiac Bonneville models.
Yes, part number 36309 is compatible with all Buick LeSabre models.
The maximum gross trailer weight is 3500 lb and the maximum tongue weight is 300 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Required tools are: tin snips, wrenches in sizes 15mm, 17mm, 9/16", and 3/4", a ½" drill bit, and a torque wrench. A torque wrench is essential for proper fastener tightening to specification.
Yes, drilling is required. Using the hitch as a template, you must drill two ½" holes in the frame rail. A ½" drill bit is included in the required equipment.
Only if your vehicle is equipped with a heat shield. If present, you must remove the rearmost fastener securing the heat shield to the frame rail and discard it, then trim the heat shield around the drilled hole as shown in Figure 2. The heat shield will be sandwiched between the frame and hitch side bracket during installation.
Only if your vehicle is equipped with automatic load leveling control. If present, you must remove the rearmost fastener securing the load leveling control housing to the frame rail and discard it, then trim the housing as shown in Figure 3.
Yes. In step 1, remove the exhaust hanger bracket from the bottom of the frame rail and disconnect it from the rubber hanger attached to the exhaust tail pipe. A replacement bracket is provided with the hitch kit and will be installed later. Return the factory exhaust brackets to the vehicle owner.
Tighten all M10 CL9.8 fasteners with a torque wrench to 53 Lb.-Ft. (72 N-M).
Tighten all ½" GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N-M).
Tighten all 3/8" GR5 fasteners with a torque wrench to 31 Lb.-Ft. (41 N-M).

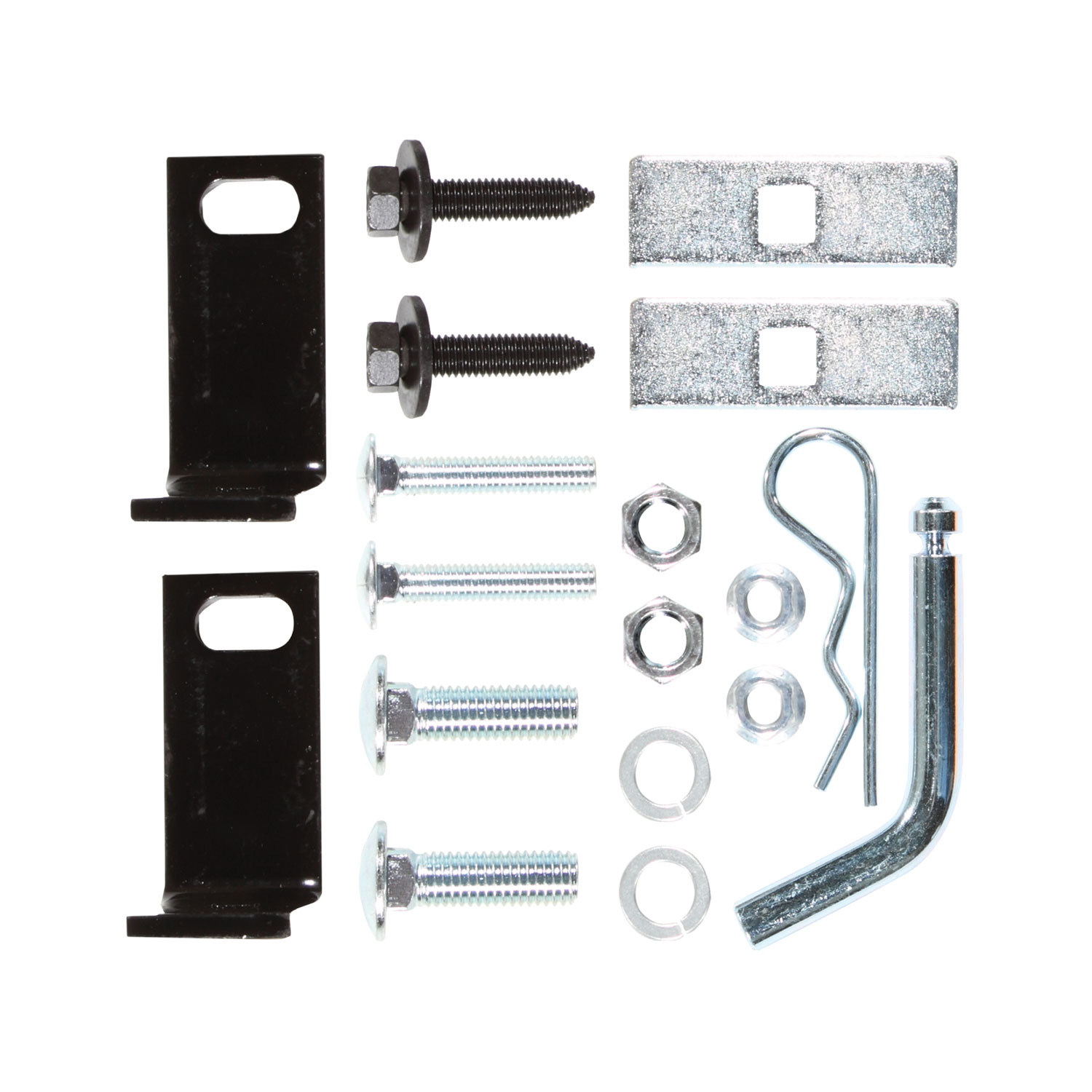

1. Remove the factory exhaust hanger bracket and disconnect from rubber hanger. 2. Raise hitch into position and drill two ½" holes using hitch as template. Trim heat shield or load leveling control housing if present. 3. Lower hitch and fishwire carriage bolts and blocks into position. 4. Raise hitch and install remaining fasteners. 5. Attach replacement hanger brackets with 3/8-16 x 2" carriage bolts, rubber hangers, and flanged locknuts. Tighten all fasteners to specification.
Fishwire is a technique used to guide fasteners (carriage bolts and blocks) into position before the hitch is fully raised. In step 3, you lower the hitch and use fishwire to position the carriage bolts and blocks as shown in Figure 1, then raise the hitch in step 4 to install the remaining fasteners.
Install the 3/8-16 x 2" carriage bolt through the square hole in the bracket to the bottom of the frame. Slide the rubber hanger onto the 3/8" carriage bolt and secure with a flanged locknut. Tighten the nut against the rubber hanger while allowing the hanger to rotate. Do not over-tighten.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Wear appropriate protective equipment. Work safely beneath the vehicle at all times.
The drawbar must be used in the rise position only. The drawbar kit (part number 36063) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that all fasteners remain tight and that the ball is secure before towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Part number 36309 fits Pontiac Bonneville (all models), Buick LeSabre (all models), Buick Lucerne (excluding Super & Special Edition), and Oldsmobile Aurora.
You need tin snips, wrenches (15mm, 17mm, 9/16", 3/4"), a ½" drill bit, and a torque wrench.
Maximum gross trailer weight is 3500 lb and maximum tongue weight is 300 lb. Do not exceed the lower of these limits or your vehicle manufacturer's rating.
M10 CL9.8: 53 Lb.-Ft. (72 N-M); ½" GR5: 75 Lb.-Ft. (102 N-M); 3/8" GR5: 31 Lb.-Ft. (41 N-M). Use a torque wrench for all fasteners.
Wear eye protection and observe safety precautions when working beneath the vehicle. Do not cut holes with a torch. Do not over-tighten rubber hanger fasteners. Check all fasteners and the ball frequently to ensure they remain tight.
