Draw-Tite Hardware Kit For Class 2 Trailer Hitch, 1-1/4 Inch 36407 For 2014-2016 Chevrolet Impala Limited Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2000 - 2013 Chevrolet Impala
Confirmed to Fit
2014 - 2016 Chevrolet Impala Limited
Confirmed to Fit
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
Always the correct part
We know our products
Always the correct part
We know our products
Quality Products
Free Shipping!
Quality Products
Free Shipping!

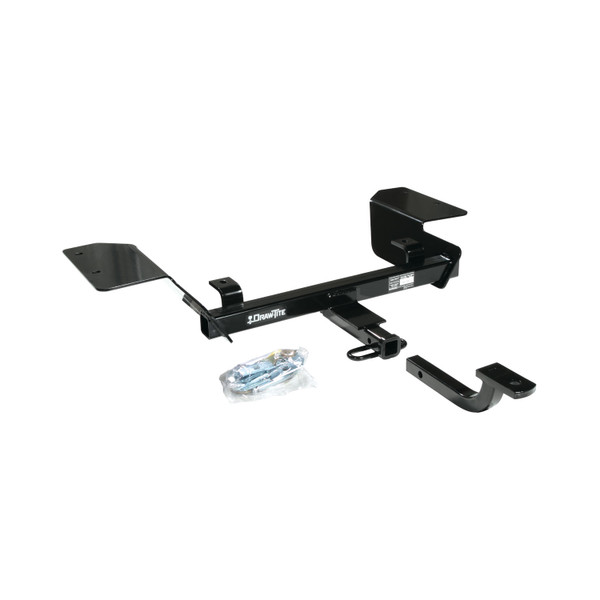

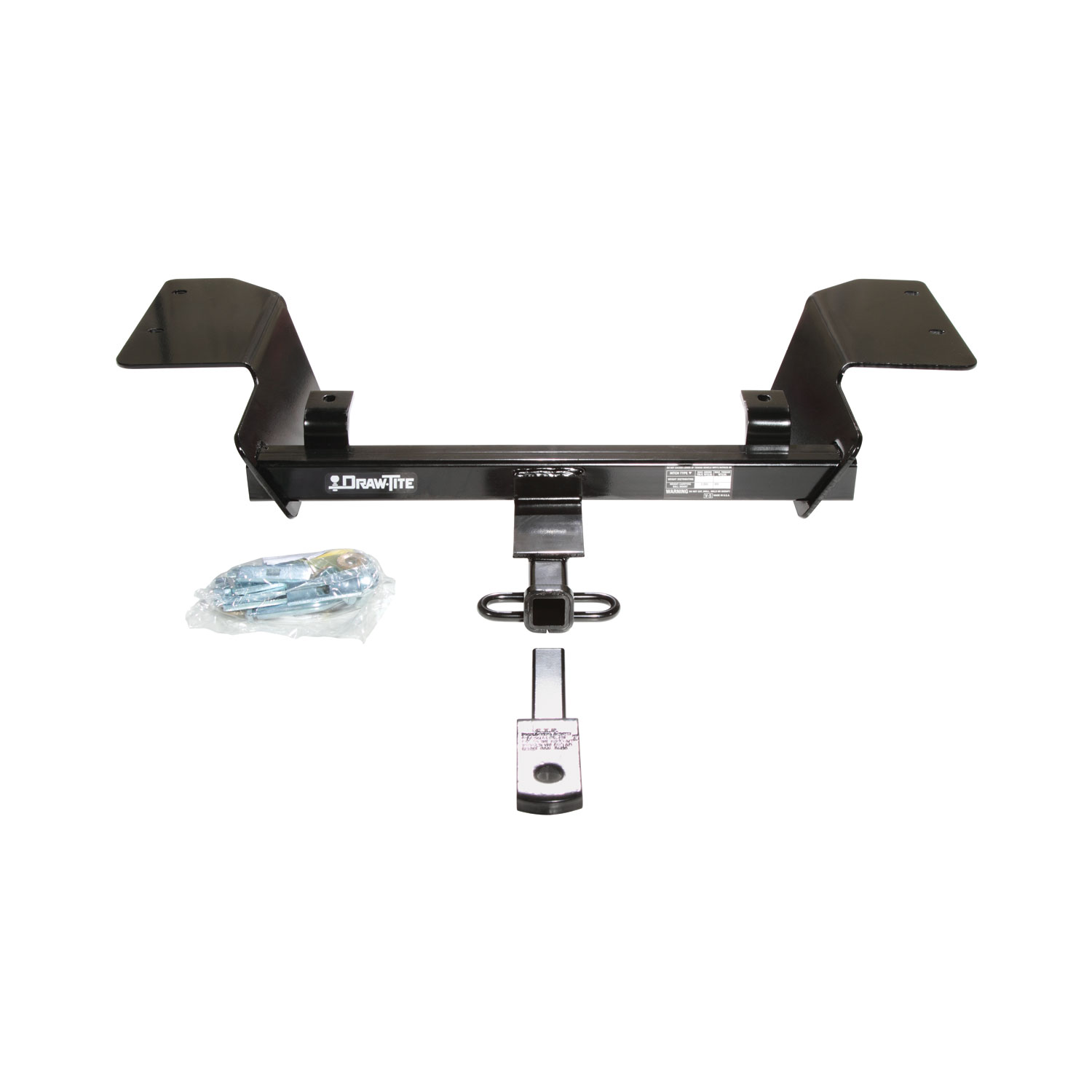

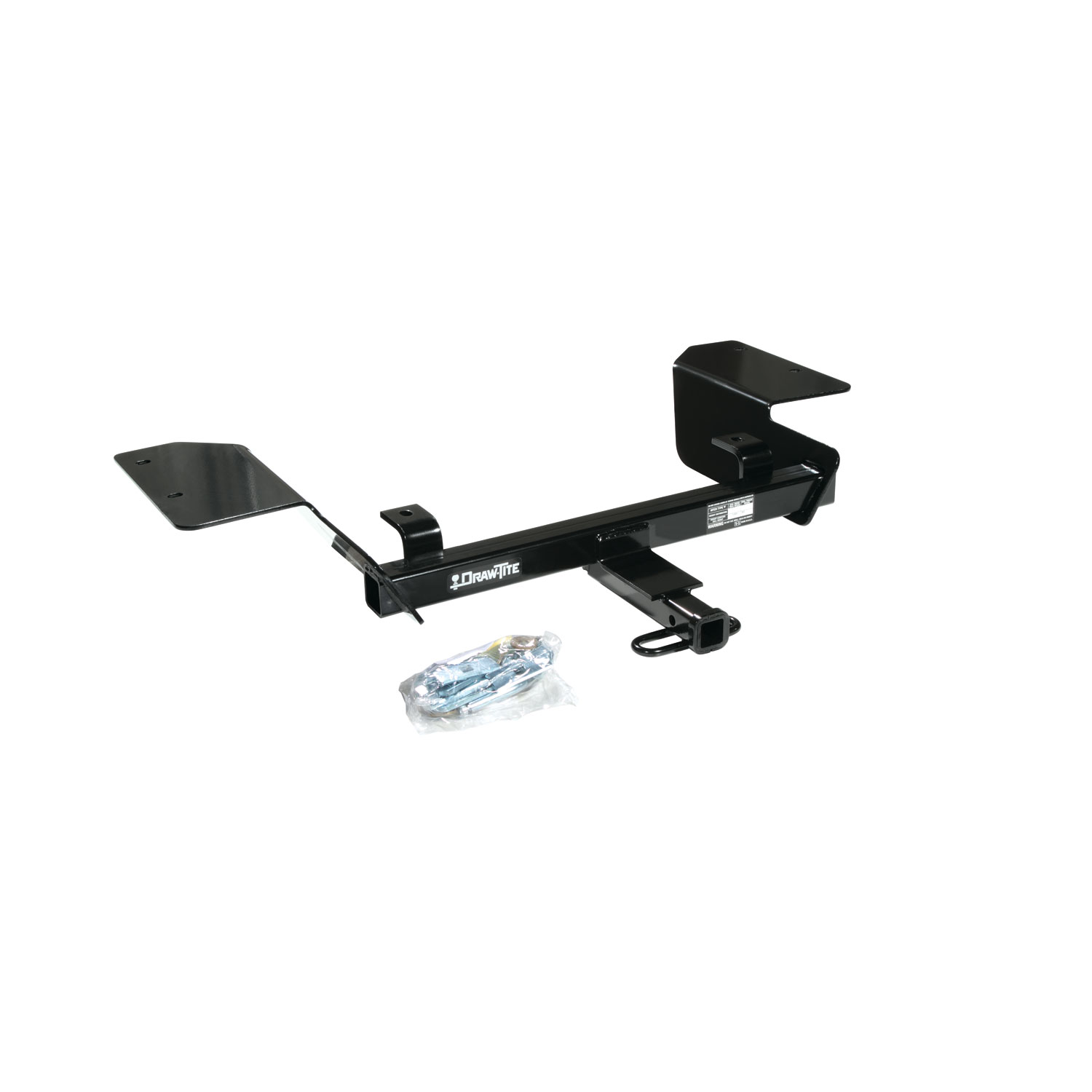

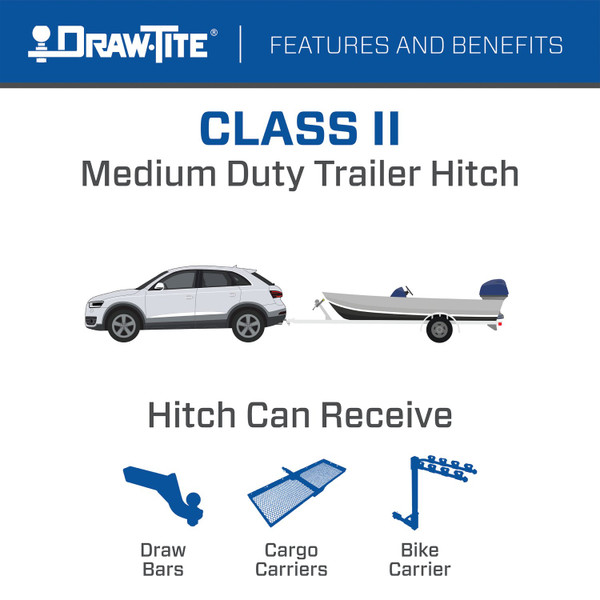

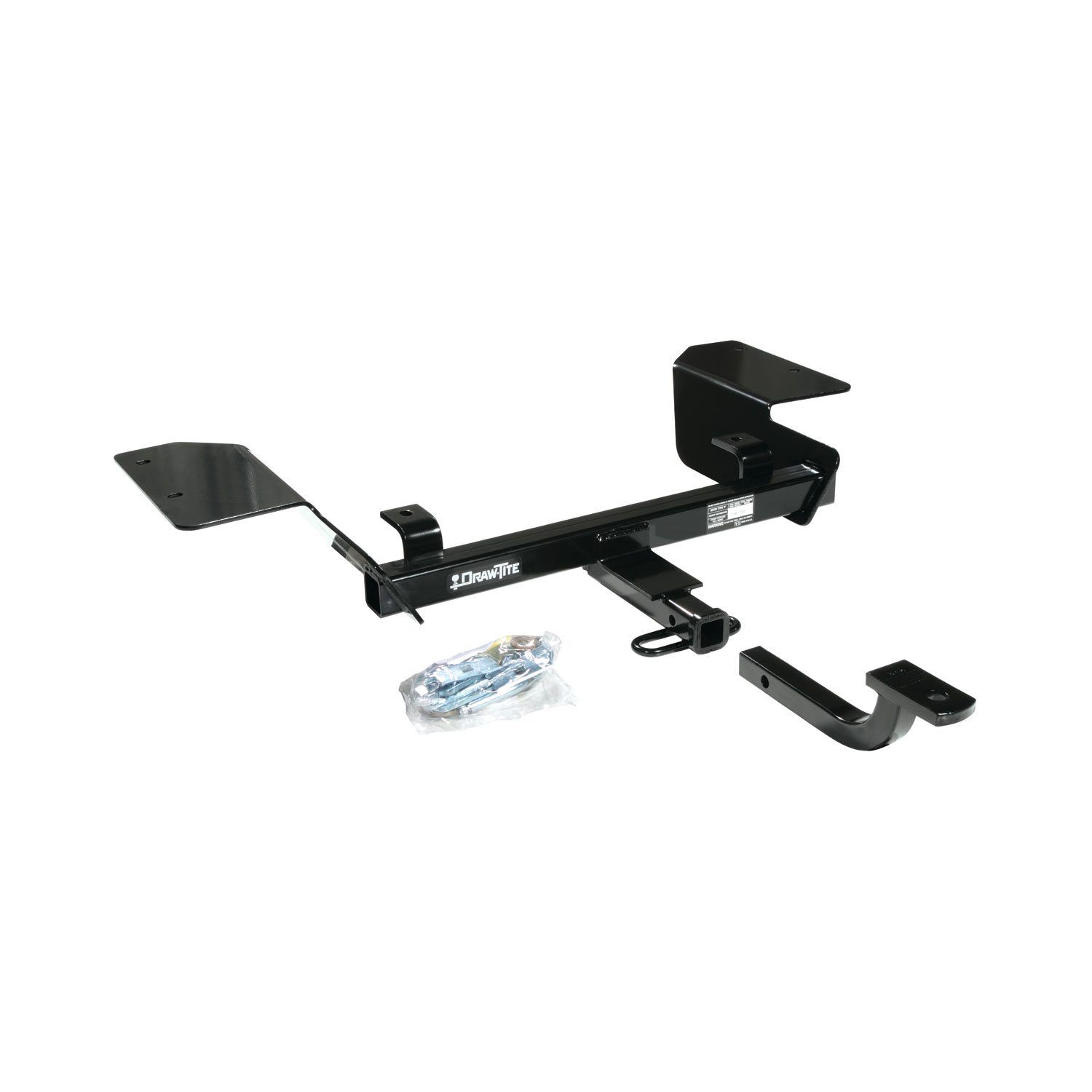

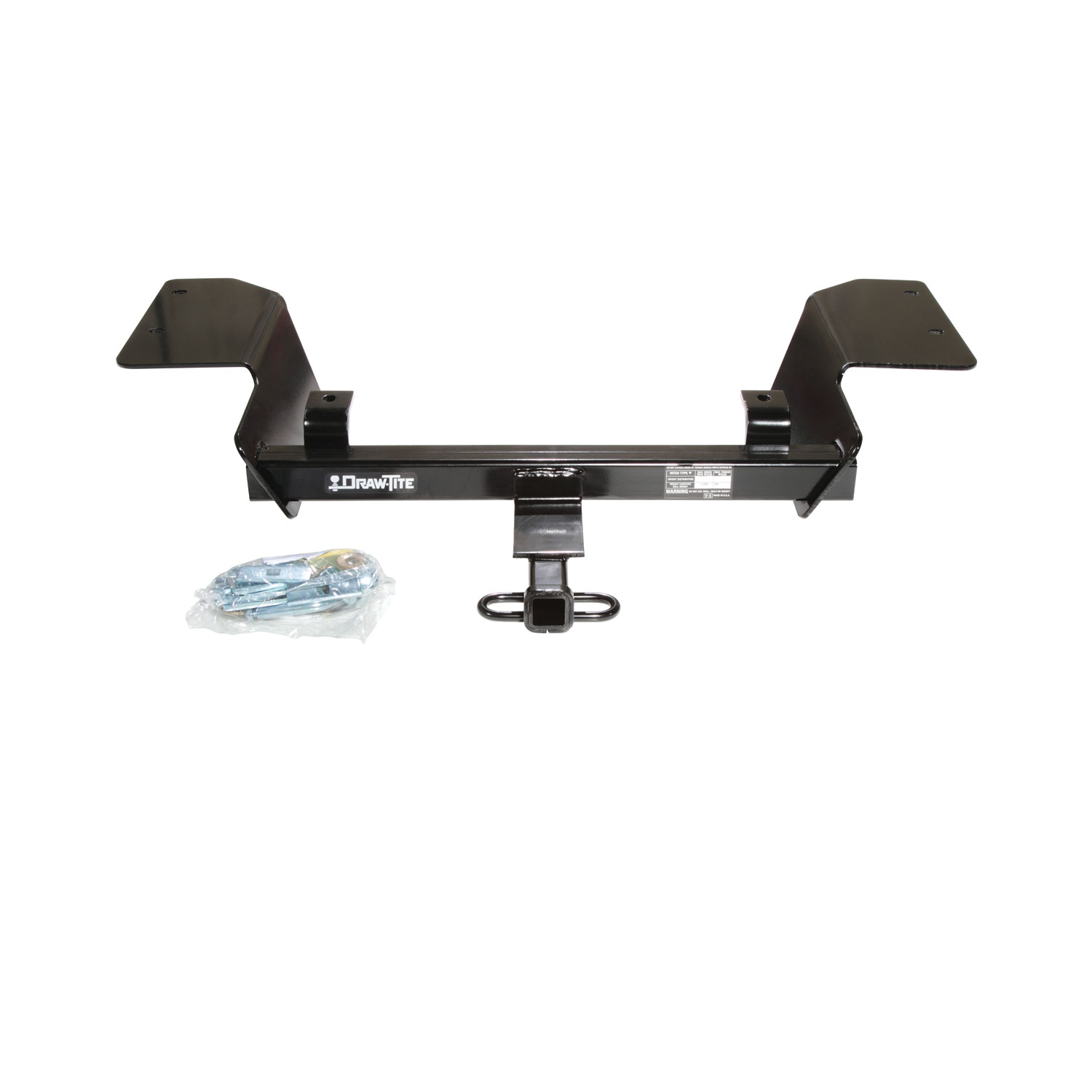

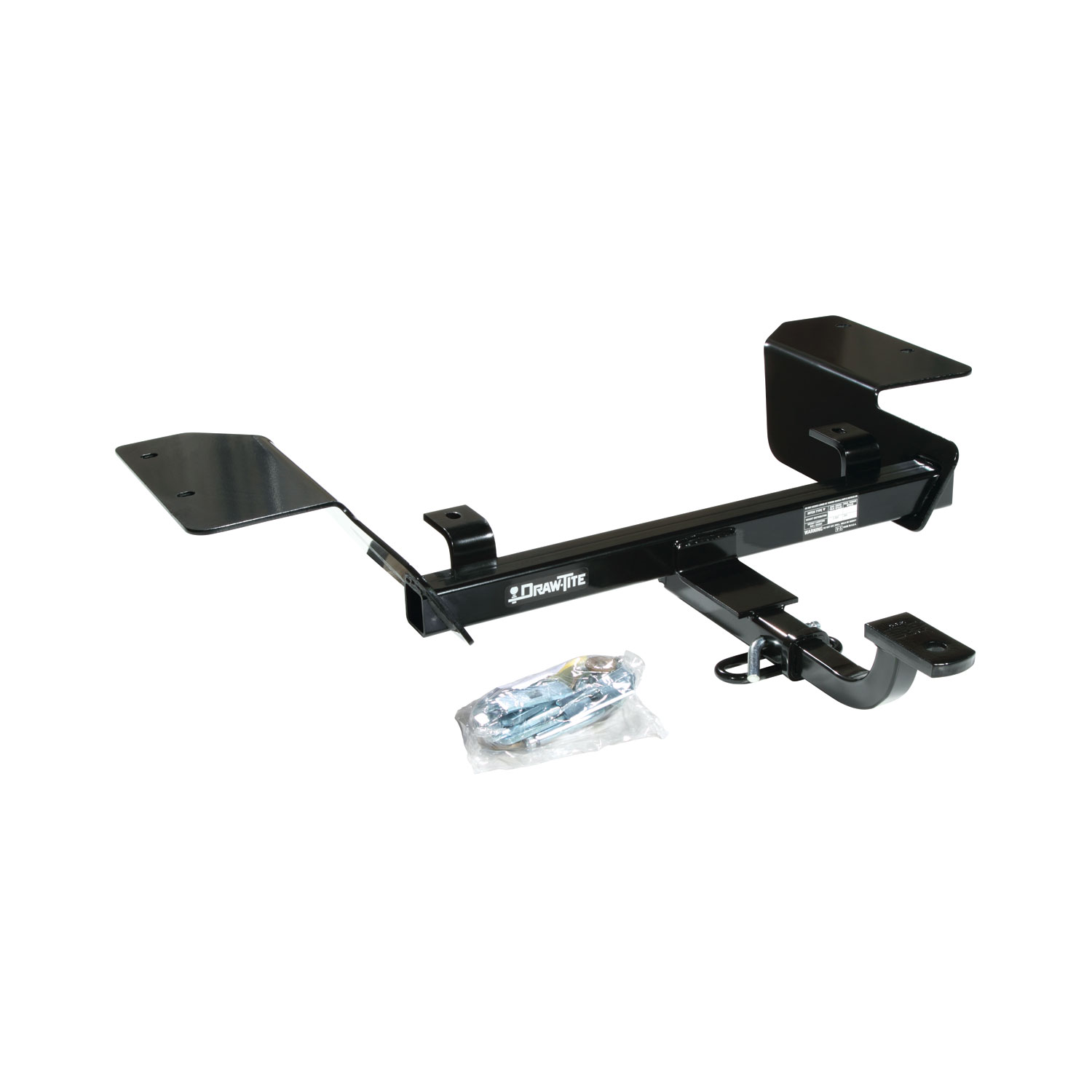

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36407 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 38.2 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2013 | Chevrolet Impala | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2014 - 2016 | Chevrolet Impala Limited | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
On Sale Today
You save $98.58 (24%)
Free Shipping
Ships free on all orders
Authorized DealerFREE ShippingFREE SHIPPING
Estimated delivery Sun, Sep 6 - Wed, Sep 9
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Impala, Chevrolet Impala Limited 36407 (Part #DT36407) is designed to fit the 2000-2013 Chevrolet Impala.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Impala, Chevrolet Impala Limited 36407 (Part #DT36407) fits the following vehicles: 2000-2013 Chevrolet Impala; 2014-2016 Chevrolet Impala Limited. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Impala, Chevrolet Impala Limited 36407 (Part #DT36407) fits 2000-2013 Chevrolet Impala models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Impala, Chevrolet Impala Limited 36407 (Part #DT36407) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36407 is designed for Chevrolet Impala model years 2005, 2008, 2009, 2011, and 2015. If your Impala is one of these years, the hitch is compatible. If your model year is not listed, contact the manufacturer or a fitment specialist to confirm compatibility.
The maximum gross trailer weight is 3500 lb and the maximum tongue weight is 300 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a 3/4" wrench and a torque wrench. No drill bits are required. The pull wire is provided with the hitch.
Yes. You must lower the exhaust by removing the rubber hangers from the hanger brackets. If your vehicle is equipped with dual exhaust, lower the exhaust on both sides. This is the first installation step.

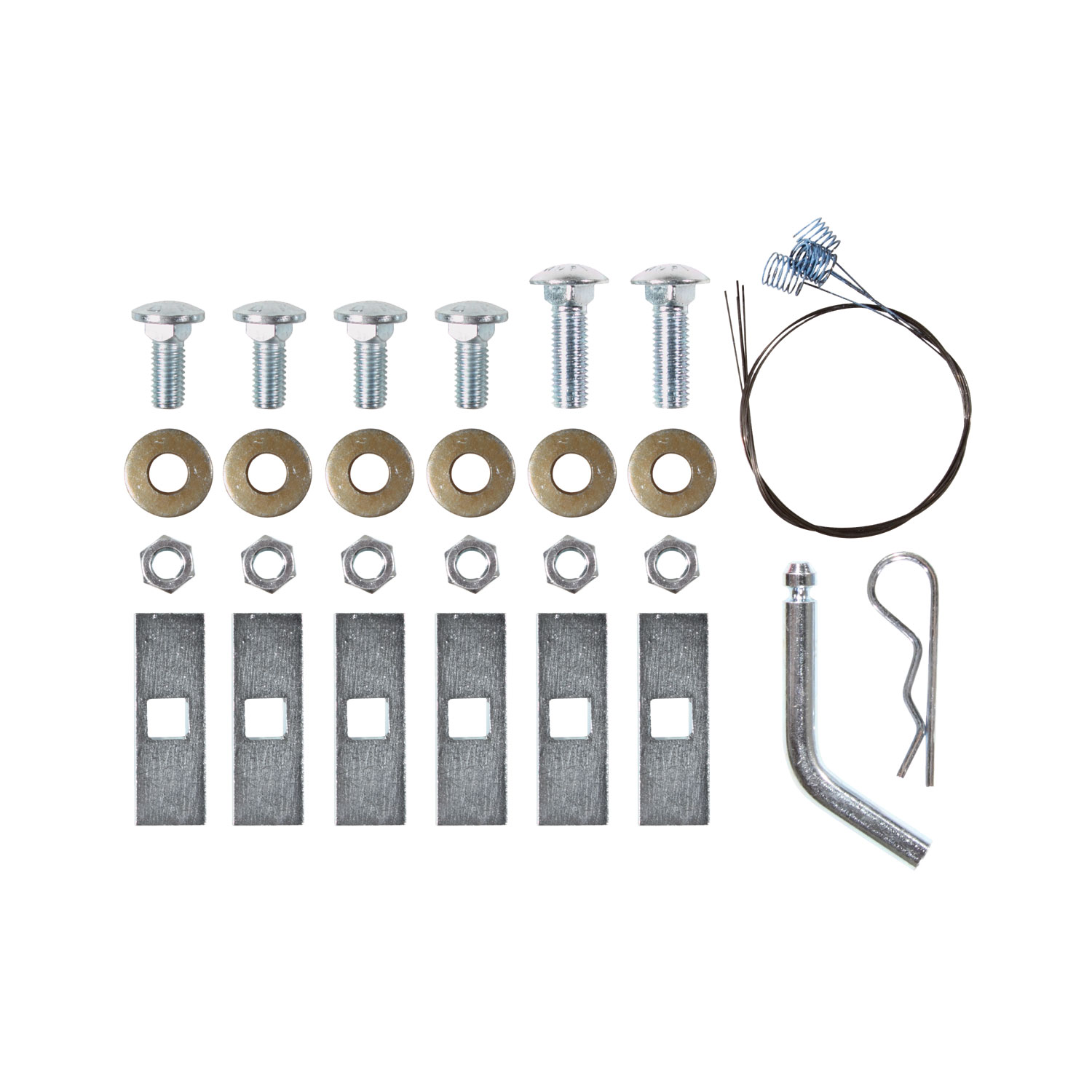

The hitch includes: 4 carriage bolts ½-13 x 1-1/4", 2 carriage bolts ½-13 x 1-3/4", 6 hex nuts ½-13, 6 blocks ¼ x 1 x 3, 6 conical toothed washers ½", and 4 pull wires. A separate fastener kit 36407F is available if additional fasteners are needed.
The pull wire is used to fishwire (thread) the carriage bolts and blocks through the access slots and holes in the vehicle frame rail and cross member. Four pull wires are provided with the hitch.
Four carriage bolts ½-13 x 1-1/4" are used to attach the hitch to the frame rail, two on each side. These are fishwired through the access slot and over the holes in the vehicle frame rail.
Two carriage bolts ½-13 x 1-3/4" are used to attach the hitch to the cross member. These are fishwired through the access holes in the vehicle cross member and down through the holes in the cross member.
All ½-13 GR5 fasteners must be tightened to 75 lb.-ft. (102 N·M) using a torque wrench.
Conical toothed washers are locking washers that prevent fasteners from loosening. Six ½" conical toothed washers are installed under the hex nuts when raising the hitch into position, as shown in the installation diagram.
The drawbar must be used in the RISE position only. Do not use it in any other position.
No. The drawbar kit 36061 is sold separately and must be purchased if you need a drawbar for your hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
No. The manual lists "Drill Bits: None", indicating that no drilling is required for installation.
The wiring access locations are PC3 and PC4.
Yes, if your Impala is a 2005, 2008, 2009, 2011, or 2015 model year. For other years, contact the manufacturer.
Tighten all ½-13 GR5 fasteners to 75 lb.-ft. (102 N·M) with a torque wrench.
Maximum gross trailer weight is 3500 lb; maximum tongue weight is 300 lb. Do not exceed your vehicle manufacturer's rating.
Yes, you must lower the exhaust by removing rubber hangers from the hanger brackets. If you have dual exhaust, lower both sides.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
