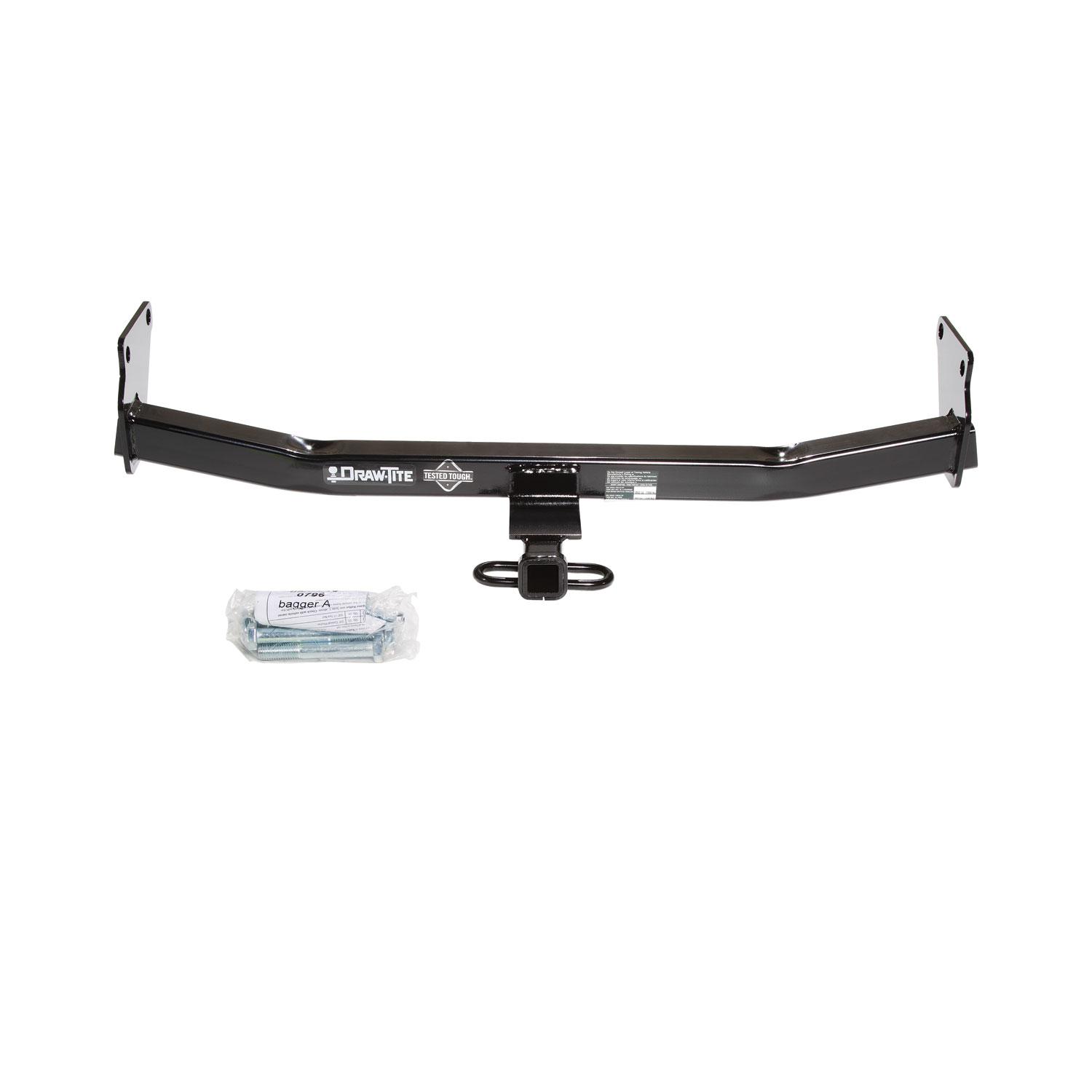

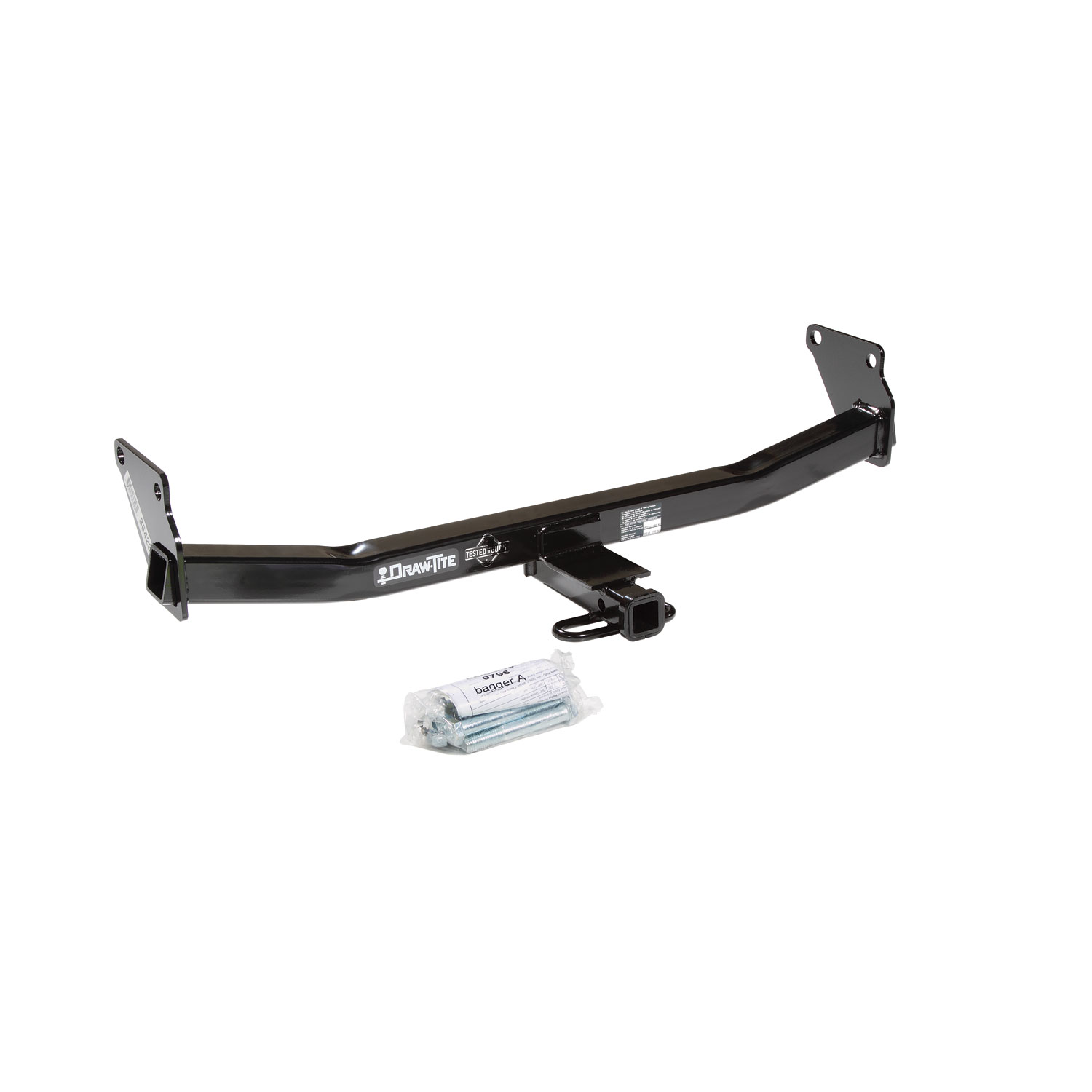

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36423 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24.2 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2010 | Jeep Compass | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2011 - 2017 | Jeep Compass | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2007 | Jeep Patriot | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2008 - 2017 | Jeep Patriot | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Jeep Compass, Jeep Patriot 36423 (Part #DT36423) is designed to fit the 2007-2017 Jeep Compass.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Jeep Compass, Jeep Patriot 36423 (Part #DT36423) fits 2007-2017 Jeep Compass models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Jeep Compass, Jeep Patriot 36423 (Part #DT36423) fits the following vehicles: 2007-2017 Jeep Compass; 2007-2017 Jeep Patriot. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Jeep Compass, Jeep Patriot 36423 (Part #DT36423) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36423 fits 2011, 2012, and 2015 Jeep Compass models, including the Rallye Package. However, fascia trimming is required for 2011 and later models, and you must obtain the vehicle owner's approval before cutting the bumper fascia.
Yes, part number 36423 fits 2011, 2012, and 2015 Jeep Patriot models. Fascia trimming is required for 2011 and later models, and you must obtain the vehicle owner's approval before cutting. If your Patriot has an optional tow hook on the driver's side, it must be removed during installation and can be reinstalled if desired.
The manual specifies that this hitch is designed for 2011 and later Jeep Patriot and Compass models. The manual does not confirm compatibility with 2007–2010 models. Contact the manufacturer or a fitment database to verify compatibility with your vehicle year.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). However, you must not exceed the lower of this hitch rating or your vehicle manufacturer's towing rating.
You will need wrenches in 22 mm and 16 mm sizes. A 5/8" drill bit is needed only if you are reinstalling the optional tow hook on a Patriot. A cutting tool is required to trim the bumper fascia on Compass Rallye and 2011 and later Patriot and Compass models.

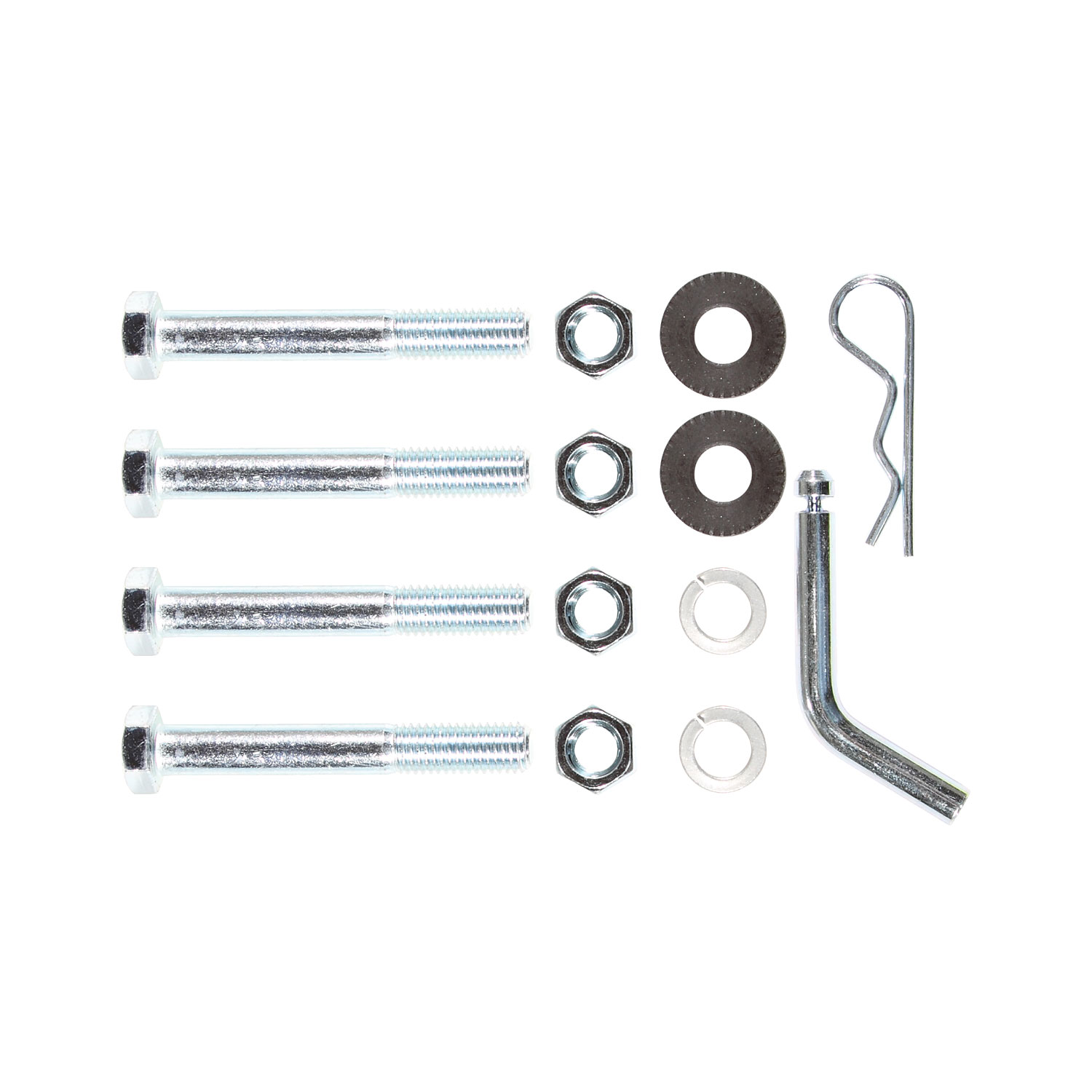

The fastener kit (part number 36423F) includes: 4 M14 x 120 x 2 hex bolts, 2 5/8" conical washers, 2 5/8" lock washers, and 4 M14 x 2.0 hex nuts. All M14-2 fasteners must be tightened to 100 lb-ft (136 N·m) torque.
Lowering the exhaust may ease installation but is not required. To lower the exhaust, remove the rubber hanger from the hanger bracket. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. After hitch installation, raise the exhaust back into position.
Some vehicles have a carbon canister installed on the driver-side frame rail. If needed, the canister can be lowered to allow additional clearance during installation. The vehicle may be installed with the carbon canister in place.
Yes, fascia trimming is required for all 2011 and later Jeep Compass and Patriot models. You must obtain the vehicle owner's approval before cutting the bumper fascia. For Compass Rallye models, a 2-1/4" wide by 2" high section must be cut from the bumper fascia. For 2011 and later non-Rallye models, follow the trimming diagram in Figure 3 and Figure 4.
The 2011 model requires a 2" vertical fascia trim measured from the bottom of the fascia lip. Mark the fascia with a non-permanent marker. Re-confirm the fascia cut height using the Figure 4 procedure: measure distance X from the ground to the bottom of the frame, then mark the height X-5 inches from the ground on the fascia. Cut at the lower of the two marks.
You need a 5/8" drill bit to drill out the existing knurled neck bolts from the tow hook. After drilling, reinstall the hook using the supplied M14 bolts following the installation steps.
No. Do not cut access or attachment holes with a torch. Use appropriate cutting tools to trim the bumper fascia.
1. If your vehicle has an optional tow hook, remove it first (Patriot only). 2. For Compass Rallye, trim the fascia as shown in Figure 2. For 2011 and later Patriot and Compass, trim fascia per Figures 3 and 4. 3. Place M14 hex bolts into vehicle bushings from the outboard side of frame rails, leaving bolt ends flush with the inboard side. 4. Raise the hitch into position and push M14 hex bolts through hitch frame brackets. 5. Attach remaining hardware (conical washers, lock washers, and hex nuts). 6. Raise exhaust back into position if lowered. 7. Tighten all M14-2 fasteners to 100 lb-ft (136 N·m).
Yes. If your Jeep Patriot has an optional tow hook on the driver's side, it must be removed before hitch installation. Check with the vehicle owner to see if they want the tow hook reinstalled after hitch installation. To reinstall, press or drive the existing knurled neck bolts out of the hook, drill out with a 5/8" drill bit, and reinstall using the supplied M14 bolts.
All M14-2 fasteners must be tightened with a torque wrench to 100 lb-ft (136 N·m).
The hitch uses four M14 x 120 x 2 hex bolts. These bolts are placed into vehicle bushings from the outboard side of the frame rails and pushed through the hitch frame brackets.
For the Compass Rallye Package, cut a 2-1/4" wide by 2" high piece out of the bumper fascia to allow clearance for ball mounts. Use the hitch receiver tube as a guide.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that all M14-2 fasteners are tightened to 100 lb-ft (136 N·m) torque.

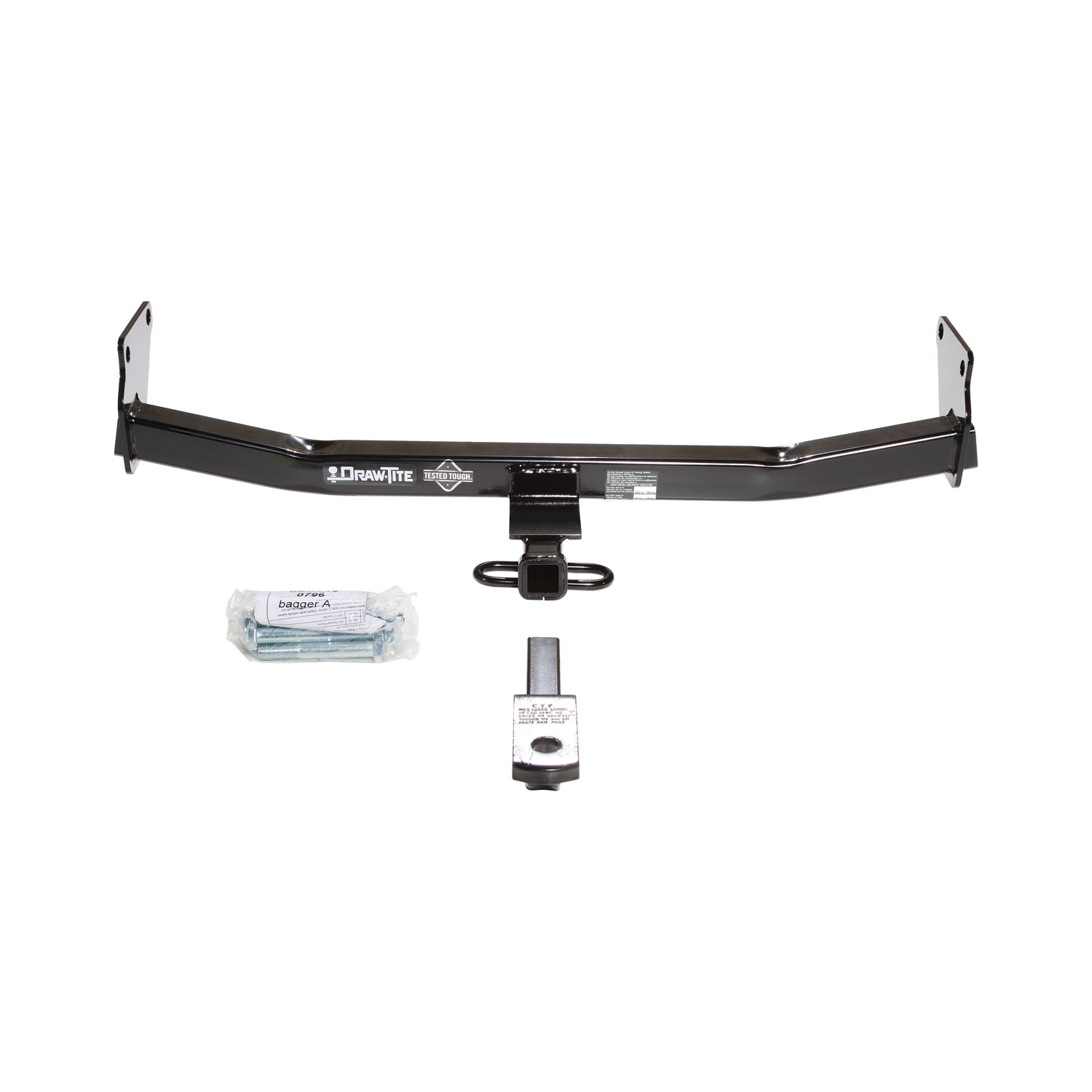

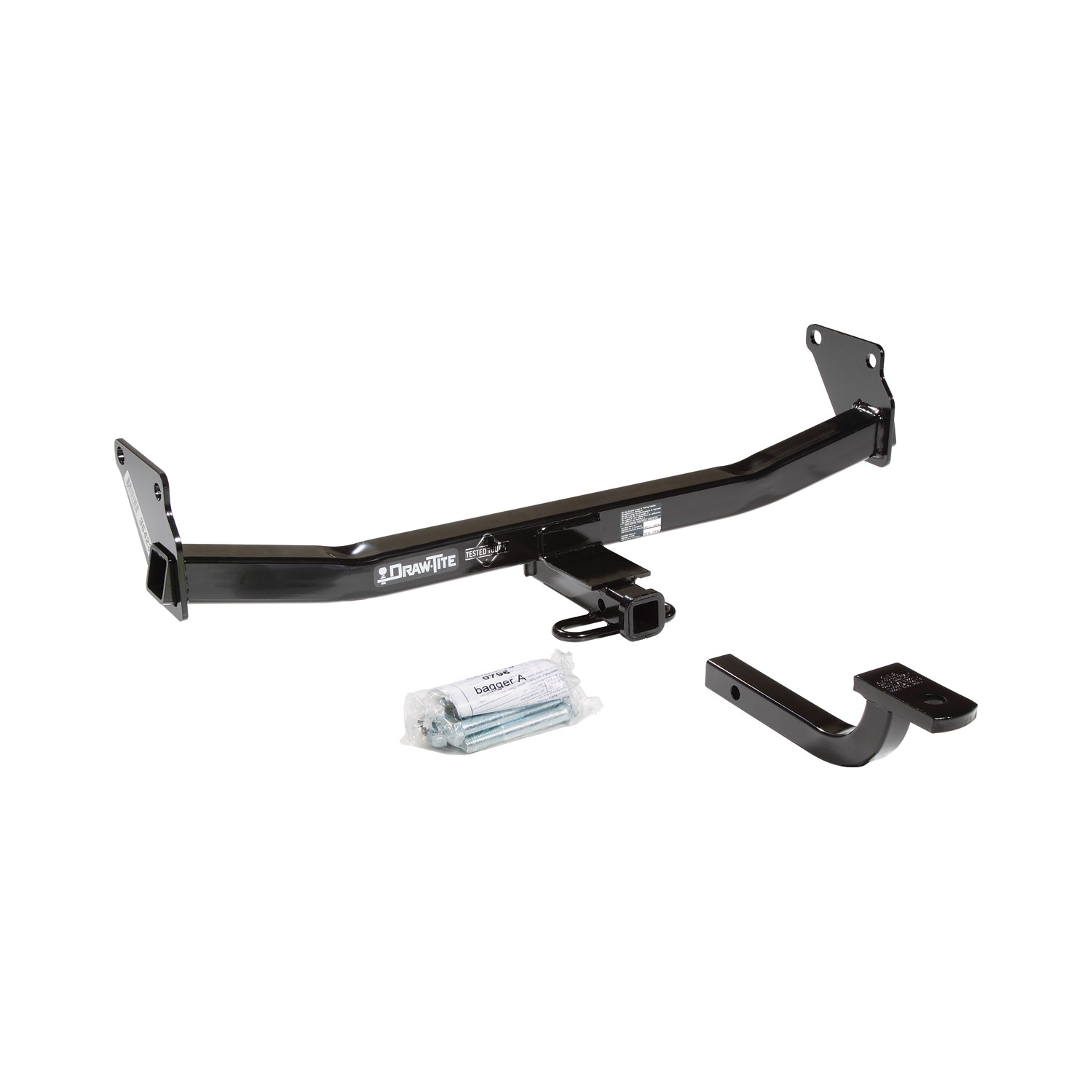

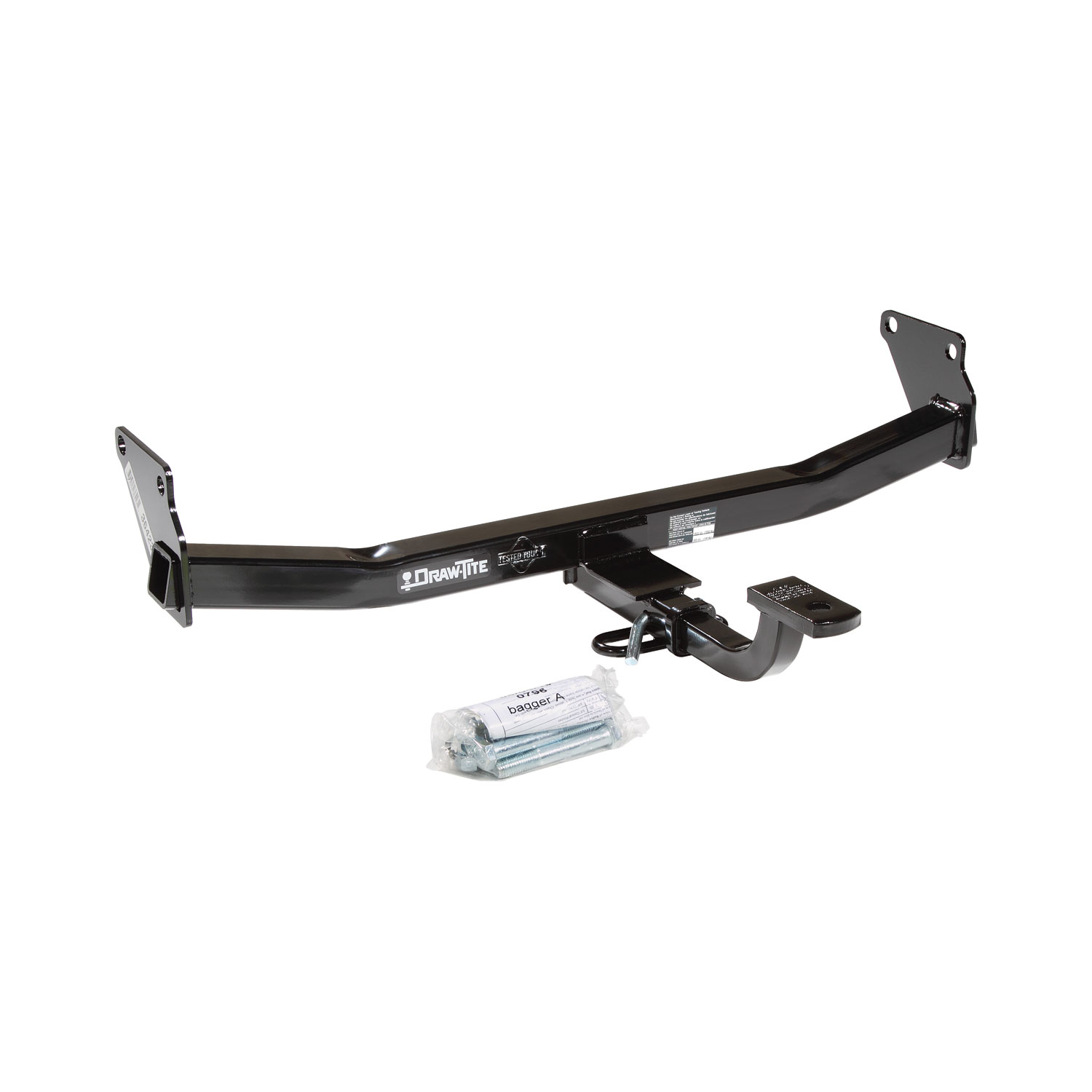

Yes. A drawbar kit (part number 36061) is available and sold separately. The drawbar must be used in the rise position only.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball that has been damaged should be removed and replaced.
Yes, part number 36423 fits 2011, 2012, and 2015 Jeep Compass (including Rallye Package) and Patriot models. Fascia trimming is required and vehicle owner approval must be obtained before cutting.
Yes, fascia trimming is required for all 2011 and later Compass and Patriot models. You must obtain vehicle owner approval before cutting. Compass Rallye requires a 2-1/4" wide by 2" high cutout; other models follow the diagram in Figures 3 and 4.
You need 22 mm and 16 mm wrenches, a cutting tool for fascia trimming, and a 5/8" drill bit only if reinstalling the optional tow hook on a Patriot.
All M14-2 fasteners must be tightened to 100 lb-ft (136 N·m) using a torque wrench.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of this rating or your vehicle manufacturer's rating.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Lowering the exhaust may ease installation but is not required. If lowered, raise it back into position after hitch installation.
