Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

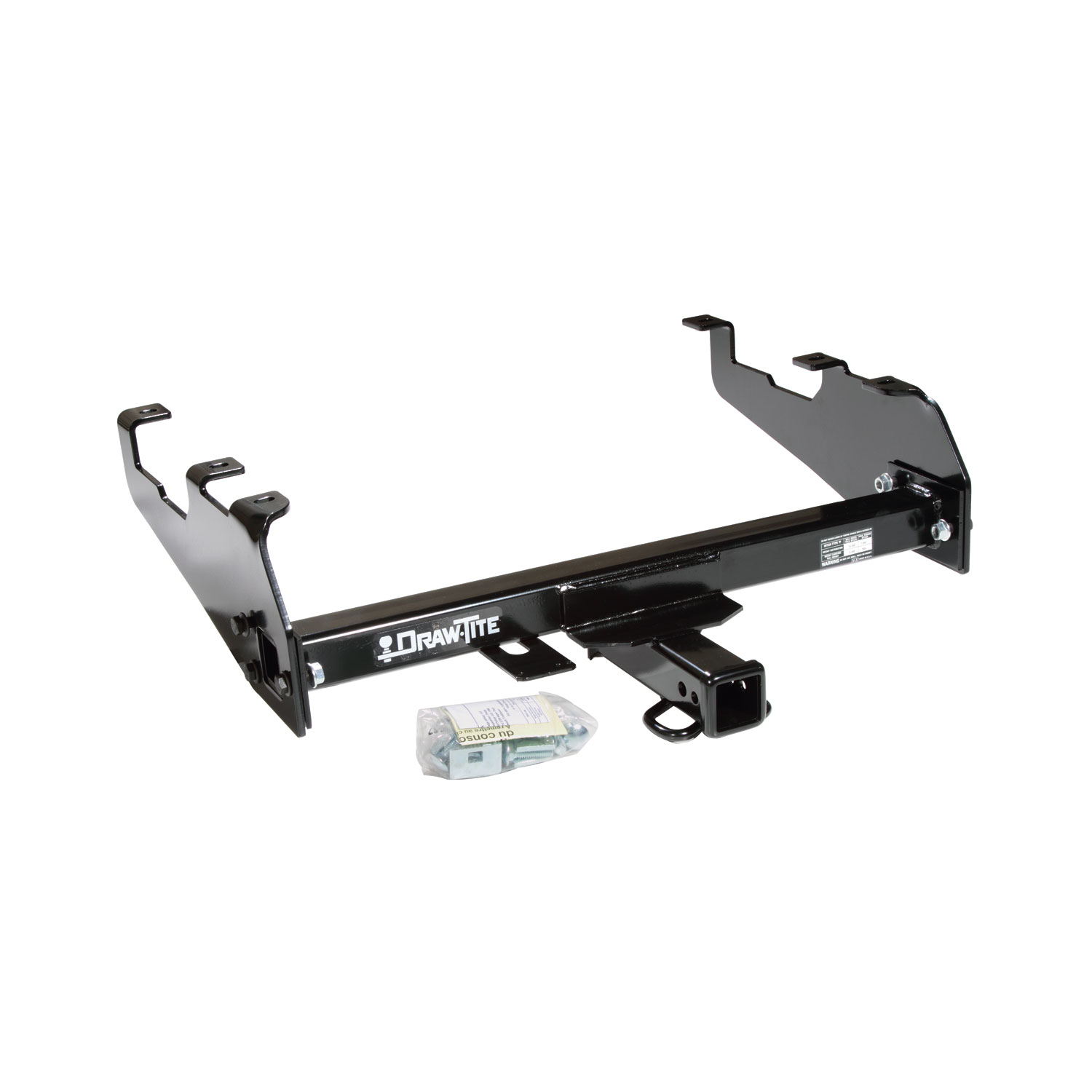

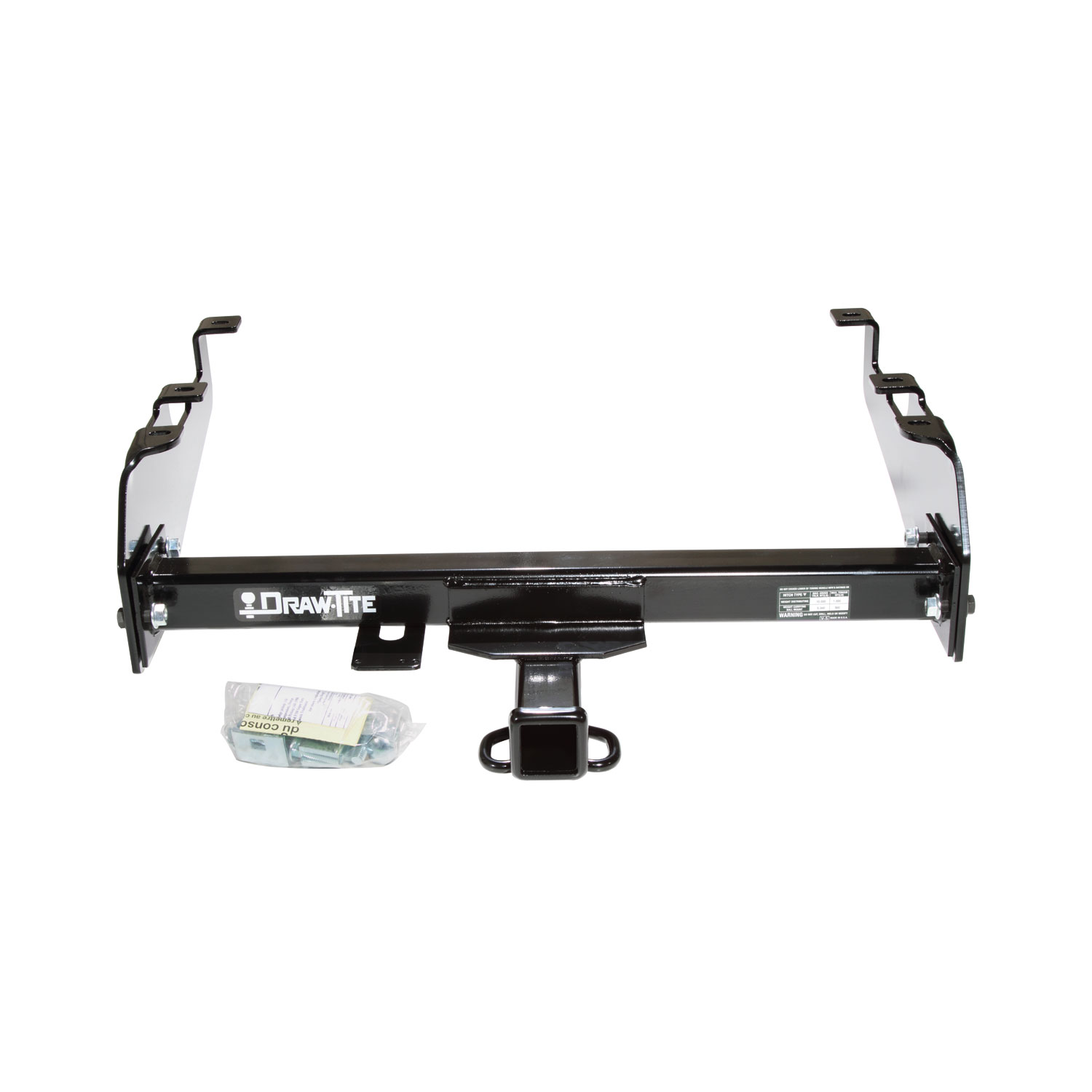

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 10,000 lbs. weight distribution (WD) and 1,000 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41504 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 67 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 10,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,000 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
58 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 1963 - 1986 | Chevrolet C10 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1963 - 1986 | Chevrolet C20 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1988 - 1991 | Chevrolet C2500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1963 - 1986 | Chevrolet C30 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1988 - 1991 | Chevrolet C3500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1963 - 1986 | Chevrolet K10 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1963 - 1986 | Chevrolet K20 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1988 - 1991 | Chevrolet K2500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1973 - 1974, 1977 - 1986 | Chevrolet K30 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1988 - 1991 | Chevrolet K3500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1968 - 1979, 1986 - 1989 | Dodge D100 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1977 - 1993 | Dodge D150 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1968 - 1980 | Dodge D200 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1981 - 1985 | Dodge D250 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1968 - 1980 | Dodge D300 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1981 - 1985 | Dodge D350 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1994 - 2001 | Dodge Ram 1500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1994 - 2002 | Dodge Ram 2500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1994 - 2002 | Dodge Ram 3500 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1974 - 1988 | Dodge Ramcharger | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 1968 - 1977, 1986 - 1989 | Dodge W100 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1977 - 1993 | Dodge W150 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1968 - 1980 | Dodge W200 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1981 - 1993 | Dodge W250 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
| 1967 - 1980 | Dodge W300 | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,000/10,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes Will not fit with heavy duty suspension |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black 41504 (Part #DT41504) fits the following vehicles: 1963-1986 Chevrolet C10; 1963-1986 Chevrolet C20; 1988-1991 Chevrolet C2500; 1963-1986 Chevrolet C30; 1988-1991 Chevrolet C3500; 1963-1986 Chevrolet K10; 1963-1986 Chevrolet K20; 1988-1991 Chevrolet K2500; 1973-1986 Chevrolet K30; 1988-1991 Chevrolet K3500; 1968-1989 Dodge D100; 1977-1993 Dodge D150; 1968-1980 Dodge D200; 1981-1985 Dodge D250; 1968-1980 Dodge D300; 1981-1985 Dodge D350; 1994-2001 Dodge Ram 1500; 1994-2002 Dodge Ram 2500; 1994-2002 Dodge Ram 3500; 1974-1988 Dodge Ramcharger; 1968-1989 Dodge W100; 1977-1993 Dodge W150; 1968-1980 Dodge W200; 1981-1993 Dodge W250; 1967-1980 Dodge W300; 1981-1993 Dodge W350; 1978-1986 Ford Bronco; 1989-1997 Ford F Super Duty; 1963-1983 Ford F-100; 1975-1996 Ford F-150; 1963-1996 Ford F-250; 1997 Ford F-250 HD; 1963-1997 Ford F-350; 1999-2000 Ford F-350 Super Duty; 1963-1965 GMC 1000 Series; 1963-1965 GMC 1500 Series; 1963-1965 GMC 2500 Series; 1967-1978 GMC C15; 1979-1986 GMC C1500; 1967-1978 GMC C25; 1979-1991 GMC C2500; 1967-1978 GMC C35; 1979-1991 GMC C3500; 1967-1978 GMC K15; 1979-1986 GMC K1500; 1967-1978 GMC K25; 1979-1986 GMC K2500; 1968-1978 GMC K35; 1979-1991 GMC K3500; 1969-1970 International 1000D; 1974-1981 Plymouth Trailduster. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black 41504 (Part #DT41504) is designed to fit the 1963-1986 Chevrolet C10.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black 41504 (Part #DT41504) fits 1963-1986 Chevrolet C10 models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black 41504 (Part #DT41504) Drilling is required for installation. Basic hand tools are typically all you need.
Part 41504 fits Chevrolet/GMC Pickup (all with 8' box), Dodge pickup (all except D50 and vehicles with Heavy Duty Suspension), Dodge Ramcharger (except with skid shield), Ford Pickup (all) 1980 and later, Ford Bronco, Ford F350 Super Duty Cab & Chassis, International Pickup, and Plymouth Trailduster (except with skid shield). It does not fit Dodge D50, vehicles with Heavy Duty Suspension, or Dodge Ramcharger or Plymouth Trailduster models equipped with skid shields.
Yes, part 41504 fits all Ford Pickup models from 1980 and later. However, 1980 and later Ford Pickups require a separate Fastener Kit 1685, which must be ordered separately. Follow the special installation instructions provided in Figure 2 of the manual.
Yes, but with important restrictions. If you have a 1981 or later Chevrolet or GMC with a step bumper, you must remove the step bumper support brackets from the frame during installation. These brackets must be retained and can be replaced when the hitch is removed. Critically, the step bumper must not be used for towing when the support brackets are removed. For Ford Pickup models with 16" spare tires and deep drop step bumpers, you may need to adjust the spare tire cradle after installation to retain under-vehicle tire stowage.
You will need wrenches in the following sizes: 3/4", 13/16", and 7/8". You will also need a 1/2" drill bit to drill the six mounting holes in the frame. A torque wrench capable of measuring up to 95 lb-ft is required for final tightening.

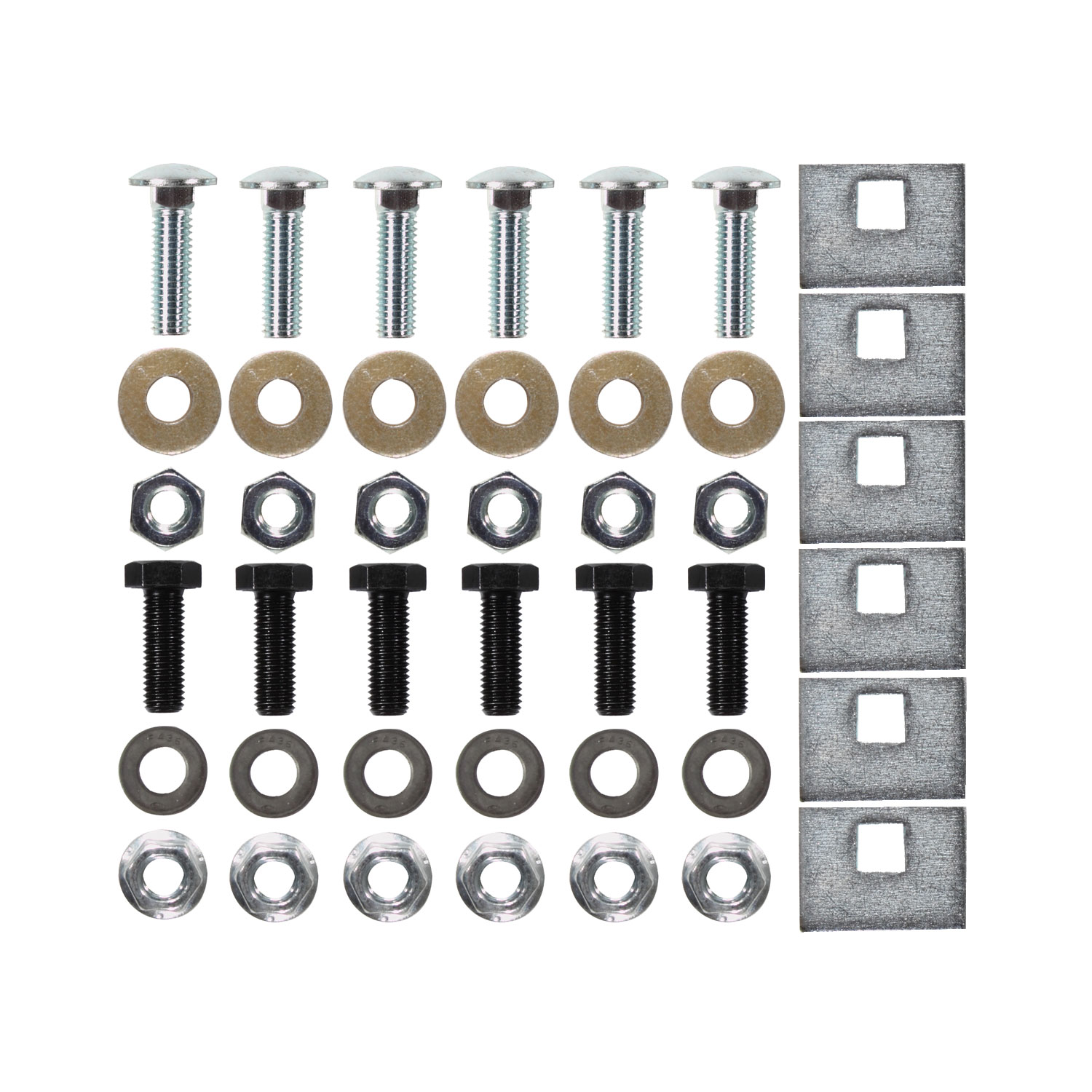

The kit includes: 6 carriage bolts (1/2-13 X 1.75), 6 blocks, 6 conical washers (1/2), 6 hex nuts (1/2-13), 6 flat washers, 6 carriage bolts (1/2-13 X 2.25), 6 flanged locknuts (1/2-20), 4 bevel washers, 2 blocks (1/4 X 1-1/2 X 2), 2 blocks (5/8 X 1 X 2), and 6 hex bolts (1/2-20 X 1.50). Items marked with an asterisk are included in Fastener Kit 1685 (required separately for 1980-later Ford Pickups). Standard fastener kit is 01130-557.
Yes, you must remove the spare tire from the vehicle before beginning installation. Note that to retain under-box tire stowage after the hitch is installed, the spare tire carrier will need to be relocated and/or modified. On some Ford Pickup models equipped with a 16" spare tire, you may need to adjust the spare tire cradle to retain under-vehicle tire stowage.
Measure your vehicle's frame width. For 34" frames, position the side bracket with mounting flanges pointing inboard. For 38" frames, position the bracket with mounting flanges pointing outboard.
Yes, drilling is required. You must drill six 1/2" diameter holes in the vehicle frame using the slotted holes in the bracket as a guide. In some cases, it may be possible to use existing holes in the frame instead of drilling new ones. Do not use a torch to cut holes.
1. Remove the spare tire. 2. Measure frame width and position the first side bracket with flanges pointing inboard (34" frame) or outboard (38" frame). 3. Lift the bracket into position with the rear-most mounting tab at the end of the vehicle frame and clamp it. 4. Drill six 1/2" holes using the slotted holes as a guide. 5. Install side bracket fasteners with blocks placed inside the frame, but do not tighten yet. 6. Repeat steps 3, 4, and 5 on the opposite side. 7. Install the crosstube assembly into the side brackets with bolts, flat washers, and flanged locknuts, then torque to 95 lb-ft. 8. Finally, tighten all side bracket-to-frame fasteners to 75 lb-ft.
Do not tighten the side bracket fasteners when you first install them in Step 5. Leave them loose at that stage. Tighten all side bracket-to-frame fasteners only after the crosstube assembly has been installed and torqued. The final torque specification for side bracket fasteners is 75 lb-ft.
The crosstube assembly bolts, flat washers, and flanged locknuts must be torqued to 95 lb-ft (129 N·M).
All side bracket-to-frame fasteners must be torqued to 75 lb-ft (102 N·M).
Do not exceed the lower of your towing vehicle manufacturer's rating or the following limits: Weight Carrying Ball Mount: maximum tongue weight 500 lb (227 kg), maximum gross trailer weight 5,000 lb (2,270 kg). Weight Distributing: maximum tongue weight 1,000 lb (454 kg), maximum gross trailer weight 10,000 lb (4,540 kg). Always consult your vehicle manufacturer's towing specifications.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly throughout the life of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. Retain any step bumper support brackets that were removed during installation so they can be replaced when the hitch is removed.
A hitch or ball that has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
Yes, if you have a Chevrolet/GMC Pickup (8' box), Dodge pickup (except D50 or Heavy Duty Suspension), Dodge Ramcharger (except with skid shield), Ford Pickup (1980+), Ford Bronco, Ford F350 Super Duty Cab & Chassis, International Pickup, or Plymouth Trailduster (except with skid shield).
Wrenches (3/4", 13/16", 7/8"), a 1/2" drill bit, and a torque wrench. All fasteners are included except 1980+ Ford Pickups, which require separate Fastener Kit 1685.
Yes, you must drill six 1/2" diameter holes in the frame. Existing frame holes may be reused in some cases.
Yes, the spare tire must be removed before installation. The spare tire carrier will need to be relocated and/or modified to retain under-box stowage.
Crosstube assembly: 95 lb-ft (129 N·M). Side bracket-to-frame fasteners: 75 lb-ft (102 N·M).
Weight Carrying: 500 lb tongue / 5,000 lb trailer. Weight Distributing: 1,000 lb tongue / 10,000 lb trailer. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes, but 1981+ Chevrolet/GMC models with step bumpers require removal of frame support brackets. These must be retained and the step bumper cannot be used for towing with brackets removed.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all frame holes to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
