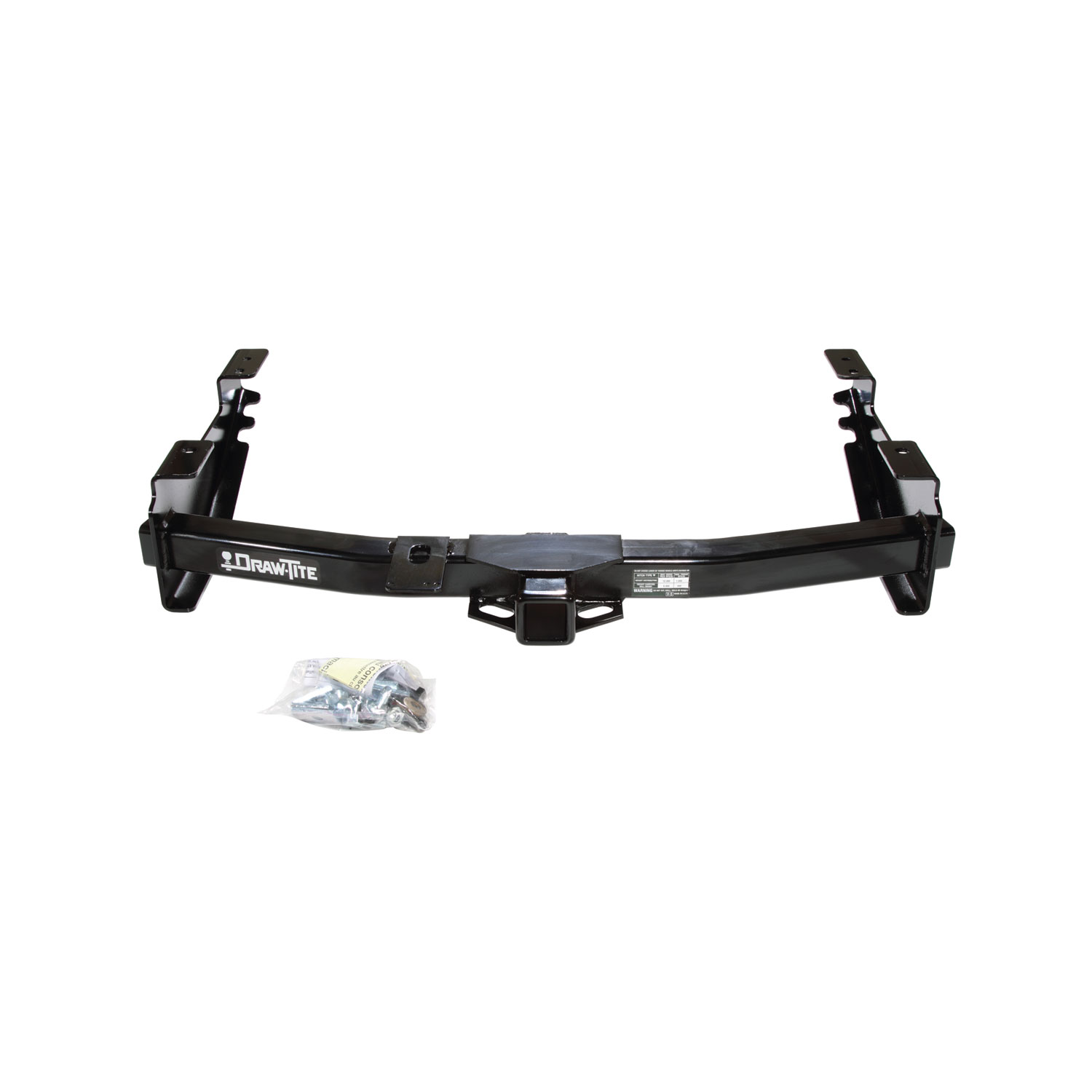

Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41001Draw-titeOriginal price was $352.50. Current price is $223.95.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
2001 - 2007 Chevrolet Silverado 2500 HD
Confirmed to Fit
2001 - 2007 Chevrolet Silverado 3500
Confirmed to Fit
2001 - 2002 GMC Sierra 2500 HD
Confirmed to Fit
2003 - 2007 GMC Sierra 2500 HD
Confirmed to Fit
2001 - 2007 GMC Sierra 3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 12,000 lbs. weight distribution (WD) and 1,200 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 41544 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 54.6 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 12,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,200 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2007 | Chevrolet Silverado 2500 HD | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2001 - 2007 | Chevrolet Silverado 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2001 - 2002 | GMC Sierra 2500 HD | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 2003 - 2007 | GMC Sierra 2500 HD | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2001 - 2007 | GMC Sierra 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/12,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41544 (Part #DT41544) fits 2001-2007 Chevrolet Silverado 2500 HD models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41544 (Part #DT41544) is designed to fit the 2001-2007 Chevrolet Silverado 2500 HD.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41544 (Part #DT41544) fits the following vehicles: 2001-2007 Chevrolet Silverado 2500 HD; 2001-2007 Chevrolet Silverado 3500; 2001-2007 GMC Sierra 2500 HD; 2001-2007 GMC Sierra 3500. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41544 (Part #DT41544) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 41544 is designed for Chevrolet Silverado Pickup 1500/2500 Series and GMC Sierra Pickup 1500/2500 Series. It also fits 2500 H.D./3500 Series models. However, installation differs depending on whether your truck has a factory bumper and the bed length (6 ft. or 8 ft.). Verify your specific model year and bed configuration before purchasing.
Yes, part number 41544 is compatible with GMC Sierra Pickup 2500 H.D./3500 Series. Installation procedures vary depending on whether your truck has a factory bumper and whether the bed is 6 ft. or 8 ft. long.
On vehicles without a factory bumper, it may be necessary to relocate the license plate mounting bracket. The manual does not provide specific instructions for this relocation. Consult with the installer or manufacturer for guidance on your specific vehicle configuration.
You will need wrenches in the following sizes: 3/4", 7/8", 21mm, and 22mm. You will also need a 1/2" drill bit and a torque wrench to tighten fasteners to the specified values (115 Lb.-Ft. for M14 fasteners and 75 Lb.-Ft. for 1/2 GR5 fasteners).
The fastener kit F41544 includes: 4 bolts 1/2-13 X 1.75 (j), 4 spacers with 17/32 hole (k), 4 conical washers (l), 4 hex nuts 1/2-13 (m), 2 bolts M14 X 2.00 X 45 (n), 2 lock washers (o), 2 spacers with 19/32 hole (p), 2 flat washers (q), and 2 nuts M14 X 2.00 (r). The manual indicates that existing M14 fasteners should be removed from the vehicle frame and returned to the customer.
1. Remove existing M14 fasteners from the end of each frame rail if present and return to customer. 2. Lift receiver into position, locating slots in receiver over weldnuts in vehicle frame. 3. Install M14 fasteners through receiver into weldnuts in vehicle frame. 4. Install remaining fasteners as shown. For 6 ft. bed models only: 5. Using hitch as template, drill a 1/2" hole through frame at the center attachment on both sides. 6. Install remaining fasteners as shown. For 8 ft. bed models, use existing holes instead of drilling.
Lift the receiver into position, locating the slots in the receiver over the weldnuts in the vehicle frame. See Figure 1 for the proper placement of fasteners on vehicles with a bumper.
Locate the slots in the receiver over the fore/aft slot near the end of the frame. See Figure 2 for the placement of fasteners on vehicles without a bumper. The center attachment point is also shown in Figure 2.
Drilling is required only for vehicles with a 6 ft. bed. Using the hitch as a template, drill a 1/2" hole through the frame at the center attachment on both sides. Vehicles with an 8 ft. bed use existing holes and do not require drilling.
A 1/2" drill bit is required. The hitch is used as a template to locate the holes, which are drilled through the frame at the center attachment on both sides.
All M14 CL10.9 fasteners must be tightened with a torque wrench to 115 Lb.-Ft. (156 N*M).
All 1/2 GR5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).
The hitch has two towing capacities depending on the type of ball mount used: Weight Distributing: maximum gross trailer weight 12,000 lbs. (5448 kg) with maximum tongue weight 1,200 lbs. (546 kg). Weight Carrying Ball Mount: maximum gross trailer weight 6,000 lbs. (2724 kg) with maximum tongue weight 600 lbs. (272 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not provide a specific post-installation inspection checklist beyond verifying that all fasteners are tight.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval (such as every 100 miles or monthly), only that frequent checks are required.
Part number 41544 fits Chevrolet Silverado and GMC Sierra 1500/2500 Series and 2500 H.D./3500 Series. Installation varies by bumper type and bed length (6 ft. or 8 ft.).
Drilling is required only for vehicles with a 6 ft. bed. A 1/2" hole must be drilled through the frame at the center attachment on both sides. Vehicles with 8 ft. beds use existing holes.
M14 CL10.9 fasteners: 115 Lb.-Ft. (156 N*M). 1/2 GR5 fasteners: 75 Lb.-Ft. (102 N*M). Use a torque wrench for all fasteners.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
