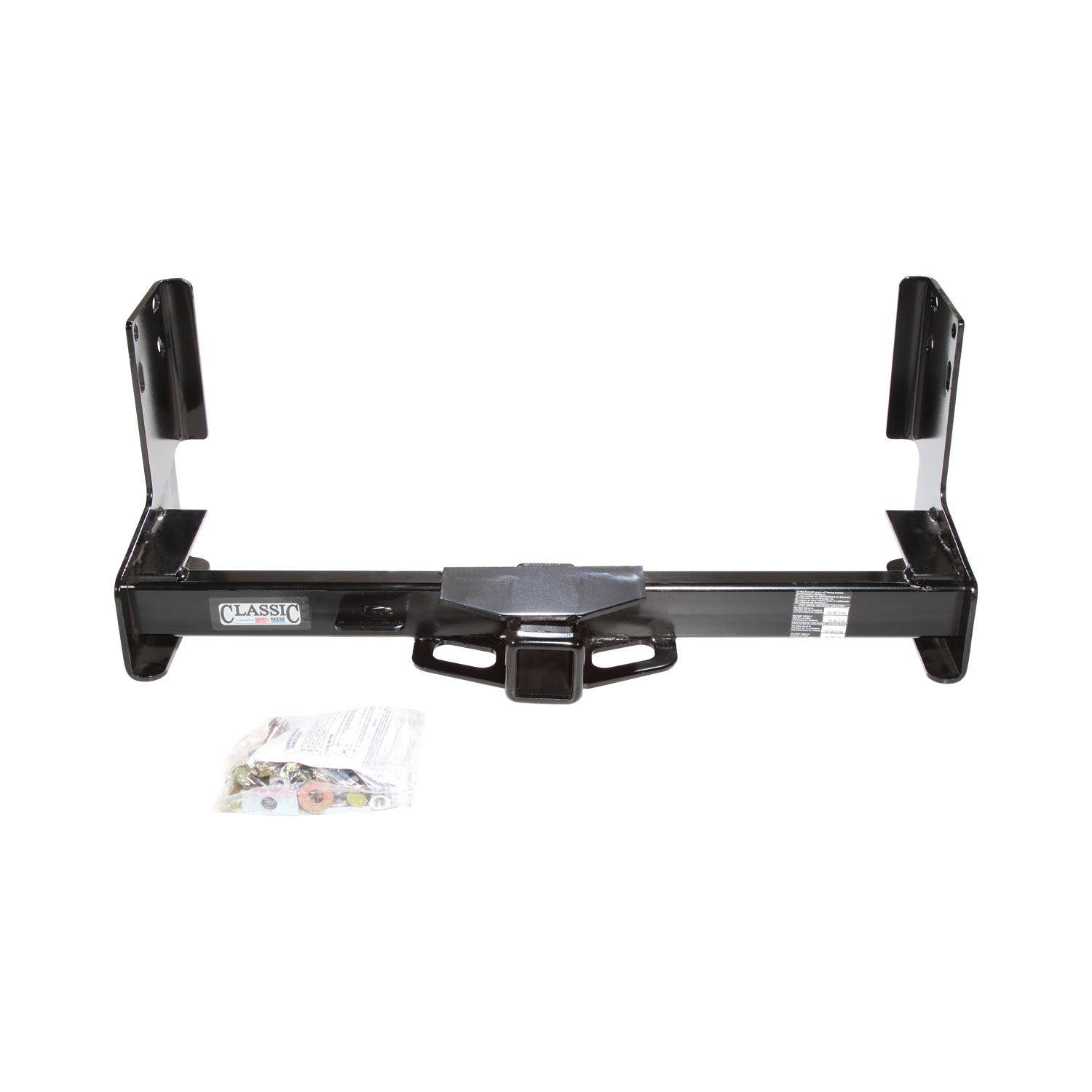

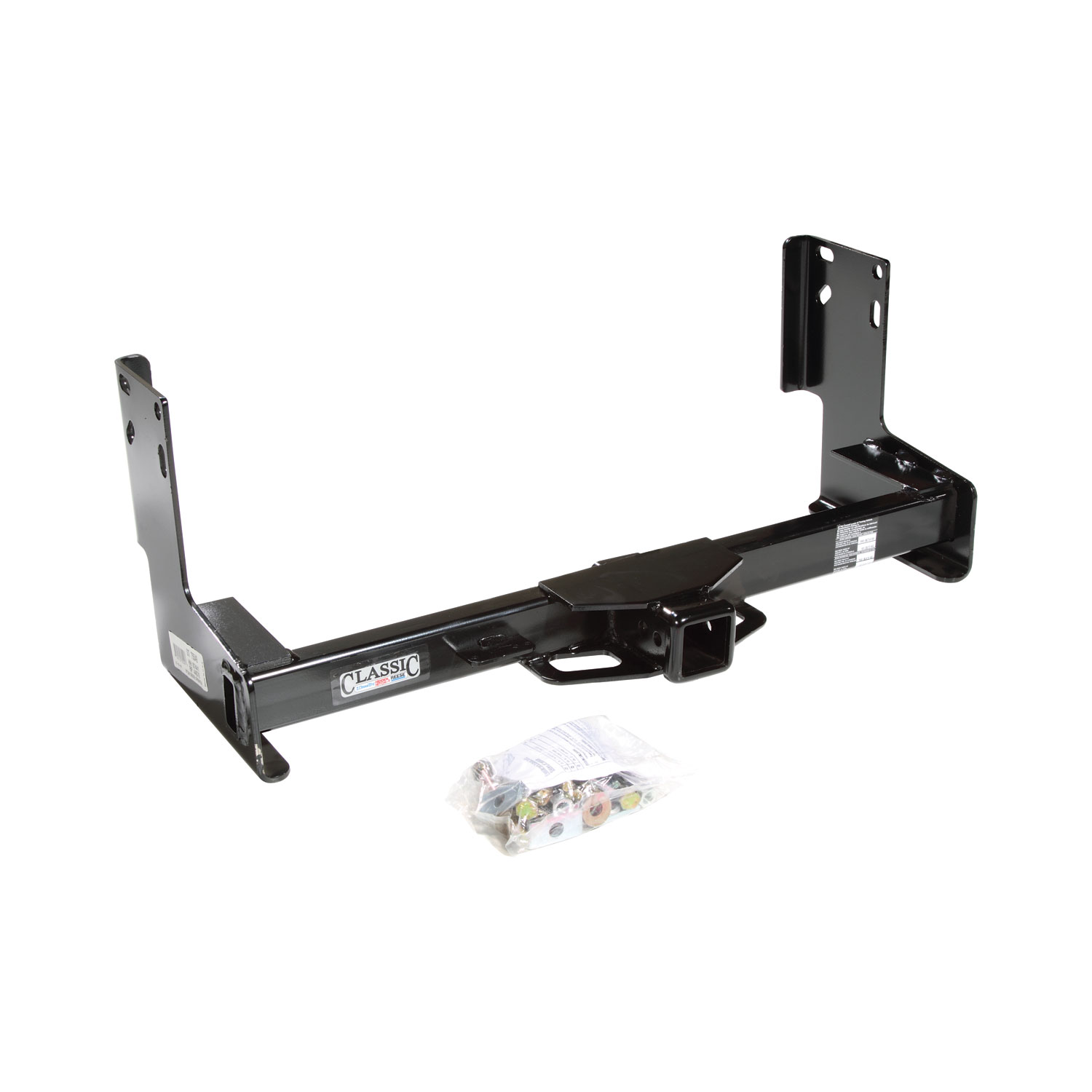

Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 41001Draw-titeOriginal price was $352.50. Current price is $223.95.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
2007 - 2009 Dodge Sprinter 2500
Confirmed to Fit
2007 - 2009 Dodge Sprinter 3500
Confirmed to Fit
2019 - 2021 Freightliner Sprinter 2500
Confirmed to Fit
2007 - 2018 Freightliner Sprinter 2500
Confirmed to Fit
2019 - 2021 Freightliner Sprinter 3500
Confirmed to Fit
2007 - 2018 Freightliner Sprinter 3500
Confirmed to Fit
2007 - 2018 Mercedes-Benz Sprinter
Confirmed to Fit
2010 - 2013, 2019 - 2025 Mercedes-Benz Sprinter 2500
Confirmed to Fit
2014 - 2018 Mercedes-Benz Sprinter 2500
Confirmed to Fit
2010 - 2013, 2019 - 2025 Mercedes-Benz Sprinter 3500
Confirmed to Fit
2014 - 2018 Mercedes-Benz Sprinter 3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 7,500 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75549 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 7,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
11 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2009 | Dodge Sprinter 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
| 2007 - 2009 | Dodge Sprinter 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
| 2019 - 2021 | Freightliner Sprinter 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2007 - 2018 | Freightliner Sprinter 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
| 2019 - 2021 | Freightliner Sprinter 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2007 - 2018 | Freightliner Sprinter 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
| 2007 - 2018 | Mercedes-Benz Sprinter | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2010 - 2013, 2019 - 2025 | Mercedes-Benz Sprinter 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2014 - 2018 | Mercedes-Benz Sprinter 2500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
| 2010 - 2013, 2019 - 2025 | Mercedes-Benz Sprinter 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2014 - 2018 | Mercedes-Benz Sprinter 3500 | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes This hitch will not fit a Sprinter single or dual rear: wheel vehicle with a 30-3/8 in. wide frame measured outside of frame to outside of frame |
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 75549 (Part #DT75549) is designed to fit the 2007-2009 Dodge Sprinter 2500.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 75549 (Part #DT75549) fits 2007-2009 Dodge Sprinter 2500 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 75549 (Part #DT75549) fits the following vehicles: 2007-2009 Dodge Sprinter 2500; 2007-2009 Dodge Sprinter 3500; 2007-2021 Freightliner Sprinter 2500; 2007-2021 Freightliner Sprinter 3500; 2007-2018 Mercedes-Benz Sprinter; 2010-2025 Mercedes-Benz Sprinter 2500; 2010-2025 Mercedes-Benz Sprinter 3500. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black 75549 (Part #DT75549) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75549 fits Dodge Sprinter Van and Cab & Chassis models with 144" and 170" wheelbase. However, the hitch will not fit vehicles with a frame width of 30-3/8" measured outside to outside of the frame. Confirm your vehicle's frame width before purchasing.
Yes, part number 75549 fits Freightliner Sprinter Van and Cab & Chassis models with 144" and 170" wheelbase, provided the frame width does not exceed 30-3/8" measured outside to outside of the frame.
The manual lists Mercedes Sprinter (Van and Cab & Chassis) as an application, but does not provide specific installation instructions for Mercedes models. Contact the manufacturer or an authorized installer to confirm fitment and obtain Mercedes-specific installation guidance.
The hitch will not fit a vehicle with a frame width of 30-3/8" or greater, measured outside to outside of the frame. Measure your vehicle's frame width before installation to confirm compatibility.
The hitch has two capacity ratings depending on type: Weight Distributing hitch supports a maximum gross trailer weight of 7,500 lb (3,405 kg) and tongue weight of 750 lb (341 kg); Weight Carrying Ball Mount supports a maximum gross trailer weight of 6,000 lb (2,724 kg) and tongue weight of 600 lb (272 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
You will need 18mm and 19mm wrenches and a torque wrench. No drill bits are required as no drilling is necessary for installation.

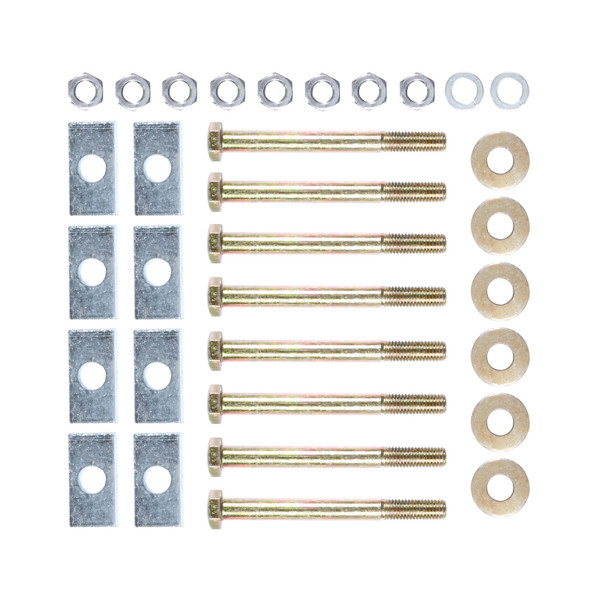

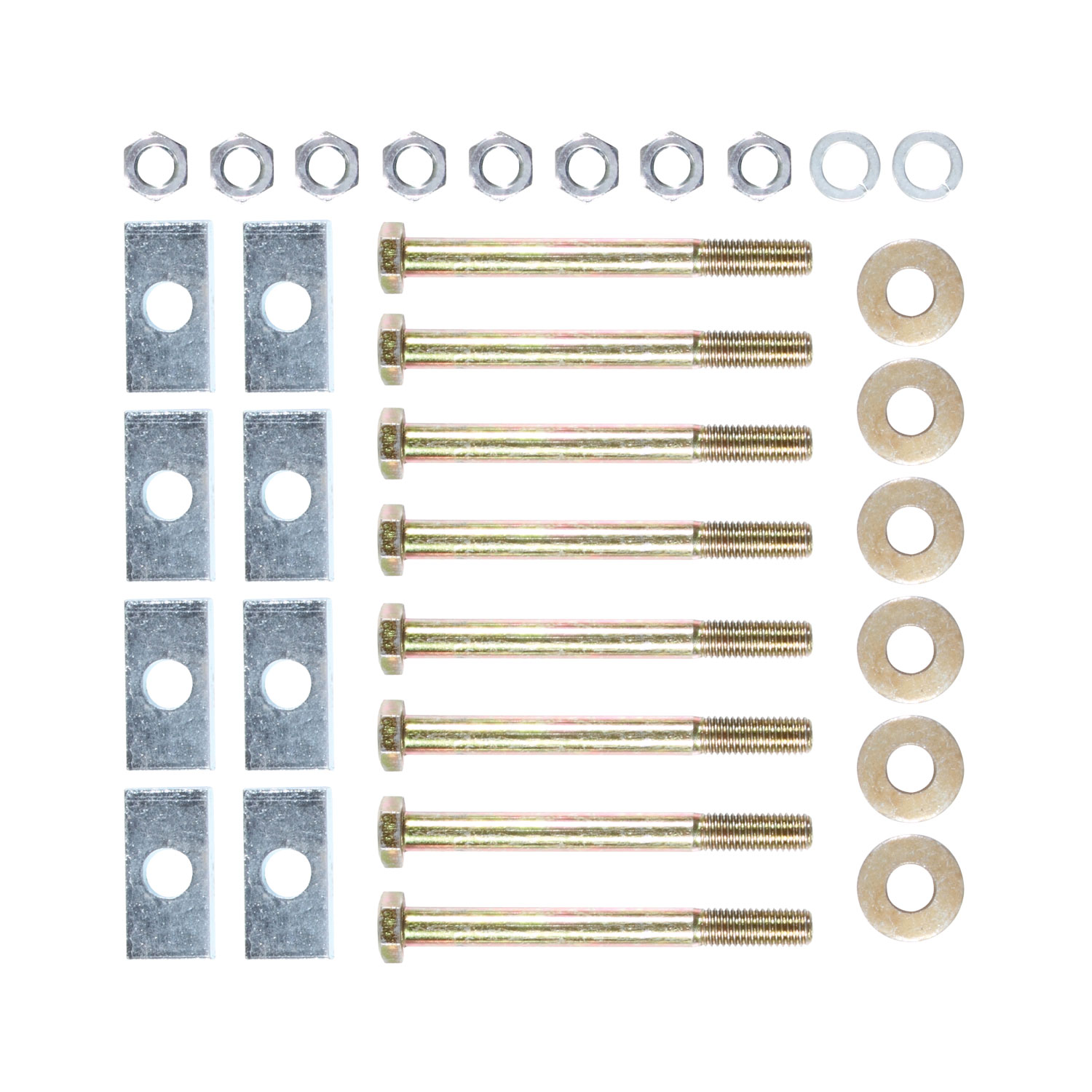

The fastener kit 75549F includes: 8 hex bolts M12 x 1.75 x 120mm CL8.8, 8 spacers ¼ x 1 x 2, 6 toothed washers ½", 8 hex nuts M12 x 1.75, and 2 lock washers ½".
Yes. You must remove the tie down hook from the passenger's side frame rail. Return the tie down hook and its fasteners to the vehicle owner.
If present, remove the wheel chock bracket from the driver's side frame rail. Retain the bracket for reinstallation but discard the bolts. You will install the wheel chock bracket together with the hitch.
1. Remove the tie down hook from the passenger's side frame rail and return it to the vehicle owner. 2. Raise the hitch into position. 3. Install the hex bolt and lock washer through the round hole in the hitch bracket. 4. Install hex bolts and toothed washers through the oblong slots in the hitch bracket on each side. 5. Tighten all M12 x 1.75 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.
1. If present, remove the wheel chock bracket from the driver's side frame rail and retain it for reinstallation; discard the bolts. 2. Raise the hitch and wheel chock bracket into position. 3. Install the hex bolt and lock washer through the round hole in the hitch bracket. 4. Install hex bolts and toothed washers through the oblong slots in the hitch bracket on each side. 5. Tighten all M12 x 1.75 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.
All M12 x 1.75 CL8.8 hex bolts must be tightened to 68 Lb.-Ft. (92 N*M) using a torque wrench.
The hex bolt and lock washer go through the round hole in the hitch bracket. The hex bolts and toothed washers go through the oblong slots in the hitch bracket on each side.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is in the proper position as shown in the installation diagram.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safety.
No. The equipment required section lists "Drill Bits: None", confirming that no drilling is necessary for installation.
The wiring access locations are SUV1 and SUV2. Refer to the vehicle-specific wiring diagram or contact the manufacturer for detailed wiring instructions.
Yes, if it is a Dodge, Freightliner, or Mercedes Sprinter (Van or Cab & Chassis) with 144" or 170" wheelbase and frame width less than 30-3/8" measured outside to outside.
18mm and 19mm wrenches and a torque wrench. No drilling is required.
Tighten all M12 x 1.75 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) with a torque wrench.
Weight Distributing: 7,500 lb gross trailer weight, 750 lb tongue weight. Weight Carrying Ball Mount: 6,000 lb gross trailer weight, 600 lb tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
For Van models: remove the tie down hook from the passenger's side frame rail. For Cab & Chassis models: remove the wheel chock bracket from the driver's side frame rail if present.
Wear eye protection. Do not cut holes with a torch. Observe safety precautions when working beneath the vehicle. If removed, plug all holes to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
