Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
1991 - 1994 Ford Explorer
Confirmed to Fit
1995 - 2000 Ford Explorer
Confirmed to Fit
2001 Ford Explorer
Confirmed to Fit
2001 - 2003 Ford Explorer Sport
Confirmed to Fit
1991 - 1994 Mazda Navajo
Confirmed to Fit
1997 - 2001 Mercury Mountaineer
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

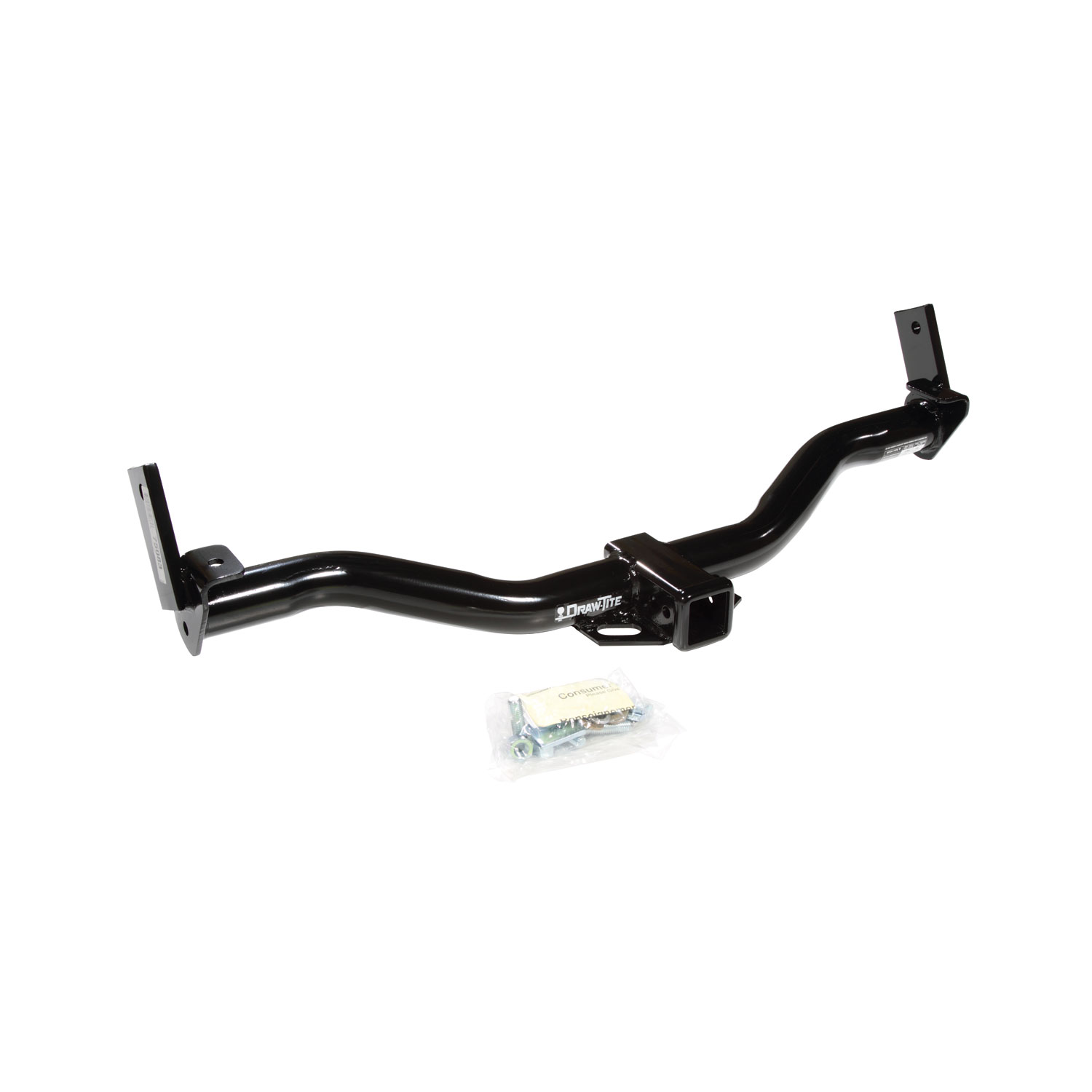

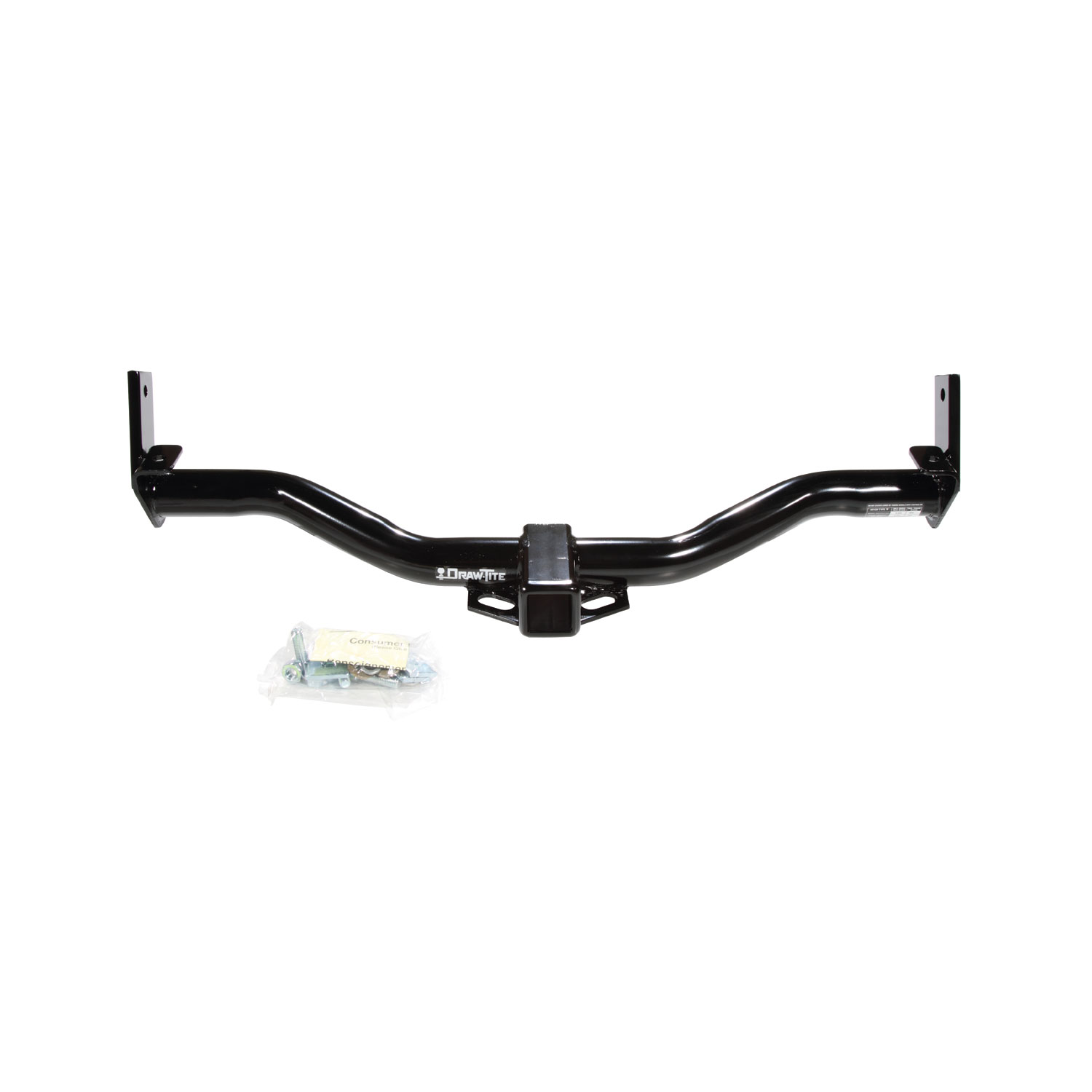

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 6,000 lbs. weight distribution (WD) and 600 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75083 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |

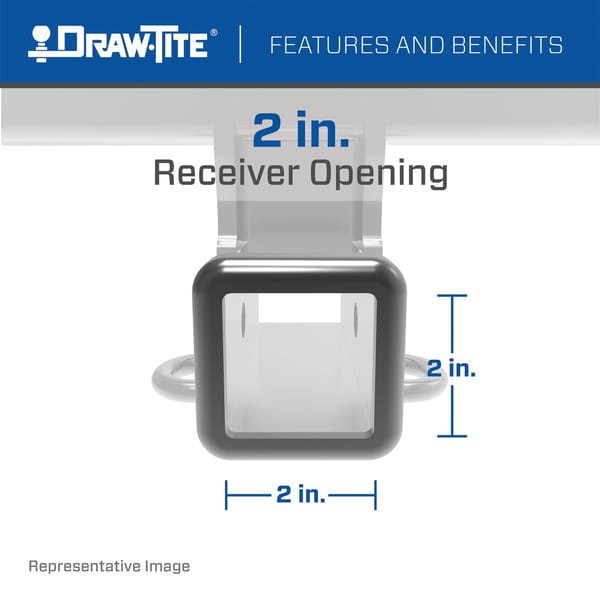

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 6,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 600 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
6 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 1991 - 1994 | Ford Explorer | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 15 minutes |
| 1995 - 2000 | Ford Explorer | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes Will not fit with 16 in. spare tire |
| 2001 | Ford Explorer | 4-Door | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 15 minutes |
| 2001 - 2003 | Ford Explorer Sport | 2-Door | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 15 minutes Will not fit with 16 in. spare tire |
| 1991 - 1994 | Mazda Navajo | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 15 minutes |
| 1997 - 2001 | Mercury Mountaineer | — | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/6,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes Will not fit with 16 in. spare tire |
Yes, part number 75083 is designed for Ford Explorer, Mazda Navajo, and Mercury Mountaineer. However, it will not fit with a 16" spare tire on 1998 and later models. If your vehicle has a 16" spare tire and is a 1998 or later model, this hitch is not compatible.
No. The manual states that this hitch will not fit with a 16" spare tire on 1998 and later models. If your vehicle has a 16" spare tire, you will need a different hitch model.
The maximum towing capacity depends on the hitch type used. A Weight Distributing hitch has a maximum gross trailer weight of 6000 lb (2724 kg) and maximum tongue weight of 600 lb (272 kg). A Weight Carrying Ball Mount has a maximum gross trailer weight of 5000 lb (2270 kg) and maximum tongue weight of 500 lb (227 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch type rating.
You will need wrenches in sizes 13/16", 7/8", and 15/16", a 1/2" drill bit (for 1994 and prior models only), and a torque wrench. The fastener kit F75083 is also required and should be included with the hitch.

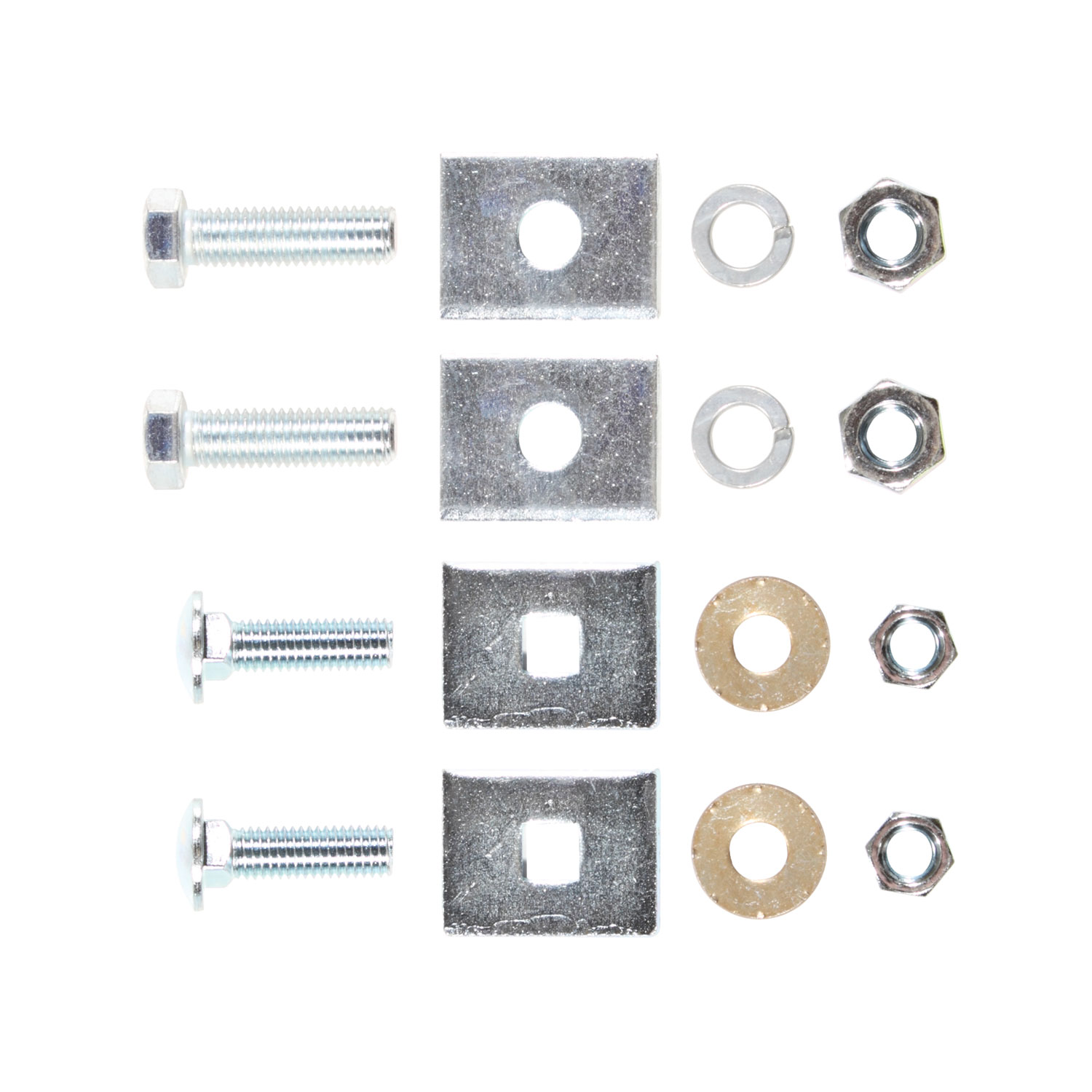

The fastener kit F75083 includes: 2 carriage bolts 1/2-13 X 1.75, 2 bolts 9/16-12 X 2.00, 2 blocks (type 6), 2 blocks (type 3), 2 conical washers 1/2", 2 lock washers 9/16", 2 hex nuts 1/2-13, and 2 hex nuts 9/16-12. These fasteners are typical for both sides of the installation.
Yes. Step 1 of the installation instructions states: "Remove tow hooks, (if equipped) from vehicle frame and return to owner for reinstallation if hitch is removed from vehicle." If your vehicle has tow hooks, they must be removed before proceeding with hitch installation.
Drilling is required only for 1994 and prior models. For these vehicles, you must use the hitch as a template and drill a 1/2" hole in the bottom of the vehicle frame on both sides. For 1995 and later models, no drilling is required; fasteners are installed in existing hitch bracket and frame locations.
All 1/2" fasteners must be tightened to 75 lb.-ft. (102 N·m) using a torque wrench.
All 9/16" fasteners must be tightened to 110 lb.-ft. (149 N·m) using a torque wrench.
Raise the receiver into position under the vehicle, placing the upright bars against the outboard vertical surface of the frame on both sides. Align the hole in the upright bar with the existing slot in the frame on both sides before loosely installing fasteners.
Fasteners should be loosely installed first through the slot in the frame and upright bar. They are tightened to final torque specifications only after all fasteners are in place. For 1994 and prior models, this occurs after drilling the 1/2" holes. For 1995 and later models, this occurs after all fasteners are installed in the hitch bracket and frame.
After installation, check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain properly tightened during use.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This is important to protect the vehicle's interior and prevent damage.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
The 75083 fits Ford Explorer, Mazda Navajo, and Mercury Mountaineer, but will not fit with a 16" spare tire on 1998 and later models.
You need wrenches (13/16", 7/8", 15/16"), a torque wrench, and a 1/2" drill bit for 1994 and prior models only. The fastener kit F75083 is included.
Drilling is required only for 1994 and prior models (1/2" hole in frame, both sides). 1995 and later models require no drilling.
Tighten all 1/2" fasteners to 75 lb.-ft. (102 N·m) and all 9/16" fasteners to 110 lb.-ft. (149 N·m) using a torque wrench.
Weight Distributing: 6000 lb gross trailer weight, 600 lb tongue weight. Weight Carrying: 5000 lb gross trailer weight, 500 lb tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or hitch rating.
A damaged hitch or ball must be removed and replaced immediately. Do not continue to use a damaged hitch.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
