Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Explorer Sport Trac 75112Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2019 Ford Explorer
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76034 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.7 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 500 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2019 | Ford Explorer | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Explorer 76034 (Part #DT76034) fits the following vehicles: 2011-2019 Ford Explorer. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Explorer 76034 (Part #DT76034) is designed to fit the 2011-2019 Ford Explorer.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Explorer 76034 (Part #DT76034) fits 2011-2019 Ford Explorer models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Explorer 76034 (Part #DT76034) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76034 and 84034 are designed for 2011-current Ford Explorer models. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
Yes. If your vehicle has an OEM tow hook, it must be permanently removed for hitch installation. The removed exhaust hanger and fasteners should be returned to the vehicle owner.
Required tools: ratchet, torque wrench, safety glasses, and sockets in 18 mm, 19 mm, 3/4", and 11/16". Optional tools: 6" socket extension, pry bar, exhaust removal pliers, lubricant or soapy water, and universal joint socket.
No drilling is required. The hitch uses existing weldnuts in the frame rail and a reverse pull-wire procedure to feed the carriage bolt through the frame without drilling.
All M12 CL.8.8 fasteners must be tightened to 68 Lb.-Ft (92 N·M) using a torque wrench.
All 1/2-13 GR5 fasteners must be tightened to 75 Lb.-Ft (102 N·M) using a torque wrench.
Weight carrying capacity: 4500 lb (2043 kg) gross trailer weight with 675 lb (306 kg) tongue weight. Weight distributing capacity: 5000 lb (2270 kg) gross trailer weight with 500 lb (227 kg) tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners remain tight and the hitch is securely mounted to the vehicle.

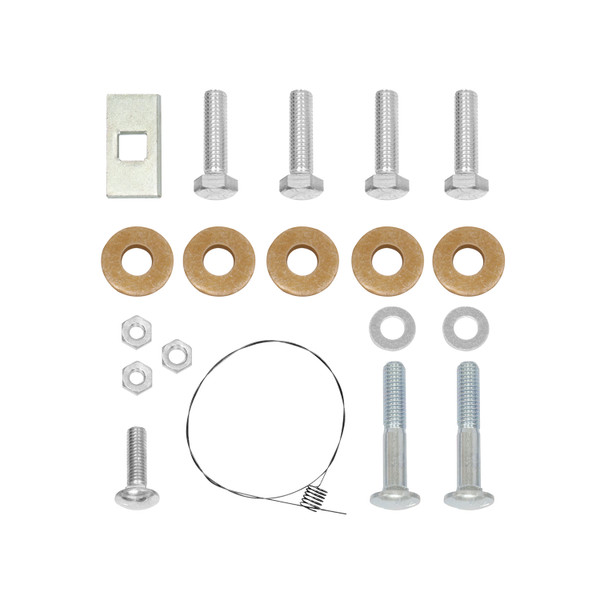

The fastener kit 76034F includes: (4) M12 x 1.75 x 40mm CL8.8 hex bolts, (5) 1/2" conical washers, (1) 1/2-13 x 1.50 GR5 carriage bolt, (1) 1/4" x 1.00" x 2.00" spacer, (1) 1/2-13 hex nut, (2) 7/16-14 x 2.500 GR5 carriage bolts, (2) 7/16" flat washers, (2) 7/16-14 hex lock nuts, and (1) 1/2-13 pull wire.
The average installation time for professional installers is 45 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
Yes. The exhaust system must be lowered at the rubber isolator in 3 places. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. Remove the rubber isolators from the mufflers (2 total) to be reinstalled in step 3. Be careful not to allow the muffler to fall under its own weight.
The reverse pull-wire procedure is used to feed the 1/2-13 carriage bolt and spacer into the passenger side frame rail. Step A: Insert the bolt and block into the frame. Step B: Align the block on the access hole. Step C: Pull the bolt through the block. Leave the pull wire attached until step 6, when it is removed after the hitch is raised into position and the M12 hex bolts are installed.
The conical washers must be installed with the teeth side against the hitch. There are 5 conical washers in the fastener kit: 4 are used with the M12 hex bolts, and 1 is used with the 1/2-13 carriage bolt after the pull wire is removed.
The rubber isolators (removed from the vehicle's mufflers in step 1) are installed onto 7/16 carriage bolts on the hitch. Each isolator is secured with a 7/16" flat washer and a 7/16-14 hex lock nut. The fastener kit includes 2 carriage bolts, 2 flat washers, and 2 hex lock nuts for this purpose.
The hitch is attached to the frame rail using (4) M12 x 1.75 x 40mm CL8.8 hex bolts with conical washers, and (1) 1/2-13 x 1.50 GR5 carriage bolt with a conical washer and hex nut. The M12 bolts are installed through existing weldnuts in the frame rail. The 1/2-13 carriage bolt is fed through the frame using the reverse pull-wire procedure.
The 1/4" x 1.00" x 2.00" spacer is used with the 1/2-13 carriage bolt when feeding it into the passenger side frame rail using the reverse pull-wire procedure in step 4. It helps position the bolt correctly within the frame.
After the hitch is secured with all fasteners tightened to specification, raise the exhaust system back into position at the 3 rubber isolator locations. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with reinstallation. The rubber isolators that were removed in step 1 should now be installed on the hitch's 7/16 carriage bolts as described in step 3.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps with stability and control when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
Cequent Performance Products, Inc. offers a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the defect was not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the product was installed, maintained, and used in accordance with instructions. Product replacement is the sole and exclusive remedy. Contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim.
The 76034 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Always wear safety glasses when installing the hitch. Also observe safety precautions when working beneath a vehicle, including wearing eye protection.
No. Do not cut, weld, or modify the receiver. Do not cut access or attachment holes with a torch. Modifications to the hitch may compromise its structural integrity and safety.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
