Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

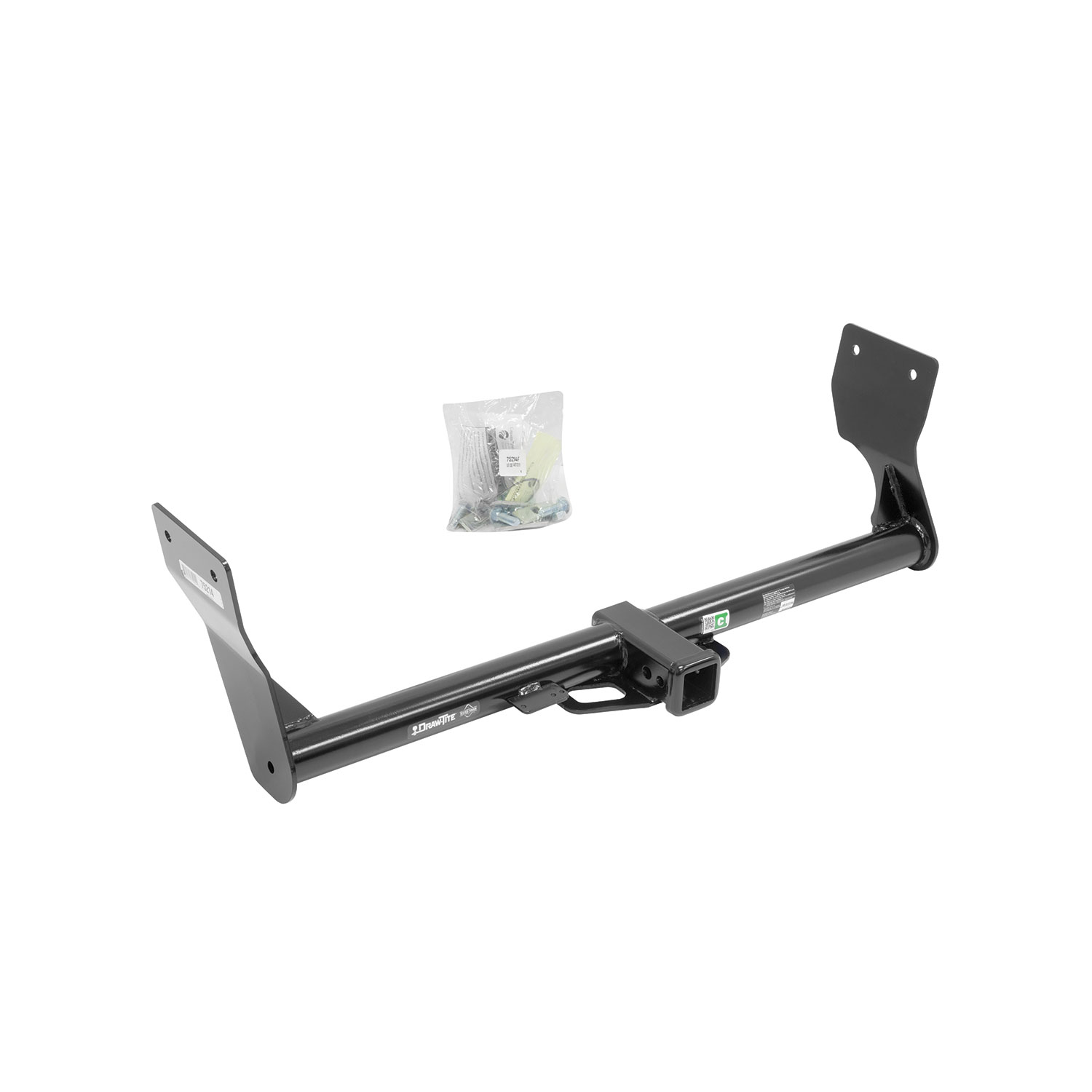

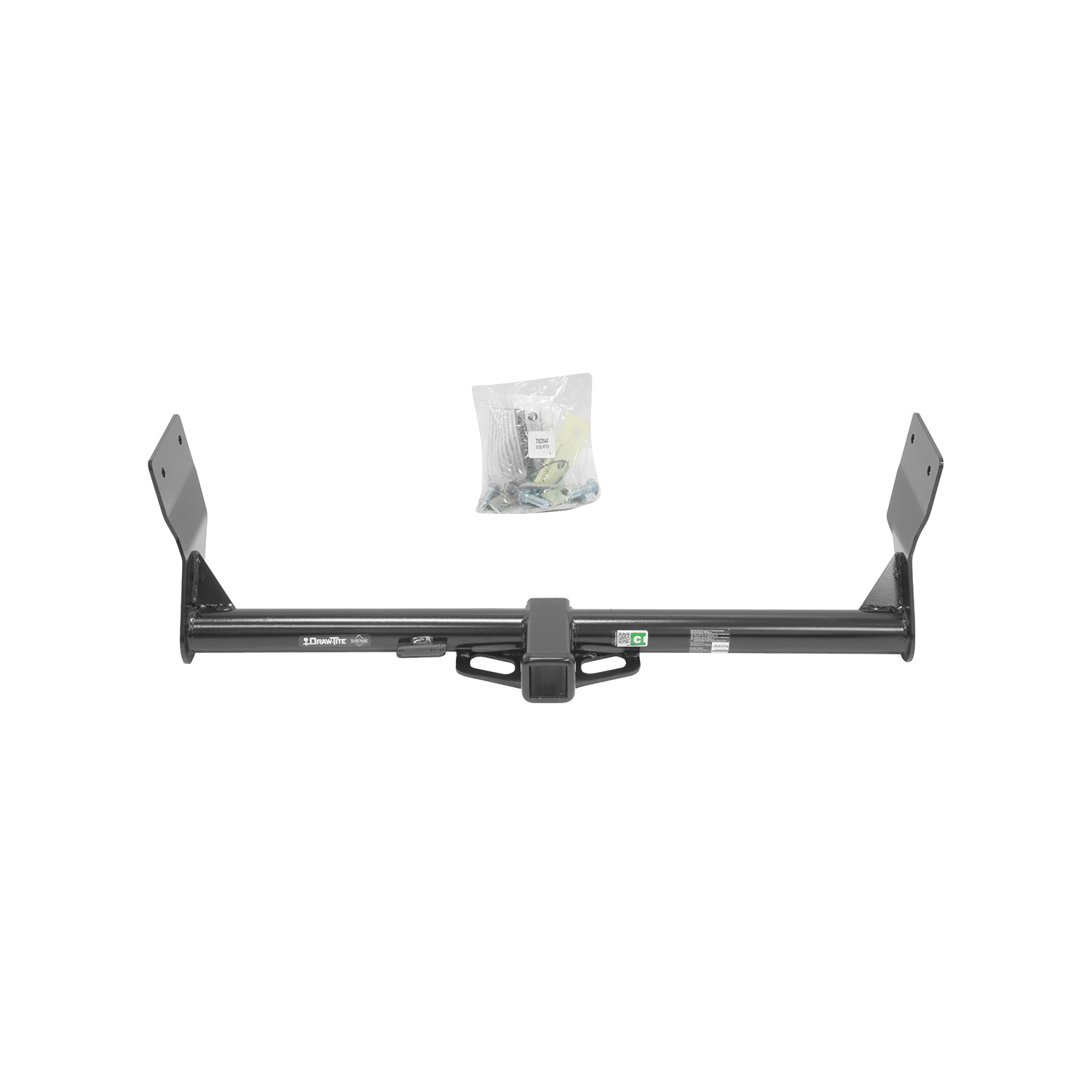

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 600 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75214 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33.2 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 600 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2024 | Ford Edge | Class 3 Trailer Hitch: 4000 lbs 600/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 600/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Edge 75214 (Part #DT75214) is designed to fit the 2015-2024 Ford Edge.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Edge 75214 (Part #DT75214) fits 2015-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Edge 75214 (Part #DT75214) fits the following vehicles: 2015-2024 Ford Edge. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Edge 75214 (Part #DT75214) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 75214, 87684, and 44766 are designed for 2015-Current Ford Edge models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
No. This hitch is designed for 2015-Current Ford Edge models only. The manual does not support fitment on earlier model years.
Maximum Gross Trailer Weight is 4000 lb (1816 kg) and maximum tongue weight is 600 lb (272 kg) for both weight-carrying and weight-distributing configurations. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, safety glasses, sockets (5.5 mm, 10 mm, 3/4 inch), flat-head screwdriver, utility knife, file, marker, tape measure, and lubricant or soapy water. A wrench may also be needed to enlarge the access hole if the carriage bolt is a tight fit.
Yes. A torque wrench is required to tighten all ½-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M). Proper torque is essential to keep the hitch secure during towing.
The manual does not mention disconnecting the battery. No battery disconnection is required for this installation.
Yes. Step 2 requires lowering the exhaust at the rubber isolators on both sides. Support the exhaust to prevent damage. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position in Step 9.
Remove appearance panels on both sides near the wheel well that cover the frame rails. These panels will need to be trimmed or removed once the hitch is in place. Obtain owner permission before trimming.
Remove (2) hex nuts with M10 socket on the bottom of the frame rail and (2) hex nuts with M5.5 socket at the bottom of the frame rail on both sides. These fasteners are removed in Step 1.
The pull wire method allows fasteners to be fed through frame rail holes without removing the frame. Feed the coiled end of the pull wire through the rearward hole and out the access hole. Attach the spacer and carriage bolt to the pull wire, feed fasteners into location, then pull the pull wire to draw fasteners into place. Repeat for forward holes on both frame rails. The pull wires are removed after the conical washer and hex nut are installed.
It may be easier to install the carriage bolt head first when feeding it through the access hole. If the carriage bolt is a tight fit in the access hole, use a file or wrench to enlarge the access hole.
The spacer (qty. 4, .250 x 1 x 3) is attached to the pull wire along with the carriage bolt and is fed into location through the frame rail holes as part of the pull wire installation method.
The conical washer should be positioned with the teeth side against the hitch. Feed the conical washer over the pull wire to hold the bolt in place before removing the pull wire and attaching the hex nut.
The hitch will tend to slant at a slight angle downward due to the mounting geometry. In Step 7, push the hitch straight up into the frame and tighten it to achieve proper alignment.
Tighten all ½-13 GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M). Proper torque is essential to keep the hitch secure to the vehicle when towing.
The fastener kit includes (4) carriage bolts, ½-13 x 1.75 GR5. These are tightened to 75 Lb.-Ft. (102 N·M) in the final installation step.
The fastener kit includes (4) hex nuts, ½-13 GR2. These are attached after the conical washer is positioned over the pull wire.
No drilling is required. The hitch uses existing frame rail holes and an access hole. However, the access hole may need to be enlarged with a file or wrench if the carriage bolt is a tight fit.
Yes. In Step 10, the appearance panels removed in Step 1 must be trimmed or returned to the owner. Obtain owner permission before trimming. Mark the area to be trimmed with a marker (2 inches by 6 inches based on the oblong access hole), then use a utility knife to trim the area. Do not use a torch to cut the access holes.
The trim area is 2 inches (50.8 mm) wide by 6 inches (152.4 mm) tall, corresponding to the oblong access hole in the frame rail.
No. Do not cut access or attachment holes with a torch. Use a utility knife to trim the appearance panels instead.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Support the exhaust system to prevent damage. Do not cut access holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your vehicle manufacturer's rating or 4000 lb GVWR / 600 lb tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the hitch is properly aligned and not slanting. Ensure the exhaust system is properly reinstalled and supported.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The average installation time for professional installers is 30 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.

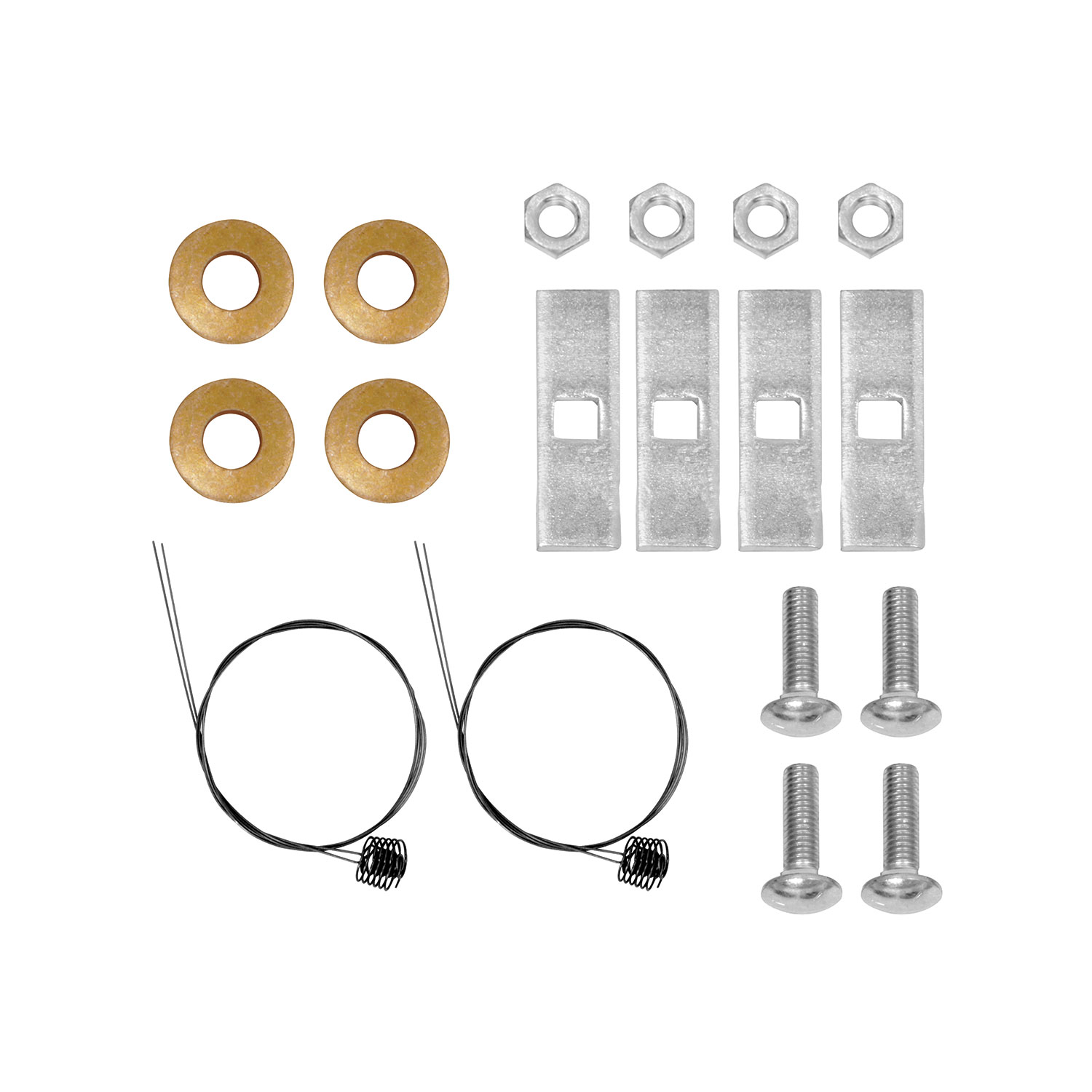

The fastener kit 75214 F includes: (4) carriage bolts ½-13 x 1.75 GR5, (4) spacers .250 x 1 x 3, (4) conical washers ½ inch, (4) hex nuts ½-13 GR2, and (4) pull wires ½-13.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Cequent Performance Products, Inc. offers a Limited Lifetime Warranty to the original consumer purchaser only. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the defect was not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained and used according to instructions. Product replacement is the sole remedy. Contact 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170 to make a claim. Retain your purchase receipt.
If the carriage bolt is a tight fit into the access hole, use a file or wrench to enlarge the access hole. This is noted in Step 3 and shown in Figure 3.
The hitch will tend to slant at a slight angle downward. Push the hitch straight up into the frame and tighten it to achieve proper alignment. This is Step 7 of the installation process.
Spray lubricant or soapy water on the metal hanger rod and the rubber isolator. This helps with removal of the exhaust at the rubber isolators on both sides.
Spray lubricant or soapy water on the metal hanger rod. Work on one side at a time. The entire rubber isolator can move on the metal rod. Push the rubber isolator toward the outside while attaching the remaining metal rod back into position.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
