Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

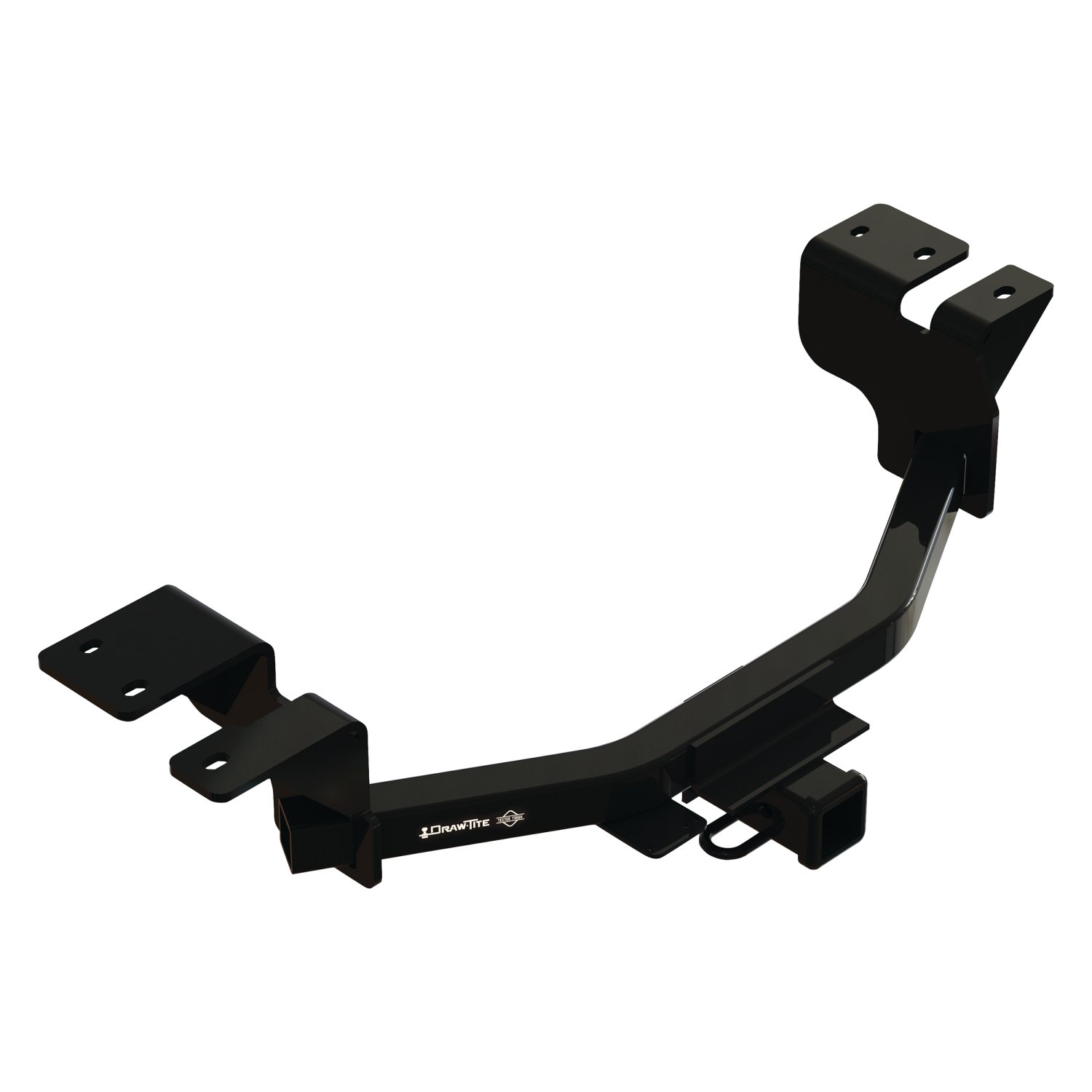

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76557 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27.195 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 in. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Ford Maverick | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Maverick 76557 (Part #DT76557) fits the following vehicles: 2022-2026 Ford Maverick. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Maverick 76557 (Part #DT76557) fits 2022-2026 Ford Maverick models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Maverick 76557 (Part #DT76557) is designed to fit the 2022-2026 Ford Maverick.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Maverick 76557 (Part #DT76557) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76557, 84557, and CQT76557 are designed for 2022-current Ford Maverick. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and model years.
The maximum gross trailer weight is 4500 lb (2043 kg) and the maximum tongue weight is 675 lb (306 kg). However, you must not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, sockets (7 mm, 19 mm, 11/16"), socket extension, flat head screwdriver, die grinder, exhaust removal pliers, wire brush, and soapy water. Professional installation is recommended if you are not comfortable performing the work yourself.
Yes. The first installation step requires lowering the exhaust muffler. Use soapy water to lubricate the exhaust rubber hangers, then use exhaust removal pliers to remove both rubber hangers. Be sure to support the exhaust before removing the hangers.
Fastener Kit 76557F includes: (2) carriage bolts 7/16"-14 x 2.00 GR5, (2) hex nuts 7/16"-14 GR2, (2) conical washers 7/16", (2) spacers .250 x 1.00 x 3.00, (2) pull wires 7/16", (1) bolt M12x1.75x70mm CL 8.8, (4) conical washers 1/2", (2) spacers .250" x 1.50" x 3.00", (1) spacer .375" x 1.50" x 3.00", and (3) bolts M12x1.75x40 CL 8.8.
Yes. Using a 7 mm socket and flat head screwdriver, remove (8) screws and (1) rivet from the bottom appearance panel on the passenger side of the vehicle. Return (2) screws to the vehicle owner. The panel is reinstalled after hitch installation.
Yes. Using a 19 mm socket, remove (2) M12 bolts from the bottom surface of the chassis on both sides of the vehicle before installing the hitch.
The pull wires (part ⑤) are used to feed the carriage bolts and spacers through the frame access holes during installation. Feed one carriage bolt and one spacer through the access hole using the pull wires on both sides of the vehicle, then leave the pull wires attached. After raising the hitch, feed the pull wire through the hitch bracket slot, then remove the pull wires before installing the conical washers and hex nuts.
The conical washer teeth side must be against the hitch. This applies to both the 7/16" conical washers used with the carriage bolts and the 1/2" conical washers used with the M12 bolts.
All fasteners are installed loosely before final tightening. This includes: the 7/16" conical washers and hex nuts on both sides of the hitch, the M12 bolt and 1/2" conical washer on the driver side, and the three M12 bolts and 1/2" conical washers in the remaining holes. Final tightening with a torque wrench occurs in steps 5 and 6.
All M12 fasteners must be tightened to 68 Ft.-Lb (92 N·M) using a torque wrench.
All 7/16" fasteners must be tightened to 50 Ft.-Lb (68 N·M) using a torque wrench.
Yes. After the hitch is installed and torqued, use a die grinder to trim the area shown in Figure 2 (3.00" x 2.50"). Then reinstall the appearance panel using (6) screws and (1) rivet that were removed in step 2.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use a die grinder instead.
1. Lower exhaust muffler using soapy water and exhaust removal pliers. 2. Remove bottom appearance panel (8 screws and 1 rivet). 3. Remove (2) M12 bolts from chassis. 4. Install hitch: feed carriage bolts and spacers through access holes using pull wires, raise hitch, feed pull wires through bracket slot, remove pull wires, install conical washers and hex nuts loosely on both sides, install spacers and M12 bolts loosely. 5. Torque all M12 fasteners to 68 Ft.-Lb (92 N·M). 6. Torque all 7/16" fasteners to 50 Ft.-Lb (68 N·M). 7. Trim appearance panel with die grinder and reinstall. 8. Reinstall exhaust rubber hangers and muffler.
Three spacers (⑧⑧⑨) are inserted between the offset bracket tab and the mounting surface on the driver side. Specifically: (2) spacers .250" x 1.50" x 3.00" and (1) spacer .375" x 1.50" x 3.00" are used with the M12 bolt on the driver side.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Support the exhaust before removing rubber hangers. Do not cut access holes with a torch. Keep the installation instructions for future reference.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 4500 lb GVWR / 675 lb tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Proper torque is needed to keep the hitch secure to the vehicle when towing. Check the hitch frequently, making sure all fasteners and ball are properly tightened.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to ensure the hitch remains securely mounted to the vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced.
The average installation time for professional installers is 60 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
