Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

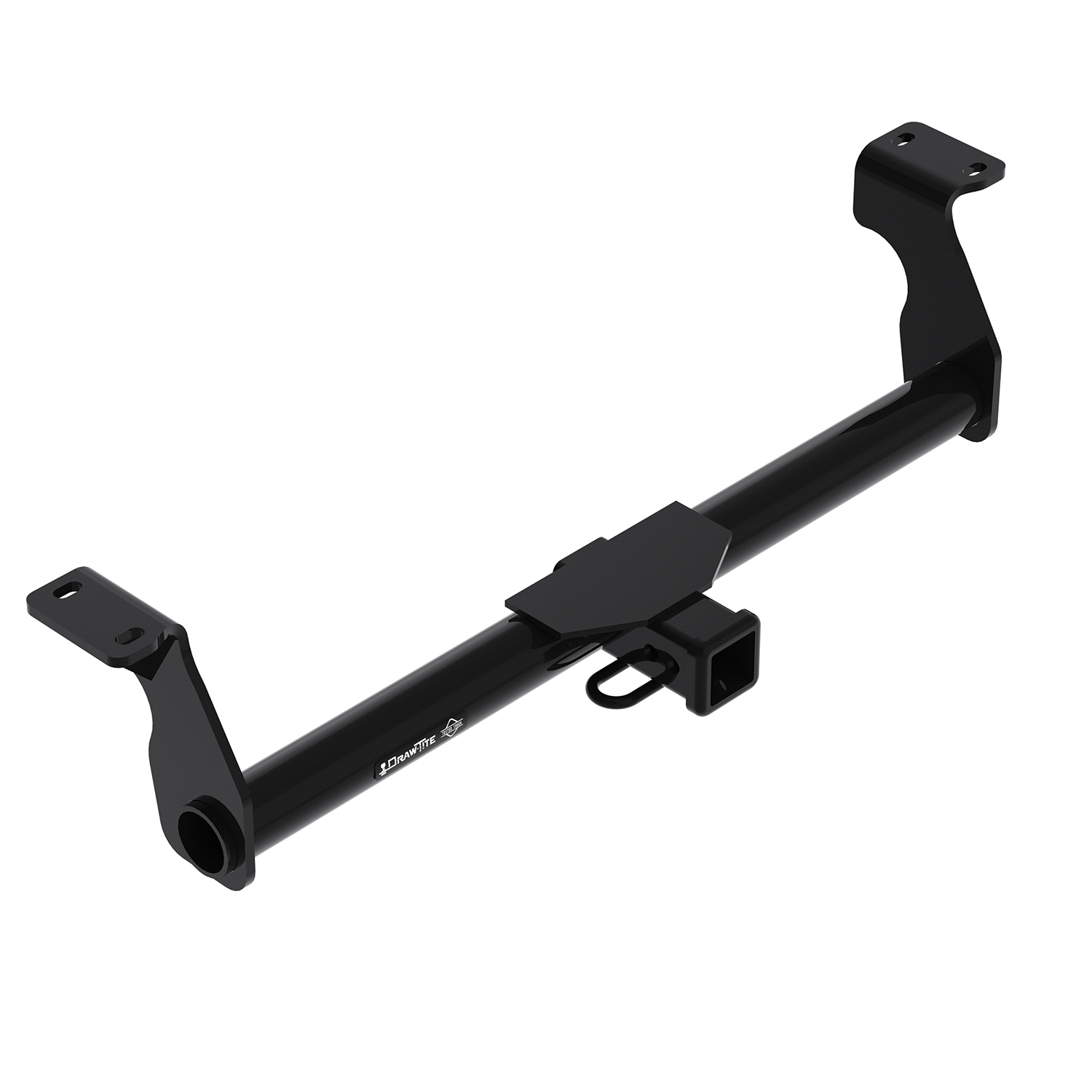

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76327 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 31.3 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 - 2025 | Ford Escape | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
| 2020 - 2022 | Ford Escape | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes Hitch crosstube is visible beneath bumper |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape 76327 (Part #DT76327) fits 2020-2025 Ford Escape models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape 76327 (Part #DT76327) fits the following vehicles: 2020-2025 Ford Escape. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape 76327 (Part #DT76327) is designed to fit the 2020-2025 Ford Escape.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape 76327 (Part #DT76327) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76327, 84327, and CQT76327 are designed for 2020-Current Ford Escape models. Visit the manufacturer's website for the most up-to-date information regarding specific model years and trim levels.
Maximum gross trailer weight is 4500 lb. (2041 kg) for weight-carrying mode or 5000 lb. (2267 kg) for weight-distributing mode. Maximum tongue weight is 675 lb. (306 kg) for both types. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 1/2" sockets, 6" socket extension, die grinder, and exhaust hanger removal tool. Installation time is approximately 40 minutes for professional installers.
Yes. The exhaust must be lowered before installation. Using an exhaust hanger removal tool, remove the rearmost driver-side and rearmost passenger-side rubber hangers to lower the muffler. Be sure the exhaust is supported before removing the hangers. After hitch installation, raise the exhaust back into position.
No drilling is required. However, the forward access slot must be enlarged using a die grinder on both the driver and passenger sides to fit the head of the 1/2" carriage bolt. Do not use a torch to cut access holes.
All 1/2"-13 Grade 5 fasteners must be tightened to 75 Ft.Lb. (102 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do NOT apply your brakes and do NOT speed up. Always wear your seatbelt, slow down when towing, and never exceed posted speed limits.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to your vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry.
Fastener kit 76327F includes: (4) carriage bolts 1/2"-13 x 1 3/4" Grade 5, (4) spacers 1/4" x 1" x 3" (part #3022), (4) conical washers 1/2" (part #01292008), (4) hex nuts 1/2" Grade 5, and (4) pullwires 1/2"-13 (part #5482). All fasteners are supplied and no additional hardware is required.
The pullwires are used to guide the carriage bolts and spacers through the vehicle frame access hole during installation. After installing the carriage bolts and spacers into the frame, the pullwires are left attached and then used to guide the pullwire ends through the holes in the hitch bracket as the hitch is raised into position. The pullwires are removed before installing the conical washers and nuts.
The conical washers must be installed with the teeth side facing toward the hitch bracket. This orientation is critical for proper fastener function and load distribution.
The pullwire should be kinked to keep the spacer independent of the bolt during installation. This prevents the spacer from sliding along the bolt shaft and ensures proper positioning of the spacer within the frame before the hitch is raised into position.
Spray a lubricant or soapy water on the rubber hangers before removal. This makes them slide off the metal pins more easily and reduces the risk of damage to the hangers or exhaust system.
The exhaust must be supported before removing the rubber hangers to prevent the muffler and exhaust system from falling or being damaged. Proper support ensures safe working conditions and prevents injury or damage to the vehicle.
A die grinder must be used to enlarge the forward access slot on both the driver and passenger sides. The access hole must be enlarged enough to fit the head of the 1/2" carriage bolt. Do not use a torch to cut the access holes.
The maximum tongue weight is 675 lb. (306 kg) for both weight-carrying and weight-distributing hitch types. This limit must not be exceeded regardless of the hitch type used.
Load the trailer heavier in front. This means the weight distribution should favor the front of the trailer to ensure proper weight transfer to the hitch and stable towing performance.
Safety glasses must always be worn when installing the hitch. Additionally, observe all safety precautions when working beneath a vehicle, including proper support and eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion or damage from moisture and exhaust gases.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball, as this could compromise safety and towing performance.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
No. Do not cut, weld, or modify the receiver. Any modification to the hitch structure could compromise its integrity, safety, and compliance with towing standards. Modifications are not permitted.
The manual states that part numbers 76327, 84327, and CQT76327 are designed for 2020-Current Ford Escape models. For the most up-to-date information regarding specific model years and trim levels, visit the manufacturer's website at www.horizonglobal.com.
The installation sequence is: (1) Install carriage bolts and spacers into the vehicle frame through the access hole using pullwires, leaving pullwires attached. (2) Raise the hitch into position and align the holes in the hitch bracket to the carriage bolts. (3) Guide the pullwire ends through the holes in the hitch bracket. (4) Remove the pullwires. (5) Install conical washers with teeth side toward the hitch. (6) Install hex nuts. (7) Tighten all fasteners to 75 Ft.Lb. (102 N·M) using a torque wrench.
The carriage bolts are 1/2"-13 x 1 3/4" Grade 5. Four bolts are included in fastener kit 76327F. These bolts must be tightened to 75 Ft.Lb. (102 N·M) using a torque wrench.
The spacers are 1/4" x 1" x 3" and are part number 3022. Four spacers are included in fastener kit 76327F. The spacers are installed between the carriage bolts and the vehicle frame to maintain proper spacing and load distribution.
The conical washers are 1/2" and are part number 01292008. Four washers are included in fastener kit 76327F. The washers must be installed with the teeth side facing toward the hitch bracket to ensure proper load distribution and fastener security.
The hex nuts are 1/2" Grade 5. Four nuts are included in fastener kit 76327F. These nuts are installed on the carriage bolts after the conical washers and must be tightened to 75 Ft.Lb. (102 N·M) using a torque wrench.
Four fastener sets are required, one on each side of the vehicle frame (two per side). Each set consists of one carriage bolt, one spacer, one conical washer, and one hex nut. All fasteners are included in fastener kit 76327F.
The average installation time is 40 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Horizon Global provides a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used in accordance with the manufacturer's instructions. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. Product replacement is the sole remedy under this warranty.
Check that all fasteners are tight. Using a torque wrench, verify that all 1/2"-13 Grade 5 fasteners are tightened to 75 Ft.Lb. (102 N·M). Loose fasteners are the most common cause of hitch movement or instability. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened.
The access hole must be enlarged using a die grinder on both the driver and passenger sides. The forward slot must be opened up enough to fit the head of the 1/2" carriage bolt. If the hole is still too small after grinding, continue enlarging it until the bolt head passes through freely. Do not use a torch to cut the access hole.
The manual does not provide specific guidance for stuck pullwires. However, the pullwires are designed to be removed after the hitch is positioned and the holes are aligned. If pullwires are difficult to remove, gently wiggle or rotate them while pulling to free them from the hitch bracket holes. Ensure the hitch is fully raised and properly aligned before attempting to remove the pullwires.
The manual recommends using a spray lubricant or soapy water on the rubber hangers to make them slide off the metal pins more easily, which reduces the risk of damage. If hangers are damaged during removal, they should be replaced before reinstalling the exhaust. Damaged hangers can cause the exhaust to hang improperly or rattle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
